Front-panel overview
The front panel of the Model 2450 is shown below. Descriptions of the controls on the front panel
follow the figure.
POWER switch
HOME key
MENU key
QUICKSET key
HELP key
Using the front-panel interface

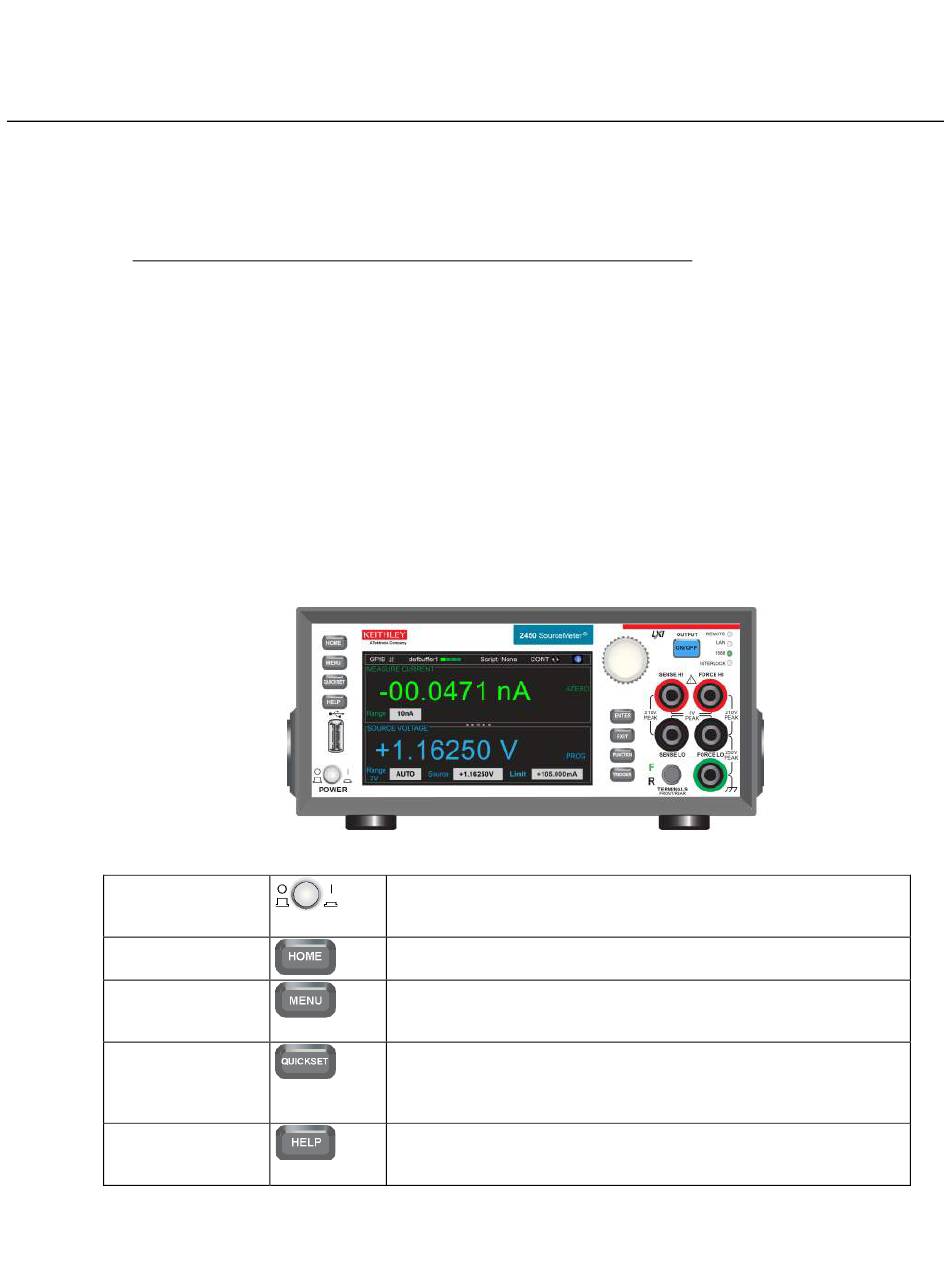

Figure 1: Model 2450 front panel
Press the power switch so that it is in the on position (|) to turn the
Model 2450 on. Press the power switch so that it is in the off position
(O) to turn it off.
Press the HOME key to return the display to the home (default)
screen.
Press the MENU key to open the main menu. Press the icons on the
main menu to open source, measure, views, trigger, scripts, and
system settings screens.
Press the QUICKSET key to open a menu of preconfigured one-
touch setups, including voltmeter, ammeter, ohmmeter, and power
supply setups. Also allows you to choose test functions and quickly
adjust performance for better resolution or speed.
Opens context-sensitive help for the area that has focus on the
display. If there is no specific focus when you press the HELP key,
overview information for the screen you are viewing displays.
