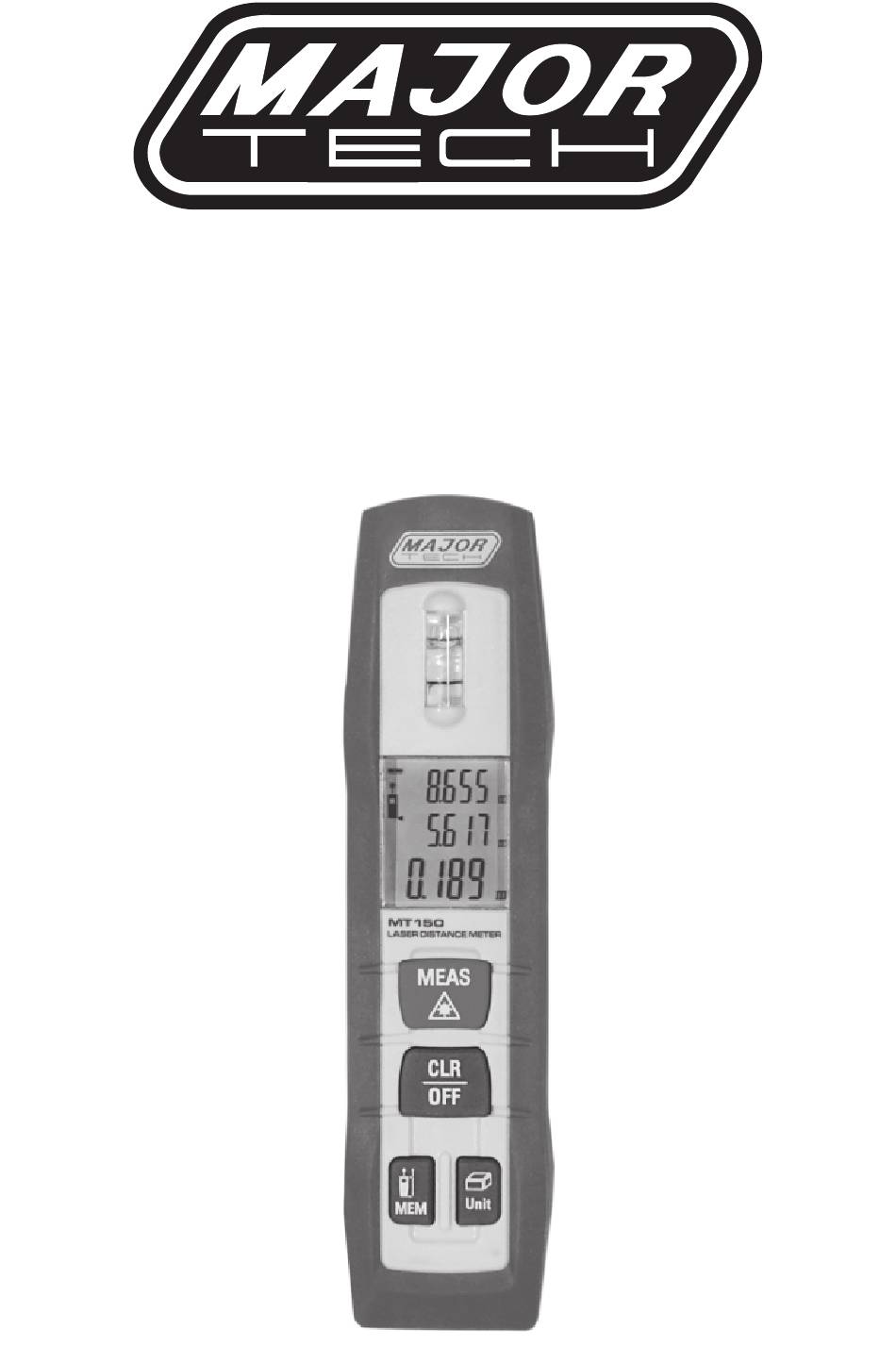

- Page 1 INSTRUCTION MANUAL MT150 50M LASER DISTANCE METER...
-
Page 3: Table Of Contents
Contents Page no 1. Introduction................4 2. Features..................4 3. Safety Instructions..............4 3.1. Permitted Use..............5 3.2. Prohibited Use..............5 4. Laser Classification............... 5 5. Inserting/replacing Batteries..........6 6. Keypad..................6 7. LCD Display................6 8. Initial Operation and Setting..........7 8.1. -
Page 4: Introduction

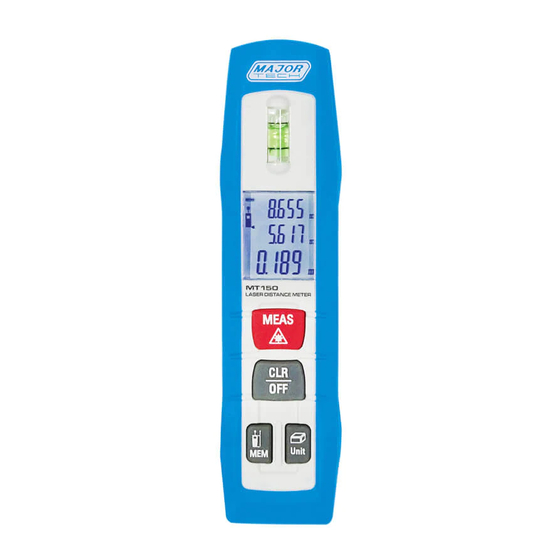

1. Introduction Thank you for purchasing the Laser Distance Meter. The MT150 is a pen-shaped laser distance meter and was specifically designed for indoor applications. Shortcut and Soft grip keys for addition, subtraction, area and volume calculation allow for fast and very reliable measurement. -
Page 5: Permitted Use
3.1. Permitted Use Ÿ Measuring distances. Ÿ Computing functions, e. g. areas and volumes. 3.2. Prohibited Use Ÿ Using the instrument without instruction. Ÿ Using outside the stated limits. Ÿ Deactivation of safety systems and removal of explanatory and hazard labels. Ÿ... -
Page 6: Inserting/Replacing Batteries
5. Inserting/Replacing Batteries 1. Remove battery compartment lid. 2. Insert batteries, observing correct polarity. 3. Close the battery compartment again. • Replace the batteries when the symbol “ “ flashes permanently in the display. • Use alkaline batteries only. • Remove the batteries before any long period of non-use to avoid the danger of corrosion. -
Page 7: Initial Operation And Setting
8. Initial Operation and Setting 8.1. Switching On and Off Switches on the instrument and laser. Press this button longer to switch off the instrument. The instrument switches off automatically after three minutes of inactivity. 8.2. Clear Button The last action is cancelled or the data display is cleared. If in the mode of History storage, press MEM button and Clear button simultaneously will clear all storage data in the memory. -
Page 8: Distance Unit Setting For Instrument
8.4. Distance Unit Setting For Instrument Click the button longer to change the next type of unit. The Unit following unit can be set: Area Distance Volume 0.000 m 0.000 m² 0.000 m³ 0.0 in 0.000 ft² 0.000 ft³ 0 1/16 in 0.000 ft²... -
Page 9: Functions
9. Functions 9.1. Area Measurement Press the button once will start the area measurement function. Unit Press button to take the first length measurement (e.g. lengt Press button again to take the second length measurement (e.g. width). The result of the area measurement is displayed in the third line, the individually measured values are displayed in lines 1 and 2. -
Page 10: Switching Bluetooth On
9.4. Switching BLUETOOTH On Hold down the button until the Bluetooth symbol disappears in Unit the display. Then you can use our Meterbox APP installed on your phone to connect with this instrument. 9.5. Switching BLUETOOTH Off button until the Bluetooth symbol disappears in Hold down the Unit the display. -
Page 11: Specifications
11. Specifications Function Range Range (Use target plate from ±50m) 0.05 to 50m (0.2 to 164ft) Measuring accuracy up to 10m Typically: ±1.5mm (±1/16in) (2σ, standard deviation) Measuring units m, in, ft Laser class Class II Laser Type 650 nm, <1mW Smallest unit displayed Range of BLUETOOTH IP54 Housing... - Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
