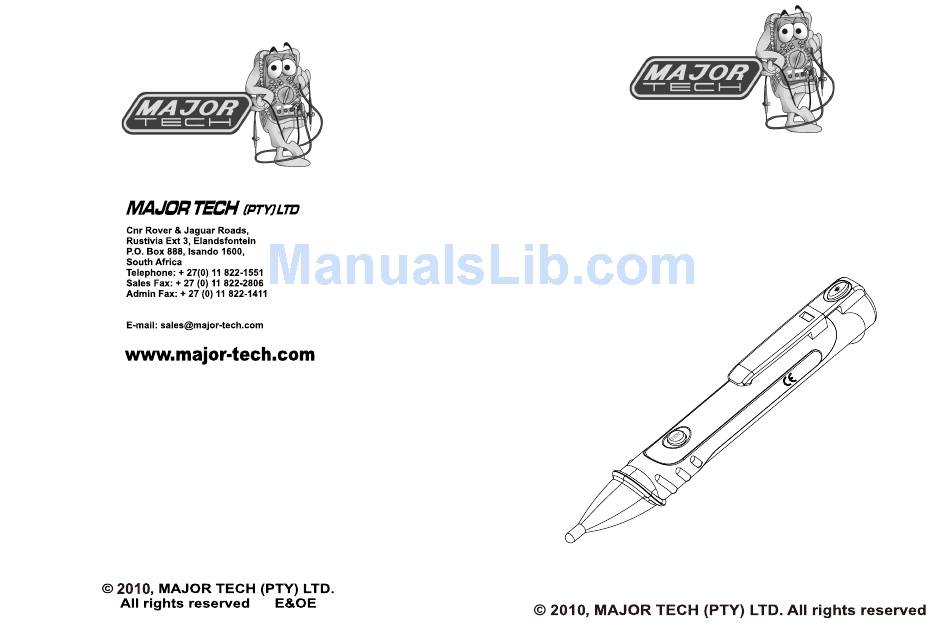

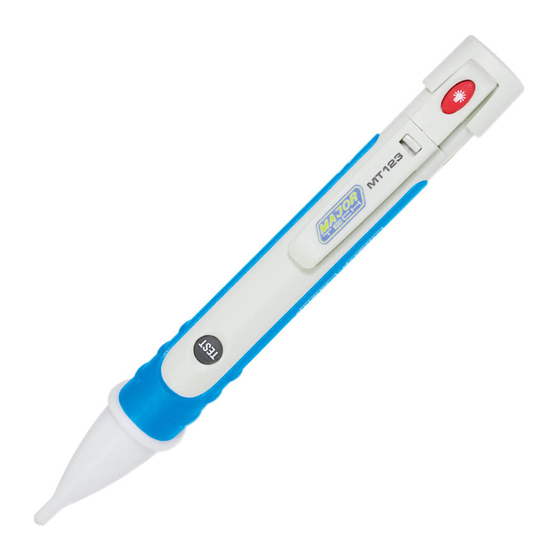

- Page 1 MT123 Magnet Space Tester User Manual National Telephone: 0861 MAJORT (62 5678)
- Page 3 5) Sometimes stray magnetic fields from other nearby equipment may cause the test lamp to blink TABLE OF CONTENTS momentarily. Close to an activated magnetic coil, however, the test lamp will give a fixed light. APPLICATIONS GENERAL---------------------------------- 3 6) Press and hold the black ,placing the tip of the unit near FRONT PANEL DESCRIPTION----------------------------- 3 an magnet field produces a steady red glow at the tip.
- Page 4 1. APPLICATIONS GENERAL SPECIFICTIONS&WORK DATA 1) Testing operating solenoid valves in pneumatic and Power 3V(AAA*2) hydraulic control equipment Magnet field(H) 63,98,401,810 2) Testing relays with coils and electrically controlled Work max current 32mA solenoid valves in all types of vehicles and machineries Operating temperature –10°C to 50°C (14°F to 122°F) 3) Testing solenoid valves when servicing oil burners The...
