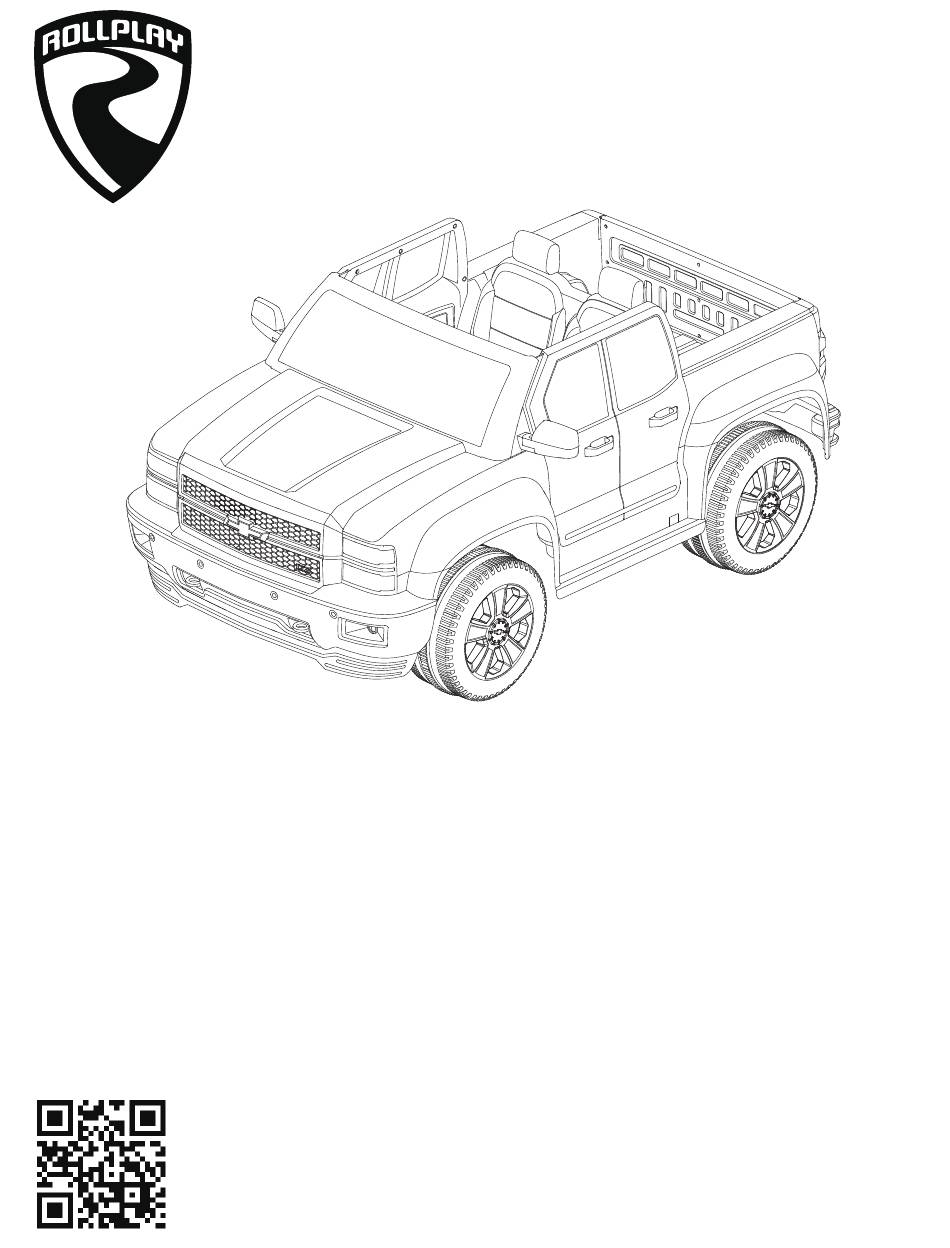

Owner's Manual and Assembly Instructions
Model #: W461-C W461-C02 W461-C03 W461-C04 W461-C-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Scan here
to view the
assembly video

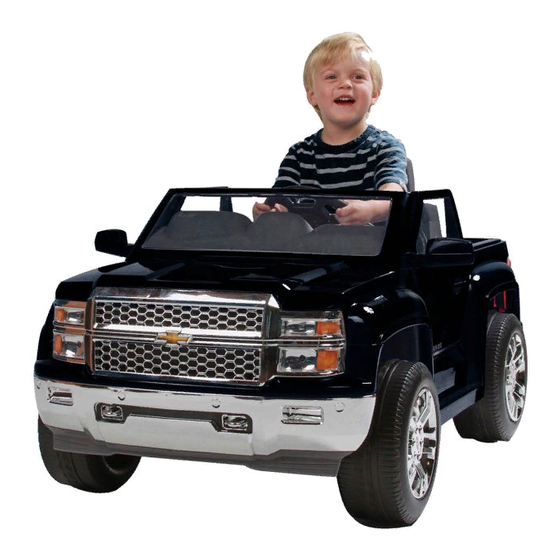

12V Chevy Silverado
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rollplay W461-C04
Summary of Contents for Rollplay W461-C04
- Page 1 12V Chevy Silverado Owner’s Manual and Assembly Instructions Model #: W461-C W461-C02 W461-C03 W461-C04 W461-C-F Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions.
- Page 2 Introduction Thank you for purchasing this vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
- Page 3 Contact Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. customerservice@rollplay.com 1-888-982-9309...
-
Page 4: Table Of Contents
Table of Contents Safety ............5 Parts ............7 Charging Instructions .......8 Assemble the Rear Support Bars ....9 Install the Rear Support Bars ....10 Install the Rear Wheel Axle .....11 Install the Gear Boxes ......12 Assemble the Rear Wheels .....13 Assemble the Front Wheels ....14 Attach the Truck Bed ......15 Attach the Mirrors ........16 Attach the Windshield and Dashboard ..17... -
Page 5: Safety
Safety WARNING: SAFETY RIDING RULES PREVENT INJURIES AND DEATHS: NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED. NEVER use on roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water. - Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury.
-
Page 7: Parts
Parts Not Included: • Phillips screwdriver • 2 AA batteries 15. Rear Wheels (2) 1. Gear Box (2) 16. Windshield & Dashboar 2. 12V Battery 17. Steering Wheel 3. Right Mirror 4. Left Mirror 18. Tailgate 5. Right Door 19. Truck Bed 6. -
Page 8: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. Connect the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3. -
Page 9: Assemble The Rear Support Bars
Assemble the Rear Support Bars 2-Person Assembly Recommended 1. Locate the right (8) and left (9) support bars and the r ear support lateral bar (10) 2. Insert the rear support lateral bar into the square slots on the rear support side bars 3. -
Page 10: Install The Rear Support Bars
Install the Rear Support Bars avoid any scratches or damage) 2. Slide the assembled rear support bars into the square holes on the back of the car body 3. Align the screw holes on the support bars with the holes on the truck body 4. -
Page 11: Install The Rear Wheel Axle
Install the Rear Wheel Axle 1. Locate the rear wheel axle (11) 2. Remove the nut and washer from both sides of the rear axle 3. Slide the rear axle horizontally through the rear support system as pictured 4. Make sure the axle is centered before and during rear wheel installation... -
Page 12: Install The Gear Boxes
Install the Gear Boxes 1. With the truck body still on its back, locate the two holes on either side of the truck body with the white gearbox connector and yellow gearbox connector 2. Insert the connector on the gear box into the truck body. Slide one of the gear boxes (1) onto the rear axle with the white gears facing out until it sits completely that leads to the battery compartment 3. -
Page 13: Assemble The Rear Wheels
Assemble the Rear Wheels Helpful Tip: wheels onto the rear axle, then your rear wheel axle may need to be realigned. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room. -
Page 14: Assemble The Front Wheels
Assemble the Front Wheels 1. Slide a thick washer onto the front axle 2. Slide the front wheel onto the front axle (14). The concave side should face inward. 3. Slide the thin washer onto the front axle 4. Using the hex wrench, fasten the nut on the end of the axle and tighten until you can not tighten any more 5. -
Page 15: Attach The Truck Bed
Attach the Truck Bed main harness gear box connector Helpful Tip: Ensure the grey battery connector is connected to the grey engine connector Ensure the white gear box connector is connected to the white engine connector Ensure the yellow gear box connector is connected to the yellow engine connector. -
Page 16: Attach The Mirrors
Attach the Mirrors 1. Remove the mirrors (3 and 4) from the package 2. Align the hole on the mirror with the hole on the car 3. Insert the screw into the hole and fasten the screw with a screwdriver to secure the mirror 4. -
Page 17: Attach The Windshield And Dashboard
Attach the Windshield and Dashboard 1. Attach the wire connector coming from the dashboard (16) body (located in the dashboard) to the wire connector attached to the car body. Locate the connector in the truck body, and the dashboard wire in the dashboard to avoid pressed. 2. -
Page 18: Attach The Steering Rod
Attach the Steering Rod surface to avoid any scratches or damage). Please take notice on dashboard to avoid drop off from truck. Locate the steering rod (24) 3. Insert the straight end of the steering rod into the steering rod hole on the underside of the dashboard. -
Page 19: Assemble The Steering Wheel
Assemble the Steering Wheel WARNING! DO NOT mix old and new batteries. DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. 1. Use a Phillips head screwdriver to remove the screw on the battery compartment of the steering wheel 2. -
Page 20: Attach The Doors
Attach the Doors 1. Align the left door with the interior facing the inside of the truck. 2. Position the hole on the door over the hole on the truck body and slide the post on the bottom of the door into the hole on the truck body side. -
Page 21: Attach The Tailgate
Attach the Tailgate and wheel covers 1. Keeping the tailgate horizontal, align the tailgate with the holes on the truck bed 2. Once the tailgate is completely aligned with the slots on the bed, lift the bed door up until it clicks into place Snap on the wheel cover by aligning the tabs on the cover with the slots on the wheel... -
Page 22: Battery Attachment
Battery Attachment Important! Before using the truck for the rst time the battery needs to be charged for a full 24 hours (see page 8 for battery charging instructions). 1. Fasten the Battery connector to the Main Harness. Note: to correcty attach the two connectors, turn each connector upside down from each other, and slide together. -
Page 23: Attach The Seat
Attach the Seat 1. Align the seat over the battery compartment 2. Ensure the locking mechanism aligns with the holes 3. Slide the hooks onto the back of the seat into the slots on the car body 4. Turn the thumbscrew clockwise until it faces the lock position to properly secure in place... -
Page 24: Operation Instructions
Operation Instructions Screw 1. Press the left and right steering wheel buttons for horn (a) and engine sounds (b). 2. Turn the power switch to turn on the truck. Turn the power switch again to turn off the truck. 3. Volume Control: Turn right to turn on the MP3 player. Adjusts the volume on the MP3 player. -
Page 25: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time. •... -
Page 26: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 30 for more information. -
Page 27: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 28 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 29: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 30: Service And Repairs
Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com. -
Page 31: Warranty
This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you. -
Page 32: Product Registration
City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
