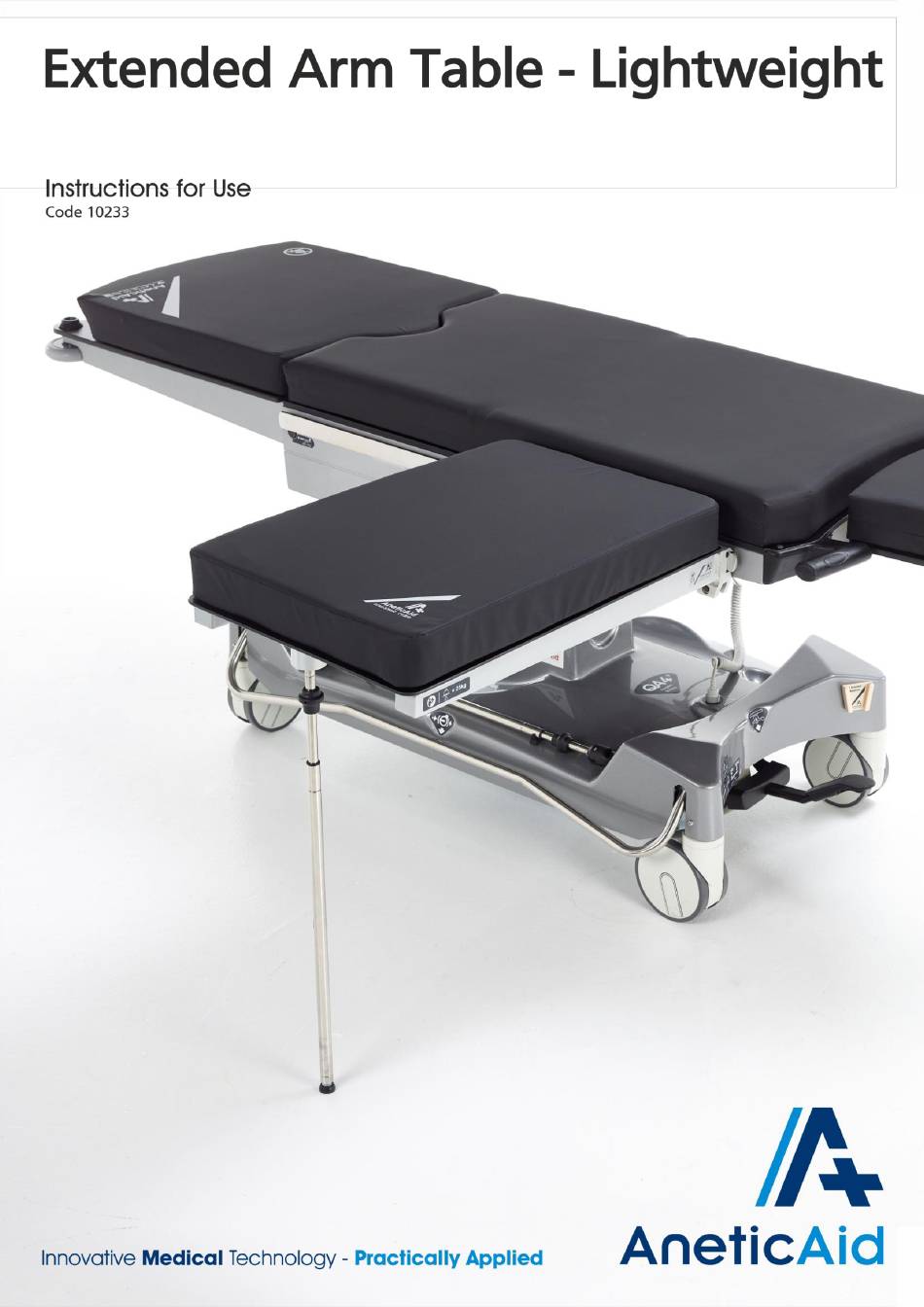

Anetic Aid 10233 Instructions For Use Manual

Extended arm table-lightweight

Table of Contents

Download this manual

Table of Contents

Need help?

Do you have a question about the 10233 and is the answer not in the manual?

Page 3 NOTE: If the extended arm table is damaged or faulty it must be taken out of use with immediate effect and the fault reported to Anetic Aid, your authorised dealer or maintenance department. The extended arm table must not be used until the damage or fault has been repaired.

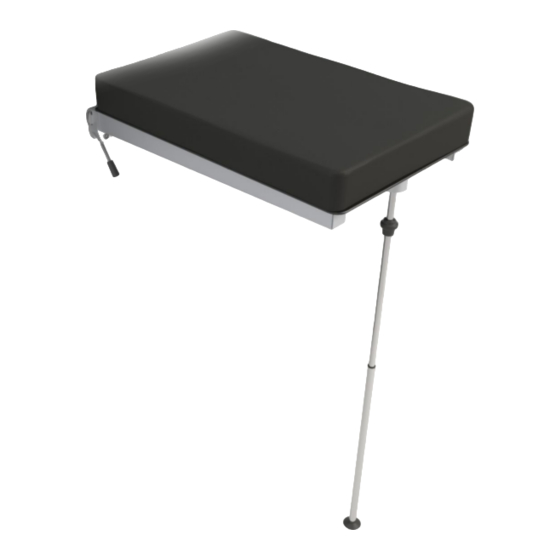

Page 4 Product Specifications Key to Fig. 1 Adjustable Support Leg Adjustable Support Leg Locking Mechanism Location Boss for Support Leg Locking Clamp Handles Dimensions: Product dimensions L685mm x W450mm x D165mm Product weight Weight Limit: Safe working load 25kg (55lbs) WARNING: Exceeding the maximum specified weight limits could result in failure of the extended arm table and injury to the user.
Page 5 Direct-on Attachment The extended arm table attaches ‘direct-on’ to the trolley by hooking onto the side bar, see Fig.2. It is designed to fit both British and Euro side rail. To secure the arm table, rotate the locking clamp handles 90° either clockwise or anti-clockwise; (A) Fig.3. WARNING: It is recommended both locking clamp handles are in the locked position before using the product to prevent any possible movement during surgery.
Page 6 Every six months we recommend the arm table is inspected by a competent person, i.e. an Anetic Aid service engineer, to ensure that it is safe to use; contact Anetic Aid for further details.
