Summary of Contents for Anetic Aid 21380

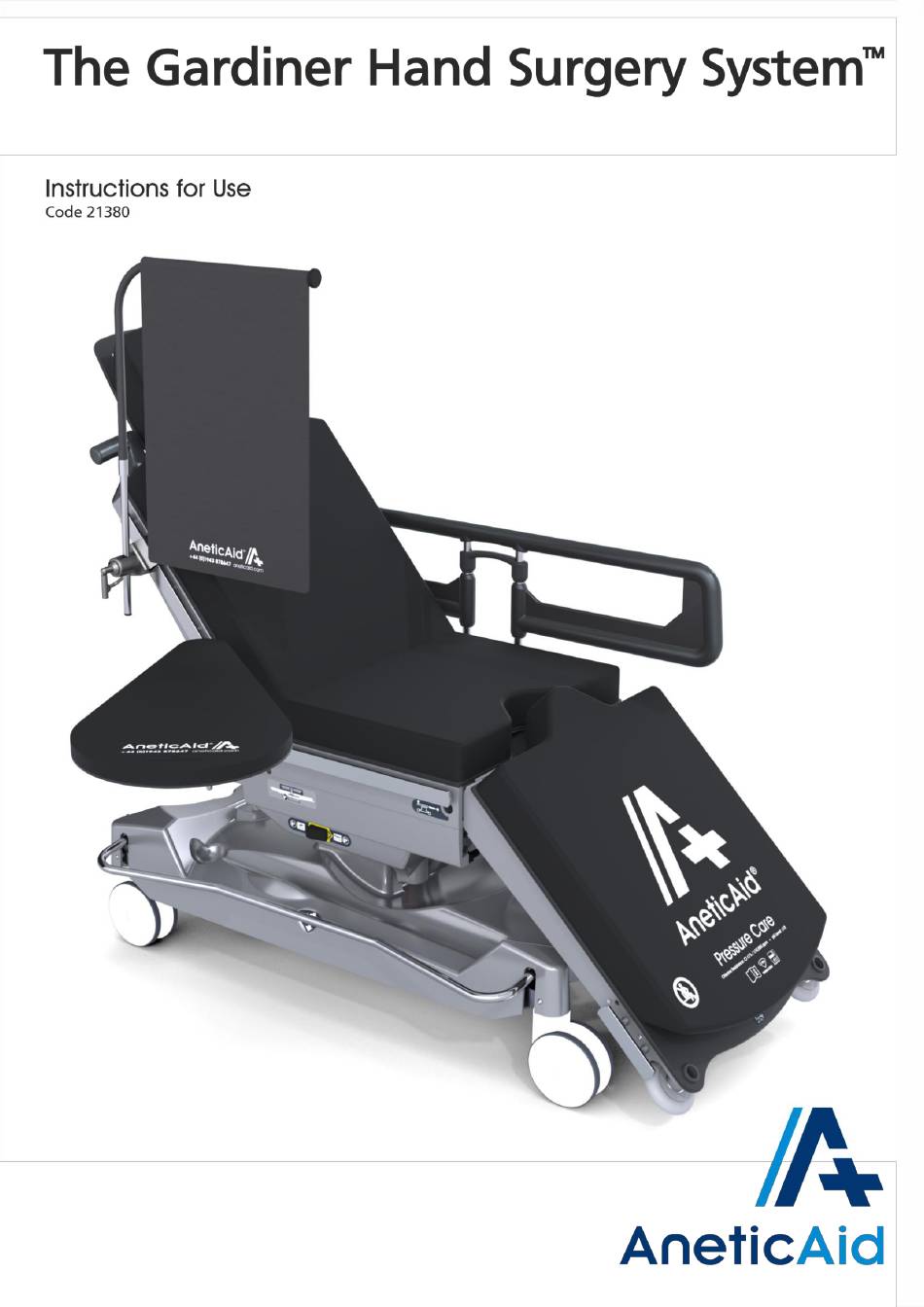

- Page 1 Document No. 992054. Issue 1 – 07.02.24...
- Page 2 NOTE: to Anetic Aid, your authorised dealer or maintenance department. Gardiner hand surgery system must not be used until the damage or fault has been repaired.
- Page 3 Product Specifications Hand table Surgery screen mounting stem Surgery screen flexible arm Surgery patient screen Hand table weight limit: Safe working load 25kg (55lbs) WARNING: Exceeding the safe working load could result in failure of the Gardiner hand table and injury to the user. Document No.

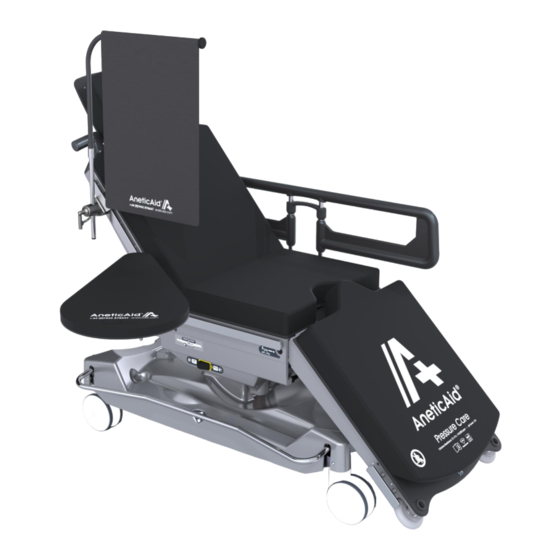

- Page 4 Setting Up and Using the Gardiner Hand Surgery System 3.1. As illustrated below, seat the patient on the theatre table and adjust the backrest and head section to the desired angle. 3.2. Mount the hand table onto the side bar in a rotary clamp so the clamp is (approximately) vertically aligned with the patients shoulder and lock the clamp.
- Page 5 3.3. Mount the surgery patient screen in a rotary clamp onto the side bar above the hand table and lock in position. The height and position of the screen can be adjusted by raising or lowering the surgery screen mounting stem or by manipulating the surgery screen flexible arm.
- Page 6 12 months from the date of purchase from Anetic Aid Ltd or their approved Distributor. Anetic Aid Ltd will repair or replace, at their discretion, any components found to be defective or at variance with the manufacturer’s specification within this...
- Page 7 The following list is a description of all the labels used on the device; Label indicating safe working load of 25kg (55lbs) for the device. Anetic Aid CE product label. Anetic Aid mattress screen print. Document No. 992054. Issue 1 – 07.02.24...
- Page 8 Document No. 992054. Issue 1 – 07.02.24 Page 7...
