- Page 1 BG-X005SGA MANUAL...

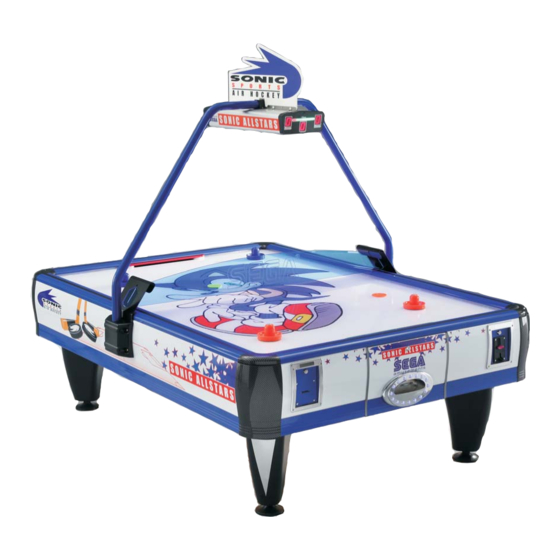

- Page 2 Forward First, we would like to thank you for purchasing the Sonic 4-Player Air Hockey Table. The product can be a 2 or 4 player game for the whole family to enjoy. For your own safety, please carefully read through the instruction that indicates precautions to be taken prior to the assembly of the product.
-
Page 3: List Of Parts
List of Parts Main Body Overhead Bar Power Switch Key and Screws Storage Box Blower Access Door Legs & Leg Levelers Overhead Bar 4 Sets Scoreboard Center Guard Side Guards Plastic Bar Bracket Cover (black) Puck and Mallet Box Center Guard Bracket Scoreboard Brackets (1 set) Overhead Bar Bracket (2 sides) -
Page 4: List Of Screws
List of Parts Plastic Sonic Sign Power Cable Mallets x8 Spray Wax for Tabletop Pucks x20 List of Screws Big Flathead Screw (4mm x 12mm) Big Flathead Screw (5mm x 35mm) Scoreboard x 12 Plastic Bar Bracket Cover(black) Aluminum Side Guard Brackets x 12 <... -
Page 5: Assembly Instruction
Assembly Instruction Step 1 Remove the 4 legs from the box screw the leg levelers onto it. Attach onto the bottom of the table Align the holes of legs to the holes on the bottom of the table, and then secure it with big flathead screw (5mm x 35mm) and flat washer (8mm x 16mm) -
Page 6: Assembling Instruction
Assembling Instruction Step 3 Attach the center guard on one side with big flathead screw (5mm x 15mm). As to the other side, insert the center guard into the iron plate first before screw it tightly Insert the center guard into the other side first and then screw to the iron plate Screw the iron plate on one side with... - Page 7 Assembling Instruction Step 4 Attach the overhead bar bracket with big flathead screw (5mm x 15mm). Note: DO NOT screw it too tightly, only screw-in by 1/3 as overhead bars need to be placed in first, so do not tightly screw on both sides. Finished as shown Use 4 of the big flathead screw...
-
Page 8: Assemble Instruction
Assemble Instruction Step 5 Connect the Scoreboard and the overhead bar. Place the sonic sign fastener on the centre of the overhead bar then tightly screw it with 3 big flathead screw mm x Then use big flathead screw mm x to connect the Scoreboard with the sonic sign fastener. - Page 9 Assemble Instruction Step 7 Connect the Scoreboard with the overhead bar then insert the set into the overhead bar bracket Note the connector plugs need to be inserted into the overhead bar bracket first. Please do not bend or press the connector wires. Insert the Scoreboard set (including the overhead bar) into the overhead bar bracket NOTE the part with the connector plugs should face inside.
- Page 10 Assemble Instruction Step 9 Use the open cut side of the overhead bar plastic cover, and then insert it into the overhead bar protection cover. Lastly attach the whole cover onto the side panel Before attaching it on ensure the overhead bar is placed into the open cut of the overhead bar plastic cover Then cover it with the overhead bar protection cover.
- Page 11 Assemble Instruction Step 9 Use the open cut side of the overhead bar plastic cover, and then insert it into the overhead bar protection cover. Lastly attach the whole cover onto the side panel Before attaching it on ensure the overhead bar is placed into the open cut of the overhead bar plastic cover Then cover it with the overhead bar protection cover.
- Page 12 BG-X005-SGA Description of Motherboard Controls D IP Sw 1 D I P Sw2 Volume adjustment knob Transform SD card installment Game Test NO-NC button LEDA: Running LED lights around Nc3 : Rail Strike Detector NC310 : Blower output table NC2 : Display panel connection NC4 : Rail Strike Detector...
- Page 13 BG-X005-SGA Description on locations of controls Power for motherboard Winning light control board Motherboard Display panel light and puck exit slot light control card Counters Motherboard: Controls the game operation, light signals and sounds of the machine. Power for Motherboard: Supplies the power to motherboard and other control cards.
- Page 14 BG-X005-SGA Description of light signals and DIP SW Error Message Lights Light A Goal Sensor signal Light B Start button Light signal Light C Insert Coin mechanism Light signal Light D Ticket Light signal Light E Rail Noise strike Light signal Note : If these lights are on there is an error .
- Page 15 BG-X005-SGA Explanation and Analysis of machine components DIP SW SW 13 SW 11 SW 12 SW 11: Adjust numbers of coins inserted and lottery tickets given and sound of strikes SW12: Adjust numbers of balls, time, which lottery ticket exit slot to use when winning loosing and demonstrating sound SW13: Adjust money course signal NO or NC Bounced Light Control Card...
- Page 16 BG-X005-SGA Explanation and Analysis of machine components Counter Power Supply 2P Ticket Counter 1P Ticket Counter DC + 5 , 2 0A D C +1 2 , 8.5A Insert Coin Counter Puck Exit Slot Light Set Transformer 2 2 0 V , 3A , 66 0 W Puck Exit Slot Puck Exit Slot Light 11 0 V U S O N L Y...
- Page 17 BG-X005-SGA To Eliminate Malfunction on goal gate When puck cannot emerge check whether the puck course is blocked with foreign ( ). object s Clean it if needed Magnetic puck solenoid IR Goal Sensor puck detector If the puck cannot be emerged when the game begins (stuck), please check whether the magnetic puck solenoid is in force or whether the course is blocked with foreign object …...
-
Page 18: Troubleshooting
Troubleshooting I. PC Board Lights If lights on Pc Board are on for coin mechanism and/or ticket dispenser , there is an error for the corresponding light(s). II. Ticket Dispenser Flashing light on ticket dispenser means out of tickets. Restart table if light does not appear with new tickets inserted. III. -
Page 19: Care And Maintenance
Care & Maintenance Keep these tips in mind for best operating performance ● Turn the adjustable leg bolts to create a leveled playing field ● Place puck in the middle of the table: if it moves to a certain side, raise accordingly. ●...
