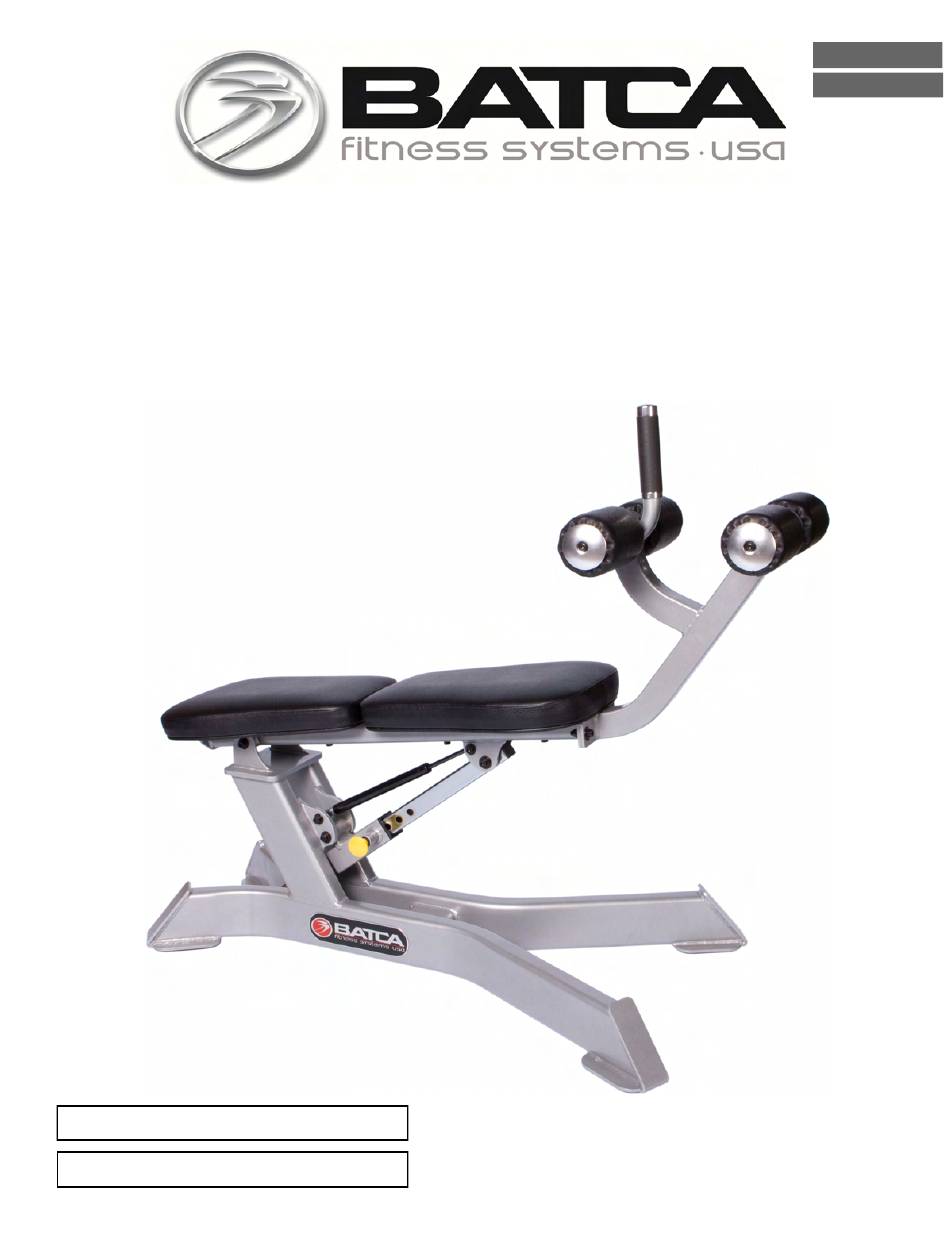

- Page 1 Revision 0 February 2012 FZ-10 Adjustable Ab Bench Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com FZ-10 Owner's Manual 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com...
- Page 2 Instructions Congratulations on the purchase of your new Batca FZ-10 Adjustable Ab Bench. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
-
Page 3: Frame Components
SHCS 3/8 x 1 1/4” BFP-51747 SHCS 3/8” x 3” BFP-52345 SHCS 3/8” x 4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock BFH-50147 3/8” Lock Washer Tools Required 9/16” Ratchet Allen Wrench Set Tape Measure www.batcafitness.com FZ-10 Owner's Manual... - Page 4 Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems FZ-10 Owner's Manual...
- Page 5 FZ-10 Owner's Manual...
- Page 6 Batca Fitness Systems FZ-10 Owner's Manual...
- Page 7 FZ-10 Owner's Manual...
- Page 8 Description BFM-10985 Base Frame BFM-10987 Roller Pad Assembly Frame BFM-10986 Seat Frame BFM-10988 Selector Tube BFM-10989 Adjustment Assembly BFP-52394 Gas Spring BFP-51653 SHCS 3/8 x 1 1/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems FZ-10 Owner's Manual...
- Page 9 BFM-50622 Aluminum End Cap BFH-50221 3” Plastic Washer BFP-52430 BHSCS 3/8” x 3/4” BFP-51747 SHCS 3/8” x 3” All Flat Washers and Nylocks are 3/8” BFH-50146 3/8” Flat Washer unless otherwise noted. BFH-50147 3/8” Lock Washer www.batcafitness.com FZ-10 Owner's Manual...
- Page 10 Make sure the bolt goes through the gas spring. Item # Part # Description BFP-52344 1 3/8” Spacer All Flat Washers and Nylocks are BFP-52345 SHCS 3/8” x 4” 3/8” unless otherwise noted. BFH-50146 3/8” Nylock Batca Fitness Systems FZ-10 Owner's Manual...
-
Page 11: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 12: Limited Lifetime Warranty
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and workmanship under nor- mal use and service for one year from date of purchase including paint, chrome, upholstery and grips. Batca Fitness Sys- tems also warrants all cables, belts, bolts, nuts, caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for three years after date of purchase;... -
Page 13: Layout Diagram
Layout Diagram The FZ-10 Adjustable Ab Bench has a layout dimension of 2’-3” (width) x 4’-5” (length) x 3’-3” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit.
