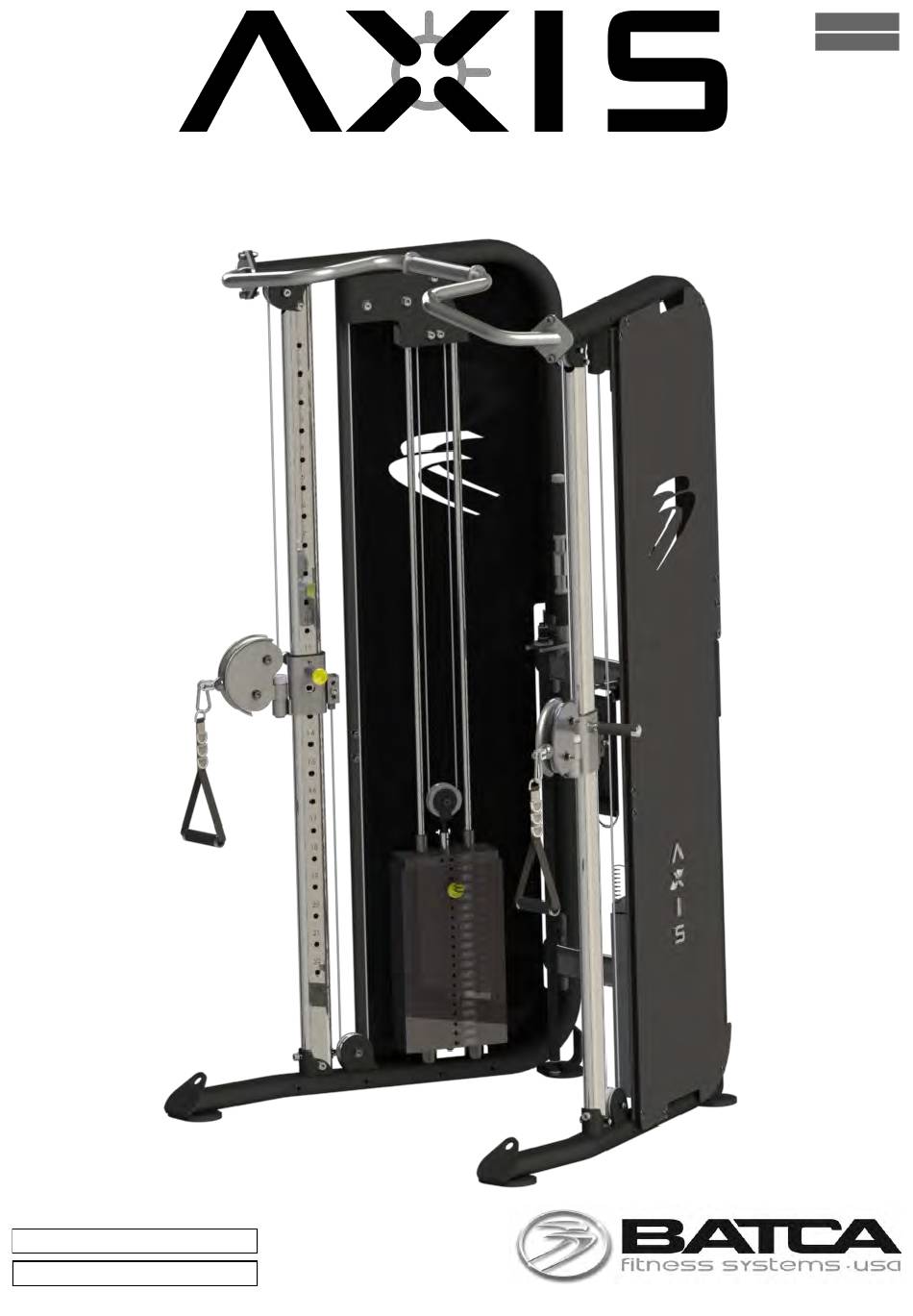

- Page 1 Revision 0 Nov 2017 Free Trainer Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com AXIS Free Trainer Owner's Manual...
- Page 2 Instructions Congratulations on the purchase of your new Batca AXIS Free Trainer. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
- Page 3 4 Ring Strap Handle Hardware Blister Packs Shelf Connector A Hardware (For Assembly Section starting on pg. 6 of this Manual) Shelf Connector B Hardware (For Assembly Section starting on pg. 6 of this Manual) www.batcafitness.com AXIS Free Trainer Owner's Manual...
- Page 4 AXIS Units in the section called Modular Connection Assembly starting at pg. 6. The rest of the hardware will be used in the next section AXIS Free Trainer Assembly staring on pg.13. ) Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 5 Please be sure to read and follow all floor anchoring instructions when assembling and installing BATCA AXIS Units. The actual floor anchoring instructions are included in the AXIS FLOOR ANCHOR KIT. This page illustrates the configurations that require anchoring before they are safe to use.
- Page 6 COMPONENTS FROM ALL AXIS MAIN UNITS THAT YOU ARE PLANNING TO CONNECT TO THE AXIS FREE TRAINER FROM THIS ASSEMBLY MANUAL. THE HARDWARE USED IN THIS SECTION WILL BE PACKAGED WITH THE AXIS SHELF CONNECTOR A AND AXIS SHELF CONNECTOR B(IF PURCHASED) ASSEMBLY.
- Page 7 *The ANY* Axis parts Note above is referring to the fact that any combination of the Axis Free Trainer, the Axis Bodyweight Trainer, The Axis Smith Machine, or the Axis Freeweight Rack can be assembled together in any configuration. Regardless of which of these combinations are installed together the instructions for installation are the same.
- Page 8 Axis Main Unit Connector 3 BFM-52813 AXIS Screw Cap BFP-51747 SHCS 3/8” x 3” BFP-51748 SHCS 3/8” x 3 1/4” BFP-52345 SHCS 3/8” x 4” BFH-50204 3/8” Curved Washer BFH-50146 3/8” Flat Washer Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 9 Refer to Manual of Corresponding AXIS Unit ANY* AXIS Upper Cross-Member BFM-52618 AXIS Anti-Deflection Plate BFM-52813 AXIS Screw Cap BFP-51747 SHCS 3/8” x 3” BFP-51748 SHCS 3/8” x 3 1/4” BFH-50146 3/8” Flat Washer www.batcafitness.com AXIS Free Trainer Owner's Manual...
- Page 10 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER. DO NOT TIGHTEN BOLTS FHSC 5/16” x 2 3/4” Part # Description BFP-51750 SHCS 3/8” x 2 3/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 11 Shroud. You will only have all three AXIS Connecting Shrouds if you are Connecting 3 Main AXIS Units and purchase the AXIS Shelf Connector B. AXIS Connecting Shroud AXIS Connecting AXIS Connecting Shroud Shroud Part # Description BFM-52727 AXIS Connecting Shroud www.batcafitness.com AXIS Free Trainer Owner's Manual...
- Page 12 Part # Description BFM-52729 AXIS Shelf Plate 1 BFM-52730 AXIS Shelf Plate 2 BFH-51611 FHSCS 5/16” x 1 3/4” BFH-52545 FHSCS 5/16” x 2 1/4” BFH-51612 5/16” Flat Washer BFH-50267 5/16” Nylock Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 13 PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER INSTALLATION. START AT THIS SECTION ONLY IF YOU PURCHASED THE AXIS FREE TRAINER AS A STAND ALONE UNIT. IF YOU ARE CONNECTING 2 OR MORE AXIS UNITS TOGETHER THEN GO BACK AND START AT PAGE 6 BEFORE CONTINUING TO THIS SECTION.
- Page 14 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER. DO NOT TIGHTEN BOLTS Part # Description BFM-11096 AXIS Free Trainer Lower Frame Assembly (Right Side) BFM-11095 AXIS Free Trainer Lower Frame Assembly (Left Side) BFM-11097 AXIS Free Trainer Upper Cross-Member...
- Page 15 They are packaged in the hardware blister pack with the AXIS Shelf Connector A and B. Part # Description BFM-11100 AXIS Free Trainer Upper Frame (Right Side) BFM-11099 AXIS Free Trainer Upper Frame (Left Side) BFM-52629 Upright Frame/Selector Tube (Right Side) BFM-52630...
- Page 16 DO NOT TIGHTEN BOLTS Part # Description BFM-11101 AXIS Chin/Pull Up Bar Assembly BFP-10945 Swiveling Double Pulley Holder BFH-50220 Threaded Shaft Collar BFP-51697 SHCS 3/8” 1 1/2” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 17 Components and Hardware for Left SIde Components and Hardware for Right Side Part # Description Part # Description BFM-11104 AXIS Free Trainer Guide Rod Holder BFM-11104 AXIS Free Trainer Guide Rod Holder BFM-52631 AXIS Free Trainer Guide Rods BFM-52631 AXIS Free Trainer Guide Rods...
- Page 18 BFP-51750 SHCS 3/8” x 2 3/4” BFP-51748 SHCS 3/8” x 3 1/4” BFP-51748 SHCS 3/8” x 3 1/4” BFH-50147 3/8” Flat Washer BFH-50147 3/8” Flat Washer BFH-50157 3/8” Nylock BFH-50157 3/8” Nylock Batca Fitness Systems AXIS Free Trainer Owner's Manual...
- Page 19 All Flat Washers and Nylocks are 3/8” unless otherwise noted. Anywhere a washer is against the round side of a tube there is to be a 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER. DO NOT TIGHTEN BOLTS 306 1/16” CAB-16001 Large Ball www.batcafitness.com AXIS Free Trainer Owner's Manual...
- Page 20 Components and Hardware for Left SIde Part # Description Part # Description BFM-52742 AXIS Free Trainer Top Shroud (Left Side) BFM-52741 AXIS Free Trainer Top Shroud (Right Side) BFM-52635 AXIS Free Trainer Bottom Shroud (Right Side) BFM-52736 AXIS Free Trainer Bottom Shroud (Left Side)
- Page 21 Clean guide rods with a lint-free cloth and apply a thin layer of Teflon/Silicon based lubricant (Part # BFH-50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. www.batcafitness.com AXIS Free Trainer Owner's Manual...
-
Page 22: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 23: Limited Lifetime Warranty
Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. - Page 24 The AXIS Squat Rack has a layout dimension of 4-5.5”” (Length) x 3’-8” (Width) x 7’-5.5” (Height). There should be minimum of 18”, preferably 24” of working space around the entire unit. Batca Fitness Systems AXIS Free Trainer Owner's Manual...
