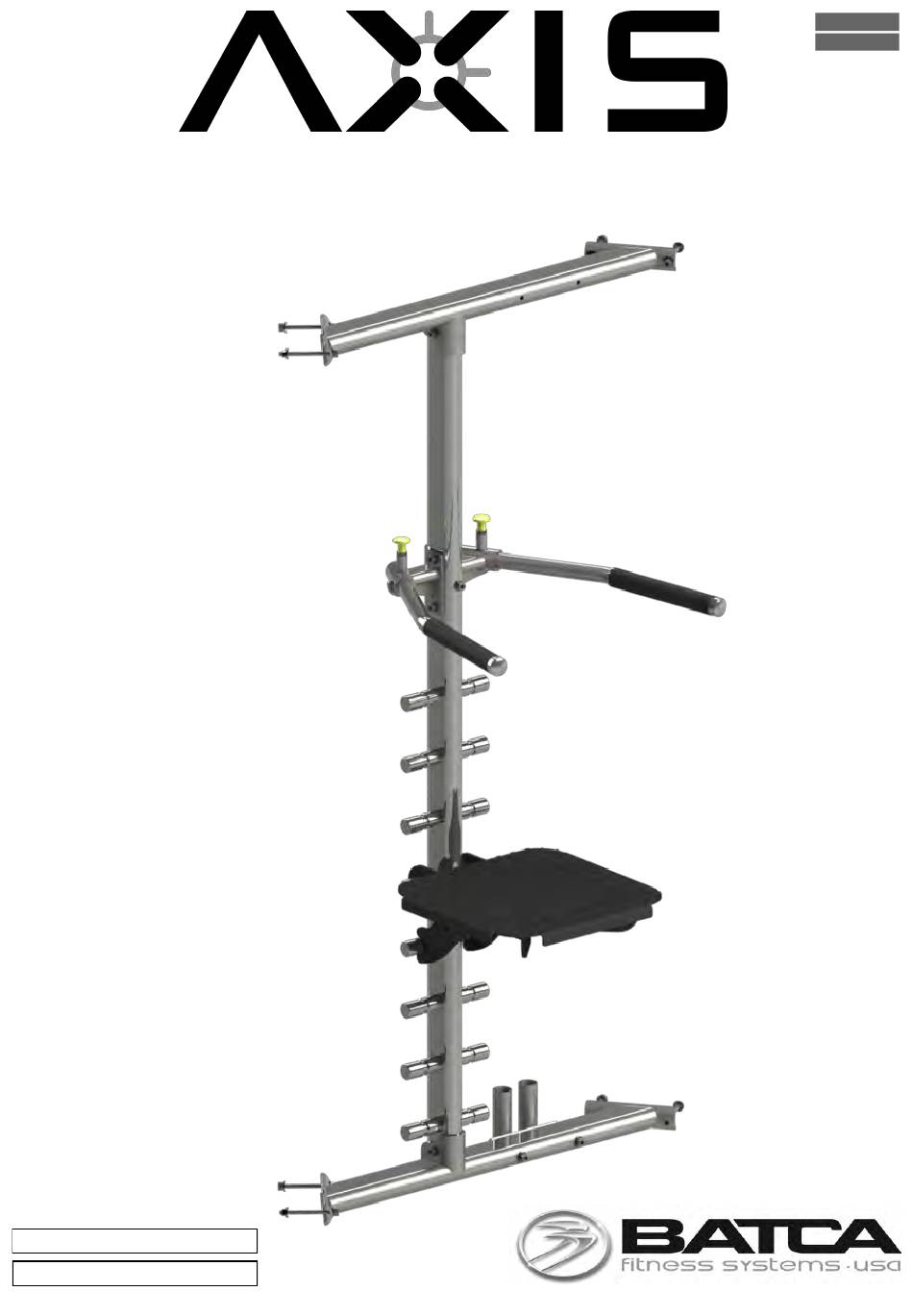

- Page 1 Revision 0 June 2018 Dip/Plyo Platform Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com AXIS Dip/Plyo Platform Owner's Manual...
- Page 2 Instructions Congratulations on the purchase of your new Batca AXIS Dip/Plyo Platform. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
-
Page 3: Tools Required
Tools Required 9/16” Wrench/Ratchet Metric Allen Wrench Set (M8, M6, M4) Hardware Blister Pack www.batcafitness.com AXIS Dip/Plyo Platform Owner's Manual... - Page 4 PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER INSTALLATION. THE AXIS DIP/PLYO PLATFORM CAN BE MOUNTED IN BETWEEN ANY COMBINATION OF AT LEAST TWO MODULAR AXIS UNITS (AXIS FREE TRAINER, AXIS BODY WEIGHT STATION, AXIS SMITH MACHINE, OR AXIS SQUAT RACK). AT LEAST TWO MODULAR UNITS MUST BE PURCHASED INORDER TO INSTALL AXIS DIP/PLYO PLATFORM.
- Page 5 3 1/4” (Qty=2) Dip/Plyo Platform Part # Description BFM-11117 Dip/Plyo Platform Selector Assembly BFP-51748 SHCS 3/8” x 3 1/4” BFP-51799 SHCS 3/8” x 5” BFH-50204 3/8” Curved Washer BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock www.batcafitness.com AXIS Dip/Plyo Platform Owner's Manual...
- Page 6 Dip Handle Support BFM-11126 Dip Handle BFM-52711 Dip Handle Storage Assembly BFP-51748 SHCS 3/8” x 3 1/4” BFP-51799 SHCS 3/8” x 5” BFH-50204 3/8” Curved Washer BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems AXIS Dip/Plyo Platform Owner's Manual...
- Page 7 All Flat Washers and Nylocks are 3/8” unless otherwise noted. Anywhere a washer is against the round side of a tube there is to be a 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER. DO NOT TIGHTEN BOLTS Plyo Platform Part # Description BFM-11121 Plyo Platform www.batcafitness.com AXIS Dip/Plyo Platform Owner's Manual...
-
Page 8: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 9: Limited Lifetime Warranty
Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply.
