Batca fusion 4 Owner's Manual

Functional trainer
Hide thumbs Also See for fusion 4:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Revision 2
June 2014
Functional Trainer
Owner's Manual
Serial Number Here
Date of Purchase
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com
www.batcafitness.com
Fusion 4 Functional Trainer

Advertisement

loading
Need help?

Need help?

Do you have a question about the fusion 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Batca fusion 4

Summary of Contents for Batca fusion 4

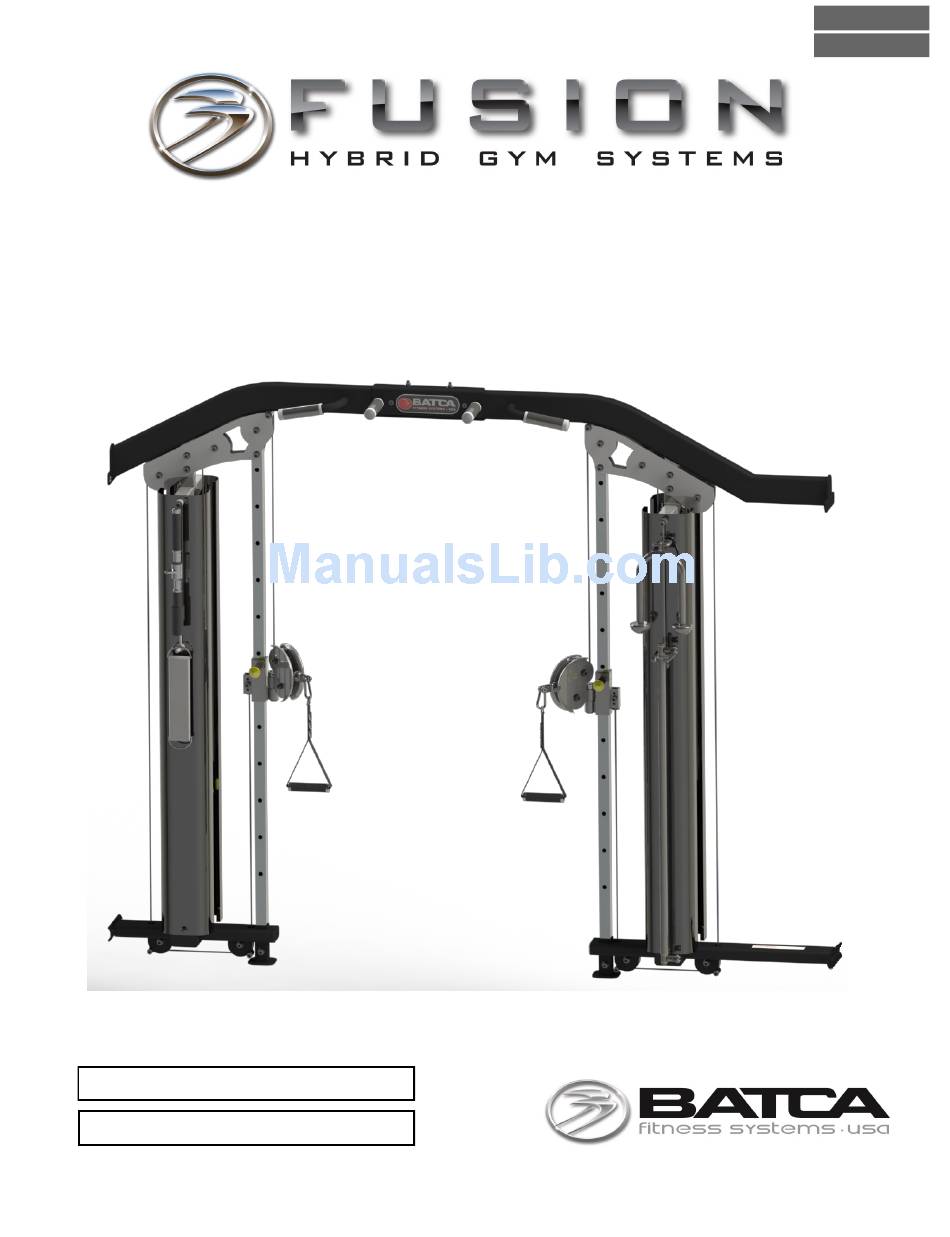

  • Page 1 Revision 2 June 2014 Functional Trainer Owner’s Manual Serial Number Here Date of Purchase 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 2 Congratulations on the purchase of your new Fusion 4 Functional Trainer. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality multi-station gyms and to package these gyms in such a way to avoid any damage dur- ing shipping.

  • Page 3: Tools Required

    SHCS 3/8”-16x 2” BFP-51752 SHCS 3/8”-16x 2-1/4” BFP-52399 SHCS 3/8”-16x 1-3/4” BFP-52401 BHSCS 3/8”-16 x 1/2” BFH-50147 3/8” Lock Washer BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock BFH-50192 Weight Stack Decals BFH-50262 Guide Rod Lubricant www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 4 Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 5 Fusion 4 Functional Trainer...
  • Page 6 Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 7 Fusion 4 Functional Trainer...
  • Page 8 This is important for connecting the two machines via the Functional Trainer as seen in step 3. This will help to insure all of the components on the Fusion 4 Functional Trainer line up smoothly and will help to make the installation process effortless.
  • Page 9 Right Side Height Adjustment BFH-50220 Threaded Collar BFH-50279 SHCS 3/8”-16 x 5” Long Base BFP-52394 SHCS 3/8”-16x 2-1/2” Frame (BFM-10760) BFH-50173 3 1/2” Pulley BFP-51752 SHCS 3/8”-16 x 2 1/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 10 PulleyHolder/Support Plate BFM-10757 Upper Support Brace (Right) Extended Upper Support Brace BFM-10756 (Left Side) BFP-52394 SHCS 3/8”-16 x 2 1/2 BFP-51756 SHCS 3/8”-16 x 5 1/4 BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 11 Front Angle Bracket BFM-51457 Rear Angle Bracket All Flat Washers and Nylocks are 3/8” BFH-50323 FHSCS 3/8”-16 x 3” unless otherwise noted. BFH-51184 FHSCS 3/8”-16 x 5 1/4 BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 12 Weight Stack Plate All Flat Washers and Nylocks are 3/8” BFM-50529 Rubber Donut unless otherwise noted. BFM-51173 Weight Stack Pull Pin BFP-51747 SHCS 3/8”-16 x 3” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 13 Functinal Trainer Cable BFP-52394 SHCS 3/8”-16x 2-1/2” BFH-50174 4 1/2” Pulley BFH-50173 3 1/2” Pulley BFH-51187 3/8” Pulley Spacers BFP-51759 SHCS 3/8”-16 x 2” BFP-52398 SHCS 3/8”-16 x 1 3/4 BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 14 Step 5 Continued: Start Here 269 11/16” CAB-13033 Note: Cables CAB-13033 has a removable Cable Strap (BFH–50227) end to make cable routing easier. The Cable Strap ends can be found packaged with the hardware. Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 15 Description BFM-10762 Short Bar/Ankle Strap Holder BFM-51494 Front Shroud BFM-51082 Rear Shroud BFM-10763 Rope/Long Bar Holder BFP-51752 SHCS 3/8”-16 x 2 1/4” BFP-52401 BHSCS 3/8”-16 x 1/2” BFH-50147 3/8” Lock Washer BFH-50146 3/8” Flat Washer www.batcafitness.com Fusion 4 Functional Trainer...

  • Page 16: Cable Adjustments

    At least 1/2” of the threads should be threaded in to the top weight plate. It is very important to tighten the jam nut after adjustments. Batca Fitness Systems Fusion 4 Functional Trainer...
  • Page 17 Guide Rod Lubrication:  Clean guide rods with a lint-free cloth and apply a thin layer of silicon lubricant (Part # BFH-50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 18  Verify that all cables lie in between the guide bolts, tubes and the pulleys. Routing the cables over the guide bolts causes premature cable wear and will void your warranty. Guide Bolts Batca Fitness Systems Fusion 4 Functional Trainer...

  • Page 19: Preventive Maintenance

    Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed.

  • Page 20: Limited Lifetime Warranty

    This warranty does not cover damage, which results from shipping, misuse, abuse, neglect, carelessness, modification or alteration, accident, fire, flood, “acts of God” or other contingencies beyond the control of Batca Fitness Sys- tems. This warranty also does not cover deterioration from wear and tear or ex- posure or any defect, which would not have happened if instructions in the own- er’s manual had been followed.
  • Page 21 Layout Diagram without Leg Press The Fusion without Leg Press has a layout dimension of 12’-11” (width) x 6’-7” (length) x 7’-2” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. www.batcafitness.com Fusion 4 Functional Trainer...
  • Page 22 The Fusion with Leg Press has a layout dimension of 14’-4” (width) x 6’-7” (length) x 7’-2” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems Fusion 4 Functional Trainer...
