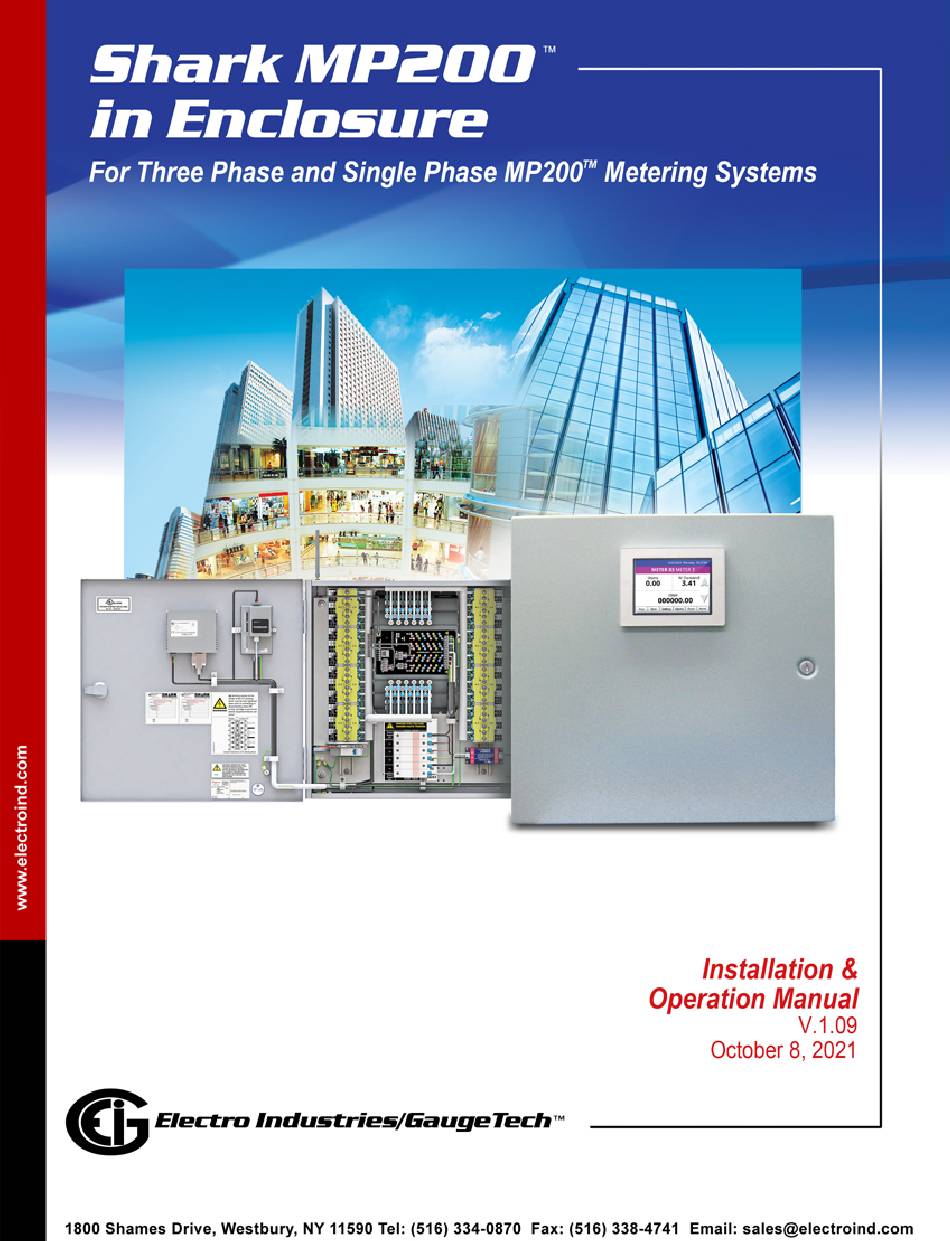

Electro Industries/GaugeTech Shark MP200 in Enclosure Installation & Operation Manual

For three phase and single phase metering systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shark MP200 in Enclosure and is the answer not in the manual?

Questions and answers

Related Manuals for Electro Industries/GaugeTech Shark MP200 in Enclosure

Summary of Contents for Electro Industries/GaugeTech Shark MP200 in Enclosure

  • Page 2 This page intentionally left blank.
  • Page 3 Electro Industries/GaugeTech. © 2021 Electro Industries/GaugeTech Shark® is a registered trademark of Electro Industries/GaugeTech. The distinctive shapes, styles and overall appearances of all Shark® meters are trademarks of Electro Industries/GaugeTech. MP200 is a trademark of Electro Industries/Gauge- Tech.

  • Page 4: Customer Service And Support

    IMPLIED, GIVEN BY ELECTRO IN CONNECTION WITH THE PRODUCT, AND ELECTRO DISCLAIMS ALL OTHER WARRANTIES, INCLUDING BUT NOT LMITED TO WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT OF THIRD-PARTY RIGHTS AND WARRANTIES AGAINST LATENT DEFECTS. The Cus- Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 5 LIMITIED WARRANTY SET FORTH ABOVE FAILS OF ITS ESSENTIAL PURPOSE. EXCEPT AS EXPRESSLY PROVIDED IN THIS SECTION, ELECTRO HEREBY DISCLAIMS AND CUSTOMER WAIVES ALL REPRESENTATIONS, CONDITIONS AND WARRANTIES (WHETHER EXPRESS, IMPLIED, OR STATUTORY), INCLUDING, WITHOUT LIMITATION, Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 6 ANY KIND OR NATURE SHALL BE LIMITED TO CUSTOMER'S PURCHASE PRICE FOR THE PRODUCT LICENSED BY THE CUSTOMER FROM ELECTRO, WHICH GAVE RISE TO SUCH CLAIM, WITHOUT REGARD TO ANY ACTUAL DAMAGES; INDIRECT, SPECIAL, Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 7: Use Of Product For Protection

    Statement of Calibration Our instruments are inspected and tested in accordance with specifications published by Electro Industries/GaugeTech. The accuracy and a calibration of our instruments are traceable to the National Institute of Standards and Technology through equip- ment that is calibrated at planned intervals by comparison to certified standards. For...

  • Page 8: Symbols Used In This Manual

    Les instructions doivent être respectées pour d’éviter de graves blessures aux personnes. Our Focus at Electro Industries/GaugeTech (EIG) EIG exclusively delivers integrated energy and power quality monitoring solutions uti- lizing AI and deep industry expertise to improve reliability, efficiency, and sustainabil- ity.

  • Page 9: Table Of Contents

    Product Limited Warranty Certificate ii Use of Product for Protection v Statement of Calibration v Disclaimer v Symbols Used in This Manual vi Our Focus at Electro Industries/GaugeTech (EIG) vi 1.1: Product Handling 1-1 1: Introduction 1-1 1.2: Safety Precautions 1-2 1.3: Storage 1-3 1.4: Compliance 1-3...
  • Page 10 4: Operation 4-1 4.1: Overview 4-1 4.2: Troubleshooting 4-1 5. Maintenance 5-1 6. Ordering Information 6-1 A. Removing a Meter from Service A-1 A.1: Removing the Meter A-1 A.2: Reinstalling the Meter A-6 Electro Industries/GaugeTech ™ E180701 TOC-2 Powered by Innovation™...

  • Page 11: Product Handling

    EIG. All claims should be as specific as possible and include general order numbers. You will find a plastic bag of instruction booklets and/or CDs in the shipping container. Store these documents in a safe place. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 12: Safety Precautions

    If further information is desired by purchaser regarding a particular installation, operation, or maintenance of particular equipment, contact an Electro Industries/GaugeTech (EIG) representative. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 13: Storage

    Operation manual, on the enclosed CD, for the meter’s storage requirements. The temperature rating for enclosure storage is (-20 to +60) C/(-4 to +140) 1.4: Compliance UL / cUL Listed, UL508A, File number: E358101. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 14 1:Introduction This page intentionally left blank. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 15: 2: Installation

    AVERTISSEMENT! Attention extrême lors de la monture de l'enceinte et lors de la mise à terre pour prévenir les articules métalliques, remplissage et autre contaminant de l'entrée de l'enceinte qui peuvent provoquer une condition dangereuse de l'équipe- ment. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 16: Installation Step 1 - Unpack The Mp200

    • F: Ground wire on enclosure door • G: Cable assembly • H: Display cables • I: LCD display • J: If ordered, optional Add-on Protocol - ProtoCom/ProtoCom-Lon Figure 2.1: MP200 in Enclosure as Shipped Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 17: Installation Step 2 - Drill The Wiring Holes

    1” [25.40mm] from the front of the enclosure, 1.5” [38.10mm] from the right side of the enclosure, 1.5” [38.10mm] from the back of the enclosure, and 3.75” [95.25mm] from the left side of the enclosure. Electro Industries/GaugeTech ™ E180701...
  • Page 18 2. Drill the pilot hole from the outside and do not let the drill pass more than ¼" into the enclosure. 3. Remove the tape, magnet, and cuttings and punch the hole. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 19 IMPORTANT! All wire entry into the enclosure shall be accomplished with the use of recognized fittings or strain reliefs. Bare holes shall not be used. NOTE: The panel can be removed to facilitate drilling of wiring holes. See the follow- ing procedure. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 20: 1: Removing And Reinstalling The Panel

    6. Remove the four nuts, one in each corner of the panel [K]. 7. Carefully remove the panel from the enclosure. Drill the wiring holes per the instructions in Section 2.2. You can then re-install the panel. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 21 5. Attach the connections to the LCD display (L). 6. If the MP200 in enclosure is equipped with a ProtoCom/ProtoCom-Lon, attach all connections to it (I). Continue to Section 2.3 to mount the enclosure. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 22: Installation Step 3 - Mount The Enclosure

    Install as per the NEC or local code requirements. Refer to the following diagrams for the enclosure dimensions. 516.19 mm 20.32 in 517.91 mm 20.39 in Figure 2.5: Enclosure Front Dimensions Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 23 2: Installation 185.67 mm 7.31 in 166.31 mm 6.54 in 508.00 mm 20.00 in Figure 2.6: Enclosure Side Dimensions Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 24 2: Installation 508.00 mm 20.00 in Figure 2.7: Enclosure Top Dimensions Electro Industries/GaugeTech ™ E180701 2-10 Powered by Innovation™...
  • Page 25 0.25". 5. Install upper mounting screws; leave a 3/8" gap between the screw head and the mounting surface. 6. Lift the enclosure and hang it from the top two bolts. Electro Industries/GaugeTech ™ E180701 2-11 Powered by Innovation™...
  • Page 26 Bottom mounting screws Figure 2.9: Location of Mounting Screws 10. Fold back the CT wiring labels in the upper right and left corners of the enclosure (see figure above) and tighten the upper two mounting fasteners. Electro Industries/GaugeTech ™ E180701 2-12...

  • Page 27: Installation Step 4 - Install The Display

    NEEDED for the display in the enclosure. (They would ONLY be needed if you wanted to mount the display remotely, rather than in the enclosure. If you are mounting remotely, cover up the display mounting hole that is in the enclosure cover.) Electro Industries/GaugeTech ™ E180701 2-13 Powered by Innovation™...
  • Page 28 • Display module and touch screen (1) • Panel with cutout (8) • Display installation nut (7) • Anti-rotation Tee (5) • Rear module, containing the electronics to run the display (2) Electro Industries/GaugeTech ™ E180701 2-14 Powered by Innovation™...
  • Page 29 4. Place the display installation nut on the portion of the display passing through the panel and “finger tighten” it. 5. Using the socket wrench supplied [6], tighten the display installation nut (7) with a torque between 1.2 and 1 Nm (10.6 to 17.7 in-lb). Electro Industries/GaugeTech ™ E180701 2-15...
  • Page 30 6. Carefully insert the rear module (2), with the yellow button to the top of the enclosure, and push the rear module until it locks into place. When it is in place you will hear a "click.” 7. Connect the cable to the rear module: see Figure 2-1. Electro Industries/GaugeTech ™ E180701 2-16...

  • Page 31: Installation Step 5 - Lock The Enclosure

    2. Remove the key and store it in a safe place. When you want to open the enclosure, put the key in the lock and turn it counter-clockwise. Repeat step 1 to re-lock the enclosure. Electro Industries/GaugeTech ™ E180701 2-17...
  • Page 32 2: Installation This page intentionally left blank. Electro Industries/GaugeTech ™ E180701 2-18 Powered by Innovation™...

  • Page 33: Electrical Wiring

    Earth Ground #10-12 AWG CU #8-32 10 lbf-in (1.2 N-m) * NOTE: All wires shall be rated 90 C/194 F Minimum; use copper conductors only. Short circuit current rating is 10kA rms symmetrical. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 34: Wiring Instructions

    3.1: Wiring Instructions WARNING! First connect Earth Ground as shown in the figure below. AVERTISSEMENT! Branchez d'abord la mise à la terre comme indiqué dans le dessin ci-dessous. Earth Ground Figure 3.1: Earth Ground Connection Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 35 AVETISSEMENT! LE CÂBLAGE DES COMMANDES PEUT AVOIR UNE TENSION PRÉSENTE QUI PEUT PROVOQUER DES BLESSURES GRAVES POU LA MORT. METTRE HORS TENSION TOUS LES CONDUCTEURS AVANT DE COMMENCER LA RÉALISATION D'UNE ACTIVITÉ DE CÂBLAGE DANS L'ENCEINTE DE L'ASSEMBLAGE MP200 Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 36 3: Electrical Wiring Figure 3.2: MP200-Y Three Phase Wiring Diagram Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 37 3: Electrical Wiring Figure 3.3: MP200-S Single Phase 2 Wire Wiring Diagram Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 38 3: Electrical Wiring Figure 3.4: MP200-S Single-Phase 3 Wire Wiring Diagram Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 39: 4: Operation

    <2 Ohms. 2. With the unit fully powered, measure the voltage on the input side and output side of the fuse. The voltages should differ by less than 1 Volt. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 40 4: Operation This page intentionally left blank. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 41: Maintenance

    If you ever need to remove the meter from service, refer to Appendix A. Removing a Meter from Service, on page A-1. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 42 5: Maintenance This page intentionally left blank. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 43: Ordering Information

    MDLN - 5.7" Touch Screen HMI Display with installation kit (Display Installation Kit includes: Display and Rear Module, RS485 Serial cable, Power Supply, Mounting Hardware) 8. Add-on Protocol X - No Add-on Protocol ProtoCom - BACnet Protocol ProtoCom-Lon - LonWorks Protocol Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 44 6: Ordering Information Example above: ENCSMP200-Y-60-10-V2-X-MDSN-ProtoCom (MP200-Y Metering System, with 60Hz frequency, Current Class 10, V-2 V-Switch™ key, RS485 only, MDSN 3.5” Touch Screen HMI Display, and ProtoCom converter) Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 45: Removing A Meter From Service

    The pre-installed jumper connects all lows together and to ground. WARNING! The screws need to be screwed down until the screw makes contact with the internal bar, enabling the bar to become electrically common with the terminal strip, and grounded. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 46 à la barre de devenir électriquement commune à la bar- rette de raccordement et mise à la terre. The figure below shows where the screws are located that must be tightened down to short the CTs. Figure A.1: CT/Shorting Block Location Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 47 Meter, on page A-6 AVERTISSEMENT! Lorsque vous réinstallez le compteur, assurez-vous que toutes les con- nexions de TC (transformateur de courant) sont faites AVANT de dévisser les vis de court- circuit. Voir la section A.2. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 48 Current Input Current Input 22-24 Current Input Current Input 10-12 Ground Connection Power and Voltage Connection Fuse Block (Six Fuses) Figure A.3: MP200-S in Enclosure Location of Fuses, Current Leads, Connectors, Mounting Screws Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
  • Page 49 5. Un-screw and disconnect the 48 current leads to the meter. 6. Disconnect all connectors to the meter. 7. Remove the four mounting screws securing the MP200 to the panel. 8. Remove the meter. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...

  • Page 50: A.2: Reinstalling The Meter

    TURN SCREWS COUNTER- CLOCKWISE TO UNSHORT THE CT Figure A.5: Un-shorting the CTs 7. Verify that no foreign material remains inside the enclosure: clean it out if found. 8. Energize all circuits and verify operation. Electro Industries/GaugeTech ™ E180701 Powered by Innovation™...
