Electro Industries/GaugeTech Shark 250 Installation And Operation Manual

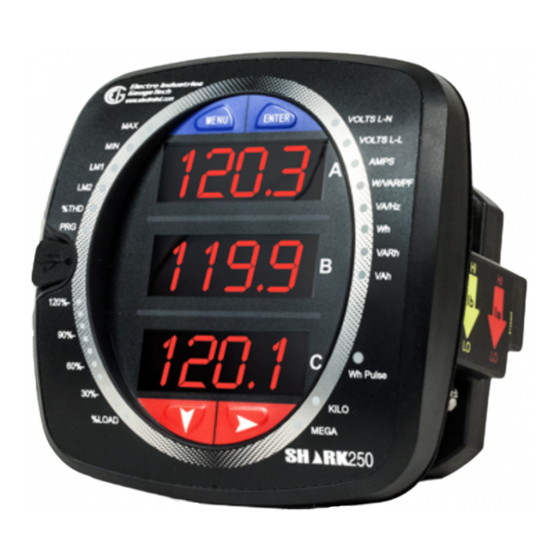

Power and energy meter for utility and critical industrial substations
Hide thumbs Also See for Shark 250:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Operation & Installation Manual
V.1.02
October 9, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shark 250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electro Industries/GaugeTech Shark 250

Summary of Contents for Electro Industries/GaugeTech Shark 250

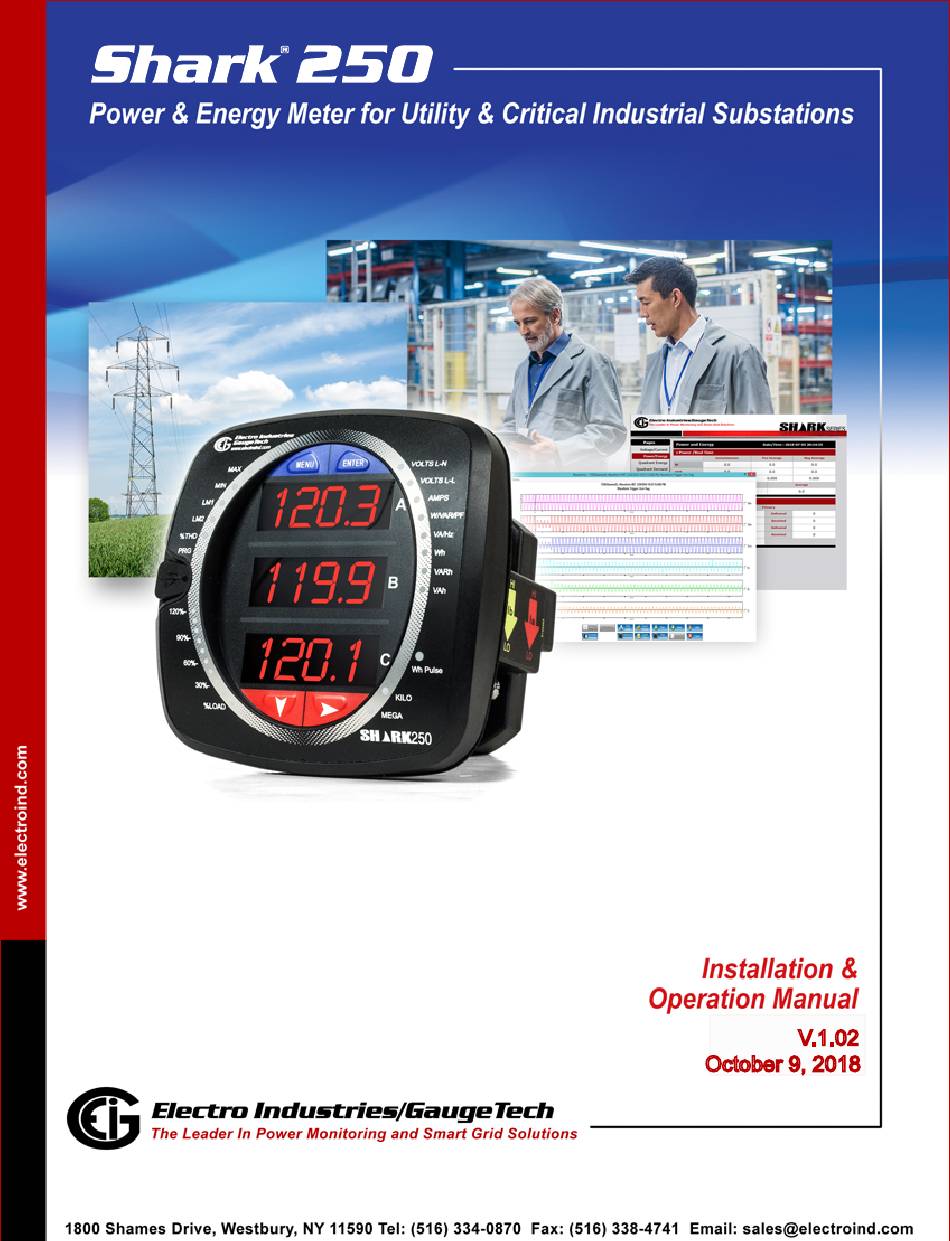

  • Page 1 V.1.02 October 9, 2018...
  • Page 2 This page intentionally left blank.
  • Page 3 Dissemination of this information or reproduction of this material is strictly forbidden unless prior written permission is obtained from Electro Industries/ Gauge Tech. Shark® is a registered trademark of Electro Industries/GaugeTech. The distinctive shapes, styles, and overall appearances of all Shark® meters are trademarks of Electro Industries/GaugeTech. Communicator EXT...

  • Page 4: Customer Service And Support

    516-334-0870 or fax 516-338-4741. Product Warranty Electro Industries/GaugeTech (EIG) warrants all products to be free from defects in material and workmanship for a period of four years from the date of shipment. During the warranty period, we will, at our option, either repair or replace any product that proves to be defective.

  • Page 5: Use Of Product For Protection

    Statement of Calibration Our instruments are inspected and tested in accordance with specifications published by Electro Industries/GaugeTech. The accuracy and a calibration of our instruments are traceable to the National Institute of Standards and Technology through equipment that is calibrated at planned intervals by comparison to certified standards.
  • Page 6 GaugeTech changed the face of power monitoring forever with its first breakthrough innovation: an affordable, easy-to-use AC power meter. More than forty years since its founding, Electro Industries/GaugeTech, the leader in power monitoring and control, continues to revolutionize the industry with the highest quality, cutting edge power monitoring and control technology on the market today.

  • Page 7: Table Of Contents

    Use Of Product for Protection iii Statement of Calibration iii Disclaimer iii About Electro Industries/GaugeTech (EIG) iv 1.1: The Shark® 250 High Accuracy Revenue Meter 1 - 1 1.1.1: Hookup Connections and Measurements 1 - 1 1.1.2: Ordering Codes 1 - 2 1.1.3: V-Switch...
  • Page 8 3.3: DIN Installation Steps 3 - 4 3.4: Transducer Installation 3 - 6 4: Electrical Installation 4 - 1 4.1: Considerations When Installing Meters 4 - 1 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 2 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 9 6.4.2: Default Configuration: 6 - 5 6.4.3: Wiring Diagram 6 - 6 6.5: 20 mA Output Card (20mAOS) 6 - 7 6.5.1: Specifications 6 - 7 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 3 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 10 6.10.3: Wiring Diagram 6 - 21 6.11: RS232/RS485 Card (RS1S) 6 - 22 6.11.1: Specifications 6 - 22 6.11.2: Default Configuration 6 - 23 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 4 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 11 9.1: Overview 9 - 1 9.2: Overview of IEC 61850 9 - 1 9.2.1: Relationship of Clients and Servers in IEC 61850 9 - 3 9.2.2: Structure of IEC 61850 Network 9 - 5 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 5...
  • Page 12 9.8: Testing 9 - 30 9.10: Error Codes 9 - 31 10: Time of Use Function 10 - 1 10.1: Introduction 10 - 1 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 6 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 13 B.1.2: Delta Connection B - 4 B.1.3: Blondel’s Theorem and Three Phase Measurement B - 6 B.2: Power, Energy and Demand B - 8 B.3: Reactive Energy and Power Factor B - 12 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 7...
  • Page 14 C.10.7: Object 21 - Frozen Counters C - 14 C.10.8: Object 22 - Binary Counter Event C - 15 C.10.9: Object 30 - Analog Inputs C - 16 C.10.10: Object 32 - Analog Inputs Change C - 17 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 8...
  • Page 15 C.12.7: Case 7 - Frequency of 59.95 Hz C - 50 D: Transformer Loss Compensation Spreadsheet and Examples E - 1 D.1: Calculating Values E - 1 D.2: Excel Spreadsheet with Example Numbers E - 1 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 9...
  • Page 16 Table of Contents This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 TOC - 10 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 17: The Shark® 250 High Accuracy Revenue Meter

    USB port. 1.1.1: Hookup Connections and Measurements 1.4: Shark® 250 Meter Specifications Overview, on page 1-14. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 18: 2: Ordering Codes

    Fiber Optic Fiber Optic Output Output Versatile Link Versatile Link Terminated Terminated INP300S INP300S IEC 61850 IEC 61850 Protocol Protocol Ethernet Ethernet RS1S RS1S RS232/RS485 RS232/RS485 Card Card Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 19 ** Note that some memory is reserved for internal operations. *** See the Shark® 250 Meter Modbus Protocol Application Guide for instructions on using Modbus with the meter. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 20 Menu Bar at the top of the software’s Main screen. 5. Click Tools>Change V-Switch from the Menu Bar. A screen opens, requesting the encrypted key. 6. Enter the V-Switch key provided by EIG. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 21 8. Configure the log sizes - see Chapter 28 in the Communicator EXT 4.0 and Meter- Manager EXT Software User Manual for instructions. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 22: 4: Measured Values

    -VAR-Hour (A,B,C,Total) VAR-Hour Net (A,B,C,Total) VA-Hour (A,B,C,Total) Frequency Harmonics to the 40th Order Voltage Angles Current Angles Waveform Scope K Factor Q-Hours Symmetrical Components Voltage Unbalance Current Unbalance Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 23: 5: Utility Demand

    Delivered & Received, kVAh, kVARh, kWh in each quadrant and Total kVAh. The meter measures instantaneous power and provides multiple, simultaneous demand mea- surements, including time-stamped maximum and minimum readings. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 24 Any time you change these values you should reset the TOU data by performing a Master TOU reset action (see the Communicator EXT 4.0 and MeterManager EXT Software User Manual for instructions.) Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 25 (e.g., station battery, station service, etc.), that is, the meter continues to operate. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 26: 2: Communications And I/O Capabilities

    None. • RS485 serial port, supporting Modbus RTU/ASCII, DNP3 Level 2, speeds from 1200 bps through 57600 bps, 8 data bits, 1 stop bit, configurable parity. Electro Industries/GaugeTech E169701 1-10 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 27 • Optional pulse outputs which can be programmed to pulse for any accumulated reading. One of the pulse outputs can also be set for an End-of-Interval Sync Pulse. Electro Industries/GaugeTech E169701 1-11 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 28 • Analog Outputs (0 +/- 1 mA or 4-20 mA). • Pulse Outputs/Digital Inputs. • Relay/Digital Inputs. Control Options Relay Control provides user-definable control outputs: • Action and/or alarm on abnormal or other user-set conditions. Electro Industries/GaugeTech E169701 1-12 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 29: 3: Meter Display

    1: Meter Overview 1.2.3: Meter Display The Shark 250 meter features a three line LED display for easy to use faceplate programming and viewing of meter readings. Refer to Chapter 2 for details on the meter’s display. 1.3: Shark® 250 Meter Accuracy...

  • Page 30: Shark® 250 Meter Specifications Overview

    • Continuous maximum ratings (for screw terminated or pass-through connections): Class 10: 20 A AC; Class 2: 5 A AC. Electro Industries/GaugeTech E169701 1-14 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 31 Power Supply • Range: • D2 Option: Universal, (90 to 265) V AC @50/60 Hz or (100 to 370) V DC. • D Option: (18-60) V DC. Electro Industries/GaugeTech E169701 1-15 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 32 • RS485 serial port, supporting Modbus RTU/ASCII, DNP3 Level 2, speeds from 1200 bps through 57600 bps, 8 data bits, 1 stop bit, configurable parity. • Modbus Address 1-247. • DNP Address: 1 to 65519. Electro Industries/GaugeTech E169701 1-16 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 33 ~3 Hz Contact type: Solid state – SPDT (NO – C – NC) Relay type: Solid state Peak switching voltage: DC ±350 V Continuous load current: 120 mA Electro Industries/GaugeTech E169701 1-17 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 34 Isolation: AC 3750 V Reset state: (NC - C) Closed; (NO - C) Open Infrared LED: Peak Spectral wavelength: 940 nm Reset state: Internal schematic: (De-energized state) Electro Industries/GaugeTech E169701 1-18 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 35 • Display Operating Temperature: (-20 to +70) °C. • Humidity: 95% RH maximum, non-condensing. • Storage Temperature: (-20 to +70) °C. • Max Altitude: 2000 m. • Faceplate Rating: NEMA 1. Electro Industries/GaugeTech E169701 1-19 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 36 Shipping Dimensions • Size: 4.85” H x 4.85” W x 4.25” L. • Weight: 2 lbs./.91 kg. • Meter weight without option cards: 1.09 lbs./0.50 kg. Electro Industries/GaugeTech E169701 1-20 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 37 • KEMA Ceritified for IEC 61850 • PCBs Conformal Coating: Complies: IEC61086-1/2/3 (high reliability) for adverse environmental conditions • Listed to UL/IEC 61010-1 3rd Ed. and CSAC22.2 No. 61010-1, UL File: E250818 Electro Industries/GaugeTech E169701 1-21 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 38: Dnp V 3.0 Protocol Implementation

    INP300S IEC 61850 Protocol Server card), you can use the card to access a Network Time Protocol (NTP) Server for clock synchronization. See Chapter 26 in the Communicator EXT 4.0 and MeterManager EXT Software User Manual, for instruc- tions. Electro Industries/GaugeTech E169701 1-22 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 39: Introduction

    LED lighting is not related to the data on the screen at the time. • LM2: this LED lights when any of the 16 Below limits have been exceeded. Note that the LED lighting is not related to the data on the screen at the time. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...

  • Page 40: 2: Understanding Meter Face Buttons

    • Enter display modes. • Configure parameters (may be Password protected). • Perform resets (may be Password protected). • Change settings. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 41: Using The Front Panel

    The Kilo or Mega LED lights, showing the scale for the Wh, VARh and VAh readings. Figure 2.3 shows an example of a Wh reading. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 42: 2: Using The Main Menu

    MENU ENTER For example: Press Down Twice - CFG moves to A window. Press Down Twice - OPr moves to window. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 43: 3: Using Reset Mode

    2.2.4: Entering a Password on page 2-7. • The following two situations may cause Reset Demand to be blocked: Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 44 Auto Freeze is also enabled. • If Reset Demand is blocked by either TOU or DNP Freeze, the display will show “Deny” instead of “Done.” Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 45: 4: Entering A Password

    • The previous screen is redisplayed, if you are in Reset mode. • The previous Operating mode screen is redis- played, if you are in Configuration mode. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 46: 5: Using Configuration Mode

    6. The parameter screen appears, showing the current settings. To change the settings: • Use either the Down button or the Right button to select an option. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 47 The settings have been the settings. Press the Right Cancel the Save. saved. button for Stor All no screen. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 48: 1: Configuring The Scroll Feature

    • To exit the screen without changing scrolling options, press the Menu button. • To return to the Main Menu screen, press the Menu button twice. • To return to the scrolling (or non-scrolling) parameters display, press the Menu button three times. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-10...

  • Page 49: 2: Configuring Ct Setting

    ENTER MENU ENTER MENU ENTER Press ENTER Use buttons to set Ct-n Ct-d cannot be changed Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-11 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 50: 3: Configuring Pt Setting

    NOTE: Pt-n is dictated by primary voltage; Pt-d is secondary voltage. MENU ENTER MENU ENTER Use buttons to set Pt-n Use buttons to set Pt-d Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-12 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 51: 4: Configuring Connection Setting

    • Enter the address. • Access one of the other Port screens by pressing the Enter button: press Enter once to access the bAUd screen (Baud Rate), twice to access the Prot screen (Protocol). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-13...
  • Page 52 ENTER MENU ENTER Use buttons to enter Address Use buttons to select Baud Rate Use buttons to select Protocol Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-14 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 53: 6: Using Operating Mode

    VAR hour Q3,4 VAR hour net VAR hour total Reactive Energy Display VA hour Apparent Energy Display Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-15 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 54: Understanding The % Of Load Bar

    The % of Load bar can be programmed through Communicator EXT software - see Chapter 28 in the Communicator EXT 4.0 and MeterManager EXT Software User Manual for instructions. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-16 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 55 RS485 port and a device with a USB port, e.g., a PC. Utilizing a driver down- loaded from the EIG website, the USB operates as a virtual Com port, allowing a user to communicate with the meter as with a standard PC serial emulation port. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 56 1. Download the E205301 driver from the EIG website: www.electroind.com/USB485- cable.html. 2. Connect the RS485 side of the cable to the meter’s RS485 port, as shown in the figure, below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-18 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 57 Baud Rate: 9600 Address: 1 Protocol: Modbus RTU Parity: None 1 Stop bit* 8 Data bits* Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-19 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 58 *1 Stop bit and 8 Data bits is the default for the Communicator EXT application’s RS485 port connection, so those settings aren’t shown in the Connect screen. They are included here in case you are connecting to the meter with other software. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-20...
  • Page 59 4. Click the Connect button. If you have a problem connecting, you may have to disconnect power to the meter, then reconnect power and click the Connect button, again. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-21 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 60 4.0 and MeterManager EXT Software User Manual for detailed information on all of the settings.You can access the manual by clicking Help>Contents from the software’s Main screen. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 2-22 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 61: 3: Mechanical Installation

    4.85 [12.32] 5.02 [12.75] 0.95 [2.41] 3.25 [8.26] 0.77 [1.95] Figure 3.1: Meter Front and Side Dimensions Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 62 0.77 [1.95] ® Figure 3.2: Shark 250T Dimensions 3.56 [9.04] 3.56 [9.04] Figure 3.3: Meter Back Dimensions Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 63: Ansi Installation Steps

    1.4: Shark® 250 Meter Specifications Overview on page 1-14). 3.2: ANSI Installation Steps 1. Slide meter with Mounting Gasket into panel. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 64: Din Installation Steps

    1. Slide meter with NEMA 12 Mounting Gasket into panel (remove ANSI Studs, if in place). 2. From back of panel, slide 2 DIN Mounting Brackets into grooves in top and bottom of meter housing. Snap into place. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 65 Remove (unscrew) ANSI studs for DIN installation DIN mounting Bottom bracket mounting bracket groove Figure 3.6: DIN Installation Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 66: Transducer Installation

    PVC, stainless steel and copper. Release Clip Figure 3.7: Transducer on DIN Rail Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 67 3: Mechanical Installation Black Rubber Stoppers Release Clip Figure 3.8: DIN Rail Detail Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 68 3: Mechanical Installation This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 69: 4: Electrical Installation

    NOTE: The current inputs are only to be connected to external current transformers provided by the installer. The CTs shall be Approved or Certified and rated for the current of the meter used. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 70 Shark® 250 doit être enlevée du service. Un côté du transformateur de courant doit être mis à terre. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 71 DANS L'UTILISATION FINALE DE L'ÉQUIPEMENT OU L'INSTALLATION. L'INTERRUPTEUR DOIT ÊTRE DANS UNE PROXIMITÉ PROCHE DE L'ÉQUIPEMENT ET A LA PORTÉE DE L'OPÉRATEUR. L'INTERRUPTEUR DOIT AVOIR LA MENTION DÉBRANCHEMENT DE L'APPAREIL POUR L'ÉQUIPEMENT. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 72: Ct Leads Terminated To Meter

    Figure 4.1: CT Leads Terminated to Meter, #8 Screw for Lug Connection Wiring Diagrams are shown in Section 4.8 of this chapter. Communications connections are detailed in Chapter 5. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 73: Ct Leads Pass Through (No Meter Termination)

    In this case, remove the current gills and place the CT wire directly through the CT opening. The opening accommodates up to 0.177” / 4.5mm maximum diameter CT wire. Figure 4.2: Pass Through Wire Electrical Connection Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 74: Quick Connect Crimp-On Terminations

    For quick termination or for portable applications, 0.25” quick connect crimp-on connectors can also be used Quick connect crimp-on terminations Figure 4.3: Quick Connect Electrical Connection Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 75: Voltage And Power Supply Connections

    EIG offers the EI-CP Panel meter protective fuse kit, which can be ordered from EIG’s webstore: www.electroind.com/store. Select Fuse Kits from the list on the left side of the webpage. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 76: Electrical Connection Diagrams

    7. Three-Phase, Three-Wire Delta with 2 PTs, 3 CTs 8. Current Only Measurement (Three Phase) 9. Current Only Measurement (Dual Phase) 10.Current Only Measurement (Single Phase) Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 77 Select: “ 3 EL WYE ” (3 Element Wye) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 78 Select: “ 3 EL WYE ” (3 Element Wye) from the Shark® meter’s Front Panel Display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-10 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 79 Select: “ 3 EL WYE ” (3 Element Wye) from the Shark® meter’s Front Panel Display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-11 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 80 LOAD Select: “2.5 EL WYE” (2.5 Element Wye) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-12 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 81 Earth Ground LOAD Select: “3 EL WYE” (3 Element Wye) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-13 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 82 LOAD Select: “2.5 EL WYE” (2.5 Element Wye) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-14 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 83 Select: “2 CT DEL” (2 CT Delta) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Not connected to meter Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-15 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 84 Select: “2 CT DEL” (2 CT Delta) from the Shark® meter’s front panel display (see 2.2: Using the Front Panel, on page 2-3). Not connected to meter Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-16 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 85 Using the Front Panel, on page 2-3). NOTE: The third CT for hookup is optional, and is used only for Current measurement. Not connected to meter Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-17 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 86 2.2: Using the Front Panel, on page 2-3.) NOTE: Even if the meter is used only for current measurement, an AN reference is recommended for improved accuracy. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-18 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 87 2.2: Using the Front Panel, on page 2-3). NOTE: Even if the meter is used only for current measurement, an AN reference is recommended for improved accuracy. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-19 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 88 • Even if the meter is used only for current measurement, an AN reference is recom- mended for improved accuracy. • The diagram shows a connection to Phase A, but you can also connect to Phase B or Phase C. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-20...

  • Page 89: Extended Surge Protection For Substation Instrumentation

    EI-MSB10-400 EI-MSB10-400 EI-MSB10-400 EI-MSB10-400 Figure 4.5: Wiring Schematic for Extended Surge Suppression Suitable for Substation Instrumentation Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-21 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 90 4: Electrical Installation This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 4-22 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 91: 5: Communication Installation

    • This port only communicates via Modbus ASCII Protocol, at a Baud Rate of 57600 bps, 1 stop bit, 8 data bits, and parity set to None. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 92 5.1: Connecting the USB Cable to the Meter 2. Open Communicator EXT software (download from product CD or EIG’s website). 3. Click Connect in the Icon Bar. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 93 Keep Flow Control, Echo Mode, and Parity as is shown here (Parity must be set to None). j. Click Connect. 5. The Device Status screen opens, displaying information about the meter. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 94: 2: Rs485 / Kyz Output (Com 2)

    Chapter 12: Performing Meter Testing, on page 12-1, for pulse constants. Figure 5.2: Shark® 250 Meter Back with RS485 Communication Installation Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 95 (+) terminals; connect (-) terminals to (-) terminals. • You may connect up to 31 meters on a single bus using RS485. Before assembling the bus, each meter must have a unique address: refer to Chapter2 8 in the Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 96 Twisted pair, shielded (SH) cable Twisted pair, shielded (SH) cable Twisted pair, shielded (SH) cable Earth Connection, preferably at single location Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 97: 1: Using The Unicom 2500

    Communication Products for the Unicom 2500 and Cables and Accessories for the RS485 4-wire to 2-wire cable. Figure 5.6 illustrates the Unicom 2500 connections for RS485 and Fiber Optics. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 98 Short TX(-) to RX(-) becomes (-) signal Short TX(+) to RX(+) becomes (+) signal 120.00 120.00 120.00 Figure 5.7: Unicom 2500 with Connections Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 99 Unicom 2500’s set- tings. The Unicom’s Baud rate must match the Baud rate of the meter’s RS485 port: you set the Baud rate by turning the screw to point at the rate you want. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 100 5: Communication Installation This page intentionally left blank. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 5-10 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 101: 6: Using The I/O Option Cards

    Total Solutions Option Card Slots Figure 6.1: Shark® 250 Meter Back, Showing Option Card Slots and I/O Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 102: Installing Option Cards

    4. Securely re-fasten the screws at the top and bottom of the card. CAUTIONS! • Make sure the I/O card is inserted properly into the track to avoid damaging the card’s components. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 103 Option card 2 c. Detachable terminal block 1 d. Detachable terminal block 2 e. Communication connection for Port 2 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 104: Configuring Option Cards

    @ ± 1 mA Temperature coefficient ± 30 nA/ °C Isolation: AC 2500 V system to outputs Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 105: 2: Default Configuration

    Phase A Voltage WYE, 300 Volts => +1 mA Phase A Voltage Delta, 600 Volts => +1 mA Channel 4 Phase A Current, 10 Amps => +1 mA Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 106: 3: Wiring Diagram

    Outputs Outputs (1,2,3,4) 0-1 mA Channel Common (C) Figure 6.3: 4-Channel 0 - 1 mA Output Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 107: 20 Ma Output Card (20Maos)

    28 V DC max. Internal voltage drop: 3.4 V DC @ 24 mA Reset/Default output value: 12 mA Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 108: 2: Default Configuration

    Phase A Voltage Delta, 600 Volts => 20 mA Channel 4 Phase A Current, 10 Amps => 20 mA 0 Phase A Current, 0 Amps => 4 mA Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 109: 3: Wiring Diagram

    Outputs (1,2,3,4) Outputs 4-20 mA Channel Loop Common (C) Figure 6.4: 4-Channel 4 - 20mA Output Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 110: Digital Output (Relay Contact) / Digital Input Card (Ro1S)

    Number of Inputs: Sensing type: Wet or dry contact status detection Wetting voltage: DC (12-24) V, internally generated Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-10 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 111 Dimensions (inch) W x H x L: 0.72 x 2.68 x 3.26 External Connection: AWG 12-26/(3.31 - 0.129) mm 9 pin, 0.200” pluggable terminal block Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-11 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 112: 2: Wiring Diagram

    Inputs (I1,I2) Relay Outputs Common (C) Figure 6.5: Relay Contact (2) / Status Input (2) Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-12 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 113: Pulse Output (Solid State Relay Contacts) / Digital Input Card (P01S)

    Wet or dry contact status detection Wetting voltage: DC (12-24) V, internally generated Input current: 2.5 mA – constant current regulated Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-13 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 114: 2: Default Configuration

    Defaulted to Energy Pulses Pulse Channel 1 1.8 +Wh per pulse Pulse Channel 2 1.8 -Wh per pulse Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-14 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 115: 3: Wiring Diagram

    Inputs (I1,I2) Pulse Outputs Common (C) Figure 6.6: Pulse Output (4) / Status Input (4) Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-15 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 116: Fiber Optic Communication Card (Fosts; Fovps)

    EN 61000-4-2 Weight: 1.2 oz Dimensions (inch) W x H x L: 0.72 x 2.68 x 3.26 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-16 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 117: 2: Wiring Diagram

    Chain Switch to ON. This allows messages not for this meter to continue to the next meter in sequence. Figure 6.7: Fiber Optic Communication Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-17 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 118: 10/100Baset Ethernet Communication Card (Inp100S)

    Dimensions (inch) W x H x L: 0.72 x 2.68 x 3.26 Connection Type: RJ45 modular (auto-detecting transmit and receive) Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-18 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 119: 2: Default Configuration

    Because of this, when you are communicating directly to a meter with a PC or a switch, a straight cable can be used. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-19...

  • Page 120: Iec 61850 Protocol Ethernet Network Card (Inp300S)

    Dimensions (inch) W x H x L: 0.72 x 2.68 x 3.26 Connection Type: RJ45 modular (auto-detecting transmit and receive) Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-20 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 121: 2: Default Configuration

    Because of this, when you are communicating directly to a meter with a PC or a switch, a straight cable can be used. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-21...

  • Page 122: Rs232/Rs485 Card (Rs1S)

    (-40 to +80) °C Relative air humidity: Maximum 95%, non-condensing EMC - Immunity Interference: EN 61000-4-2 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-22 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 123: Default Configuration

    Address: 1 Protocol: Modbus RTU Baud Rate: 57600 Parity: None Response Delay: 1 ms Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-23 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 124: 3: Wiring Diagram

    6: Using the I/O Option Cards 6.11.3: Wiring Diagram Figure 6.10: RS232/RS485 Serial Communication Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 6-24 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 125: 7: Using The Ethernet Card (Inp100S)

    N (+) Vref RJ45 Active cable connects Link here Total Solutions Figure 7.1: Meter with INP100S Card Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 126: Performing Network Configuration

    3.44. Starting in version 3.45, the network card works with NTP version 3.0 or 4.0 (autodetect) in client/server mode. Broadcast is not supported in any version. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 127: 1: Ethernet Communication

    1. Open a standard Web browser from your PC, smart phone, or tablet. 2. Type the Ethernet Card’s IP address in the address bar, preceded by “http://”. For example: http://172.20.167.99 Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 128 7: Using the INP100S Network Card 3. You will see the Shark® Series Voltage/Current webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 129 7: Using the INP100S Network Card 4. To view power and Energy readings, click Power/Energy on the left side of the webpage. You will see the webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 130 7: Using the INP100S Network Card 5. To view energy readings for each quadrant, click Quadrant Energy on the left side of the webpage. You will see the webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 131 7: Using the INP100S Network Card 6. To view demand for each quadrant, click Quadrant Demand on the left side of the webpage. You will see the webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 132 7: Using the INP100S Network Card 7. To view demand for each phase, click Phase Demand on the left side of the web- page. You will see the webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 133 7: Using the INP100S Network Card 8. To view power quality information, click Power Quality on the left side of the webpage. You will see the webpage shown below. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 134 Graph icon in the corner of the Voltage/Current box. You will see the webpage shown below. Graph Icon Phase Angles Icon Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-10 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 135 Angles icon in the corner of the Phase Angles box. You will see the web- page shown below. 7. Click Power Quality on the left side of the webpage to return to the previous webpage. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-11...
  • Page 136 • Upgrading the Ethernet card’s firmware (see 7.4.2.1: Upgrading the Ethernet Card’s Firmware on page 7 - 13). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-12 The Leader In Power Monitoring and Smart Grid Solutions The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 137: 1: Upgrading The Ethernet Card's Firmware

    From one of the Shark® 250 meter’s webpages: 1. Click Information on the left side of the webpage. 2. Click Upgrade Network Card (bottom box on the right). You will see the webpage shown on the next page. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-13...
  • Page 138 Once the upgrade is complete, you will see a confirmation message. CAUTION! Note the Warning message on the screen. If there is a power interrup- tion during upgrade, please call EIG’s Technical Support department at 516-334- 0870 for assistance. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-14...

  • Page 139: 2: Resetting The Ethernet Card

    3. Enter the Reset password (the default is adminR35et). 4. Click Reset. NOTE: As a result of the reset, the communication link with the card will be lost and must be re-established. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-15 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 140: 3: Email Notification

    2. Click Email Notification on the bottom right of the webpage. The first screen you will see is Email Server, shown below. 3. This screen lets you set up the SMTP email server that the Network card will use to send the emails. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-16...
  • Page 141 4. The next screen you will see is Watched Events. This screen lets you select the conditions that will cause an alarm or notification email to be sent, e.g, Relay Change or Unit Startup. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-17...
  • Page 142 • To de-select a condition, click on the button until it is empty, again - not black or red. b. You can select multiple conditions for alarms and notifications. When you are done, click the Next button. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-18...
  • Page 143 Note that these values are taken about one second after the alarm condition occurred. You can click Set All to select all of the values at one time, or Clear All to clear all of your selections. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 144 Enter the email address of the person sending the email in the From field. b. Enter the email subject line in the Subject field- the default is Notification Email. c. Enter the email address of the person receiving the email in the To field. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 145 "n07!fY" (without the quotation marks). You need to enter this password in order to implement your selections. j. Click Submit to save your settings. The Network card will reset. Note that any pending emails will be canceled. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-21...

  • Page 146: 4: Data Push

    IMPORTANT! The specific information you enter in the Data Push screens will be supplied by the cloud service., e.g., the url and server path to use. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-22...
  • Page 147 IP address. This information will be supplied to the customer by the cloud service. Note that Lucid Push in the INP100S implements "http" protocol, not "https": if the supplied address uses “https,” contact Lucid for instructions on accessing the http only server. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-23...
  • Page 148 • Enter the minute interval for sending the catalog (which tells the server which readings will be sent) to the server. Note that since the catalog is sent automat- ically when the meter starts up, which includes after any changes to the config- Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...
  • Page 149 (sent) to the cloud server. You can select up to 15 values. The selected data points have a dark circle inside the larger circle. Click on the circle to the left of a meter reading to select it - click again to de-select it. 10. Enter the password: 1Uc!dPu5H Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-25...

  • Page 150: 3: Ntp Time Server Synchronization

    This prevents the card from running out of server connections due to invalid links. The Keep-Alive settings can be configured differently for each protocol group: Modbus TCP/IP, DNP over Ethernet, IEC61850, and others. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-26...
  • Page 151 • For each protocol, you can enter a keep-alive time and interval in seconds. • For each protocol, you can enter the number of retries, in the event of communica- tion failure, before the communication socket is closed. • Enter the password (the default is chgK339@). Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 7-27...
  • Page 152 EIG is not responsible for instability of the network link when values other than the default are set. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701...

  • Page 153: 8: Data Logging

    Digital Input card output or input status changes. Up to 2,048 events can be logged. Refer to Chapter 8 (Configuring Shark® 250 Meter Option Cards section) and Chapter 19 (Status Change Log section) of the Communicator EXT 4.0 and Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 154 All of the Shark® 250 meter logs can be viewed through the EIG Log Viewer. Refer to Chapter 19 of the Communicator EXT 4.0 and MeterManager EXT Software User Manual for additional information and instructions regarding logs and the Log Viewer. Electro Industries/GaugeTech Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 155: 9: Using The Inp300S Iec 61850 Protocol

    • Reduce the effort for users to construct automation systems using devices from multiple vendors. • Assure interoperability between components within the automation system. • “Future-proof” the system by providing simple upgrade paths as the underlying technologies change. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 156 The IEC 61850 standard was developed for electrical substation automation, but has been applied to Distributed Energy resources, distribution line equipment, hydro-elec- tric power plants, and wind power plants. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 157: 1: Relationship Of Clients And Servers In Iec 61850

    (when needed) and then perform any allowable operation with that server. Example clients include: Omicron IED scout, SISCO AX-S4 61850, TMW Hammer, KalkiTech gateway, Siemens DIGSI Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 158 GOOSE and Sampled Value services. Note that GOOSE and Sampled Value services are not available with the Shark® 250 meter’s IEC 61850 Protocol Ethernet Network card. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 159: 2: Structure Of Iec 61850 Network

    • DataTypeTemplates element: contains the detailed definition of data models After it is written, the XML file can be checked by "validators" against the schema using freely available tools. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 160 9-21, for information on uploading the Shark® 250 meter’s .cid file. Each type of SCL file has different required elements with only the prologue and Header element required in every file type. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 161: 1: Elements Of An Iec 61850 Network

    The physical device contains a database of data values which map to the various structures described above. The database values are manipulated by the device to perform actions such as deadbanding Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 162: 3: Steps In Configuring An Iec 61850 Network

    IEC 61850 except to require that the SCD file remains the source of the configuration information. In this way, consistency of the information across the whole system is maintained. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 163 NOTE: In the Shark® 250 meter’s IEC 61850 Protocol Ethernet network card implementation, every service and object within the server is defined in the standard (there is nothing non-standard in the device). Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 164: 4: Eig's Implementation Of The Iec 61850 Protocol Server

    (.cid). This name will be used for accessing its access point (IP address) and its single Logical Device named "Meas". The IED name can be com- posed of any string of up to 32 (alphanumeric only) characters. Electro Industries/GaugeTech E169701 9-10...
  • Page 165 Following the previous example, the THD for phase A would be referred as "Meas/nsMHAI1.ThdPhV.phsA.instCVal.mag.f". • The node "eneMMTR1" groups together all measurements related to energy counters, like +/- Watt;hours, +/- VAr-hours and Total VA-hours. Electro Industries/GaugeTech E169701 9-11 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 166: 1: Shark® 250 Server Configuration

    IP configured in the Shark® 250 meter’s device profile). In this case the Shark® 250 meter will use the IP address from its device profile, and the IEC Server will work only with that address. Electro Industries/GaugeTech E169701 9-12...

  • Page 167: 5: Reference Materials

    Additionally, there is a good article on the predecessor to IEC 61850 (UCA 2.0) at http://www.elp.com/index/display/article-display/66170/articles/utility-automation- engineering-td/volume-5/issue-2/features/uca-20-for-dummies.html. Another good article on multi-vendor IED integration can be found at http:// www.gedigitalenergy.com/smartgrid/Aug07/EIC61850.pdf. Electro Industries/GaugeTech E169701 9-13 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 168: 6: Free Tools For Iec 61850 Start-Up

    Following is a list of tools for IEC 61850 configuration which you can purchase: • http://www.sisconet.com/ax-s4_61850.htm Client for IEC 61850 • http://products.trianglemicroworks.com/documents/ TMW%2061850%20Test%20Suite%20Combined.pdf Clients and servers for IEC 61850 • http://www.omicron.at/en/products/pro/communication-protocols/iedscout/test client • http://kalkitech.com/products/sync-6000-series-scl-manager--iec61850-substa- tion-design-tool SCL editing tool Electro Industries/GaugeTech E169701 9-14 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 169: Using The Shark® 250 Meter's Iec 61850 Protocol Ethernet

    • LLN0 (with predefined Sets and Reports) • LPHD (Identifiers) • MMXU with • Phase-to-N Voltages • Phase-to-Phase Voltages • Phase Currents • Per Phase VA • Total VA • Per Phase Var Electro Industries/GaugeTech E169701 9-15 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 170 • Demand Wh • Supplied Wh • Demand Varh • SuppliedVArh • Total VAh • Supports polled (Queried Requests) operation mode. • Supports Buffered Reports • Supports Unbuffered Reports Electro Industries/GaugeTech E169701 9-16 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 171: 2: Installing The Iec 61850 Protocol Ethernet Network Card

    • The IP address of the DNS (Domain Name Server) on your network (only needed if you plan to use URLs instead of IP addresses for the NTP (Network Time Protocol); if not needed you can leave this field blank) Electro Industries/GaugeTech E169701 9-17...
  • Page 172 IEC 61850 Protocol Ethernet Network Option card (Option Card 1 or Option Card 2), then click Comm>Network>IP Addresses and DNS. 4. Fill in the information on this screen. Electro Industries/GaugeTech E169701 9-18 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 173 • The IEC 61850 Protocol Ethernet Network card needs time information to work properly. The time can be provided either by a Network Time Proto- col (NTP) server or by the Shark 250® meter itself (via Line Sync, which is selected and enabled through the Time Settings screen). If you enter an NTP server on this screen, you still need to enable it in the Time Set- tings screen (see Chapter 28 in the Communicator EXT 4.0 and Meter-...
  • Page 174 7. Click Update Device to send the settings to the Shark® 250 meter. The meter will reboot. The IEC 61850 Protocol Ethernet Network card is now configured properly to work on an IEC 61850 network. Electro Industries/GaugeTech E169701 9-20 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 175: 2: Configuring The Meter On The Iec 61850 Network

    Shark® 250 meter will take the first one in the file. <Communication> <SubNetwork name="Subnet_MMS" type="8-MMS"> <BitRate unit="b/s" multiplier="M">10</BitRate> <ConnectedAP iedName="SHARK250IEC" apName="S1"> <Address> <P type="OSI-PSEL" xsi:type="tP_OSI-PSEL">00000001</P> <P type="OSI-SSEL" xsi:type="tP_OSI-SSEL">0001</P> <P type="OSI-TSEL" xsi:type="tP_OSI-TSEL">0001</P> <P type="IP" xsi:type="tP_IP">172.20.167.199</P> </Address> </ConnectedAP> </SubNetwork> Electro Industries/GaugeTech E169701 9-21 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 176 , where aa.bb.cc.dd is the IP address assigned to the IEC 61850 Protocol Ethernet Network card (see 9.5: Upgrading the IEC 61850 Protocol Ethernet Network Card’s Firmware, on page 9-28). The Information webpage is displayed. Electro Industries/GaugeTech E169701 9-22 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 177 .icd file on your computer. An example of a downloaded .icd file is shown below. <?xml version="1.0" encoding="UTF-8"?> <SCL xmlns="http://www.iec.ch/61850/2003/SCL" xmlns:xsi="http://www.w3.org/2001/ XMLSchema-instance" xsi:schemaLocation="http://www.iec.ch/61850/2003/SCL SCL.xsd" xmlns:ext="http://nari-relays.com"> <Header id="Shark 250 ICD" nameStructure="IEDName" version="1.0" revision=""> <History> <Hitem version="0.1" revision="13" when="9-May-2012" who="BAM" what="initial draft" why="initial ICD"> Electro Industries/GaugeTech...
  • Page 178 <P type="IP" xsi:type="tP_IP">10.0.0.24</P> </Address> </ConnectedAP> </SubNetwork> </Communication> <IED name="SHARK250IEC" desc="Electro Industries Shark 250" type="S250" manufacturer="ElectroIndustries" configVersion="1.00"> <Services> <DynAssociation/> 4. Once the System Integrator has processed the Shark® 250 meter's .icd file and the information of the other devices on the network (using either automated tools or manually), the final result is a configuration file with the extension ".cid".
  • Page 179 • If the uploaded .cid file has non-critical errors, the IEC 61850 Protocol Ethernet Network card will use the file anyway and will start up. Any errors can be seen in the Start Up log (see following instructions). Electro Industries/GaugeTech E169701 9-25...
  • Page 180 • The default .cid in the INP300S has the arbitrary IED name of SHARK250IEC, which must be replaced by the user's own name. Electro Industries/GaugeTech E169701 9-26 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 181: Viewing The Iec 61850 Protocol Ethernet Network Card's

    You will see a screen similar to the one shown above. Oldest messages appear first on the screen. The buttons at the bottom of the screen let you navigate through the message pages (Start, Back, Next, Last) or remove all of the messages (Clear). Electro Industries/GaugeTech E169701 9-27...

  • Page 182: Upgrading The Iec 61850 Protocol Ethernet Network Card's Firmware

    3. Enter the Upgrade Password (the default is n3tUp!0Ad). 4. Click Submit. Be sure to keep the meter powered during the firmware upgrade. After the upgrade process is complete, the Network card will reset. Electro Industries/GaugeTech E169701 9-28 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 183: Resetting The Iec 61850 Protocol Ethernet Network Card

    3. Click the Reset button. The Network card will reset. NOTE: As a result of the reset, the communication link with the card will be lost and must be re-established. Electro Industries/GaugeTech E169701 9-29 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 184: Keep-Alive Feature

    You can use any IEC 61850 certified tool to connect to the Shark® 250 meter and test out the IEC 61850 protocol (see example screen below). There are numerous commercial tools available for purchase. Electro Industries/GaugeTech E169701 9-30 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 185: Error Codes

    UTF-8 encoded. to begin with "<?xml". Check to ensure that the cod- ification of the text file is UTF-8; Multi- byte codification will also cause this error. Electro Industries/GaugeTech E169701 9-31 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 186 Assure that the network link is stable. If the problem persists, contact EIG’s tech- nical support. Electro Industries/GaugeTech E169701 9-32 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 187: 10: Time Of Use Function

    TOU. See the Communicator EXT 4.0 and MeterManager EXT Software User Manual for details on programming the Shark® 250 meter’s TOU calendar and retrieving TOU data. Electro Industries/GaugeTech E169701 10-1 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 188 Monday: the day’s usage is binned as shown below: Energy Used: 12am-7:59 am 8am-5:59pm 6pm-7:59pm 8pm-11:59pm Usage Bins (Rates) Off Peak On Peak Shoulder Peak Figure 10.1: Time of Use Electro Industries/GaugeTech E169701 10-2 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 189: The Shark® 250 Meter's Tou Profile

    TOU profile updates, but once you have made your changes and updated the meter, the meter performs a self-read and the current month and season data blocks are moved to the prior data blocks, and the current data blocks and all accumulator Electro Industries/GaugeTech E169701 10-3...

  • Page 190: Daylight Savings And Demand

    Daylight Savings Time automatically (for the United States ONLY). You can also select alternate beginning and ending dates for Daylight Savings Time. See the example screen, below. Electro Industries/GaugeTech E169701 10-4 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 191 Averaging setting section. See the example screen below. See Chapter 28 in the Communicator EXT 4.0 and MeterManager EXT Software User Manual for programming details for these and other Device Profile settings. Electro Industries/GaugeTech E169701 10-5 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 192 10: Time of Use Function This page intentionally left blank. Electro Industries/GaugeTech E169701 10-6 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 193: 11: Meter Calculations

    Line to Line; Form 9S, Form 36S: Form 45S: 2 × × × cos Phases: x, y 2. Current RMS: Form 9S, Form 9S, Form 36S: ; Form 45S: × Electro Industries/GaugeTech E169701 11-1 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 194 Form 36S(Wye - 2.5 EL): VAh total(arithmetic) × × ( × × ( Form 45S (Delta): VAh , VAh total(arithmetic) total(vector) ] = cos 30° × × × ( × × ( Electro Industries/GaugeTech E169701 11-2 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 195 //Only total is computed; the per element values are set to 0. 3 × 7. Power: Active Power: [ ] = Apparent Power: Reactive Power: Power Factor: Electro Industries/GaugeTech E169701 11-3 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 196 Unbalance - sequence = -sequence magnitude / + sequence magnitude 12. Current Unbalance: // where: 13. Transformer Loss: Vmeasured Imeasured × %LWFE × + %LWCU × Vmeasured Imeasured × %LVFE × + %LVCU × Electro Industries/GaugeTech E169701 11-4 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 197: Demand Integrators

    Further, every 5 minutes, the subinterval averages are averaged in groups of 3 (12:00. 12:05, 12:10, 12:15. etc.) to produce a fifteen (5x3) minute average every 5 minutes (rolling (sliding) every 5 minutes) (11:55-12:10, 12:00-12:15, etc.). Electro Industries/GaugeTech E169701 11-5...
  • Page 198 11: Meter Calculations This page intentionally left blank. Electro Industries/GaugeTech E169701 11-6 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 199: 12: Performing Meter Testing

    Normal Mode. The only difference is that the billing numbers stored in the meter are not updated with the real-time reading. This preserves the billing numbers while testing is performed. E169701 12-1 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 200 VARh Test Pulses Energy Pulses 120%- Energy 90%- 60%- Wh Pulse Standard 30%- KILO MEGA %LOAD Comparator Error Results Figure 12.2: Using the Watt Hour Test Pulse E169701 12-2 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 201 "V-Ref" & "GND." 3. Connect power leads to the "L" and "N" connections. 4. Monitor the #1 test pulse by placing the photo detector over the #1 LED. E169701 12-3 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 202 11. Repeat steps 5 through 10 until all test pulses are checked. 12. De-energize all circuits and remove power from the Standard, sources, and the Shark® 250 meter. 13. Disconnect all connections from the Shark® 250 meter. E169701 12-4 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 203: 13: Transformer Loss Compensation

    Ownership may change at the midway point of a transmission line where there are no substation facilities. In this case, power metering must again be compensated. This condition is shown in Figure 13.2. E169701 13-1 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 204 Vmeasured Imeasured        ----------------------------- --------------------------- - %LFWE %LWCU     TotalTransformerLoss TransformerFullScale Vnominal Inominal E169701 13-2 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 205: Shark® 250 Meter's Transformer Loss Compensation

    • Performs bidirectional loss compensation. • Requires no additional wiring; the compensation occurs internally. • Imposes no additional electrical burden when performing loss compensation. E169701 13-3 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 206 For three-element meters, the installation must be normal- ized to the phase-to-neutral voltage and the phase current; in two-element meters E169701 13-4 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 207: 1: Loss Compensation In Three Element Installations

    In order to calculate the loss compensation settings you will need the following information regarding the meter and the installation: • Number of meter elements • Potential transformer ratio (PTR) • Current transformer ratio (CTR) E169701 13-5 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 208: 1: Three-Element Loss Compensation Worksheet

    1. Enter the general information. Winding Voltage Connection HV - High ∆ XV - Low ∆ YV - Tertiary ∆ 2. Enter Transformer data (from Transformer Manufacturer's Test Sheet). E169701 13-6 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 209 Phase MVA values by three. • Convert 1-Phase MVA to 1-Phase kVA by multiplying by 1000. % Exciting Current % Impedance 5. Enter the % Exciting Current and % Impedance values. E169701 13-7 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 210 Meter Secondary Nominal Voltage (Volts) 120 V Meter Secondary Nominal Current (Amps) 8. Meter/Installation Data: enter the Meter Secondary Nominal Voltage (Volts) and Meter Secondary Nominal Current (Amps). E169701 13-8 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 211 = _______________ kVA No-Load Loss VAR (kVAR) = SQRT((No-Load Loss kVA)2 - (No-Load Loss kW)2) = SQRT((_________________)2 - (________________)2) = SQRT((__________________) - (_________________)) = SQRT (_________________) = ____________________ E169701 13-9 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 212 Calculate M/T Factor w/Exp by raising the Meter/Trf Value to the power indicated in Exp. d. Calculate the Value at Meter Nominal by multiplying the M/T Factor w/Exp by the Value at Trf Nominal. E169701 13-10 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 213 Enter calculated % Loss at Meter Nominal Watt values into the Shark® 250 meter using Communicator EXT software. Refer to Appendix B of the Commu- nicator EXT 4.0 and MeterManager EXT Software User Manual for additional instructions. E169701 13-11 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 214 13:Transformer Loss Compensation This page intentionally left blank. E169701 13-12 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 215: A: Shark® 250 Meter Navigation Maps

    Operating mode after 10 minutes with no user activity. Shark® 250 Meter Navigation Map Titles: • Navigation Overview • Operating Mode screens • Reset Mode screens • Configuration Mode screens Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 216 When a digit is blinking, down increases the digit value, right moves to the next digit. When a legend is blinking, action taken either button advances to the next choice legend. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 217 5 Scrolling is suspended for 3 minutes after any button press. 6 Volts_LL_THD screen is for Delta 2CT hookup only. MENU to Main Menu (from any operating mode screen) Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 218 2 sec. MENU to previous operating mode to previous operating mode (from any screen screen reset mode see sheet 2 see sheet 2 or 3 screen) to Main Menu Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 219 EDIT screen 2 sec. SAVE_NO: reboot to Main Menu STOR MENU to previous operating ALL? see sheet 1 mode screen ENTER no (blinking) see sheet 2 or 3 Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 220 A: Shark® 250 Meter Navigation Maps This page intentionally left blank. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 221: B: Three-Phase Power Measurement

    This leads to common voltages of 208/ 120 and 480/277 (where the first number represents the phase-to-phase voltage and the second number represents the phase-to-ground voltage). Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 222 A phasor diagram for the typical connected voltages and currents is shown in Figure B.2. Figure B.2: Phasor Diagram Showing Three-phase Voltages and Currents Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 223 The transformer is the best place to determine the circuit connection type because this is a location where the voltage reference to ground can be conclusively identified. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 224: B.1.2: Delta Connection

    In many delta services, one corner of the delta is grounded. This means the phase to ground voltage will be zero for one phase and will be full phase-to-phase voltage for the other two phases. This is done for protective purposes. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 225 208 volts on the third phase. Figure B.5 shows the phasor diagram for the voltages in a three-phase, four-wire delta system. Figure B.5: Phasor Diagram Showing Three-phase Four-Wire Delta-Connected System Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 226: B.1.3: Blondel's Theorem And Three Phase Measurement

    The difference in modern meters is that the digital meter measures each phase voltage and current and calculates the single-phase power for each phase. The meter then sums the three phase powers to a single three-phase reading. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 227 Kirchhoff's Law holds that the sum of currents A, B, C and N must equal zero or that the sum of currents into Node "n" must equal zero. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 228: B.2: Power, Energy And Demand

    Each bar in the graph will represent the power load for the one-minute increment of time. In real life the power value moves almost constantly. Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 229 1/ 60 (converting the time base from minutes to hours). Time (minutes) Figure B.7: Power Use over Time Electro Industries/GaugeTech E169701 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 230 To calculate demand it is necessary to accumulate the energy readings (as illustrated in Figure B.7) and adjust the energy reading to an hourly value that constitutes the demand. Electro Industries/GaugeTech E169701 B-10 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 231 As can be seen from this example, it is important to recognize the relationships between power, energy and demand in order to control loads effectively or to monitor use correctly. Electro Industries/GaugeTech E169701 B-11 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 232: B.3: Reactive Energy And Power Factor

    VA. The voltage and the in-phase current (I ) are combined to produce the real power or watts. The voltage and the quadrature current (I ) are combined to calculate the reactive power. Electro Industries/GaugeTech E169701 B-12 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 233 In many cases this is the preferred method of calculation because the entire impact of the actual voltage and current are included. Electro Industries/GaugeTech E169701 B-13 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 234: B.4: Harmonic Distortion

    As a result, the current waveform feeding these loads is periodic but not sinusoidal. Figure B.10 shows a normal, sinusoidal current waveform. This example has no distortion. 1000 Time – 500 – 1000 Figure B.10: Nondistorted Current Waveform Electro Industries/GaugeTech E169701 B-14 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 235 60 Hz frequency. This modeling is performed by mathematically disassembling the distorted waveform into a collection of higher frequency waveforms. Electro Industries/GaugeTech E169701 B-15 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 236 At 60 Hz, w = 377; but at 300 Hz (5th harmonic) w = 1,885. As frequency changes impedance changes and system impedance characteristics that are normal at 60 Hz may behave entirely differently in the presence of higher order harmonic waveforms. Electro Industries/GaugeTech E169701 B-16...
  • Page 237 Waveform capture should not be confused with waveform recording that is used to record multiple cycles of all voltage and current waveforms in response to a transient condition. Electro Industries/GaugeTech E169701 B-17 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 238: B.5: Power Quality

    Motor starting Arc furnaces Harmonic distortion Steady state current or volt- Non-linear loads age, long-term duration System resonance Table 3: Typical Power Quality Problems and Sources Electro Industries/GaugeTech E169701 B-18 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 239 If a power quality problem is suspected, it is generally wise to consult a power quality professional for assistance in defining the cause and possible solutions to the problem. Electro Industries/GaugeTech E169701 B-19 The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 240 B: Three-Phase Power Measurement This page intentionally left blank. Electro Industries/GaugeTech E169701 B-20 The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 241: C: Shark® 250 Meter Dnp Mapping

    (standard) or through the TCP/IP Network option card (INP100S) if it is installed in the meter. • Up to two simultaneous DNP3 sessions can be handled by the meter: one for each channel (RS485 link and TCP/IP network card). E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 242 Network interface (see C.5: Events on page C-3). • There are minor differences in some features when DNP3 is communicating through RS485 or TCP/IP. This will be mentioned in applicable areas. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 243: C.4: Classes

    If the single socket is not enabled, unsolicited messages will not be available for network communication, even if they are assigned and enabled in the DNP3 configuration. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 244: C.6: Time Synchronization

    NTP time synchronization from the Network cards (see 7.4.3: NTP Time Server Synchronization on page 7-26). • If Time synchronization is disabled, this "Need Time" Indication is never set. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 245: C.7: Link Layer Functions

    Internal Indication field, but they do not indicate an error condition. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 246: C.10: Object Specifics

    Max Binary Input Index Max Binary Input points Non-specific all attributes request List of attribute variations Device manufacturer's software Device manufacturer's hardware User assigned ID code/number Device serial number E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 247 Device manufacturer's product name Device manufacturer's name Non-Specific variation • When requesting using variation 254, all the available variations are returned. This object cannot be assigned to any class. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 248: C.10.2: Object 1 - Binary Inputs Status

    Binary Input with Status. • Any point of this object can be assigned to Class 0 in the DNP Configurable Profile, using Communicator EXT software. NOTE: When inputs are read: E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 249: C.10.3: Object 2 - Binary Input Change

    Binary Input with Time • Any point in this object can be assigned to Class 1, 2 or 3 in the DNP Configurable Profile, using Communicator EXT software. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 250: C.10.4: Object 10 - Binary Output States

    • If the relay has been never active since the meter was powered up, its state is unknown. This will be reported with the flag "Communication Lost" when reading the output state with variation 1. E169701 C-10 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 251: C.10.5: Object 12 - Relay Output Block

    Latch On will trigger the action they represent, but there will not be any physical actuation. The read back of points 4-7 will always be tripped. E169701 C-11 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 252 DNP. No Operate function should be performed, since the outputs will be unselected, internally. • Outputs 4-7 shall be handled with the Direct Operate function. E169701 C-12 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 253: C.10.6: Object 20 - Binary Counters

    • Any point of Object 20 can be assigned to Class 0 in the DNP Configurable Profile, using Communicator EXT software. • Note that DNP3 always reports the Binary Counters as positive numbers. E169701 C-13 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 254: C.10.7: Object 21 - Frozen Counters

    Communicator EXT software. • The Frozen values are preserved in non-volatile memory, so after being frozen at least once they become available, even if the meter loses power. E169701 C-14 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 255: C.10.8: Object 22 - Binary Counter Event

    Integer 16 bit with Time • Any point for Object 21 can be assigned to Class 1, 2 or 3 in the DNP Configurable Profile, using Communicator EXT software. E169701 C-15 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 256: C.10.9: Object 30 - Analog Inputs

    Integer 16 bit without Flags Short Float • Any point of Object 30 can be assigned to Class 0 data in the DNP Configurable Pro- file, using Communicator EXT software. E169701 C-16 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 257 (meter’s Device Profile). • The Frozen values are preserved in non-volatile memory, so after being frozen at least once they become available, even if the meter loses power E169701 C-17 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 258 Object 32 in the corresponding point. The reading of point#0 of Object 32 will have the value 19.0 (because the new value is 190 and the scaling is 0.1). E169701 C-18 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 259 Dead-Band values are also accessible through DNP3 protocol (through this Object 34), care must be taken when writing a Dead-Band value to assure that it matches the type of the corresponding point in Object 30. E169701 C-19 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 260 • The duration that a new time is valid in the meter after it is written is called "Time Sync Renewal Interval," and it is configurable from 0 minutes (time never expires) to 4095 minutes (roughly more than two and one half days). E169701 C-20 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 261 • No classes can be assigned to this object. • Note that for unsolicited messages in Class 1,2 and 3, there is a 5 second delay, to buffer any events before sending the message. E169701 C-21 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 262 For example, the event buffer (for classes), or the transmission buf- fer due to a lengthy reply. Already Executing Request understood and already in operation. • No class can be assigned to this Object. E169701 C-22 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 263: C.11: Default Values

    The following tables show these default values programmed into the meter at the factory. General Settings Unsolicited Class Mask none Unsolicited Target Device DNP Slave Address Reply Confirm Timeout (ms) 2000 Unsolicited Timeout (ms) 2000 E169701 C-23 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 264 Option Card 2 Input #1 none none Option Card 2 Input #2 none none Option Card 2 Input #3 none none Option Card 1 Input #4 E169701 C-24 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 265 Option Card 1 Relay #2 Option Card 2 Relay #1 Option Card 2 Relay#2 Reset Energy Counters Change to Mod- bus Protocol Reset Demand Counters Manual Wave- form Capture E169701 C-25 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 266 Otherwise it shall be an integer 32b. • If the scaling field is blank, no value shall be shown to the user, and the scaling field shall be defined as 1, integer 32b. E169701 C-26 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 267 Max Demand Avg. W+ 0x233B Max Demand Avg. W- 0x233D Max Demand Avg. VAR+ 0x233F Max Demand Avg. VAR- 0x2341 Max Demand Avg. VA 0x1003 Angle Phase E169701 C-27 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 268 • For any other type, the variation shall be 3. • For scaling, the following rules apply: • If the reading is a float type, the scaling shall be float also. E169701 C-28 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 269 1, integer 32b. Strings - Object 110 User Definable String Empty • All strings belong to Class 0. Time Synchronization Allow Time Synchronization Disabled E169701 C-29 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 270 • Any of the variations listed for each of the objects (see C.10.1: Object 0 - Device Attributes on page C-6 through C.10.16: Object 110 - Strings on page C-23) can be assigned as the default variation. E169701 C-30 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 271 112 (losing decimals due to conversion) and the Phase Vab as 1800 (in its native for- mat). Although conversion can cause some loss of precision, the meter’s reply is much easier to process since the format of all the points is known. E169701 C-31 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 272 2. The Shark® 250 meter Readings group is in primary values, so the user does not need to modify the scaling in DNP Object 30. (The scaling defaults to 1.0) E169701 C-32 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 273 Note that the returned value is 14464.75, which is a floating point value. This is because the default variation returned by the meter for reading voltage is Variation E169701 C-33 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 274 C: Shark® 250 Meter DNP Mapping Other variations can be requested. See the figure below for the result when Variation 1 (32 bit integer) is requested. E169701 C-34 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 275 For information on the variations the Shark® 250 meter can provide for each reading, see Chapter 28 of the Communicator EXT 4.0 and MeterManager EXT Software User Manual. E169701 C-35 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 276 CT/PT Ratios and System Hookup setting screen, shown below. 5. To see the secondary volts A-N using the settings shown above, the user computes the DNP3 Scaling value in this way: E169701 C-36 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 277 7. Now polling through DNP3 (using ASE2000), the user sees the expected secondary values. The figure below shows the secondary using Variation 5, which is a floating value. E169701 C-37 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 278 C: Shark® 250 Meter DNP Mapping The figure below shows the secondary using Variation 1 (32 bit integer), which displays a reading of 120. E169701 C-38 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 279 Case 1 - Primary of 14.4 KV and Secondary of 120 V on page C-32). Since it is pri- mary, the DNP scaling is kept to the default of 1.0. E169701 C-39 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 280 2. When polling through DNP using the default variation (Variation 5), the result is 138640.06 volts. Polling the same point with Variation 1 (32 bit integer), gives a non-fractional value of 138595 V. E169701 C-40 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 281 1:10 scaling, the 138000 volts will fit in the 16 bit integer as the number 13800. To do this, the Scaling field for that point is set to 1:10, or 0.1 as shown in the following figure. E169701 C-41 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 282 Polling that point with the AES2000 gives a value of 13863 as expected, which would be interpreted by the user as 138.63 KV since the 1:10 scaling was applied. E169701 C-42 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 283 In this example, include the Total Power in point #1 of Object 30 as shown in the figure below. Keep the DNP Scaling field in its default of 1, to display the pri- mary value. E169701 C-43 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 284 Note that the received data is in Variation 5 (float). The number received for point 1 is 6126489.5, in other words 6126.48 kW. Reading this value is very simple if the default variation (Variation 5) is used. E169701 C-44 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 285 The limit for preventing overflow is approximately 2147 MW. Using Variation 2 (16 bit integer) would result in an overflow, since the 6000 kW range does not fit into a 16 bit integer. E169701 C-45 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 286 1000, so that it would be in kilowatt rather than watt. The following figure shows the result of polling point 1 with the configured DNP scaling of 0.0001, via ASE2000 using Variation 2 (16 bit integer). E169701 C-46 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 287 Using a DNP scal- ing of 0.0001 will result in a DNP value which is a tenth of kW. E169701 C-47 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 288 DNP Scaling 0.0001 (tenths of kilo), exactly as in Case 4. If the DNP Scaling is set to 0.000001, the value read would be in MW units. E169701 C-48 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 289 32 bit or a 16 bit integer, corresponding to Variation 1 and Variation 2; though Variation 5 or Variation 6 can be used when certain “flags” are also required. E169701 C-49 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 290 In this example, the user reads the total Wh, which is scaled in kilo (kW) and has 3 decimal digits. The DNP Scaling is kept at its default of 1.0. E169701 C-50 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 291 • To the value 12345678, the user adds the decimal point to have 3 decimal digits - 12345. 678 and adds the unit, which is kilo. The resulting value is 12345.678 kWh. E169701 C-51 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 292 0.001. See the figure below. Reading the point, asking for Variation 1 gives the value 12345. Since the energy scaling unit is kilo, the value is 12345 kWh. E169701 C-52 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 293 DNP Scaling can be left at its default of 1.0. If Variation 5 is used to read this point, the value is straight forward, as shown below. E169701 C-53 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 294 Using ASE2000 and requesting Variation 2 (16 bit integer) we get the value 5995. Since the last two digits are the decimals we preserved through scaling, the value is interpreted as 59.95Hz. E169701 C-54 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...

  • Page 295: D: Transformer Loss Compensation Spreadsheet And Examples

    IMPORTANT! Refer to Appendix A of the Communicator EXT 4.0 and MeterManager EXT Software User Manual for additional instructions and information on the Trans- former Line Loss application. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 296 D: TLC Spreadsheet and Examples E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 297 D: TLC Spreadsheet and Examples E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 298 D: TLC Spreadsheet and Examples E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 299 D: TLC Spreadsheet and Examples E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
  • Page 300 D: TLC Spreadsheet and Examples This page intentionally left blank. E169701 Electro Industries/GaugeTech The Leader In Power Monitoring and Smart Grid Solutions...
