Package Contents

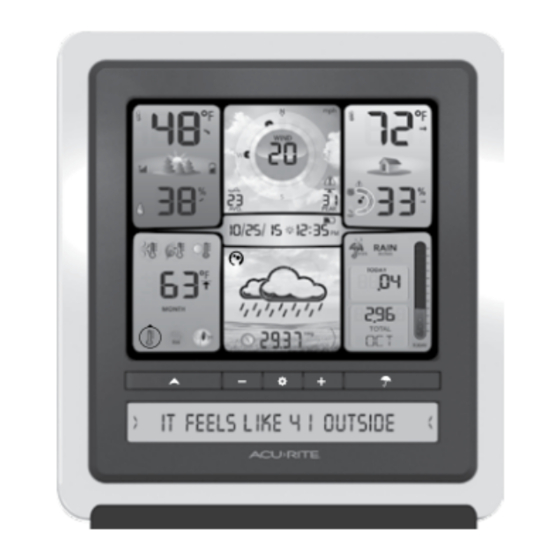

1. Display with tabletop stand
2. Power adapter
3. USB cable
4. Instruction Manual
This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be
operational.
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
Questions? Contact Customer Support at
(844) 228-5465 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Display for 5-in-1 Weather Sensor
Instruction Manual
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
model 06039M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACU-RITE 06039M
Summary of Contents for ACU-RITE 06039M
- Page 1 Instruction Manual Display for 5-in-1 Weather Sensor model 06039M Package Contents 1. Display with tabletop stand 2. Power adapter 3. USB cable 4. Instruction Manual This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. IMPORTANT PRODUCT MUST BE REGISTERED...
- Page 2 Features & Benefits Display 2 3 4 5 6...
- Page 3 1. Previous 2 Wind Directions 18. Barometric Pressure Arrow icon indicates direction 2. Backlight Button pressure is trending. For momentary backlight and Button dimmer settings. Changes the rainfall data being 3. Current Wind Speed displayed (#10). 4. Current Wind Direction Button 5.
- Page 4 Back of Display ############ BACK OF DISPLAY 1. Plug-in for Power Adapter CLEAR RECORD / RESET Button Press to clear data recorded 2. Plug-in for USB Cable since 12:00 am. Press and HOLD 3. Integrated Keyhole for full reset to factory defaults. For easy wall mounting.
-
Page 5: Display Setup
SETUP Display Setup Set the A-B-C Switch Write Down the MAC ADDRESS The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and... -
Page 6: Display Backlight Settings
Set the Time, Date & Units Press the “ ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... -
Page 7: View Video
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 8: Download The Software
AcuRite Connect AcuRite Connect works with Windows PC’s to provide access to your Weather Center data in the following ways: • Data File: Display logs (or stores) data so that you can download it to a PC in a data file (CSV, or comma-separated values file). •... -
Page 9: Weather Forecast
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 10: Rainfall History
Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is displayed for the current day, week, or month (most recent rainfall total). The rain indicator illustrates today’s rain collection up to 1 inch (25 mm). Press the “... - Page 11 Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WIND CHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE TODAY’S HIGH HUMIDITY...OUTDOOR XX / INDOOR XX TODAY’S LOW HUMIDITY...OUTDOOR XX / INDOOR XX TODAY’S HIGH TEMP...OUTDOOR XX / INDOOR XX...
-
Page 12: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (90 cm) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 13 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 7). Inaccurate • Make sure both units are positioned away from moisture sources (see page 7). temperature or humidity •...
- Page 14 Troubleshooting Problem Possible Solution • Verify that the status in the AcuRite Connect software on your PC indicates that data was uploaded OK. • Verify that you created an account or logged into an existing account at www.acu-link.com or in the AcuRite app, and that you input the display’s MAC ADDRESS as a part of the account setup.
-
Page 15: Care And Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Calibration The indoor and outdoor temperature and humidity readings, and barometric pressure can be calibrated on the display to improve accuracy. -
Page 16: Specifications
Specifications TEMPERATURE RANGE 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS 0 to 99.99 in; 0 to 2540 mm RAINFALL WIRELESS RANGE 330ft / 100m depending on home construction materials 433 MHz... -
Page 17: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite Visit our website at www. .com Installation Videos Register your Product... - Page 20 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 06039M INST 113015 Visit www.AcuRite.com/patents for details.
