Package Contents

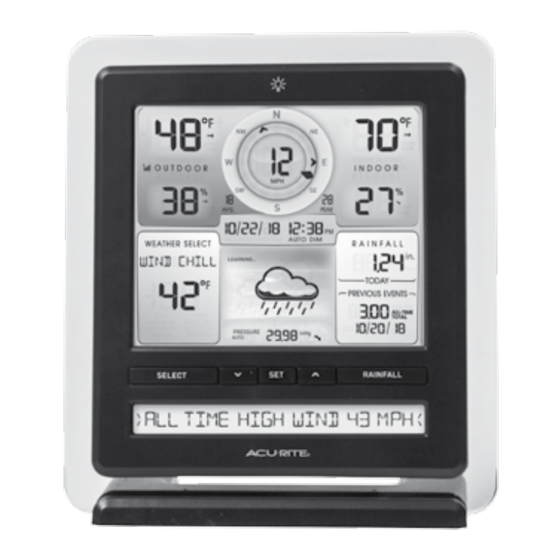

1. Display with Tabletop Stand
2. Power Adapter
3. USB Cable
4. Instruction Manual
This product requires an AcuRite 5-in-1 Weather Sensor
IMPORTANT
Register online to receive 1 year warranty protection
Questions? Contact Customer Support at
(844) 228-5465 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Display for 5-in-1 Weather Sensor
(sold separately) to be operational.
PRODUCT REGISTRATION
www.AcuRite.com
Instruction Manual
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
model 06037
Advertisement
Table of Contents
Related Manuals for ACU-RITE 06037
Summary of Contents for ACU-RITE 06037
- Page 1 Instruction Manual Display for 5-in-1 Weather Sensor model 06037 Package Contents 1. Display with Tabletop Stand 2. Power Adapter 3. USB Cable 4. Instruction Manual This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. IMPORTANT PRODUCT MUST BE REGISTERED...
-
Page 2: Features And Benefits
Features & Benefits Display 1 2 3 4 1... - Page 3 1. Previous 2 Wind Directions Button For setup preferences. 2. Backlight Button 20. SET Button For momentary backlight and dimmer settings. For setup preferences. 3. Current Wind Speed Button For setup preferences. 4. Current Wind Direction 22. SELECT Button 5. Current Indoor Temperature Press to change the WEATHER Arrow icon indicates direction SELECT category data being...
- Page 4 Back of Display DEVICE ID ############ BACK OF DISPLAY CLEAR RECORD/ RESET BUTTON Press and release to clear data 1. Plug-in for Power Adapter recorded since 12:00 am. Press and HOLD for full reset to factory 2. Plug-in for USB Cable defaults.
-
Page 5: Display Setup
SETUP Display Setup Set the A-B-C Switch Write Down the DEVICE ID The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and... -
Page 6: Set The Time, Date & Units
Set the Time, Date & Units Press the “SET” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... -
Page 9: Weather Forecast
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. - Page 10 Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. Press the “RAINFALL” button to review rainfall records. The icon is shown on the display while historical data is being viewed.
- Page 11 Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WINDCHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE 7 DAY HIGH TEMP.
-
Page 12: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 13 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 7). Inaccurate • Make sure both units are positioned away from moisture sources (see page 7). temperature or humidity •...
- Page 14 Troubleshooting Problem Possible Solution • Verify under Status that data was received from the indoor display. The timestamp should update every 18-36 seconds. • Verify that you created an account or logged into an existing account at www.MyAcuRite. com or in the AcuRite app, and that you input the display’s DEVICE ID as a part of the account setup.
-
Page 15: Care And Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Calibration The indoor / outdoor temperature and humidity readings, and barometric pressure can be calibrated on the display to improve accuracy. -
Page 16: Specifications
Specifications DISPLAY’S BUILT-IN TEMPERATURE SENSOR 32ºF to 122ºF; 0ºC to 50ºC RANGE DISPLAY’S BUILT-IN 1% to 99% HUMIDITY SENSOR RANGE WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0.01 inches (0.25 mm) and up WIRELESS RANGE 330ft / 100m depending on home construction materials... -
Page 17: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: AcuRite Visit us at www. .com Installation Videos Register your Product ►... - Page 20 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 06037 INST 062016 Visit www.AcuRite.com/patents for details.
