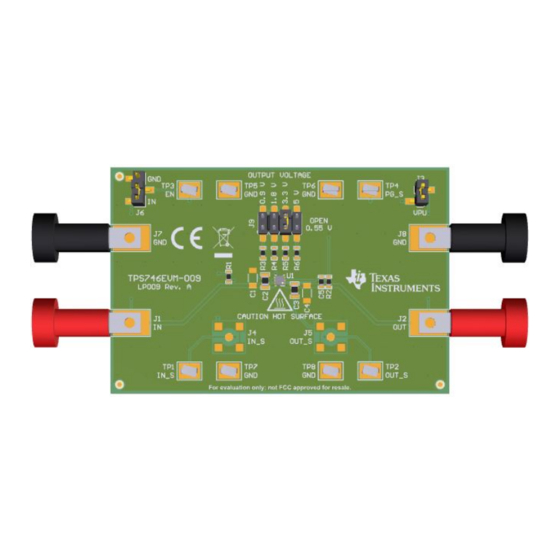

This user's guide describes the operational use of the TPS746EVM-009 evaluation module (EVM) as a

reference design for engineering demonstration and evaluation of the TPS74601DRV, low-dropout linear

regulator (LDO). Included in this user's guide are setup and operating instructions, thermal and layout

guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).

Throughout this document, the terms demonstration kit, evaluation board, and evaluation module are

synonymous with the TPS746EVM-009.

The following related documents are available through the Texas Instruments web site at www.ti.com.

All trademarks are the property of their respective owners.

SBVU046 – March 2018

Submit Documentation Feedback

TPS746EVM-009 Evaluation Module

Need help?

Do you have a question about the TPS746EVM-009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS746EVM-009

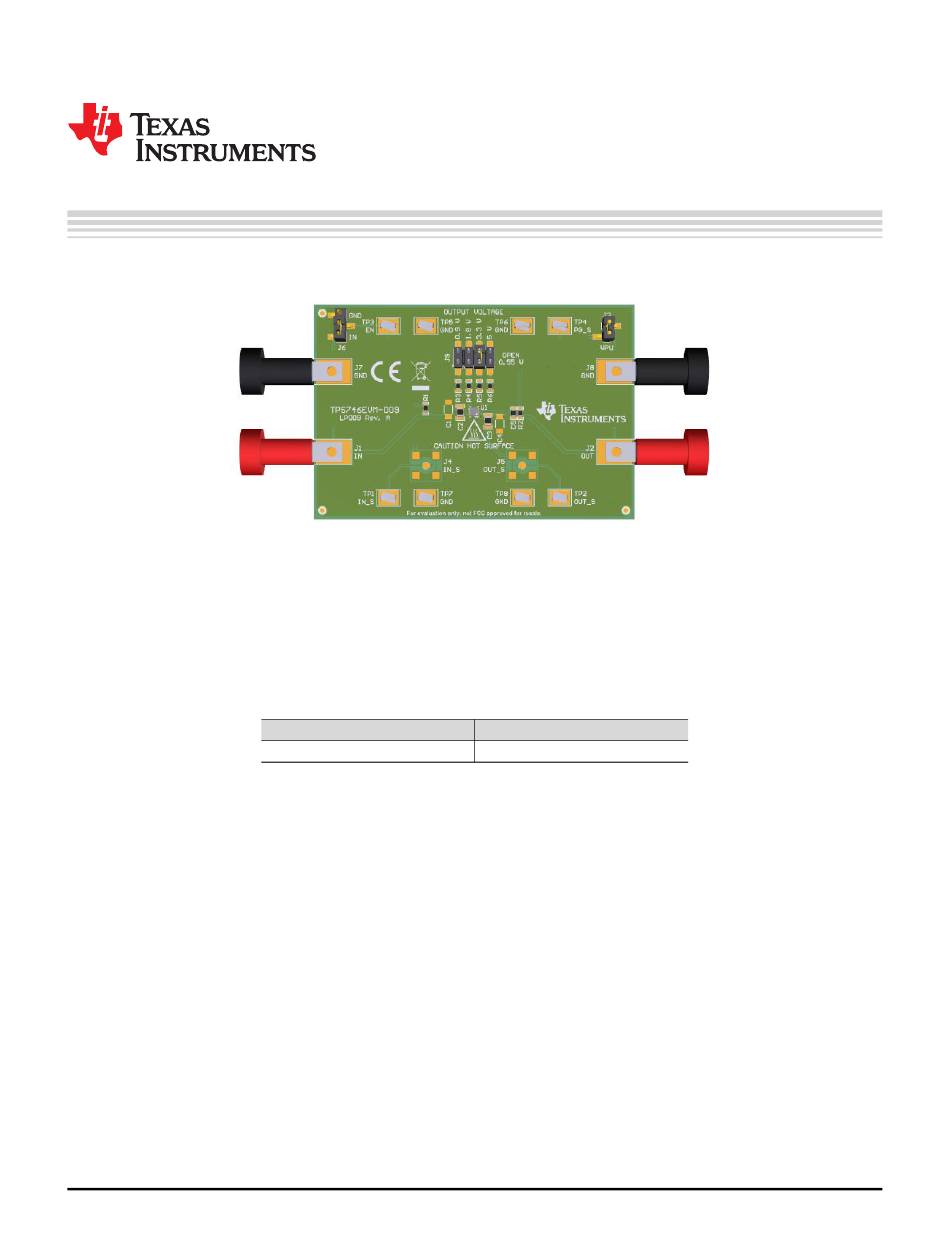

Page 1 SBVU046 – March 2018 TPS746EVM-009 Evaluation Module This user’s guide describes the operational use of the TPS746EVM-009 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS74601DRV, low-dropout linear regulator (LDO). Included in this user’s guide are setup and operating instructions, thermal and layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
Page 2: Table Of Contents
Bill of Materials List of Figures ......................Assembly Layer ......................Top Layer Routing ....................... Bottom Layer Routing ....................TPS746EVM-009 Schematic List of Tables ..................... TPS746EVM-009 BOM TPS746EVM-009 Evaluation Module SBVU046 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
Page 3: Introduction
Introduction Texas Instruments' TPS746EVM-009 EVM helps design engineers evaluate the operation and performance of the TPS746 family of linear regulators for possible use in their own circuit application. This particular EVM configuration contains a single low-noise, high-PSRR linear regulator for high-speed communication systems.
Page 4: Evm Setup
EVM Setup www.ti.com EVM Setup This section describes how to properly connect and setup the TPS746EVM-009, including the jumpers and connectors on the EVM board. Input/Output Connector and Jumper Descriptions 2.1.1 J1 – IN Input power-supply voltage connector. Twist together the positive input lead and ground return lead from the input power supply, and keep them as short as possible to minimize input inductance.
Page 5: Soldering Guidelines
2. Enable the output by jumping J6 (the EN pin) to VIN. 3. Vary the respective load and input voltage, as necessary, for test purposes. SBVU046 – March 2018 TPS746EVM-009 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
Page 6: Pcb Layout
PCB Layout www.ti.com PCB Layout Figure 1 Figure 3 illustrate the PCB layout for this EVM. Figure 1. Assembly Layer Figure 2. Top Layer Routing TPS746EVM-009 Evaluation Module SBVU046 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
Page 7: Bottom Layer Routing
PCB Layout www.ti.com Figure 3. Bottom Layer Routing SBVU046 – March 2018 TPS746EVM-009 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
Page 8: Schematic
Iout Up to 1 A IN_S OUT_S 2.2uF 2.2uF 2.2uF 2.2uF PG_S 10.0k IN_S OUT_S 0.01uF 34.8k TPS74601DRVR OUTPUT VOLTAGE 54.9k 15.4k 6.98k 4.32k Figure 4. TPS746EVM-009 Schematic TPS746EVM-009 Evaluation Module SBVU046 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
Page 9: Bill Of Materials
These assemblies must comply with workmanship standards IPC-A-610 Class 2. Unless otherwise noted in the Alternate Part Number or Alternate Manufacturer columns, all parts may be substituted with equivalents. SBVU046 – March 2018 TPS746EVM-009 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
