User's Guide
TPS715EVM-074 Evaluation Module
This user guide describes the operational use of the TPS715EVM-074 evaluation module (EVM) as a reference
design for engineering demonstration and evaluation of the TPS71501DCKR, low-dropout linear regulator
(LDO). Included in this user guide are setup and operating instructions, layout guidelines, a printed circuit
board (PCB) layout, a schematic diagram, and a bill of materials (BOM). Throughout this document, the terms
demonstration kit, evaluation board, evaluation module, and EVM are synonymous with the TPS715EVM-074.
SBVU077 – OCTOBER 2022
Submit Document Feedback
ABSTRACT

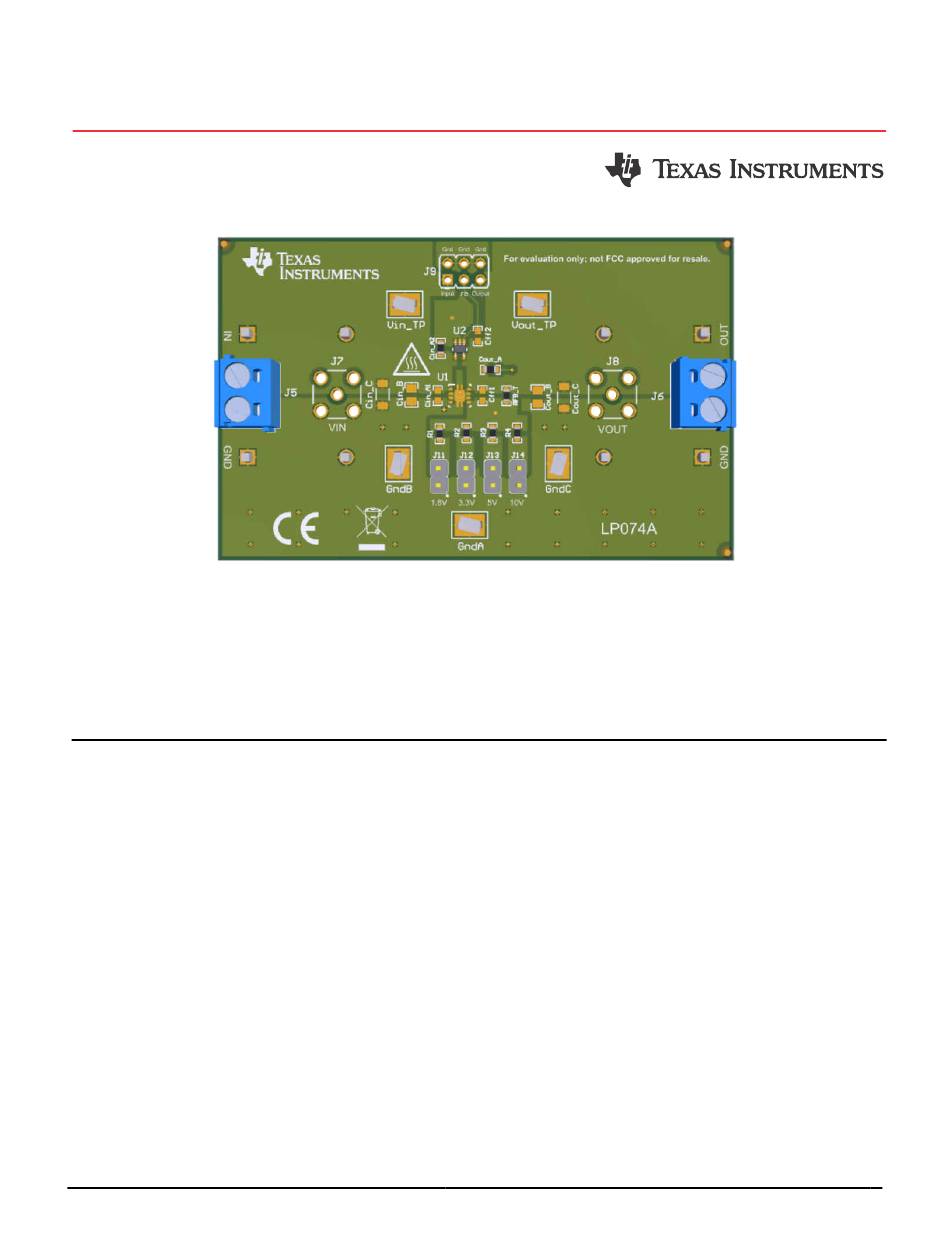

Figure 1-1. TPS715EVM-074 Evaluation Module
Copyright © 2022 Texas Instruments Incorporated
TPS715EVM-074 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS715EVM-074
Summary of Contents for Texas Instruments TPS715EVM-074
- Page 1 ABSTRACT Figure 1-1. TPS715EVM-074 Evaluation Module This user guide describes the operational use of the TPS715EVM-074 evaluation module (EVM) as a reference design for engineering demonstration and evaluation of the TPS71501DCKR, low-dropout linear regulator (LDO). Included in this user guide are setup and operating instructions, layout guidelines, a printed circuit board (PCB) layout, a schematic diagram, and a bill of materials (BOM).
-
Page 2: Table Of Contents
Figure 1-1. TPS715EVM-074 Evaluation Module........................1 Figure 2-1. TPS715EVM-074 Schematic.............................4 Figure 5-1. TPS715EVM-074 Top Layer Routing........................Figure 5-2. TPS715EVM-074 Internal Layer 1 Routing....................... Figure 5-3. TPS715EVM-074 Internal Layer 2 Routing....................... Figure 5-4. TPS715EVM-074 Bottom Layer Routing........................6 List of Tables Table 3-1. Selecting VOUT................................ -
Page 3: Introduction
The regulator is capable of delivering up to 50 mA and has a VIN range of up to 24 V. For stability for the TPS71501DCKR, use a 1-µF (or larger) output capacitor (Cout). 1.1 Before You Begin The following warnings are noted for the safety of anyone using or working close to the TPS715EVM-074. Observe all safety precautions. WARNING Failure to adhere to these steps or to not heed the safety requirements at each step may lead to shock, injury, and damage to the hardware. -
Page 4: Schematic
Schematic www.ti.com 2 Schematic Figure 2-1 shows the schematic for the TPS715EVM-074. TPS71501DCKR Input Output Input Cin_A2 Cff2 Output 100V 0.1uF 0.01µF Vin_TP Vout_TP Input Output Vin Max = 24V Vout Max = 15V RFB_T Cff1 Iin Max = 50mA... -
Page 5: Evm Setup
EVM Setup 3 EVM Setup This section describes how to properly connect and setup the TPS715EVM-074, including the jumpers and connectors on the EVM board. See Section 4 for the proper connections of test equipment. 3.1 Jumper Connections 3.1.1 J11-14: Output Voltage Select Connect a shunt across the pins to set the output voltage. -
Page 6: Pcb Layout
5 PCB Layout Figure 5-1 through Figure 5-4 depict the layout of the TPS715EVM-074. Figure 5-1. TPS715EVM-074 Top Layer Routing Figure 5-2. TPS715EVM-074 Internal Layer 1 Routing Figure 5-3. TPS715EVM-074 Internal Layer 2 Figure 5-4. TPS715EVM-074 Bottom Layer Routing... -
Page 7: Bill Of Materials (Bom)
