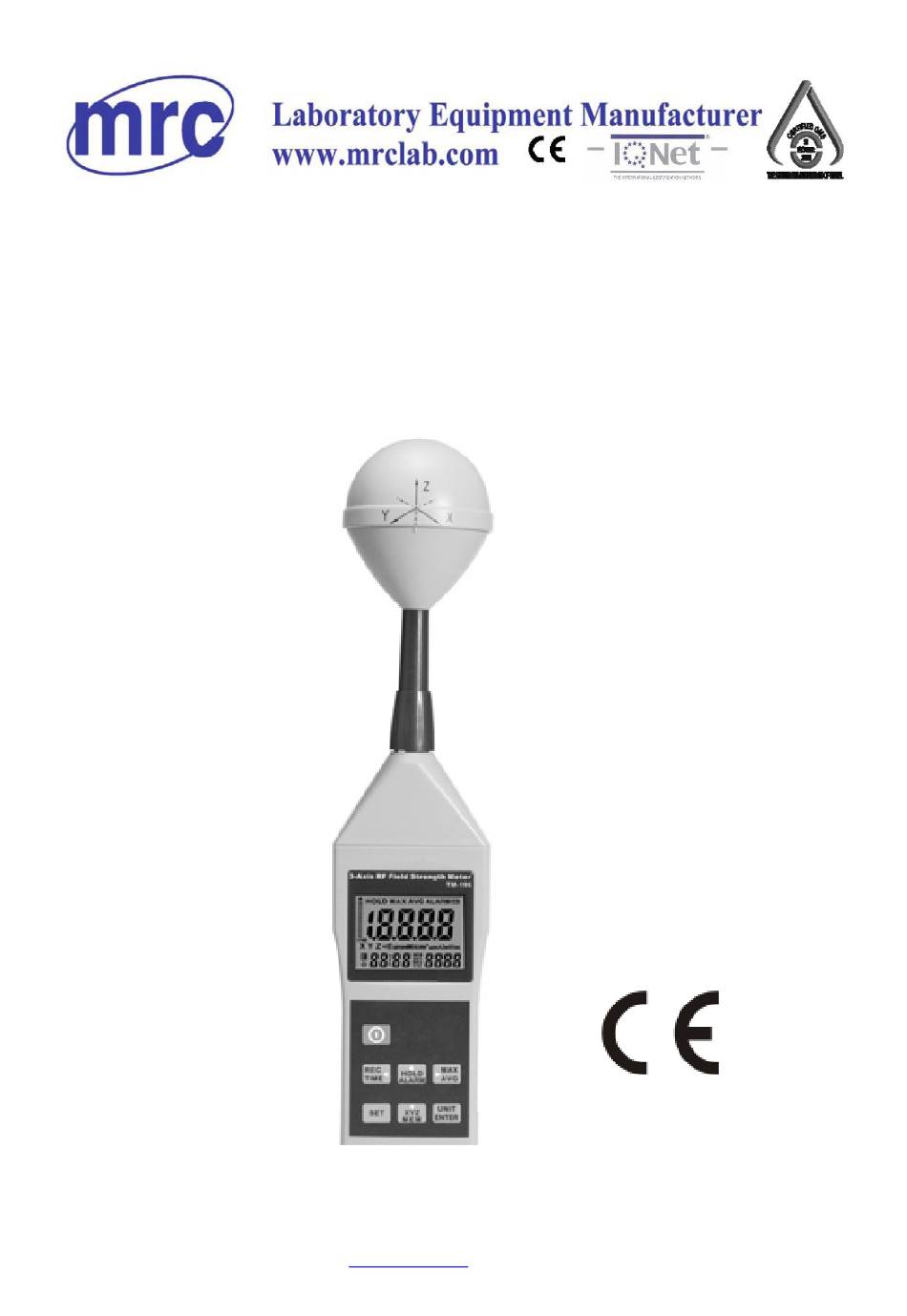

- Page 1 RF three-Axis Field Strength Meter TM-196 User’s Manual PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC. 3.20...
-
Page 2: Table Of Contents
Table of Contents Axis RF Meter Quick Start Guide ....1 Introduction ..........2 Simple a method of operation ....2 Fundamentals ..........3 Electric field strength (E)......3 4.1Magnetic field strength (H)......3 4.2Power density (S) ........4 4.3The characteristic of electromagnetic fields .............……….4 Application.......... - Page 3 9.11.1 Viewing Data Records......18 9.12 Cancel the automatic power off/on..18 9.13 Clock LCD Display ........ 19 10 Setup Mode..........19 10.1 Clock Setup-1 ........20 10.2 Setting the alarm limit value (ALARM)-2 ………………………………………..21 10.3 DEL data logger memory setup-3 ..22 10.4 Analogue bar graphsetup-4....
-
Page 4: Axis Rf Meter Quick Start Guide
Axis RF Meter Quick Start Guide This meter has many capabilities, including memory, alarm, date/time, average etc. which will require some study of the manual to use properly. However, you can quickly and easily begin making measurements right out of the box. Just follow these simple steps: 1. -
Page 5: Introduction
Introduction This meter is designed for measuring and monitoring Radio–Frequency electromagnetic field strength. The meter is calibrated precisely over the frequency range of 10MHz~8GHZ. Simple a method of operation Press “power” button on.To change measuring unit (mV/m), push UNIT”button to change the unit.Electric field strength (V/m).Computed magnetic field strength (mA/m).Computed power density... -
Page 6: Fundamentals
Fundamentals Electromagnetic pollution This meter is used to indicate electromagnetic pollution generated artificially. Wherever there is a voltage or a current, electric (E) and magnetic (H) fields arise. All types of radio broadcasting and TV transmitters produce electromagnetic fields, and they also arise in industry, business and the home, where they affect us even if our sense organs perceive nothing. -
Page 7: Power Density (S)
calculate the magnetic field for the electric field value. This meter can display the calculated magnetic field strength. 4.2 Power density (S) Power per unit area normal to the direction of propagation, usually expressed in units of watts per square meter (W/m ) or, for convenience, units such as mill watts per square centimeter (mW/cm... -
Page 8: Application
Application Quite often routine, maintenance and service work has to be done in areas where active electromagnetic fields are present, e.g. in broadcasting stations, etc. Additionally, other employees may be exposed to electromagnetic radiation. In such cases, it is essential that personnel be not exposed to dangerous levels of electromagnetic radiation, such High frequency (RF) electromagnetic... -
Page 9: Features
Features The meter is a broadband device for monitoring high- frequency radiation in the range from10MHz to 8GHz The non-directional electric field antenna and high sensitivity also allow measurements of electric field strength in TEM cells and absorber rooms. The unit of measurement and the ... - Page 10 For isotropic measurements of electromagnetic fields. Non-directional (isotropic) measurement with three-channel measurement sensor. High dynamic range due to three- channel digital results processing. Configurable alarm threshold and memory function. Easy & safe to use Low battery detector “ ”.
-
Page 11: Identifying Parts

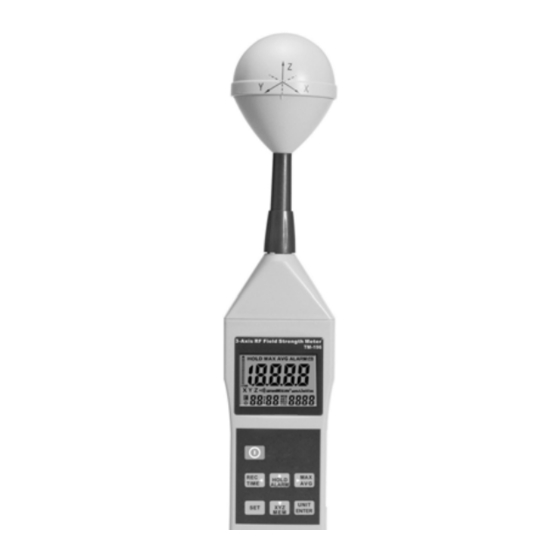

Identifying Parts 1. RF three-Axis Sensor. 2. Liquid-crystal LCD. 3. Hold /ALARM / Up Button. 4. MAX / AVG/ Right Button. 5. UNIT / ENTER Button. 6. XYZ / MEM / Down Button. 7. Power Button. 8. REC/ time / Leftward Button. 9. -
Page 12: Lcd Description
LCD Description 1. Primary Display 15. Time unit 2. Hold symbol (month: day) 3. Analogue bar graph (hour: minute) 4. MAX symbol (second) 5. AVG symbol 16. MEM reading 6. Low battery symbol symbol 7. x1x10x100 unit 17. SET symbol 8. -
Page 13: Specifications
9 Specifications 9.1 General specifications Display type: Liquid-crystal (LCD), 4-1/2 digits maximum reading 19999. Measurement method：Digital, Tri axis measurement. Directional characteristic: Isotropic, Tri axis. Measurement range selection: one continuous range. Display resolution : Display resolution:0.1mV/m, 0.01V/m, 0.1µA/m, 0.1mA/m,0.001µW/ m 0.01mW/ m , 0.001µW/cm Setting time: typically 1.5s (0 to 90%measurement value.) - Page 14 Calibration factor CAL: adjustable Manual data memory and read storage: 200 data sets. Batteries : 9V NEDA 1604, IEC 6F22 or JIS 006P Battery life: Approximate 15 hours. Auto power off: Default time 15 minutes. Adjustable threshold 0~99 minutes.
-
Page 15: Electrical Specifications
9.2 Electrical specifications Unless otherwise stated, the following specifications hold under the following conditions: The meter is located in the far field of a source; the sensor head is pointed towards the source. Ambient temperature: +23 °C ±3°C. ... -
Page 16: Units Of Measurement
Overload limit: 0.083 mW/cm ,(17.7 V/m) per axis. Overload limit: (0 to50°C): ± 0.2dB. 9.3 Units of measurement The meter measures the electrical component of the field; the default units are those of electrical field strength (mV/m or V/m). The meter converts the measurement values to the other units of measurement, i.e. -
Page 17: Measurement Procedures And Preparation
according to one of three modes, which can be selected. Instantaneous: The display shows the last value measured value measured by the sensor, no symbol is displayed. Maximum instantaneous (MAX): The digital display shows the highest instantaneous value measured, the “MAX “symbol is displayed. -
Page 18: Power Key
on the back and put a 9V battery inside. Battery replacement: When the symbol of “ ” appears on the LCD display, the battery should be replaced with a new one. The battery symbol will be displayed on the LCD, this is a battery low indicator. 9.5 POWER key：... -
Page 19: Units Key
9.7 Units key: Change units with the “UNITS” key as follows Electric field strength (V/m) Computed magnetic field strength (mA/m). Computed power density (mW/m Computed power density (μW/cm Press “ ” key to change the units: mV/m, V/m, µA/m, mA/m, µW/m , mW/m µW/cm 9.8 MAX / AVG Record:... -
Page 20: Manual Data Memory Storing
displays . 9.9 Manual data memory storing Press“ ” key, the meter will save the current measured result, and REC with a number 001~200 will appear. Manual data memory Storing: 200 data sets.Over load Indication: “OL”. 9.10 XYZ/CALL: Press “ ”... -
Page 21: Viewing Data Records
function. When the Alarm is ON, the display shows 9.11.1 Viewing Data Records Press hold “ ” key and press “ ” key to view the saved data records Use “ ” or “ ” key to see the next or previous records Press “... -
Page 22: Clock Lcd Display
the symbol of will be appeared on the LCD display. 9.13 Clock LCD Display Press hold “ ”key and press“ ” key for more than seconds to select the display method of the Year, Month, Date, hour and Second. This meter’s clock uses 24 hour time setting. -
Page 23: Clock Setup-1
setup 3 : Analogue bar graph X1.X10.X100 setup 4 : Auto Power Off Time setup 5 : Setting the calibration factor (CAL) 10.1 Clock Setup-1 Press hold “ ” key first and “ ” key to enter the Setup Mode. Press “... -
Page 24: Setting The Alarm Limit Value (Alarm)-2
10.2 Setting the alarm limit value (ALARM)-2 The alarm limit value is used to monitor the display value automatically. It controls the alarm indication function. The alarm limit value can be edited in the displayed V/m unit. The ALARM setting range is from 0.001 to 999.9V/m. -
Page 25: Del Data Logger Memory Setup-3
Press “ ” key to select the value. Press “ ” key to store the new setting value and exit. 10.3 DEL data logger memory setup-3 Press hold “ ” key first and “ ” key to enter the Setup Mode. -
Page 26: Analogue Bar Graphsetup-4
select ’ ’’ and then press “ ” to keep the memory and exit. 10.4 Analogue bar graphsetup-4 Press hold “ ” key first and “ ” key to enter the Setup Mode. Press “ ” key for three times to enter the analogue bar graph setting mode. -
Page 27: Setting The Calibration Factor (Cal)-6
Press “ ” key for four times, the symbol is displayed. The auto power off time default setting is 15 minutes. Press “ “ and “ ” key to change the: 00~:99 minutes. Press “ ” key to save and exit. :00 ... -
Page 28: Calibration Factor Is Important For The Measurements
Press “ “or” key to select the value. Press “ ”or “ ”key to select the digits. Press “ ” key to save and exit. 11 Calibration factor is important for the measurements: The calibration factor CAL serves to calibrate the result display. The field strength value measured internally is multiplied by the value of CAL that has been entered and the resulting value is... -
Page 29: Short-Term Measurements
electrostatic charges. Recommendation: hold the meter steady during the measurement. 11.1 Short-term measurements: Application：Use either the “instantaneous” or the “Max .instantaneous” mode, if the characteristics and orientation of the field are unknown when entering an area exposed to electromagnetic radiation. 11.2 Short-term measurements Procedure：Hold the meter at arm’s length. -
Page 30: Long-Term Exposure Measurements
that metallic objects within the field may locally concentrate or amplify the field from a distant source. 11.3 Long-term exposure measurements Location：Place the meter between yourself and the suspected source of radiation. Make measurements at those points where parts of your body are nearest to the source of radiation. -
Page 31: External Dc Power
13 External DC Power External AC to DC adapter: Voltage 9VDC(8~14VDCMax) Supply current：＞300mADC Socket：pin Positive, Ground Casing External Diameter 6.3mm; internal Diameter 2.0 EN-28... -
Page 32: Safety Precaution
14 Safety Precaution For cleaning the instrument use a soft dry cloth. Never use a wet cloth, solvents or water, etc. Operation Altitude：Up to 2000M. Operating Environment： Indoors use. This instrument has been designed for being used in an environment of pollution degree 2. -
Page 33: Safety Information
15 SAFETY INFORMATION CAUTION Before making a measurement, check if the low battery symbol” ” is shown on the display as soon as the meter is switched on. Change the battery if the symbol is displayed. In the case of prolonged storage, it is preferable to remove the battery from the meter. -
Page 34: Safety Information
16 SAFETY INFORMATION DANGER In some cases, work in the vicinity of powerful radiation sources can be a risk of your life. Be aware that persons with electronic implants (e.g. cardiac pacemakers) are subject to particular dangers in some cases. Observe the local safety regulations of the facility operation. -
Page 35: End Of Life
incorrectly evaluated and tend to be underrated. Before using field strength measuring devices, you should thus be certain that all field components to be measured lie in the specified frequency range of the measuring device. 17 End of life Caution : this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal...
