Summary of Contents for MRC DT-2236

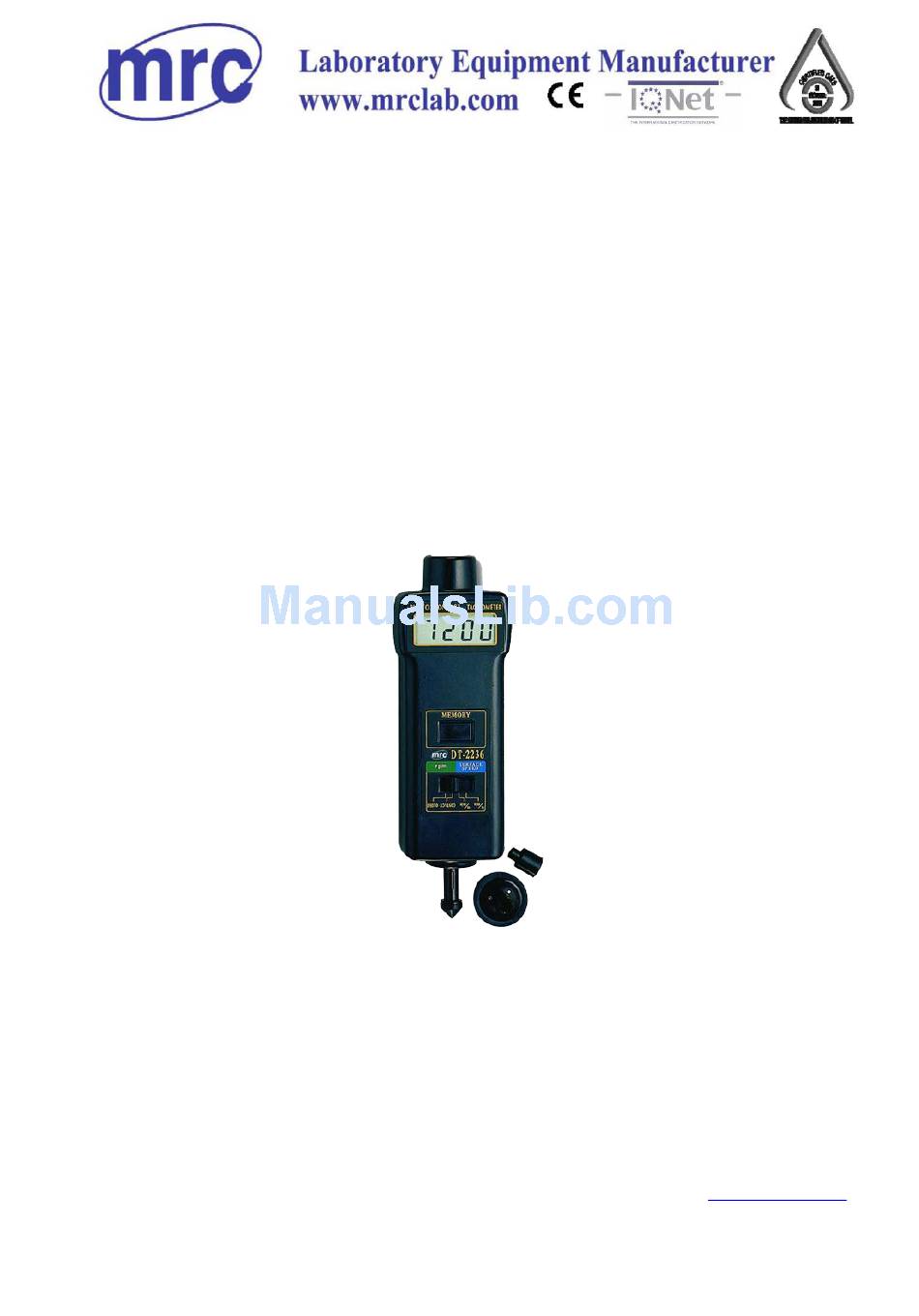

- Page 1 DIGITAL PHOTO/CONTACT TACHOMETER Model : DT-2236 PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.10.15...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES ................. 2. SPECIFICATIONS ............... 3. FRONT PANEL DESCRIPTIONS..........4. PHOTO TACHOMETER MEASURING PROCEDURE ....5. CONTACT TACHOMETER MEASURING PROCEDURE ....5-1 RPM Measurement............5-2 Surface Speed Measurement........... 6. MEMORY CALL BUTTON OPERATION ........7. BATTERY REPLACEMENT ............ 8. -
Page 3: Features
1. FEATURES * Multi-function, single instrument with combined PHOTO TACHO (RPM) & CONTACT TACHO (RPM,m/min., ft/min.) * Wide measuring range form 0.5 to 100,000 RPM. * The last value/max. value/min. value will be automatically stored in memory and can be recalled by pressing MEMORY CALL BUTTON. - Page 4 Resolution Photo 0,1 RPM (5 to 999.9 RPM). Tacho 1 RPM (over 1,000 RPM). Contact 0,1 RPM (0.5 to 999.9 RPM). Tacho 1 RPM (over 1,000 RPM). Surface 0.01 m/min.(0.05 -99.99 m/min.) Speed 0.1 m/min. (over 100 m/min.) (m/min.) Surface 0.1 ft/min.
-
Page 5: Front Panel Descriptions
3. FRONT PANEL DESCRIPTION Fig. 1 Reflective mark Signal light beam Monitor indicator Display Measure button Memory call button. Function select switch Rotating ring Circumferential speed ring 3-10 Battery Compartment... -
Page 6: Photo Tachometer Measuring Procedure
4. PHOTO TACHOMETER MEASURING PROCEDURE A. Slide the FUNCTION SWITCH (3-7, Fig.1) to "RPM (PHOTO)" position. B. Affix a reflective mark (tape) to the object being measured. Press the MEASURE BUTTON (3-5 Fig. 1) and align the visible light beam with the reflective mark (3-1, Fig. 1) Ensure that the MONITOR INDICATOR(3-3, Fig. -
Page 7: Surface Speed Measurement
5-2 Surface Speed Measurement A. Slide the FUNCTION SWITCH (3-7, fig.1) to "m/min.(SURFACE SPEED) or "ft/min. (SURFACE SPEED)". B. Press the MEASURE BUTTON (3-5 fig. 1) and simply attaching surface speed test wheel to the detector. Release The MEASURE BUTTON (3-5 Fig.1) When the reading stabilizes. -
Page 8: Battery Replacement
Remove the battery. (3) Install the new batteries ( 4 x 1.5 V AA/UM-3 ) and replace the cover. 8. PATENT & PATENT PENDING This exclusive TACHOMETER already holds patent in USA - 4,823,080, GERMANY - G9015492.4 G8708922.0, TAIWAN - 45478, DT-2236...
