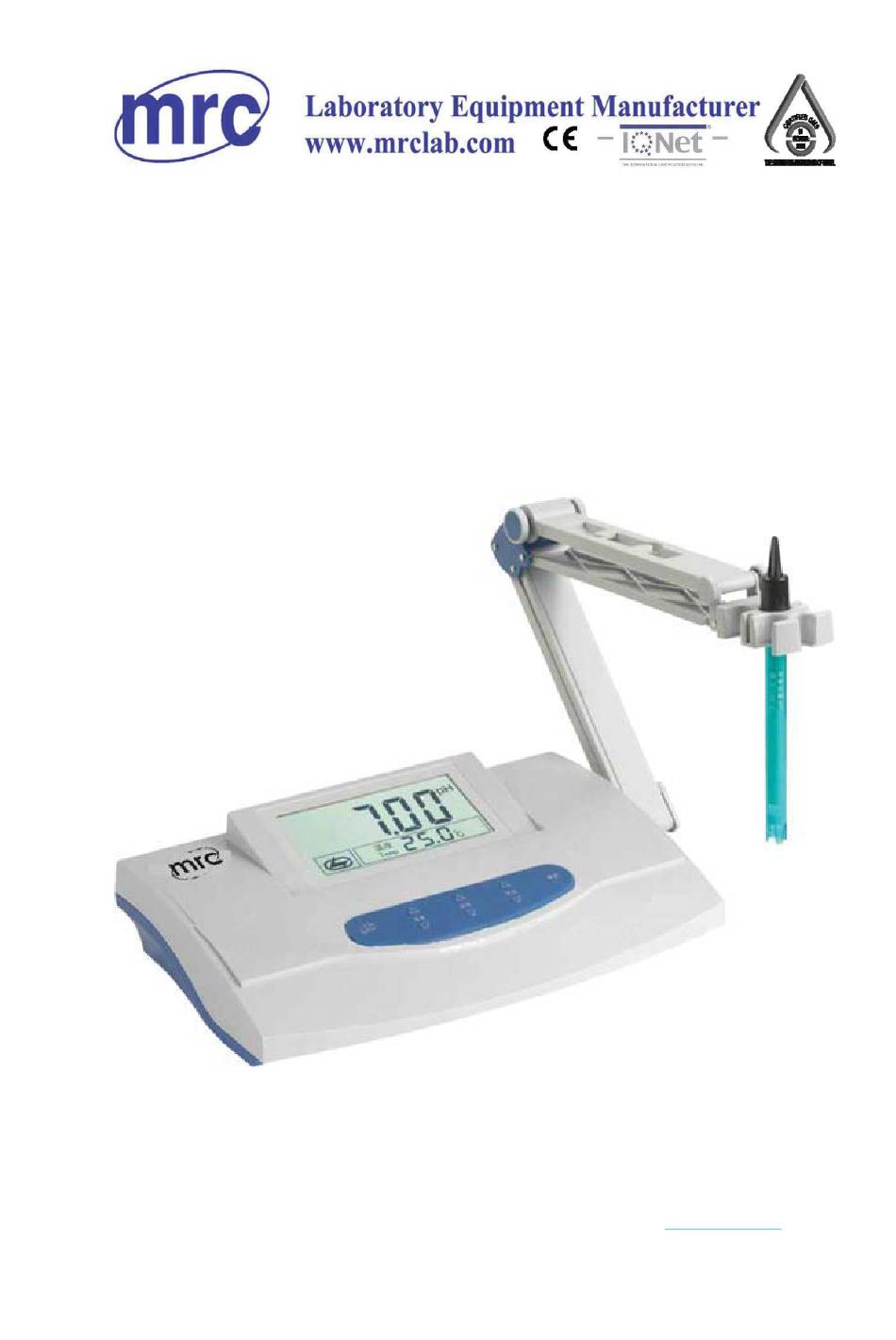

- Page 1 INE-PHS-3E pH Meter Operating Manual PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.12.16...
- Page 2 INE-PHS-3E 2016 ADVICE: Read this instruction carefully before operating the meter. The meter should be re-tested by metrological department when it is used for over one year. The meter can't be used until it is up to standard. The warranty of the glass PH electrode is one year. The electrode should be replaced in time after one year no matter whether it is used or not, since the performance of it will be influenced.
- Page 3 INE-PHS-3E 2016 CONTENT 1. GENERAL 2. MAIN SPECIFICATIONS AND PERFORMANCE 3. CONSTRUCTION 4. OPERATION INSTRUCTION 5. MAINTENANCE 6. CAUTIONS FOR ELECTRODE OPERATING 7. COMMON PROBLEMS AND SOLVING...
- Page 4 INE-PHS-3E 2016 1. General INE-PHS-3E pH meter is a precise digital display pH meter, which adopts double digits LCD display with a big screen and blue back light. It displays PH value and temperature value or mV value and temperature value simultaneously. It is suited for measuring pH value and potential (mV) of water solution in laboratories of universities, institutions and enterprise.
- Page 5 INE-PHS-3E 2016 3. CONSTRUCTION Front panel of the meter Case cover *1- Multi-function electrode support stand rack (it has been set up under bottom of the meter) 2. keyboard 3. Screen 5. Electrode 4. Multi-function electrode support stand Back panel of the meter Measuring electrode socket 7.
- Page 6 INE-PHS-3E 2016 INE-PHS-3E Operating flow diagram Switch on the meter Enter manual or auto. temp. measurement selection mV measurement If the temperature electrode is not Press “pH/mV” button connected to the meter, enter manual adjusting temp. state. Press “ ” or pH measurement “...
- Page 7 INE-PHS-3E 2016 4. OPERATION Preparations before start a) Insert multi-function electrode support (4) in the seat of multi-function electrode support stand rack (*1). b) Install pH combination electrode (12) on electrode support stand (4). c) Take off the sleeve (13) of pH combination electrode, take off rubber sleeve, then small hole on tope of the electrode appears.
- Page 8 INE-PHS-3E 2016 One-point calibration: One point calibration that is to calibrate EO with one standard buffer, the default slope is 100%. Note: The meter will delete last data auto after done one point calibration. The default slope is 100% after one point calibration.
- Page 9 INE-PHS-3E 2016 4.1.2 Manual calibration (Be suitable for calibrating any standard buffer solution from pH0.00 to 14.00) The step a) to e) is the same as the automatic calibration One-point calibration f) Insert the electrode which has been cleaned with distilled water into pH7.00 standard buffer solution.
- Page 10 INE-PHS-3E 2016 the solution even, pH value of solution will be displayed on screen. If temperature electrode is not connected to the meter, measuring procedure differs on whether temperature of measured solution is the same as the calibrated solution. The...
- Page 11 INE-PHS-3E 2016 5 MAINTENANCE The meter should be often maintained, pH meter must have very high input impedance. There are often chemical reagents in ambient surrounds, so necessary maintenance can guarantee the meter's normal working. 1) The input end of the meter (electrode socket 6) must be kept dry and clean. When the...
- Page 12 INE-PHS-3E 2016 Notes: 1:Tetrachloro-methane, trichloroethylent, furnaidine etc. can't be selected as detergent, because they will dissolve polycarbonate resin, the shell of the electrode is made of polycarbonate resin, glass bulb will easily be polluted if the shell is dissolved. And the electrode will lose effectiveness. Combination electrode can't be used to measure the above solution, either.
- Page 13 INE-PHS-3E 2016 Accessory information Model Name Description INE-PHS-3E PH Meter Standard Multi-function electrode stand Standard E-301-C PH 3-in-1 combination electrode Standard 0-14PH Standard Buffer Solution PH4.00,7.01,10.00 Standard 5 bags each T-818-B-6 Temperature electrode E-201 PH sealed combination electrode Optional 0-14PH...
- Page 14 INE-PHS-3E 2016 Appendix Appendix 1 Buffer solution’s relationship between pH value and temperature 0.05mol/kg 0.025mol/kg 0.01mol/kg Temperature Potassium hydrogen mixed phosphate sodium tetraborate phthalate 4.00 6.95 9.39 4.00 5.92 9.33 4.00 6.90 9.28 4.00 6.88 9.23 4.00 6.86 9.18 4.01 6.85...
- Page 15 INE-PHS-3E 2016 Appendix 4: Way to make buffer solution 1. pH 4.00 solution: Dissolve 10.12g GR potassium acid phthalate dissolved in 1000ml high-purity deionized water. 2. pH 6.86 solution: Dissolve 3.387g GR monopotassium phosphate and 3.533g GR disodium hydrogen phosphate in 1000ml high-purity deionized water.
- Page 16 INE-PHS-3E 2016 Packing List INE-PHS-3E pH Meter Number Description Quantity INE-PHS-3E pH Meter 1 set Power Line (universal) Buffer Solution pH 4.7.10 5 bags for each Fuse BGXP 5*20 0.5A Protective Cover (small) PH Combination Electrode Operating Instruction...
- Page 17 INE-E-301-C PH TRI-COMBINATION ELECTRODE GENERAL Mode INE-E-301-C PH tri-combination electrode consists of glass electrode, reference electrode, thermal electrode. Polycarbonate engineering plastics is used for its outer covering. The construction of outer reference is rechargeable which makes outer reference electrode stable. pH electrode adopts full-scale range which is suitable for pH value monitor under adverse circumstances such as sewage etc…...
