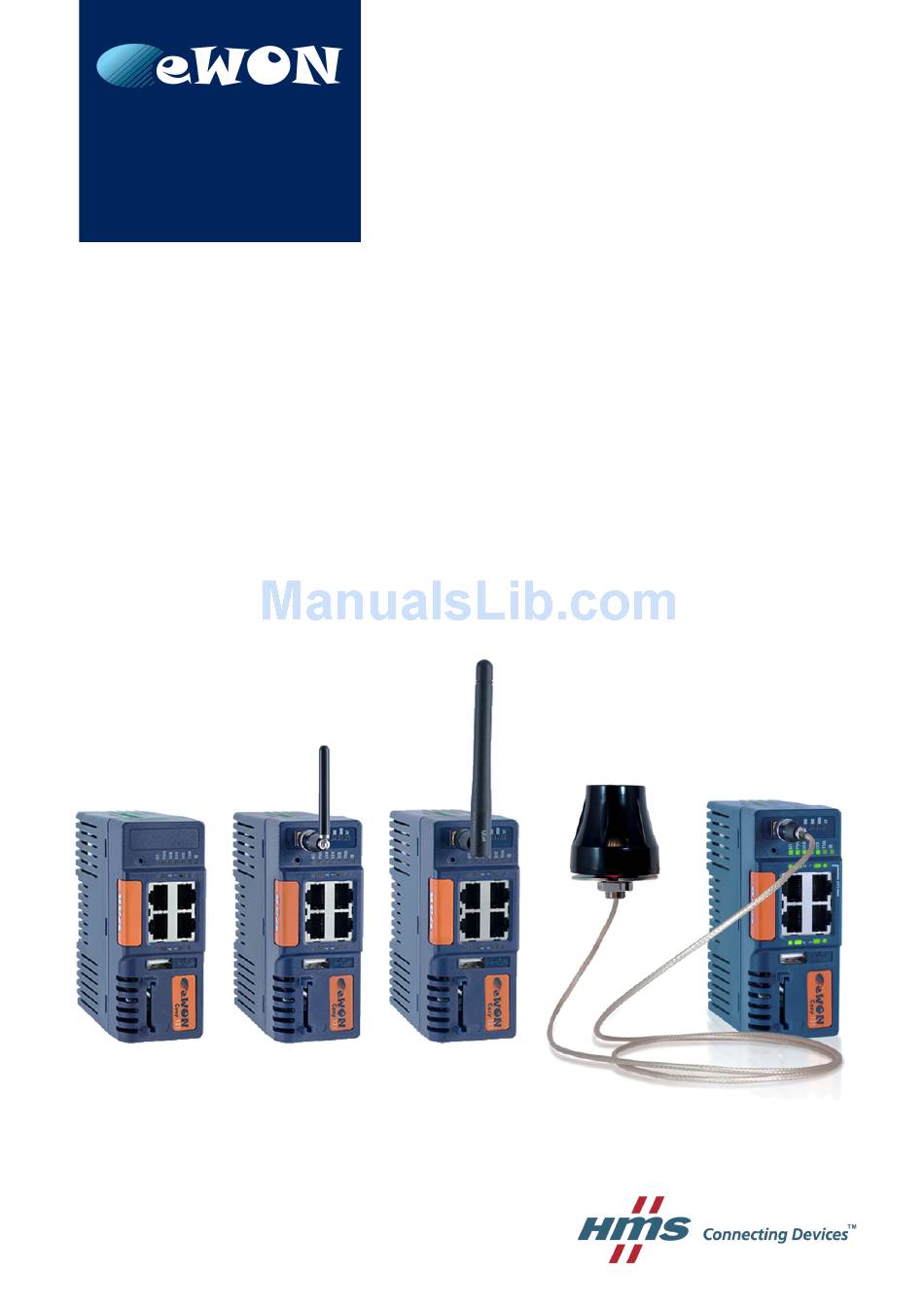

- Page 1 Cosy 131 INSTALLATION GUIDE IG-0022-00 1.9 ENGLISH...
-
Page 2: Important User Information
Important User Information Liability Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks SA of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks SA, reserve the right to modify our products in line with our policy of continuous product development. -
Page 3: Table Of Contents
About This Document.....................3 Document History ......................3 Related Documents .......................3 Trademark Information ....................3 Product Summary ......................4 Concept of the eWON Cosy 131..................4 Hardware General Specification..................4 Typical Applications .......................4 Type & Part Numbers .....................4 Safety, Environmental & Regulatory Information ........... 5 Scope ...........................5... - Page 4 Table of Contents B Specification of the External Power Supply............22 C Digital Output & Digital Inputs ................... 23 Possible Features ......................24 D Supported Wireless Wi-Fi Frequencies..............25 eWON Cosy 131 Installation Guide IG-0022-00 1.9...
-
Page 5: Preface
Preface 3 (26) Preface About This Document The present Installation Guide describes the hardware of the eWON Cosy 131 which is an in- dustrial gateway / router fully compatible with the Talk2M cloud connectivity services. For additional related documentation and file downloads, please visit www.ewon.biz/support. -
Page 6: Product Summary
Product Summary 4 (26) Product Summary Concept of the eWON Cosy 131 There are 4 models of the eWON Cosy 131, each proposing a different communication media: • 4 Ethernet ports only, labeled as eWON Cosy 131 Ethernet • Wi-Fi & 4 Ethernet ports, labeled as eWON Cosy 131 Wi-Fi •... -
Page 7: Safety, Environmental & Regulatory Information
• CSA-C22.2 No 60950-1-07 The eWON Cosy 131 is designed to work with an indoor antenna. It is the customer’s responsi- bility to take all the necessary additional precautions in case the antenna is being extended to an external use with exposure to TNV voltages. -
Page 8: Field Implementation & Environmental Conditions
Do not push any sharp object into the air vents or openings of the equipment. 3.4.2 Mounting Recommendations The product is intended to be mounted vertically, label on the right side. The normal mounting position of the eWON Cosy 131 is wall mounted on a horizontal Omega type DIN-rail (EN 50022). - Page 9 Safety, Environmental & Regulatory Information 7 (26) Fig. 1 DIN rail mounting position Description SIM card slot DIN rail mounting bracket Fig. 2 Wall mounting position Description SIM card slot DIN rail mounting bracket eWON Cosy 131 Installation Guide IG-0022-00 1.9...
-
Page 10: Cabling Rules
Shielded cables must be used for Ethernet and USB connectivity to comply with the EMC requirements. USB cable must be: • Shorter than 3m • USB 2.0 type A (on eWON side) • Minimum current per contact : 0.5A (or better) eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 11: Battery
Ethernet and USB to comply with the EMC requirements. Battery The eWON Cosy 131 contains a CR2032 battery. This battery is used to maintain the real time clock up-to-date even when the unit is not powered. Risk of explosion if the battery is replaced by an incorrect type. The battery is not intended to be replaced by the consumer: the product shall be returned to the manufacturer for replacement. -
Page 12: Hardware Description
Hardware Description 10 (26) Hardware Description Label The identification label of the eWON Cosy 131 is placed on the right hand side of the housing. The different parts of the label are described hereunder: Label Description Part Number (see syntax table below) Serial Number in the form: YYWW-SSSS-PP •... -
Page 13: Mechanical Dimensions
[suffix] Optional “ / “ character compliance with the UL / IEC / EN 60950 Defines the compliances of the unit standard Mechanical Dimensions Fig. 5 Mechanical dimensions of the eWON Cosy 131 eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 14: Overall Description
4.3.2 Upper Side Description Main connector including power input terminal,1 DO and 2 DI For more information about the connector, refer to Main Connector, p. 21 Fig. 7 Main connector and associated plug eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 15: Status Led
Steady orange = Poor signal ▅ ▆ Reception signal level Steady orange = Signal is OK ▅ ▆ ▇ Reception signal level Fig. 10 Status LEDs representation — Steady orange = Signal is good Cellular model eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 16: Radio Communication Models
The antenna used for this transmitter has to be installed in a space providing a safe distance of at least 20 cm without encountering anyone and must not be collocated or operating in conjunction with any other antenna or transmitter. 4.4.1 eWON Cosy 131 with Internal Wi-Fi Model Item Value(s) Protocols and IEEE802.11b/g/n, 2.4GHz - Channels: 1 to 11(inclusive) - Page 17 Hardware Description 15 (26) 4.4.2 eWON Cosy 131 with Internal 3G+ Penta-band Modem Item Value(s) Protocols and GSM/GPRS/EDGE - 850, 900, 1800, 1900 MHz frequencies UMTS/HSUPA - 800/850, 900,AWS 1700,1900,2100 Mhz Class Penta-band GPRS / EDGE Class 33 Antenna Type SMA...
- Page 18 – JATE ID: AD12-0318001 Fig. 11 Radio equipment certification for eWON Cosy 131 — 4G JP modem 4G antenna has to be purchased separately. A 4G Quad-band antenna is available from eWON with FAC90801_0000 as reference eWON Cosy 131 Installation Guide...
-
Page 19: Lan Switch Specifications
4.5.1 Boot Process After powering on or requesting a reboot of the eWON Cosy 131, a wait is required to get the LAN switch feature fully operational. (approximately 45 sec). The ultimate decision the eWON takes when it can no more run a given configuration is to reboot itself. -
Page 20: Ip Address & Access To The Web Configuration
Connect a LAN port (port #1 is always set as a LAN port) of the eWON Cosy 131 to a computer either through a point-to-point connection or a network where there is no risk eWON's default IP address (10.0.0.53) would conflict with another connected device. -
Page 21: Troubleshooting
19 (26) Troubleshooting Normal Boot Process The normal boot process of the eWON Cosy 131 takes approximately 25 seconds to complete. During this process, all LEDs are first shortly on (except BI1) then only the PWR LED stays steady green. -
Page 22: Impact Matrix Of A Reset
Impact of a reset level 2 The eWON will be reset to a factory settings configuration. All parameters will be Factory reset lost Configuration remains even if the Wizards on eWON web interface indicates otherwise eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 23: A Connector Pinout & Related Specifications
(between +12 et +24 VDC) DI_COM Ground of the input (isolated) Input signal 1 Input signal 2 Power in Between +12 and +24 VDC VDD + Power in GND — Function- al earth eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 24: B Specification Of The External Power Supply
22 (26) Specification of the External Power Supply The eWON Cosy 131 must be powered by a safety Low Power Supply (LPS) in accordance with clause 2.5 of UL/IEC 60950-1 Ed2. Standard, 12-24Vdc, 30W min. Certified for 60°C and for al- titudes up to 2000m. -
Page 25: C Digital Output & Digital Inputs
This is a sink only output to ground (the transistor acts as a switch ground). During the starting boot process, the DO will be switched ON for a short time (2 seconds) eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 26: Possible Features
The configuration of this condition has to be done during the Internet Wizard, on the first step. It is labeled as Physical protection and proposes the choice whether the Digital Input should be used or not and for which purpose. eWON Cosy 131 Installation Guide IG-0022-00 1.9... -
Page 27: D Supported Wireless Wi-Fi Frequencies
25 (26) Supported Wireless Wi-Fi Frequencies Fig. 15 Supported Wi-Fi frequencies Supported channels frequencies are between channel 1 (2,412 Ghz) and channel 11 (2,462 Ghz). Channels 12, 13 & 14 are not supported eWON Cosy 131 Installation Guide IG-0022-00 1.9... - Page 28 © 2017 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se IG-0022-00 1.9.5470 / 2017-09-29T08:41:55...
