2.2.4.6. Toner Cartridges and Imaging Unit

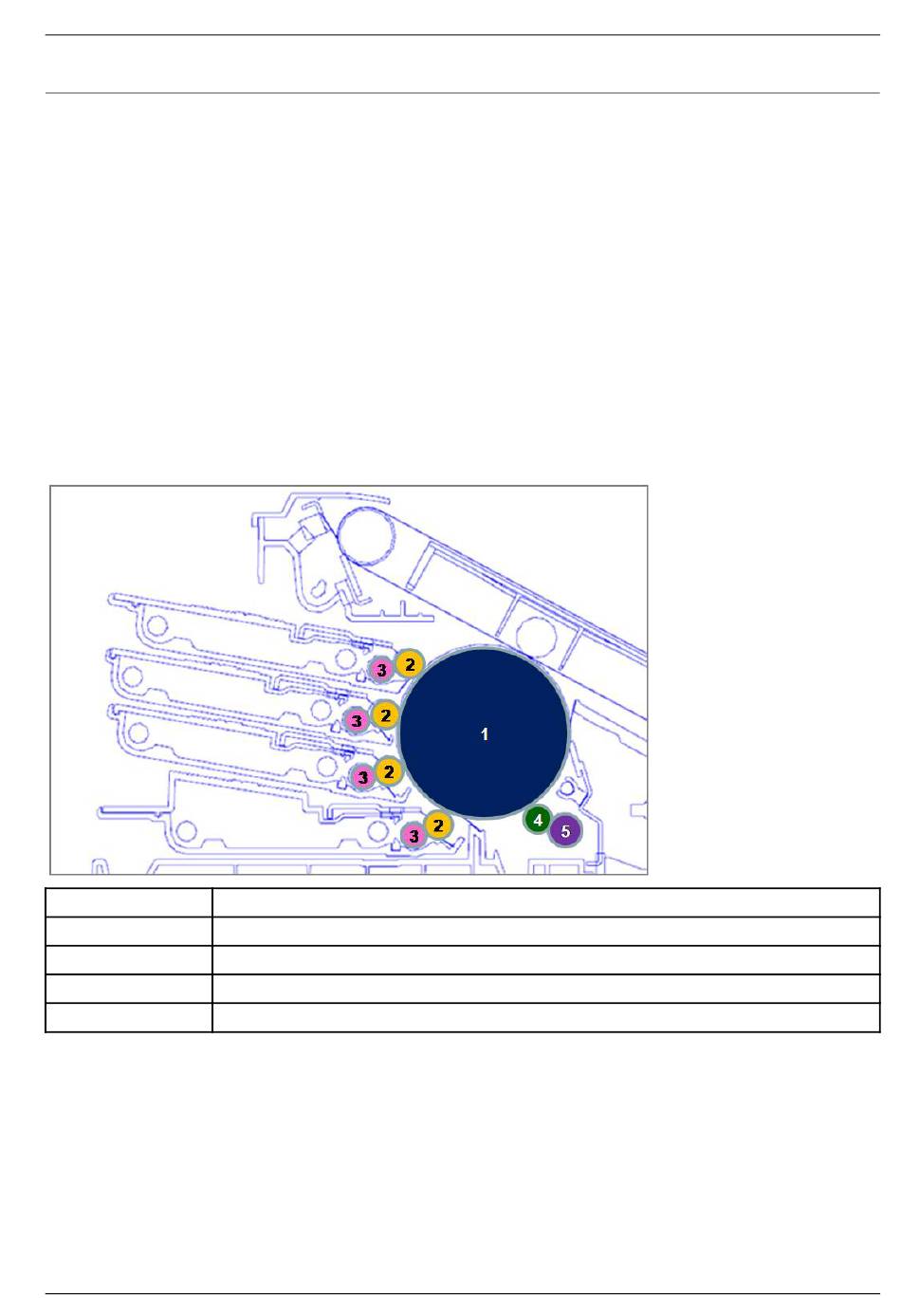

By using the electronic photo process, they creates a visual image. The toner cartridge consists of the supply roller and
developing roller. The imaging unit consists of the OPC drum, charge roller, cleaning roller.
•
Developing Method : Non magnetic single component non-contacting method
•
Toner : Non magnetic single component pulverized type toner
•
The life span of toner (ISO 19798 pattern / A4 standard)
-
1.5K (K) / 1K (CMY)
•
The life span of imaging unit
-
Approx. 16,000 images.
•
OPC Cleaning : Collect the toner by using cleaning blade
•
Handling of wasted toner : Collect the wasted toner in the cleaning frame by using cleaning blade
•
Classifying device for toner cartridge: ID is classified by CRUM
