- Page 1 SATA Product Manual Standard model ST8000VN0022 ST6000VN0033 ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002 100807039, Rev. E July 2017...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools is either trademarks or regis- tered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands ............. . 37 Seagate IronWolf Product Manual, Rev. E...
- Page 5 Mounting dimensions (1TB)..............28 Seagate IronWolf Product Manual, Rev. E...
-
Page 6: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate IronWolf Product Manual, Rev. E... -

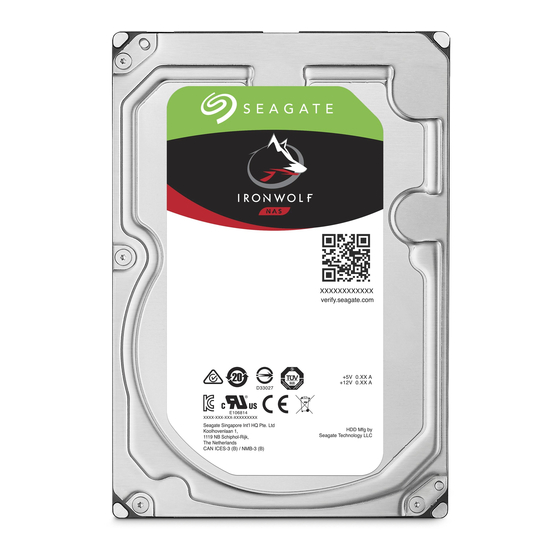

Page 7: Introduction
1.0 Introduction This manual describes the functional, mechanical and interface specifications for the following: Seagate® IronWolf model drives: ST8000VN0022 ST6000VN0033 ST4000VN008 ST3000VN007 ST2000VN004 ST1000VN002 These drives provide the following key features: • 24x7 capability • Balance technology to support multiple drives in a system •... -
Page 8: About The Sata Interface
SATA ports are represented to host software as a Device 0 (master) and Device 1 Note (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment. Seagate IronWolf Product Manual, Rev. E... -
Page 9: Drive Specifications
Operating ambient temperature (min °C) † Operating temperature (drive case max °C) 20°C per hour max (operating) Temperature gradient 30°C per hour max (nonoperating) 5% to 90% (operating) Relative humidity 5% to 95% (nonoperating) Seagate IronWolf Product Manual, Rev. E... - Page 10 *** During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. † ° Seagate does not recommend operating at sustained case temperatures above 60 Operating at higher temperatures will reduce useful life of the product. Seagate IronWolf Product Manual, Rev. E...
- Page 11 Wet bulb temperature (max) 29°C max (nonoperating) –304m to 3048m Altitude, operating (–1000 ft to 10,000 ft) Altitude, non-operating –304m to12,192m (below mean sea level, max) (–1000ft to 40,000+ ft) Operational Shock (max) 80 Gs at 2ms Seagate IronWolf Product Manual, Rev. E...
-
Page 12: Formatted Capacity
2000GB 3,907,029, 168 ST1000VN002 1000GB 1,953,525,168 *One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Seagate IronWolf Product Manual, Rev. E... -
Page 13: Lba Mode
Ready to spindle stop (in seconds) 12 (max) 23 (max) 10 (typical) / 11 (max) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures. Seagate IronWolf Product Manual, Rev. E... -
Page 14: Power Specifications
Power dissipation (2-disk values shown) Avg (watts 25°C) Avg 5V typ amps Avg 12V typ amps Spinup — — Idle* † 3.56 0.171 0.225 Operating 4.30 0.308 0.233 Standby 0.50 0.09 0.005 Sleep 0.50 0.09 0.005 Seagate IronWolf Product Manual, Rev. E... - Page 15 0.09 0.01 * Idle1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. † 5W IDLE with DIPLM Enabled Seagate IronWolf Product Manual, Rev. E...
-
Page 16: Typical Current Profile
10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note 2.6.4 Voltage tolerance Voltage tolerance (including noise): • 5V ±5% • 12V ±10% Seagate IronWolf Product Manual, Rev. E... -
Page 17: Power-Management Modes
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all com- mands and returns to Active mode when disk access is necessary. Seagate IronWolf Product Manual, Rev. E... -
Page 18: Environmental Specifications
Operating (Drive case max °C) (158°F) † ° Seagate does not recommend operating at sustained case temperatures above 60 Operating at higher temperatures will reduce useful life of the product. 2.7.3 Temperature gradient Operating 20°C per hour (36°F per hour max), without condensation Non-operating 30°C per hour (54°F per hour max) -
Page 19: Shock
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 5Hz to 22Hz 3.0 Gs (Limited displacement) 22Hz to 350Hz 3.0 Gs 350Hz to 500Hz 3.0 Gs Seagate IronWolf Product Manual, Rev. E... -
Page 20: Acoustics
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 21: Reliability - Mean Time Between Failure
I/O duty cycle affect the product MTBF. The MTBF will be degraded if used in an enterprise application. 2.10.1 Storage Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and... -
Page 22: Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 23: China Requirements - China Rohs 2
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. -
Page 24: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure 2 Figure 2 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. IronWolf drives support latching SATA connectors. Seagate IronWolf Product Manual, Rev. E... -
Page 25: Drive Mounting
2X 6-32 UNC 2B 3.750±.010 3 MIN THREAD DEPTH Temperature 4.000±.010 .12 MAX FASTENER PENETRATION MOUNTING HOLES BOTH SIDES. Check Point MAX TORQUE 6 IN/LBS 1.028 MAX 26.11 MM .142±.015 2 2.000 C L OF DRIVE Seagate IronWolf Product Manual, Rev. E... - Page 26 6X 6-32 UNC 2B 3 MIN THREAD DEPTH 4.000±.010 .1 MAX FASTENER PENETRATION MOUNTING HOLES BOTH SIDES. MAX TORQUE 6 IN/LBS C L OF DRIVE .138±.015 2 2.000 TEMPERATURE 1.028 MAX CHECKPOINT 60°C MAX 26.11 MM Seagate IronWolf Product Manual, Rev. E...
- Page 27 Configuring and Mounting the Drive Figure 5 Mounting dimensions (4TB) Seagate IronWolf Product Manual, Rev. E...
- Page 28 Configuring and Mounting the Drive Figure 6 Mounting dimensions (3TB - 2TB) Seagate IronWolf Product Manual, Rev. E...
- Page 29 2x 1.625 ± .020 in BOTH SIDES 2x 1.750 in 41.28 ± .51 mm 44.45 mm 2x 0.125 in 3.18 mm 4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH 0.15 MAXIMUM FASTENER PENETRATION 2x 3.750 in 95.25 mm Seagate IronWolf Product Manual, Rev. E...
-
Page 30: Sata Interface
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration. • All used voltage pins (V ) must be terminated. Seagate IronWolf Product Manual, Rev. E... -
Page 31: Supported Ata Commands
Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seek Seagate IronWolf Product Manual, Rev. E... - Page 32 Write DMA Extended Write DMA FUA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate IronWolf Product Manual, Rev. E...
-
Page 33: Identify Device Command
Number of current logical heads xxxx Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx Number of sectors transferred during a Read Multiple or Write Multiple command xxxx Seagate IronWolf Product Manual, Rev. E... - Page 34 Master password revision code FFFE Hardware reset value xxxx Automatic acoustic management 8080 Stream Min. Request Size 0000 Streaming Transfer Time - DMA 0000 Streaming Access Latency - DMA and PIO 0000 98–99 Streaming Performance Granularity 0000 Seagate IronWolf Product Manual, Rev. E...
- Page 35 Integrity word xxA5 Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported. Note See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate IronWolf Product Manual, Rev. E...
- Page 36 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate IronWolf Product Manual, Rev. E...
-
Page 37: Set Features Command
Disable use of SATA features Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate IronWolf Product Manual, Rev. E... -
Page 38: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate IronWolf Product Manual, Rev. E... - Page 39 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100807039, Rev. E...
