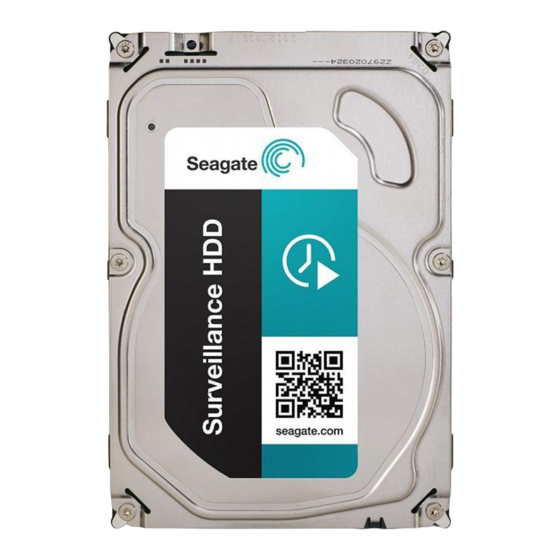

Surveillance HDD
SATA Product Manual
ST6000VX0003
100799648, Rev. B
Gen 4 - August 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surveillance HDD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagate Surveillance HDD

Summary of Contents for Seagate Surveillance HDD

  • Page 1 Surveillance HDD SATA Product Manual ST6000VX0003 100799648, Rev. B Gen 4 - August 2016...
  • Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Seagate® Technology Support Services ........
  • Page 4 Mounting dimensions ............... . . 19 Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 5: Seagate® Technology Support Services

    For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 6: Introduction

    Introduction This manual describes the functional, mechanical and interface specifications for the following: Seagate® Surveillance HDD model drives: ST6000VX0003 These drives provide the following key features: • 1M hour MTBF - designed for high write duty cycle across Surveillance HDD •...

  • Page 7: Drive Specifications

    Operating ambient temperature (min °C) † Operating temperature (Drive case max °C) 20°C per hour max (operating) Temperature gradient 30°C per hour max (nonoperating) 5% to 90% (operating) Relative humidity 5% to 95% (nonoperating) Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)
  • Page 8 † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 9: Formatted Capacity

    Track density (ktracks/inch avg) Areal density (Gb/in Internal data transfer rate (Mb/s max) 2347 Maximum sustained data transfer rate, OD read (MB/s) Average data rate, read/write (MB/s) I/O data-transfer rate (MB/s max) Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 10: Physical Characteristics

    20 (max) Ready to spindle stop 10 (typical) (in seconds) 11 (max) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures. Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 11: Power Specifications

    0.01A * During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. †5W IDLE with DIPLM Enabled Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 12: Conducted Noise

    • Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 13: Voltage Tolerance

    If the standby timer reaches zero before any drive activity is required, the drive makes a transi- tion to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary. Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 14: Environmental Specifications

    -40 to 70 Operating ambient temperature (min °C) † Operating temperature (Drive case max °C) † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. 2.9.2 Temperature gradient Operating 20°C per hour (68°F per hour max), without condensation...

  • Page 15: Shock

    Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

  • Page 16: Electromagnetic Immunity

    Storage Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and non-corrosive environment).

  • Page 17: Agency Certification

    Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with non-certified assemblies is likely to result in interference to radio and television reception.

  • Page 18: Environmental Protection

    The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%.

  • Page 19: Configuring And Mounting The Drive

    For installations which require cables, users can connect the drive as illustrated in Figure 2 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Surveillance HDD drives support latching SATA connectors. Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 20: Drive Mounting

    3 MIN THREAD DEPTH 4.000±.010 .1 MAX FASTENER PENETRATION MOUNTING HOLES BOTH SIDES. MAX TORQUE 6 IN/LBS C L OF DRIVE .138±.015 2 2.000 TEMPERATURE 1.028 MAX CHECKPOINT 60°C MAX 26.11 MM Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 21: Sata Interface

    For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility Surveillance HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org.

  • Page 22: Supported Ata Commands

    Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)
  • Page 23 Write DMA FUA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 24: Identify Device Command

    Advanced PIO modes supported (modes 3 and 4 supported) 0003 Minimum multiword DMA transfer cycle time per word (120 nsec) 0078 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078 Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)
  • Page 25 Advanced Power Management (APM) and Automatic Acoustic Management (AAM) features are not supported. Note See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)
  • Page 26 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 27: Set Features Command

    Enable read look-ahead (read cache) feature (default) Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Surveillance HDD Product Manual, Rev. B (Draft 2)

  • Page 28: Commands

    ) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://seatools.seagate.com. This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature.
  • Page 29 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100799648, Rev. B...
