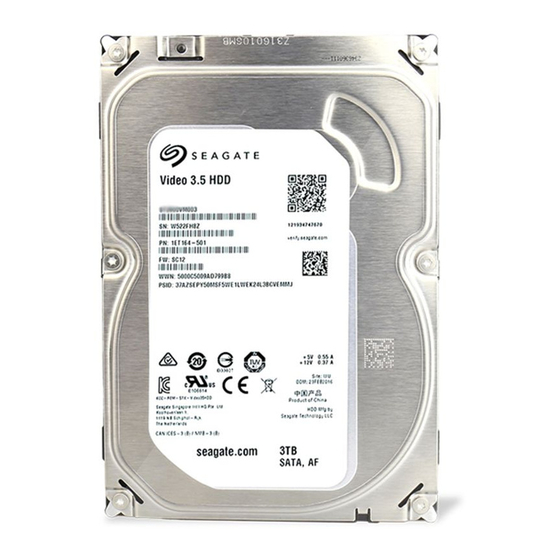

- Page 1 Video 3.5 HDD SATA Product Manual ST8000VM004 ST6000VM000 ST4000VM004 ST3000VM006 ST2000VM005 ST1000VM005 100805921, Rev. A November 2016...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 Mounting dimensions (3 and 4-disk models)........... . 23 Seagate Video 3.5 HDD Product Manual, Rev. A...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 6: Introduction
• Supports power-up in the standby feature • Supports Trusted Send/Receive Security Protocol • TGMR recording technology provides the drives with increased areal density. • Worldwide Name (WWN) capability uniquely identifies the drive. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 7: About The Sata Interface
Note (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 8: Drive Specifications
30°C per hour max (non-operating) 5% to 90% (operating) Relative humidity 5% to 95% (non-operating) Relative humidity gradient (max) 30% per hour 30°C max (operating) Wet bulb temperature (max) 40°C max (non-operating) Seagate Video 3.5 HDD Product Manual, Rev. A... - Page 9 † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. Seagate Video 3.5 HDD Product Manual, Rev. A...
- Page 10 80 Gs (read) / 70 Gs (write) at 2ms Non-operational shock (max) 300 Gs at 2ms 350 Gs at 2ms 10Hz to 22Hz: 0.25 Gs, Limited displacement Vibration, operating 22Hz to 350Hz: 0.50 Gs 350Hz to 500Hz: 0.25 Gs Seagate Video 3.5 HDD Product Manual, Rev. A...
- Page 11 † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. Seagate Video 3.5 HDD Product Manual, Rev. A...
-
Page 12: Formatted Capacity
Recording and interface technology Interface SATA Recording method TGMR Recording density (kBPI) 2294 Track density (ktracks/inch avg) Areal density (Gb/in 1203 Interface transfer rate (MB/s) Data transfer rate (MB/s) up to 190 Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 13: Physical Characteristics
(in seconds) Ready to spindle stop 18 (typical) 12 (typical) 10 (typical) (in seconds) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 14: Power Specifications
Power dissipation Avg (watts 25° C) Avg 5V typ amps Avg 12V typ amps Spinup — — Idle, Low Power 0.12 0.15 Read/Write 0.28 0.191 Standby 0.25 0.04 0.004 Sleep 0.25 0.04 0.004 Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 15: Conducted Noise
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all com- mands and returns to Active mode when disk access is necessary. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 16: Environmental Specifications
† Operating (Drive case max °C) 75° (167°F) † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. 2.8.2 Temperature gradient Operating 20°C per hour (36°F per hour max), without condensation Non-operating 30°C per hour (54°F per hour max) -
Page 17: Shock
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 5Hz to 22Hz 3.0 Gs (Limited displacement) 22Hz to 350Hz 3.0 Gs 350Hz to 500Hz 3.0 Gs Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 18: Acoustics
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 19: Warranty
(or part number) and country of purchase. The system will display the warranty information for the drive. 2.11.1 Storage Maximum storage periods are 180 days within original unopened Seagate shipping package or 60 days unpackaged within the defined non-operating limits (refer to environmental section in this manual). Storage can be extended to 1 year packaged or unpackaged under optimal environmental conditions (25°C, <40% relative humidity non-condensing, and... -
Page 20: Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 21: China Requirements - China Rohs 2
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. -
Page 22: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure 1 Figure 1 Attaching SATA cabling Each cable is keyed to ensure correct orientation. Video 3.5 HDD drives support latching SATA connectors. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 23: Drive Mounting
• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes. • Do not overtighten the mounting screws (maximum torque: 6 inch-lb). Figure 2 Mounting dimensions (1 and 2-disk models) Seagate Video 3.5 HDD Product Manual, Rev. A... - Page 24 Figure 3 Mounting dimensions (3 and 4-disk models) Seagate Video 3.5 HDD Product Manual, Rev. A...
-
Page 25: Sata Interface
For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility Video 3.5 HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org. SATA device plug connector pin definitions Table 8 summarizes the signals on the SATA interface and power connectors. -
Page 26: Supported Ata Commands
Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seagate Video 3.5 HDD Product Manual, Rev. A... - Page 27 Write DMA Extended Write DMA FUA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Video 3.5 HDD Product Manual, Rev. A...
-
Page 28: Identify Device Command
15 Shall be cleared to zero 4000 14 Shall be set to one 13:1 Reserved for the Trusted Computing Group 0 Trusted Computing feature set is supported Standard Standby timer, IORDY supported and may be disabled 2F00 Seagate Video 3.5 HDD Product Manual, Rev. A... - Page 29 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078 Seagate Video 3.5 HDD Product Manual, Rev. A...
- Page 30 Total number of user-addressable LBA sectors available (see Section 2.2 for related ST4000VM004 = 7,814,037,168 100–103 information). These words are required for drives that support the 48-bit ST3000VM006 = 5,860,533,168 addressing feature. Maximum value: 0000FFFFFFFFFFFFh. ST2000VM005 = 3,907,029,168 ST1000VM005 = 1,953,525,168 Seagate Video 3.5 HDD Product Manual, Rev. A...
- Page 31 Advanced Power Management (APM) and Automatic Acoustic Note Management (AAM) features are not supported. See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Video 3.5 HDD Product Manual, Rev. A...
- Page 32 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Video 3.5 HDD Product Manual, Rev. A...
-
Page 33: Set Features Command
Disable use of SATA features Enable read look-ahead (read cache) feature (default) Report full capacity available At power-on, or after a hardware or software reset, the Note default values of the features are as indicated above. Seagate Video 3.5 HDD Product Manual, Rev. A... -
Page 34: Commands
S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Video 3.5 HDD Product Manual, Rev. A... - Page 35 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100805921, Rev. A...
