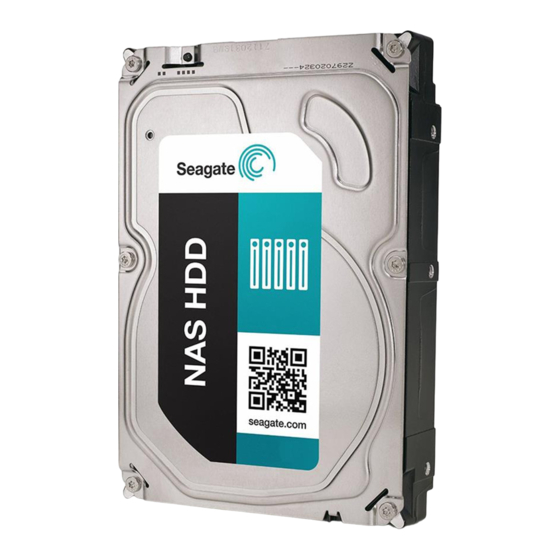

- Page 1 NAS HDD v2 SATA Product Manual ST8000VN000 ST6000VN000 100758081, Rev. C Gen 2 - October 2015...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 Mounting dimensions (6TB & 8TB)............. . 20 Seagate NAS HDD Product Manual, Rev. C...
-
Page 5: Seagate Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/seagate-recovery- services/recover/ For Seagate OEM, Distribution partner portal and reseller portal, visit: http://www.seagate.com/partners Seagate NAS HDD Product Manual, Rev. C... -
Page 6: Introduction
The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated. Seagate NAS HDD Product Manual, Rev. C... -
Page 7: Zone Structure
This is not a typical SATA environment. 1.2 Zone Structure NAS HDD models use SMR (Singled Magnetic Recording Technology), physically formatted containing two types of zones. 64 “Conventional Zones” which are not associated with write pointer, and the media is non-SMR and 29808 Sequential Write preferred Zones which are SMR media. -
Page 8: Drive Specifications
–40° to 70°C (non-operating) 20°C per hour max (operating) Temperature gradient 30°C per hour max (nonoperating) 5% to 90% (operating) Relative humidity 5% to 95% (nonoperating) Relative humidity gradient (max) 30% per hour Seagate NAS HDD Product Manual, Rev. C... -
Page 9: Formatted Capacity
8000GB 15,628,053,168 ST6000VN000 6000GB 11,721,045,168 *One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Seagate NAS HDD Product Manual, Rev. C... -
Page 10: Lba Mode
2.4 Physical characteristics Maximum height 26.11mm / 1.028 in Maximum width 101.6mm / 4.0 in (±0.010 in) Maximum length 146.99mm / 5.787 in Typical weight 6TB & 8TB 780g / 1.72 lb Cache buffer 128MB Seagate NAS HDD Product Manual, Rev. C... -
Page 11: Seek Time
20 (typical) / 25 (max) Ready to spindle stop (in seconds) 15 (typical) / 20 (max) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures. Seagate NAS HDD Product Manual, Rev. C... -
Page 12: Power Specifications
0.12 0.008 * Idle1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. †5W IDLE with DIPLM Enabled Seagate NAS HDD Product Manual, Rev. C... -
Page 13: Conducted Noise
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all com- mands and returns to Active mode when disk access is necessary. Seagate NAS HDD Product Manual, Rev. C... -
Page 14: Environmental Specifications
2.8.4.1 Relative humidity Operating 5% to 90% non-condensing (30% per hour max) Nonoperating 5% to 95% non-condensing (30% per hour max) 2.8.4.2 Wet bulb temperature Operating 30°C (86°F max) Non-operating 37.7°C (99.86°F max) Seagate NAS HDD Product Manual, Rev. C... -
Page 15: Altitude
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 5Hz to 22Hz 3.0 Gs (Limited displacement) 22Hz to 350Hz 3.0 Gs 350Hz to 500Hz 3.0 Gs Seagate NAS HDD Product Manual, Rev. C... -
Page 16: Acoustics
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 17: Reliability - Mean Time Between Failure
EN 55024. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. -
Page 18: Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 19: Environmental Protection
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. -
Page 20: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure 1 Figure 1 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. NAS HDD drives support latching SATA connectors. Seagate NAS HDD Product Manual, Rev. C... -
Page 21: Drive Mounting
• The screws should be inserted no more than 0.140 inch (3.56mm) into the bottom or side mounting holes. • Do not overtighten the mounting screws (maximum torque: 6 inch-lb). Figure 2 Mounting dimensions (6TB & 8TB) Seagate NAS HDD Product Manual, Rev. C... -
Page 22: Sata Interface
For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. 4.1 Hot-Plug compatibility NAS HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org. 4.2 SATA device plug connector pin definitions summarizes the signals on the SATA interface and power connectors. -
Page 23: Supported Ata Commands
Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seek Set Features Set Max Address Seagate NAS HDD Product Manual, Rev. C... - Page 24 , 03 , 04 ZAC Management Out command template * * For specific ZAC command reference refer to the following documentation: T13 INCITS BSR 537, Zoned-device ATA Command Set (ZAC) (planned as ISO/IEC 17760-171) Seagate NAS HDD Product Manual, Rev. C...
-
Page 25: Zac Supported Capabilities Log Page
Standard Standby timer, IORDY supported and may be disabled 2F00 ATA-reserved 0000 PIO data-transfer cycle timing mode 0200 Retired 0200 Words 54–58, 64–70 and 88 are valid 0007 Number of current logical cylinders xxxx Seagate NAS HDD Product Manual, Rev. C... - Page 26 The mandatory value of the world wide name (WWN) for the drive. Each drive will have NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support. a unique value. 112–127 ATA-reserved 0000 Security status 0001 Seagate NAS HDD Product Manual, Rev. C...
- Page 27 Shall be cleared to 0. Word 88 Ultra DMA mode 0 is supported. Ultra DMA mode 1 is supported. Ultra DMA mode 2 is supported. Ultra DMA mode 3 is supported. Ultra DMA mode 4 is supported. Seagate NAS HDD Product Manual, Rev. C...
- Page 28 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate NAS HDD Product Manual, Rev. C...
-
Page 29: Set Features Command
Disable use of SATA features Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the Note default values of the features are as indicated above. Seagate NAS HDD Product Manual, Rev. C... -
Page 30: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x04 (abort) is written to the Error register. Seagate NAS HDD Product Manual, Rev. C... - Page 31 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100758081, Rev. C...
