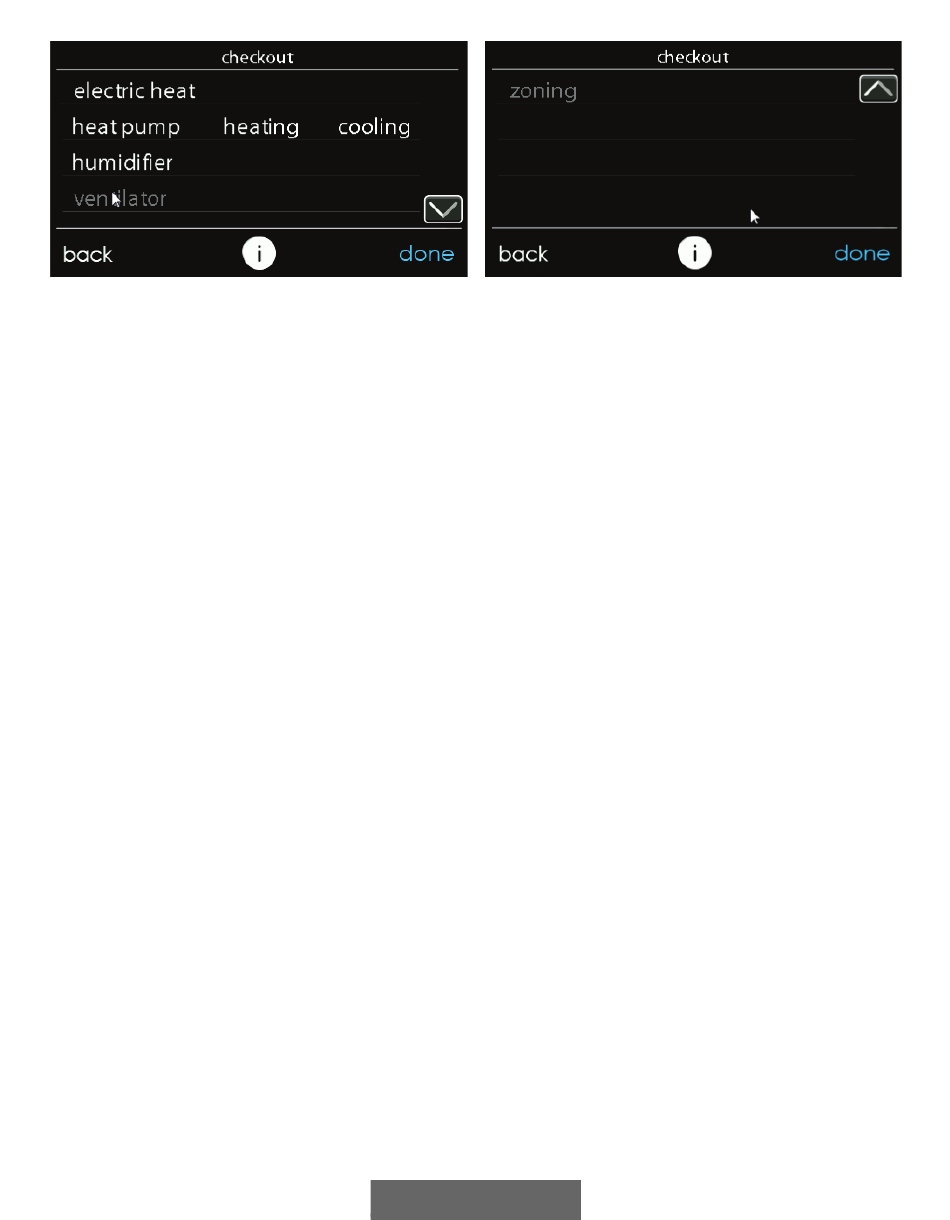

A13122A

6.4.1. Electric Heat

If you have a fan coil with electric heaters, this menu item will allow the

heaters to be exercised. With self-identifying electric heaters, three stages

of electric heat are available to be exercised in any combination.

Non-identifying heaters will only provide one stage of heat; or perhaps

may have fixed-timed staging. See the instructions provided with the

electric heat accessory. After the selections are made, touch START.

• Low Heat: Selectable from 0 to 120 minutes. Default = 5 minutes

• Medium Heat: Selectable from 0 to 120 minutes. Default = 5 minutes

• High Heat: Selectable from 0 to 120 minutes. Default = 5 minutes

Make sure the furnace is properly installed.

This option allows the furnace to be exercised. First, a low heat run time

and high heat run time are selected. The furnace will execute its ignition

start-up sequence. This sequence will be displayed on the screen. After

the gas valve and blower motor turn on, the screen will show the current

operating status of the furnace. After the selections are made, touch

START.

• Low Heat: Selectable from 0 to 120 minutes. Default = 5 minutes

• High Heat: Selectable from 0 to 120 minutes. Default = 5 minutes
