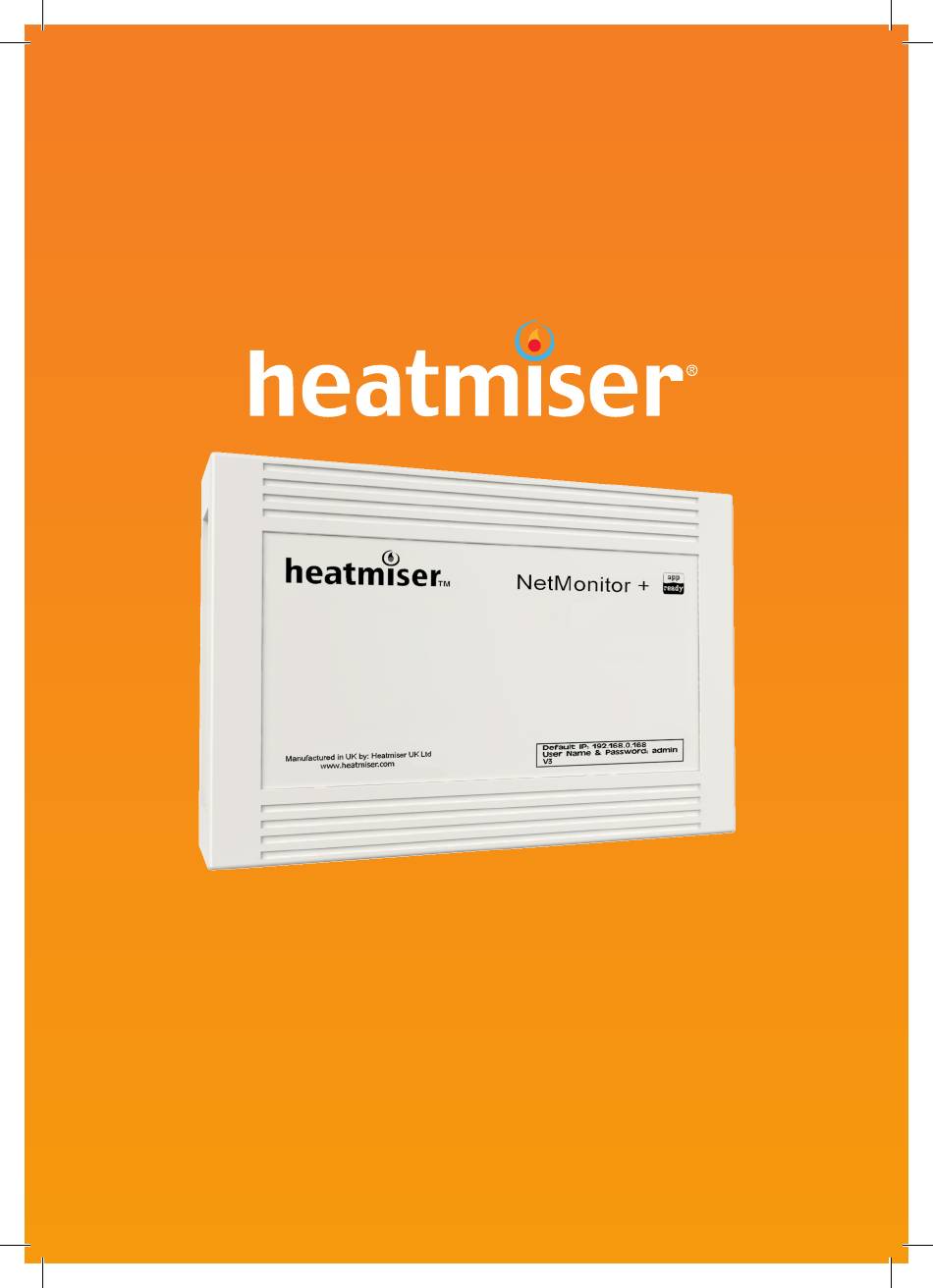

- Page 1 Installation & User Guide NetMonitor NetMonitor + V3...
-
Page 2: Table Of Contents
Logging in to your NetMonitor Quick View Home/Away Temperature Override Live View Manual Setback Output/Input Views Copy Function Programme Schedule Groups Keylock Temperature Hold Holiday Mode Heatmiser App and SMS Commands 16 - 17 NetMonitor Wiring Diagram Network Series Model: Net Monitor... -
Page 3: Details Needed To Configure The Netmonitor
Details needed to configure the NetMonitor Manually change your PC’s IP address The NetMonitor must be connected to your router via the Ethernet cable provided. If you wish to configure the NetMonitor directly to a pc without using a router, then you will need a Crossover Ethernet cable. -
Page 4: Manual Ip Address Selection
SMS Set-up (Netmonitor+ Only) Click SMS setup. The Heatmiser NetMonitor + can store 6 mobile phone numbers. Activated alarms will be sent to the mobile numbers enabled in this list. Accessing the NetMonitor over the Internet Port Forwarding Within the router you will have a firewall which is designed to block unwanted incoming Internet traffic. -
Page 5: Checking The Netmonitors Ip Address
Checking the NetMonitors IP address For example if you have 12 thermostats on the system, access feature 06 on each one numbering them 1-12. Make a note of the comms number and room so you can rename the room titles on the NetMonitor. Select Network Setup from the menu. -
Page 6: Input Set-Up
Reset Network Settings You can connect up to 6 Heatmiser sensors to the NetMonitor for monitoring purposes. This function will reset the IP address, username & password settings. A table below describes the sensors available. Follow the steps below: • Press and hold down the Reset IP button until the LEDs on the small plugin ethernet board stop... -
Page 7: Logging In To Your Netmonitor
Live View Logging into your NetMonitor The Live View allows you to quickly see the status of any thermostat Within your Local Network. connected to your NetMonitor. Open your preferred web browser and enter the IP address of your NetMonitor in the address bar. Remotely over the Internet. -
Page 8: Copy Function
Groups Copy Function Pressing Copy will allow you to copy the switching times from one thermostat to other individual thermostats or to You are able to create up to 5 groups within the NetMonitor. Groups provide a much easier method of copying a group of thermostats. -
Page 9: Temperature Hold
Temperature Hold Holiday Mode To use temperature hold, follow these steps: The NetMonitor allows you to program a holiday period. This will switch the heating and hot-water off • Select the Hold Temperature from the drop down list. (maintaining frost protection) until the programmed return date. You can also program the holiday from the • Enter the number of hours you would like to hold this temperature e.g. -
Page 10: Netmonitor Wiring Diagram
Net Monitor Wiring Diagram Global SMS Commands SMS Message Example Sensors A Text message is returned displaying the 6 sensors readings Inputs A Text message is returned to you displaying the status of the 6 inputs Outputs A Text message is returned displaying the status of the 6 outputs Away Places your system into Away Mode Home... - Page 11 Heating Professionals: Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com...
