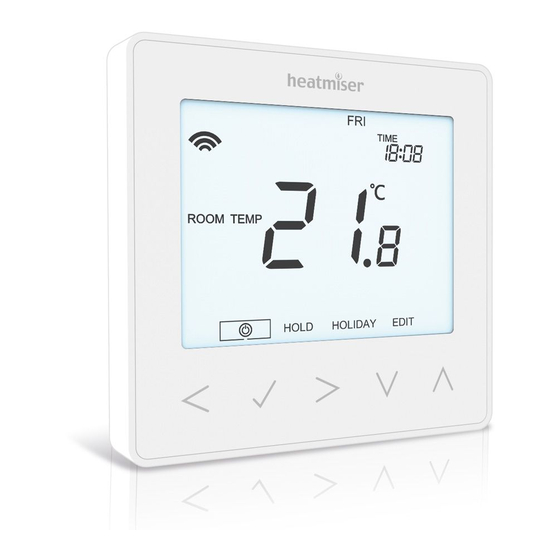

Summary of Contents for Heatmiser neo Stat-e
-
Page 2: Table Of Contents
Model: Table of Contents Available in : Sapphire Black and Glacier White Product Image Frost Protection Table of Contents Power ON/OFF What is a Programmable Holiday Programming Room Thermostat? 23-26 Optional Features Installation Procedure Re-calibrating the Thermostat Mode Select Error Codes Pairing the neoHub Thermostat Mode Wiring Diagram Pairing the neoStat-e... -
Page 3: What Is A Programmable Room Thermostat
What is a Programmable Room Thermostat? A programmable room thermostat is both a programmer and a room thermostat. The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have A programmer allows you to set “On”... -
Page 4: Installation Procedure
Installation Procedure Mount the thermostat at eye level. Read the instructions fully so you get the best from our product. Don’t Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. This neoStat-e is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation. -
Page 5: Mode Select
To change between thermostat or time clock modes, follow these steps. once the neoHub has connected to your network. • Download the FREE Heatmiser neoApp from the Apple App Store, Google Play • Use the Left / Right keys to scroll to SETUP ............. -
Page 6: What Is A Mesh Network
• Feature 01 is displayed on screen. Mode 1 - Thermostat • Press the Tick key to pair the neoStat-e to the neoHub ........• The MESH symbol appears flashing on the display. • When the neoStat-e successfully connects to the neoHub the MESH symbol will be permanently displayed. -
Page 7: Lcd Display
LCD Display Day Indicator - Displays the day of the week. Mesh Symbol – Displayed when connected to the neoHub. Floor Limit Symbol – Displayed when the floor probe has reached the temperature limit set on feature 07. Frost Symbol – Displayed when frost protection mode is active. Flame Symbol –... -
Page 8: Temperature Display
Temperature Display Setting the Clock This neoStat-e can be configured for different sensor options such as built in air sensor, To set the clock, follow these steps. floor sensor or both. The display will clearly indicate which sensor is being used by •... -
Page 9: Comfort Levels Explained
Comfort Levels Explained The neoStat-e offers three program mode options; Weekday/Weekend programming, • Use the Up / Down keys to set the hours .............. 7 Day programming and 24 Hour programming. There is also the option to • Press Tick to confirm ......................use the thermostat as a Non-Programmable thermostat. -
Page 10: Temperature Control
Temperature Control Temperature Hold The Up / Down keys allow you to adjust the set temperature ......The temperature hold function allows you to manually override the current operating program and set a different temperature for a desired period. When you press either key, you will see the word SET and the desired •... -
Page 11: Locking/Unlocking The Neostat-E
Locking the neoStat-e Frost Mode The thermostat has a keypad lock facility. To activate the lock follow these steps. Use the Left / Right keys to scroll to the Power Icon ..........• Use the Left / Right keys to scroll to HOLD & press Tick for 10 seconds The frost icon will toggle ON/OFF each time Tick is pressed ........... -
Page 12: Power On/Off
Power On/Off Holiday The heating is indicated ON when the flame icon is displayed. In thermostat mode, the holiday function reduces the set temperature in your home to the frost protection temperature setting (see page 23). When the flame icon is absent, there is no requirement for heating to achieve the set In time clock mode, the holiday function maintains the timed output as OFF. -
Page 13: Optional Features Explained
Optional Features Explained Note: Air Sensor only MUST NOT be used to control electric under-floor heating. Floor Sensor or Both should be used. THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES Feature 08 – Optimum Start: Optimum start will delay the start up of the heating NEED NOT BE ADJUSTED. -
Page 14: Adjusting The Optional Settings
Adjusting the Optional Settings Optional Settings - Feature Table FEATURE DESCRIPTION SETTING • Use the Left / Right keys to select SETUP .............. • Press Tick to confirm selection .................. Pairing Used to add zone to the neoHub Switching Differential 00 = 0.5 01 = 1.0 C (Default) -
Page 15: Re-Calibrating The Thermostat
Wiring Diagram - neoStat-e Re-calibrating the Thermostat If you need to re-calibrate the thermostat, follow these steps. TC-EM MAINS SUPPLY • Use the Left / Right keys to scroll to the Power Icon ......• Press and hold Tick to turn the display OFF ............230VAC •... -
Page 16: Mode 2 - Time Clock
Mode 2 - Time Clock LCD Display Day Indicator - Displays the day of the week. Mesh Symbol – Displayed when connected to the neoHub. Key Lock Indicator – Displayed when the KeyLock is Locked. Set – Displayed when changes are being made to the program schedule or current set point. -
Page 17: Setting The Switching Times
Factory Reset Setting the Switching Times To reset the device to factory default settings, follow these steps: To program the switching times, follow these steps. • Use the Left / Right keys to scroll to SETUP ............• Use the Left / Right keys to scroll to EDIT and press Tick ......... •... -
Page 18: Timer Override
Optional Features Explained Timer Override To override the current timed output ON/OFF follow these steps. Feature 01 – Pairing To neoHub: This function is used to connect the time clock to the neoHub. • Use the Left / Right keys to scroll to HOLD and press Tick ....... Feature 02 - Weekday/Weekend (5/2), 7 Day Programming or 24 Hour Mode: •... -
Page 19: Wiring Diagram
Notes Wiring Diagram - Time Clock Mode ..................................MAINS SUPPLY ..................................230VAC ......................................................................................................LOAD ........................................................................................................................................16 AMP MAX LOAD ......................................................................................................This product must only be installed by a qualified electrician and comply with local installation regulations.................................. - Page 20 Notes Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Series...
- Page 21 Heating Professionals: Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com...
