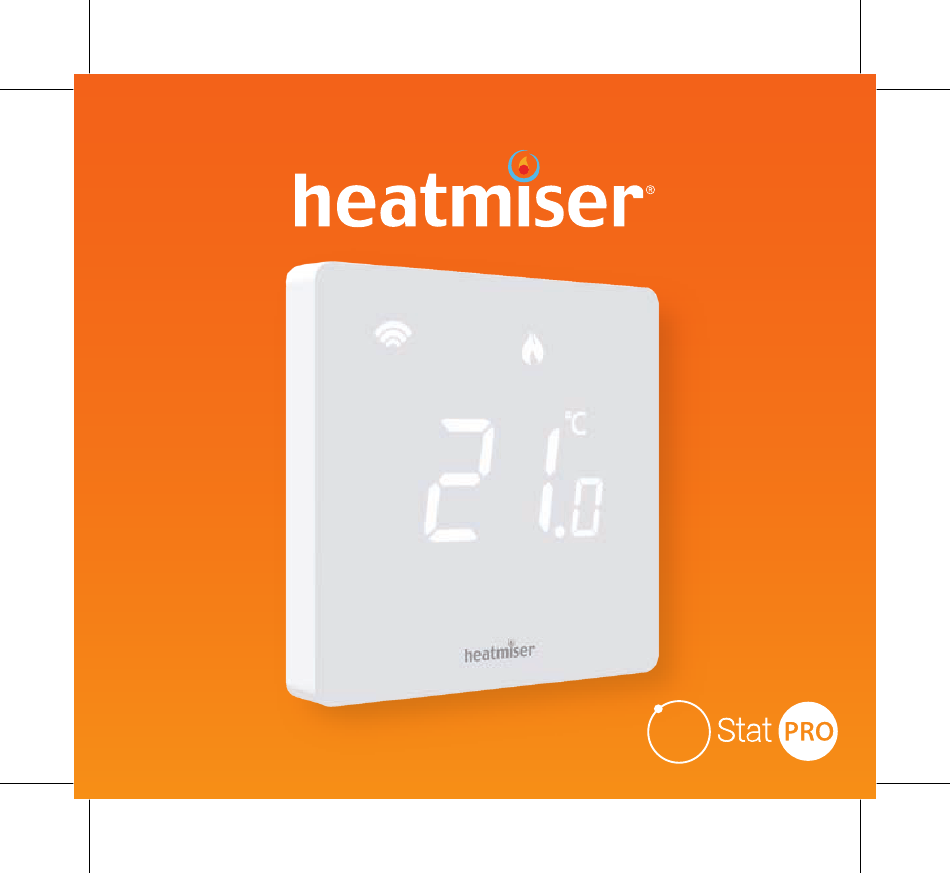

- Page 2 Model: neo Series...
- Page 3 Error Codes Set Up & Pairing Remote Probe Connections What is a Mesh Network? Wiring Diagrams 22-25 Approach Sensor LCD Display 9-10 Display Options Temperature Display Comfort Levels Explained Temperature Control Frost Mode Holiday Unlocking the neoStat PRO Factory Reset...
- Page 4 What is a Programmable Room Thermostat?* A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set “On” and “O ” periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it o once this set temperature has been reached.
- Page 5 The way to set and use your programmable room thermostat is to nd the lowest temperature settings that you are comfortable with at the di erent times you have chosen, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature –...
- Page 6 Do not push hard on the LED panel as this may cause irreparable damage. The neoStat PRO is designed to be ush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.
- Page 8 • In the app, select ADD NEOSTAT, enter a preset or custom title, then press NEXT. • You now have two minutes to join the neoStat Pro to the neoHub. • On the neoStat PRO, hold both tick and up keys until the mesh symbol appears ashing on the display........................
- Page 9 • When the neoStat PRO successfully connects to the neoHub the MESH symbol will be permanently displayed and a con rmation will show on the app. • In the app, press ADD ANOTHER for addtional zones or press FINISH to complete setup.
- Page 10 2 3 4 Series...
- Page 11 LED Display 1. Mesh Symbol - Displayed when connected to the neoHub. 2. Dew Point - Shows when the oor has reached dew point temperature and shuts down cooling. 3. Frost Protection – Displayed when frost protection is enabled. Snow Flake – indicates when cooling is active. Flame Symbol –...
- Page 12 Display Options The neoStat PRO gives you the option to have a either an ambient temperature or blank display. When using the keypad, the display will show at full brightness then dim back or go blank after a few seconds of no interaction.
- Page 13 Room/Floor Temperature When the neoStat PRO is set to use both the air & the oor sensor, the room temperature will be displayed by default. • To view the current oor temperature, press and hold the Down arrow and Tick keys for 5 seconds, the oor temperature will then be displayed momentarily until reverting back to room temperature..................
- Page 14 Comfort Levels Explained neoApp Only When paired to a neoHub, the neoStat PRO o ers three program mode options; Weekday/Weekend programming, 7 Day programming and 24 Hour programming. By default the neoStat PRO is a Non-Programmable thermostat. When thermostats are connected to the mesh network, the program mode for the system is con gured by using the neoApp.
- Page 15 Temperature Control The Up / Down keys allow you to adjust the set temperature ........When you press either key, you will see the word SET and the desired temperature value. Use the Up / Down keys to adjust the SET value ..... Press Tick to con rm settings and return to the main display ...........
- Page 16 Frost Mode The frost icon will toggle ON/OFF each time Tick is pressed ..........In this mode, the neoStat will display the frost icon and will only turn the heating ON should the room temperature drop below the set frost temperature (see page 17).
- Page 17 Unlocking the neoStat PRO To unlock the neoStat Pro press Tick once. The display will show “00” and you will need to enter the four digit pin number you set previously via the app.
- Page 18 Optional Settings (neoApp Only) MANY OF THESE SETTINGS ARE INACCESSIBLE AND INACTIVE UNTIL THE THERMOSTAT IS PAIRED TO A NEOHUB SYSTEM Switching Di erential: This function allows you to increase the switching di erential of the thermostat. The default is 1°C which means that with a set temperature of 20°C, the thermostat will switch the heating on at 19°C and o at 20°C.
- Page 19 Floor Temp Limit: This function is available when the thermostat is set to use air and oor sensing options . You can set a oor limiting temperature between 20-45°C (28°C is the default setting). Note: This unit MUST NOT be used to control electric under oor heating. Cool Enable: Allows the thermostat to actively cool when the system is in cooling mode.
- Page 20 When used with the neoHub and HC-Switch, this thermostat can be used for under oor cooling. In this mode the neoStat PRO will show a snow ake icon when active. A oor sensor must be tted in order to monitor the oor temperarture, so that the thermostat can calculate the dew point cut o .
- Page 21 Re-calibrating the Thermostat If you need to re-calibrate the thermostat, follow these steps. • Press and hold the Up / Down keys for 10 seconds. The tick key will blink once........................• Use the Up / Down keys to change the o set........... •...
- Page 22 Remote Probe Connections The neoStat PRO allows for up to two probe connections, remote oor and remote air. This thermostat automatically detects and uses remote probe connections. Probe Types Remote Floor Sensor Remote Air Thimble Sensor NTC Thermistor 10K3A1 NTC Thermistor 10K3A1...
- Page 23 Wiring Diagram - neoStat to Boiler S/L 230VAC TO CONNECT BOILER CONSULT BOILER MAKERS DIAGRAM A2 A1 LIVE 230V SUPPLY IN NEUTRAL SWITCHED LIVE TO BOILER This product must only be installed by a quali ed electrician and comply with local installation regulations.
- Page 24 Wiring Diagram - neoStat to Boiler Voltfree 230VAC TO CONNECT BOILER CONSULT A2 A1 BOILER MAKERS DIAGRAM VOLT FREE TO BOILER LIVE 230V SUPPLY IN LS & LR ARE NORMALLY THE NEUTRAL ROOM THERMOSTAT CONNECTIONS This product must only be installed by a quali ed electrician and comply with local installation regulations.
- Page 25 Wiring Diagram - neoStat to Valve 230VAC TO CONNECT BOILER CONSULT RT2 RT1 - A2 A1 BOILER MAKERS DIAGRAM LIVE 230V SUPPLY IN NEUTRAL TO BOILER NEUTRAL LS & LR ARE NORMALLY THE HEATING VALVE ROOM THERMOSTAT CONNECTIONS This product must only be installed by a quali ed electrician and comply with local installation regulations.
- Page 26 Wiring Diagram neoStat to UH8 and Optional Remote Probe Connections 230VAC A2 A1 FLOOR PROBE (Optional) REMOTE AIR PROBE (Optional) This product must only be installed by a quali ed electrician and comply with local installation regulations. Series...
- Page 27 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 28 Units 1-5 Hurstwood Court, Mercer Way Shadsworth Business Park, Blackburn, Lancashire, BB1 2QU, United Kingdom. Hereby, Heatmiser UK Ltd. declares that the radio equipment type (designation of type of radio equipment) is in compliance with Directive 2014/53/EU. Rev.1.2 RF Frequency: 2.4ghz 9.18dBm...
