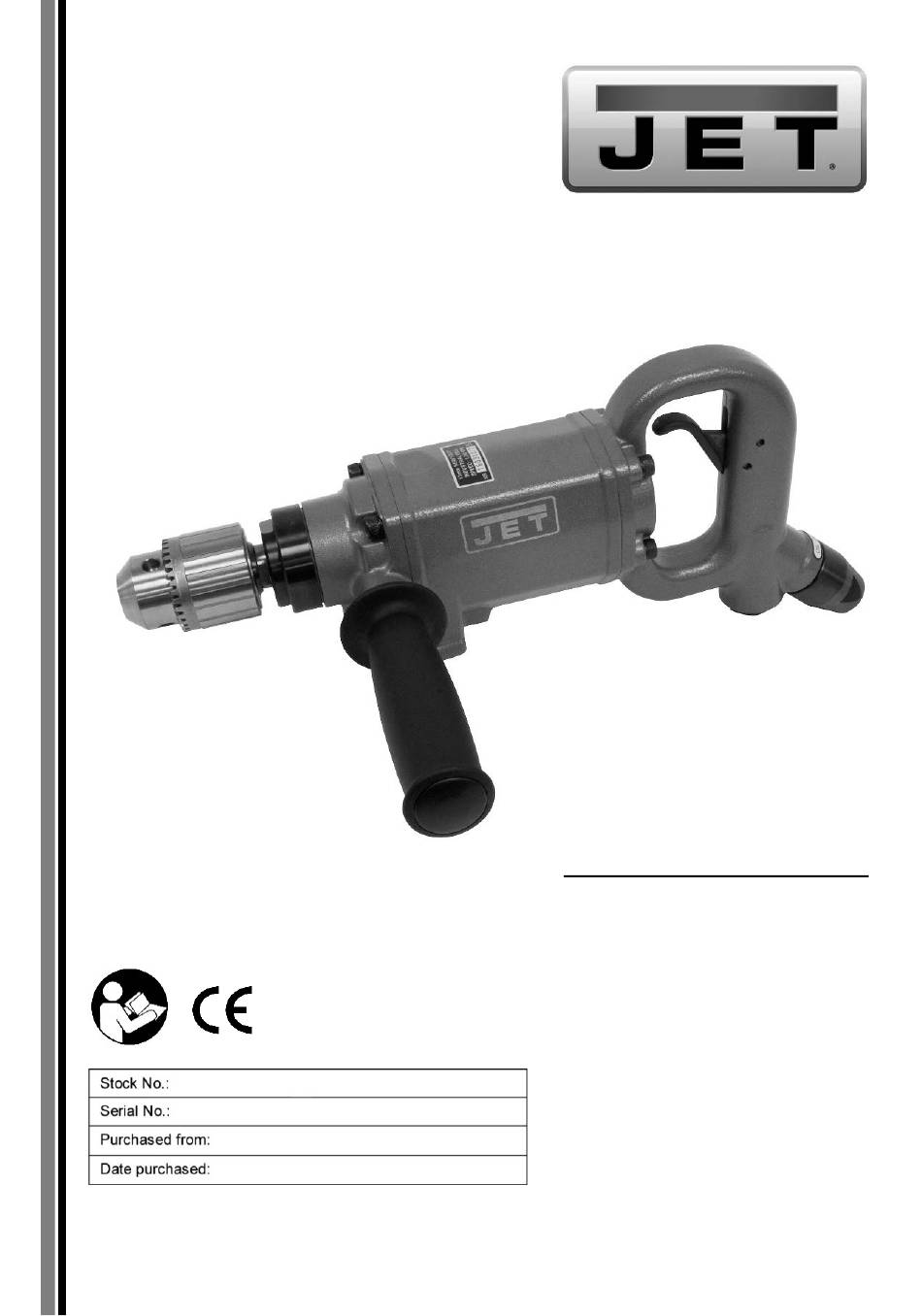

- Page 1 1/2-inch Pneumatic Drill #550670, JCT-5670 Operation & Parts Manual M-550670 Edition 2 05/2017 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2017 JET...
-
Page 2: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 3 22. Shut off air supply and discharge any residual 33. Do not lubricate the tool with combustible pressure from tool before removing hose, liquids, such as kerosene, diesel or jet fuel. making adjustments, changing accessories, 34. Do not dispose of this tool with normal or storing tool.
-
Page 4: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Setup And Assembly
Any missing parts or damage should be reported connection to fail. Instead, add a leader hose ® immediately to your JET distributor. Do not use a and install any quick-change couplings damaged tool. Read this instruction manual farther down the line. - Page 7 Tool Pressure Make sure air compressor supplies clean, dry air at correct CFM for the tool. JET Air Tools operate on 70-to-100 psi (pounds per square inch) air pressure measured at the tool Set air pressure to 90 psi. when the tool is operating. Set tool to 90 psi unless indicated otherwise.
- Page 8 Recycling Use a light oil containing rust inhibitors, such as Protect the environment. Your tool contains SAE #10. Many JET air tools have integral oil materials which can be recovered or recycled. reservoirs, which should be kept filled when in-line When its useful life has expired, please leave tool oilers are not used.
- Page 9 Troubleshooting JCT-5670 Pneumatic Drill Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 10: Replacement Parts
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. JCT-5670 Pneumatic Drill... - Page 11 #550670, JCT-5670 1/2-inch Pneumatic Drill...
- Page 12 #550670, JCT-5670 1/2-inch Pneumatic Drill Index Part No. Description Index Part No. Description JCT5670-01 Housing 27 7H-753527 Spindle Screw 7H-753502 Gear Case 28 TS-1503051 Soc. Hd. Cap Screw M6x20 7H-753503 Air Inlet 3/8in. NPT 29 7H-753529 Collar 7H-753504 Throttle Valve Lever...
-
Page 13: Warranty And Service
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. - Page 14 This page intentionally left blank. JCT-5670 Pneumatic Drill...
- Page 15 This page intentionally left blank.
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JCT-5670 Pneumatic Drill...
