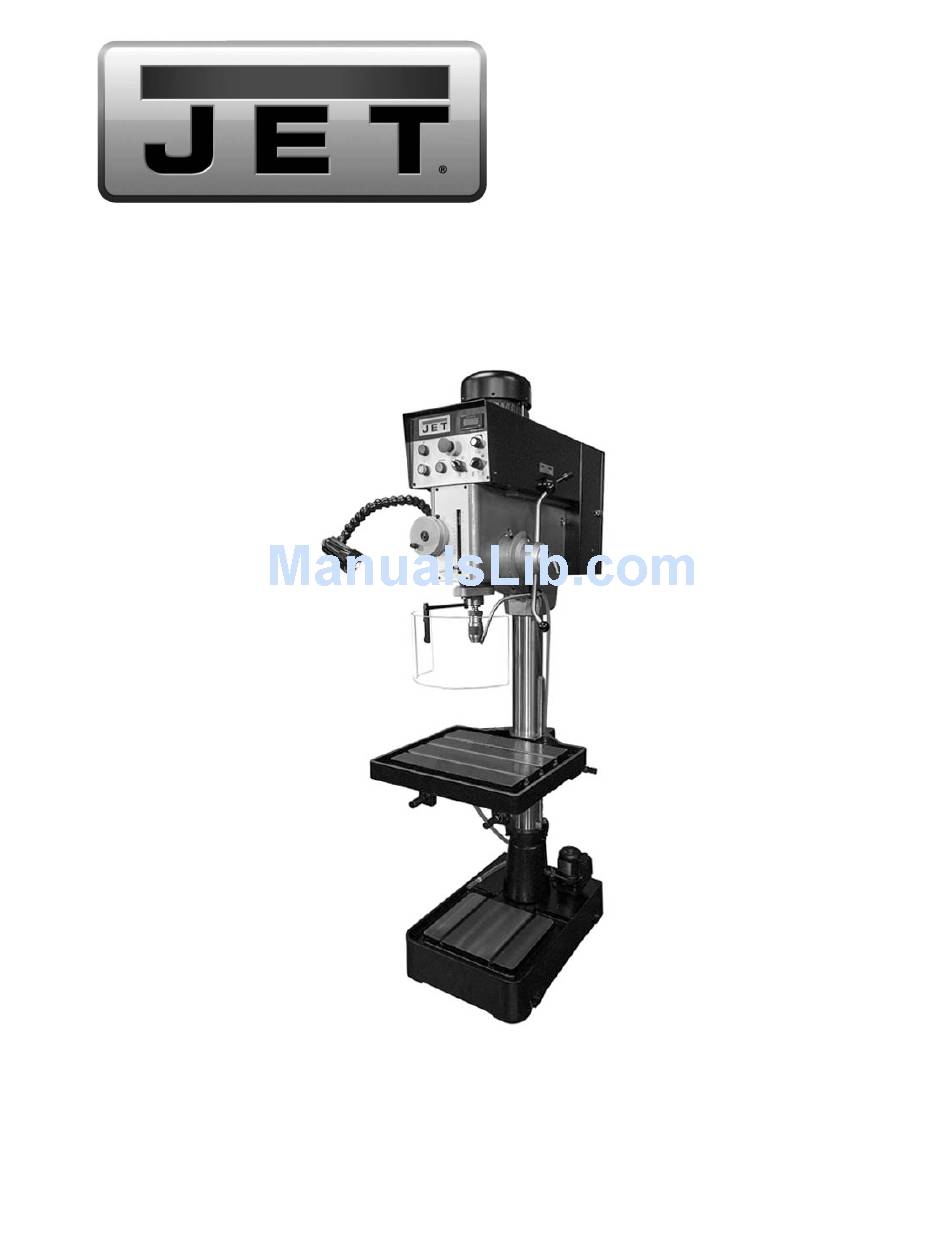

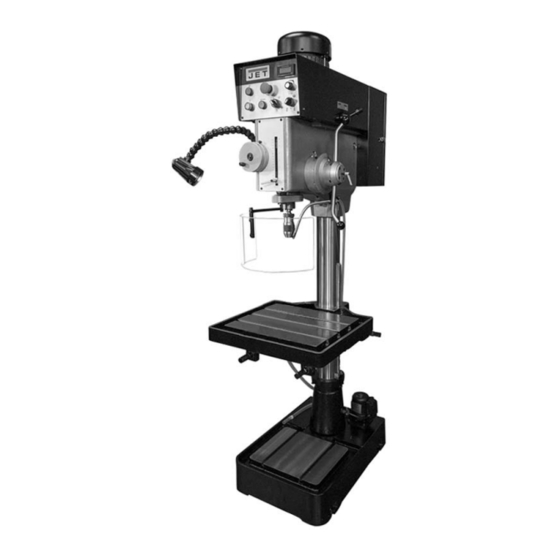

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 20” EVS Drill Press with Powerfeed Models: JDP20EVST-230-PDF, -460-PDF 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-354245 Ph.: 800-274-6848 Edition 2 05/2017 www.jettools.com Copyright © 2017 JET...
-
Page 2: Important Safety Instructions
- Always be sure the machine support is and full benefits from your machine. Used properly, securely anchored to the floor or the work JET machinery is among the best in design and bench. safety. However, any machine used improperly can be rendered inefficient and unsafe. -
Page 3: General Electrical Cautions
15. Use the right tool. Don’t force a tool or 19. Know the tool you are using — its application, attachment to do a job for which it was not limitations, and potential hazards. designed. 20. CALIFORNIA PROPOSITION 65 WARNING: 16. -
Page 4: Safety Instructions For Drill Presses
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Table Of Contents
12.6.1 JDP20EVST-230/460-PDF Control Panel Assembly – Exploded View ..........28 12.6.2 JDP20EVST-230/460-PDF Control Panel Assembly – Parts List ............28 13.0 Electrical connections ..........................29 13.1 JDP20EVST-230-PDF wiring diagram ....................29 13.2 JDP20EVST-460-PDF wiring diagram ....................30 14.0 Warranty and Service ..........................31... -
Page 6: Specifications
4.0 Specifications Model number .............. JDP20EVST-230-PDF......JDP20EVST-460-PDF Stock number ..................354245............ 354246 Motor and Electricals: Motor type ................TEFC induction........TEFC induction Horsepower ................2 HP (1.5kW).......... 2 HP (1.5kW) Phase .......................3.............. 3 Voltage ..................230 V only..........460 V only Cycle .................... -
Page 7: Table Of Contents
= not applicable The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Set-Up And Assembly
(refer to 230V power. See sect. 6.2. Figure 6-1): The JDP20EVST-460-PDF is pre-wired for 3-phase, If your incoming power is single phase, 460-volt. It is not provided with an electrical plug; connect the two leads to L1 and L2, and the you may either attach a proper UL/CSA-listed plug, green ground wire to the grounding screw. -
Page 9: Extension Cords
Make sure incoming current matches power requirements of the drill. When machine is connected properly, spindle turns clockwise in a conventional drilling rotation. If spindle does not turn clockwise, disconnect drill from power supply and reverse any two of the three power leads (except green ground wire). -
Page 10: Coolant Pump
Speed control (G): Selects spindle rotation speed settings, contact JET technical service at 1-800- based upon range set by speed range handle. 274-6848. Drill mode (H): Selects drill or tap mode. Middle Main switch (not shown): Located on electrical position is neutral –... -
Page 11: Operation
Speed range handle (I): Selects high or low speed Make sure spindle taper is clean and free of range. See sect. 4.0 for ranges. Stop spindle before burrs, scoring, and galling to assure maximum moving handle. gripping. 9.2 Manual drilling Spindle must be stopped before attempting to adjust speed range Set switch (H) to drill mode. -
Page 12: Drilling Recommendations
9.6.4 Speeds for high speed steel drills Pull downfeed handle (J) away from head to engage powerfeed. Speed When set depth is reached, downfeed handle Material (SFPM) will disengage and spindle will retract. Spindle Alloy Steel — 300 to 400 Brinell 20-30 will continue to rotate. -
Page 13: Motor Replacement
10.2 Motor replacement Disconnect electrical power to drill press to avoid possibility of inadvertent operation and exposure to potentially lethal voltage levels. Disconnect machine from power source. Follow steps under sect. 10.1 to remove drive motor. 10.3 Lubrication See Table 4 for lubrication points and frequency. Figure 10-1: oil fill tube Oil fill tube: 10.4 Additional servicing... -
Page 14: Troubleshooting Jdp20Evst-Pdf Series Drill Presses
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 15: Jdp20Evst-230/460-Pdf Top Head Assembly - Exploded View
12.1.1 JDP20EVST-230/460-PDF Top Head Assembly – Exploded View... -
Page 16: Jdp20Evst-230/460-Pdf Top Head Assembly - Parts List
12.1.2 JDP20EVST-230/460-PDF Top Head Assembly – Parts List Index No. Part No. Description Size 1……..JDP20EVSTPF-A01 ..Hex Head Plug ............3/8" ........ 1 2 ....5510142 ....Sight Glass ....................1 3 ....BB-6202ZZ ....Ball Bearing ............. 6202ZZ ......1 4 .... - Page 17 76…….JDP20EVSTPF-A76 ..Cover ......................1 77…….JDP20EVSTPF-A77 ..Screw ............... M5x6 ......2 ....LM000246 ....ID/Warning Label, JDP-20EVST-230-PDF (not shown) ......... 1 ....LM000247 ....ID/Warning Label, JDP-20EVST-460-PDF (not shown) ......... 1 ....JET-113 ..... JET Logo (not shown) ..........113x47mm ....1...
-
Page 18: Jdp20Evst-230/460-Pdf Spindle Components - Exploded View
12.2.1 JDP20EVST-230/460-PDF Spindle Components – Exploded View... -
Page 19: Jdp20Evst-230/460-Pdf Spindle Components - Parts List
12.2.2 JDP20EVST-230/460-PDF Spindle Components – Parts List Index No. Part No. Description Size 1 ....TS-1514021 ....Socket Head Flat Screw .......... M6x16 ......4 2 ....JDP20EVSTPF-B02 .. Cover ......................1 3 ....JDP20EVSTPF-B03 .. Feed Clutch Rod .................... 1 4 .... - Page 20 Index No. Part No. Description Size 66 ....BB-32009ZZ ....Tapered Roller Bearing ........... 32009ZZ ....... 1 67 ....JDP20EVSTPF-B67 .. Quill........................ 1 68 ....JDP20EVSTPF-B68 .. Rubber Washer....................1 69 ....JDP20EVSTPF-B69 .. Quill Support Pin .................... 1 70 ....
- Page 21 Index No. Part No. Description Size 131 .... 6293356 ....Key................6x20 mm ....... 1 132 .... BB-6003ZZ ....Ball Bearing ............. 6003ZZ ......2 133 .... TS-1504041 ....Socket Head Cap Screw ......... M8x20 ......2 134 .... JDP20EVSTPF-B134 Rear Worm Gear Bracket ................1 135…….JDP20EVSTPF-B135A ..
-
Page 22: Jdp20Evst-230/460-Pdf Safety Shield Assembly - Exploded View
12.3.1 JDP20EVST-230/460-PDF Safety Shield Assembly – Exploded View 12.3.2 JDP20EVST-230/460-PDF Safety Shield Assembly – Parts List Index No. Part No. Description Size ....32106A ......Safety Shield Assembly (includes #1 thru 16) ............1 1 ....6293347 ...... Spring Pin ..............3x16 ........ 1 2 .... -
Page 23: Jdp20Evst-230/460-Pdf Table And Base Assembly - Exploded View
12.4.1 JDP20EVST-230/460-PDF Table and Base Assembly – Exploded View... -
Page 24: Jdp20Evst-230/460-Pdf Table And Base Assembly - Parts List
12.4.2 JDP20EVST-230/460-PDF Table and Base Assembly – Parts List Index No. Part No. Description Size 1 ....J-5510288A ....Base....................... 1 1-1 ..... TS-0720111 ....Lock Washer ............1/2" ........ 6 1-2 ..... TS-0070031 ....Hex Cap Screw ............1/2"-13 x 1-1/2” ..... 6 2 .... - Page 25 Index No. Part No. Description Size 53 ....5517404 ....Drain Plug ..............3/8 NPT ......1 56 ....5513932 ....Table Raiser Assembly .................. 1 57 ....TS-069204 ....Flat Washer ............. #10 ........ 2 58 ....5517488 ....Hex Nut ..............1/2" ........ 1 59 ....
-
Page 26: Jdp20Evst-230/460-Pdf Electrical Cabinet Assembly - Exploded View
12.5.1 JDP20EVST-230/460-PDF Electrical Cabinet Assembly – Exploded View... -
Page 27: Jdp20Evst-230/460-Pdf Electrical Cabinet Assembly - Parts List
12.5.2 JDP20EVST-230/460-PDF Electrical Cabinet Assembly – Parts List Index No. Part No. Description Size 1 ....JDP20EVSTPF-E01 .. Electrical Box w/Door and Latch ..............1 2 ....JDP20EVSTPF-E02 .. Plastic Plate ....................1 3 ....TS-2171012 ....Pan Head Machine Screw ........M4x6 ......4 4 .... -
Page 28: Jdp20Evst-230/460-Pdf Control Panel Assembly - Exploded View
12.6.1 JDP20EVST-230/460-PDF Control Panel Assembly – Exploded View 12.6.2 JDP20EVST-230/460-PDF Control Panel Assembly – Parts List Index No. Part No. Description Size ....JDP20EVSTPF-E01 ..Electric Control Box w/Door and Latch ........... 1 1 ....JDP20EVSTPF-CP01 ..Start Switch ..................... 1 2 .... -
Page 29: Electrical Connections
13.0 Electrical connections These diagrams are also affixed inside electrical cabinet door. In case of discrepancy, diagram on machine takes precedence. 13.1 JDP20EVST-230-PDF wiring diagram... -
Page 30: Jdp20Evst-460-Pdf Wiring Diagram
13.2 JDP20EVST-460-PDF wiring diagram... -
Page 31: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 32 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
