THine THCV235 User Manual

THEVA235_THEVA236_UsersGuide_Rev.1.10_E
THCV235 / THCV236 Evaluation Kit
1. General Description
THEVA235 and THEVA236 boards are designed to
evaluate THCV235 and THCV236 for transmission
of Video data between the host and display.
One high-speed lane can carry up to 32bit data and
3bits of synchronizing signals at a pixel clock
frequency from 6MHz to 160MHz with converting
RGB444 to YCbCr422.
The chipset, which has one high-speed data lane,
can transmit video data up to 1080p/60Hz.
The maximum serial data rate is 4.00Gbps/lane.
3. Overview
(a) THEVA235 (Top Side)
(c) THEVA235 (Bottom Side)
Copyright(C) 2018 THine Electronics, Inc.
SerDes Single Link Evaluation Board
Parts Number: THEVA235, THEVA236

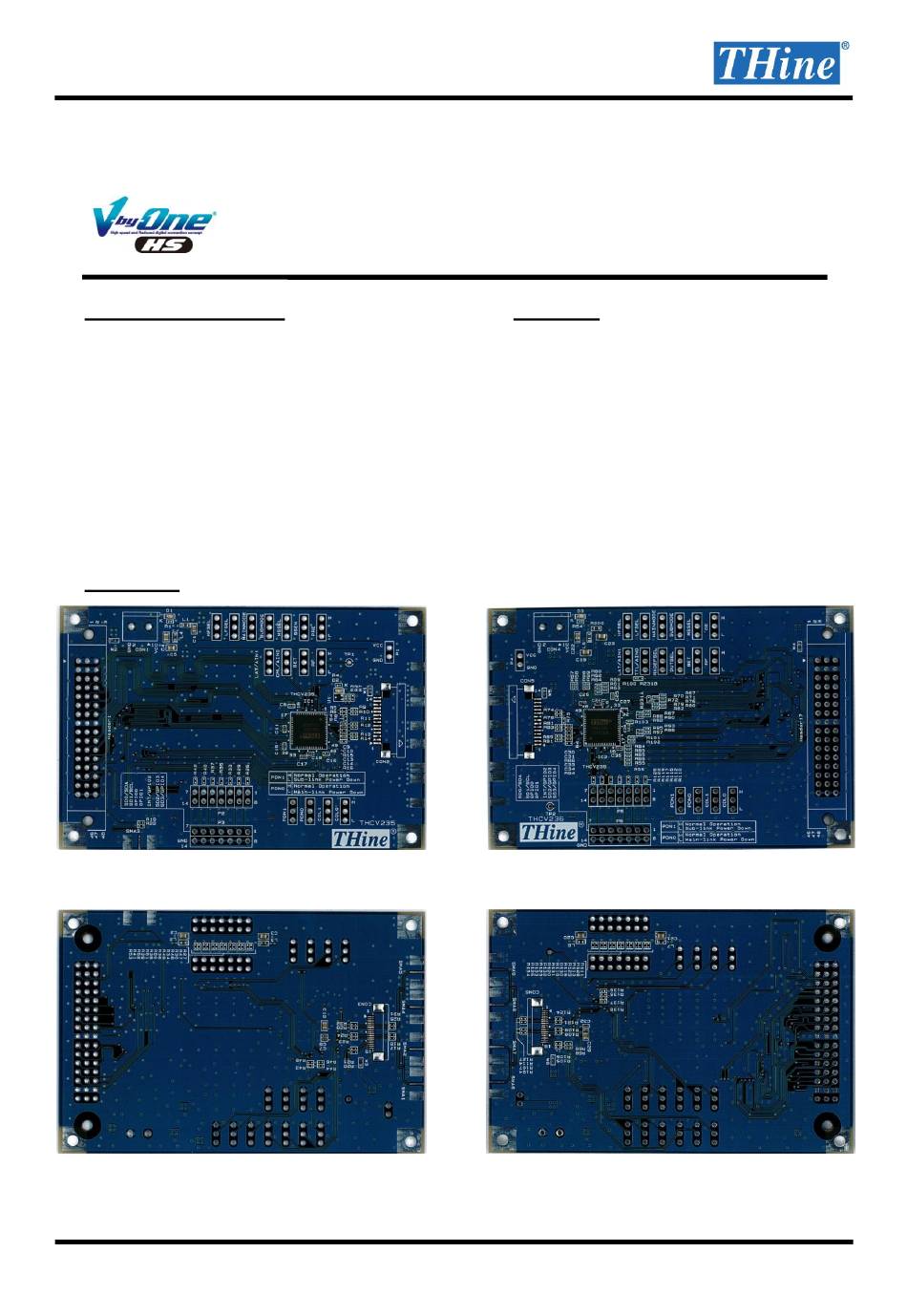

Figure 1 THEVA235 and THEVA236 View
1/16
2. Features

Color depth selectable:24/32bit
RGB ⇔ YCbCr422 color space conversion

function

Wide frequency range

AC coupling for high-speed lanes

CDR requires no external frequency reference

Wide Range Supply Voltage from 1.7V to 3.6V

Additional SSCG on data stream

2-wire serial I/F bridge function(400kbps)

Remote side GPIO control and monitoring

Low Speed Data Bridge function
(b) THEVA236 (Top Side)

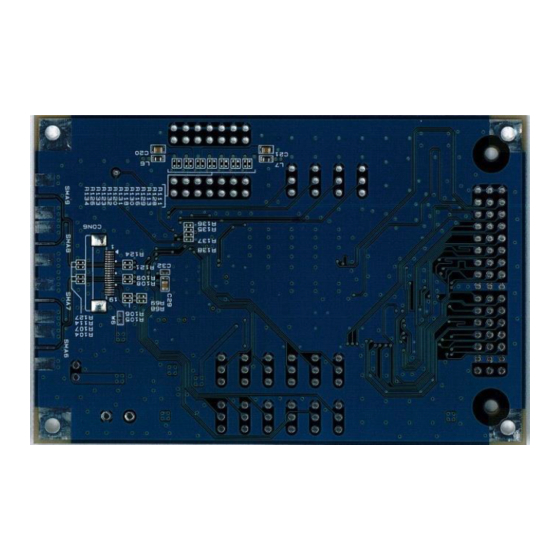

(d) THEVA236 (Bottom Side)
THine Electronics, Inc.
