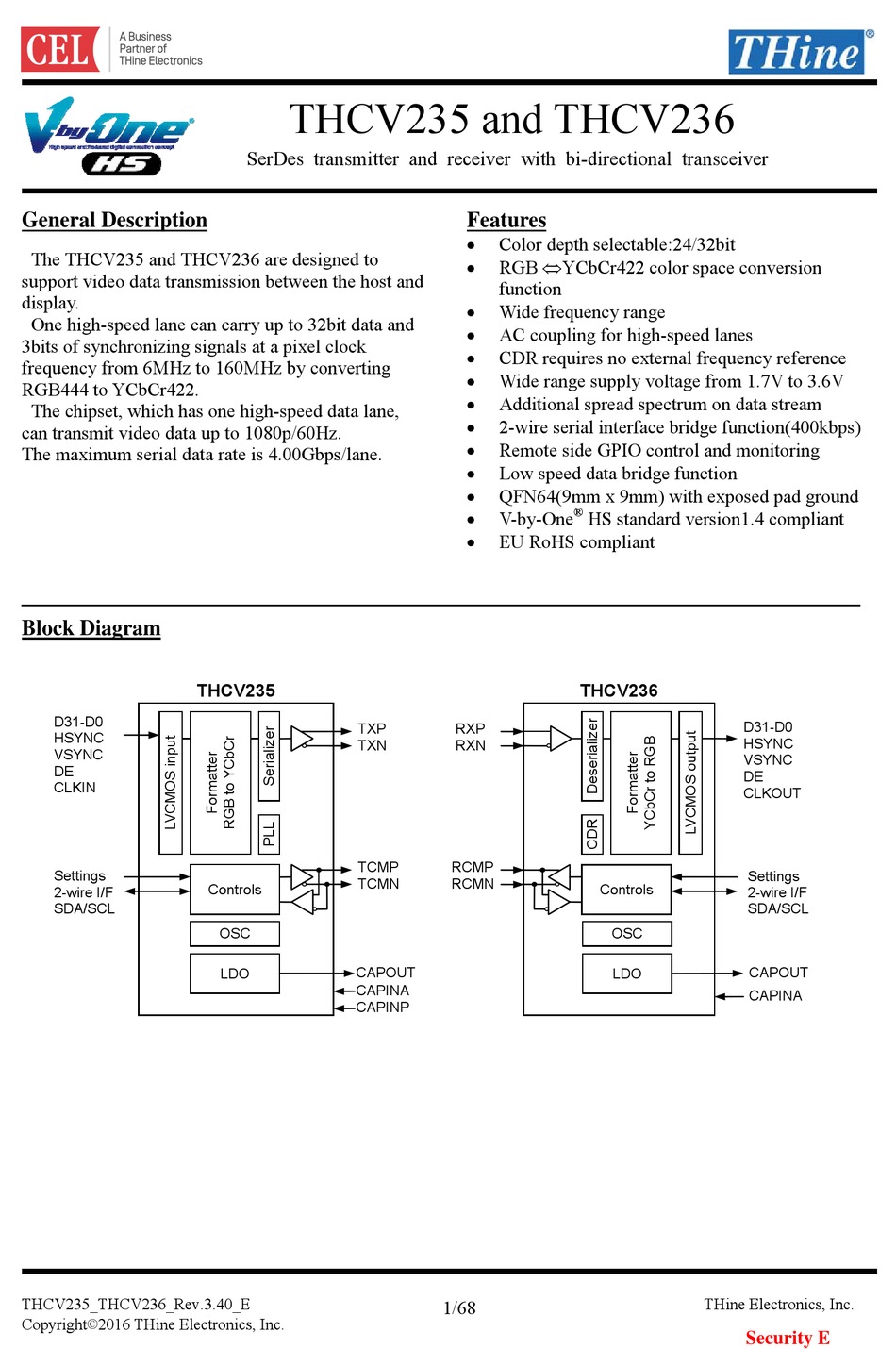

THine CEL SerDes THCV235 Manual

General Description
The THCV235 and THCV236 are designed to
support video data transmission between the host and
display.
One high-speed lane can carry up to 32bit data and
3bits of synchronizing signals at a pixel clock
frequency from 6MHz to 160MHz by converting
RGB444 to YCbCr422.
The chipset, which has one high-speed data lane,
can transmit video data up to 1080p/60Hz.
The maximum serial data rate is 4.00Gbps/lane.

Block Diagram

D31-D0
HSYNC
VSYNC
DE
CLKIN
Settings
2-wire I/F
SDA/SCL
THCV235_THCV236_Rev.3.40_E
Copyright©2016 THine Electronics, Inc.
THCV235 and THCV236
SerDes transmitter and receiver with bi-directional transceiver
THCV235
TXP
TXN
TCMP
TCMN
Controls
OSC
CAPOUT
LDO
CAPINA
CAPINP

Features


Color depth selectable:24/32bit
 RGB YCbCr422 color space conversion
function

Wide frequency range

AC coupling for high-speed lanes

CDR requires no external frequency reference

Wide range supply voltage from 1.7V to 3.6V

Additional spread spectrum on data stream

2-wire serial interface bridge function(400kbps)

Remote side GPIO control and monitoring

Low speed data bridge function

QFN64(9mm x 9mm) with exposed pad ground
®

V-by-One HS standard version1.4 compliant

EU RoHS compliant
THCV236
RXP
RXN
RCMP
RCMN
Controls
OSC
1/68
D31-D0
HSYNC
VSYNC
DE
CLKOUT
Settings
2-wire I/F
SDA/SCL
CAPOUT
LDO
CAPINA
THine Electronics, Inc.
Security E
