- Page 1 To Our Customers Continuing it’s rich tradition of partnering with high quality Japanese semiconductor suppliers, CEL is now partnering with THine from May of 2015 onwards. www.cel.com...
-
Page 2: General Description

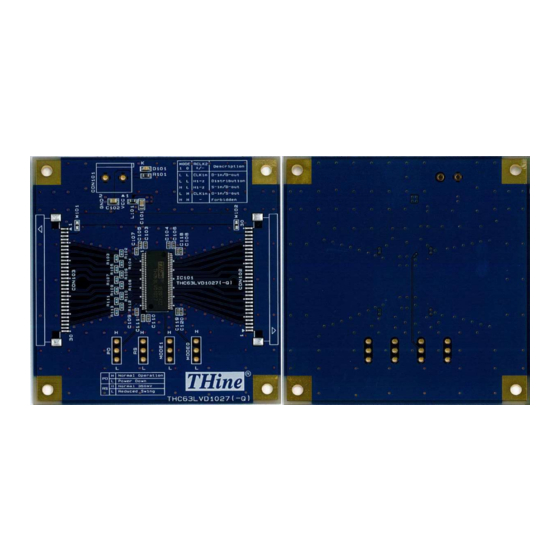

THEVA1027-V2 is designed to evaluate THC63LVD1027(-Q) for transmission video data. THC63LVD1027(-Q) chipset can transmit 35bit data via dual channel LVDS. The maximum input clock frequency of THC63LVD1027(-Q) is 135MHz, and the maximum output clock frequency of THC63LVD1027-Q is 100MHz. 2. Features THC63LVD1027 Low power single 3.3V CMOS design... -
Page 3: Power Supply Setup
W101: Connect the 3.3V power supply with pin#1 and 2 of CON103. W102: Connect the 3.3V power supply with pin#29 and 30 of CON102. Figure 3 THEVA1027-V2 power supply from / to each connector THine Electronics, Inc. Copyright(C) 2016 THine Electronics, Inc. Security E... -
Page 4: Function Setting
Each setting pin’s high or low setting can set by connecting pin#2 of 3HEADER and high level or low level. (a)3HEADER Description (b)High Level Setting (c)Low Level Setting Figure 5 Schematic diagram of High / Low setting description 6. Status Indicate LED LED “D101” indicates 3.3V power supply status. THine Electronics, Inc. Copyright(C) 2016 THine Electronics, Inc. Security E... - Page 5 Pixel data mode select MODE1 MODE1 MODE1 MODE0 RCLK2+/- Function Clock input Dual-in / Dual -out Hi-Z Distribution Hi-Z Single-in / Dual -out MODE0 MODE0 Clock input Dual-in / Single-out Reserved THine Electronics, Inc. Copyright(C) 2016 THine Electronics, Inc. Security E...
- Page 6 THAN0211_Rev.1.00_E 8. Schematic Figure 6 THEVA1027-V2 Schematic THine Electronics, Inc. Copyright(C) 2016 THine Electronics, Inc. Security E...
- Page 7 Part No. DC Connector 282836-2 FFC Connector for LVDS Link 52271-3069 FFC 30pin 1mm Pitch for LVDS Link 98267-0475 It’s possible to mount these parts on this board and use. THine Electronics, Inc. Copyright(C) 2016 THine Electronics, Inc. Security E...
- Page 8 THine’s product cause any social or public damage. Replacement of the product is only available in case of obvious defects of mount devices at the point of unpacking the product. Neither replacement nor failure analysis of the product is available in any other case of defects with the product and/or the product’s components.
