General Description
The THCV231 and THCV236 are designed to
support video data transmission between the host and
display.
THCV231
One high-speed lane can carry up to 14bits data at a
pixel clock frequency from 12MHz to 160MHz.
THCV236
One high-speed lane can carry up to 32bit data and
3bits of synchronizing signals at a pixel clock
frequency from 6MHz to 160MHz by converting
RGB444 to YCbCr422.
The chipset, which has one high-speed data lane,
can transmit video data up to 1080p/60Hz.
The maximum serial data rate is 4.00Gbps/lane.

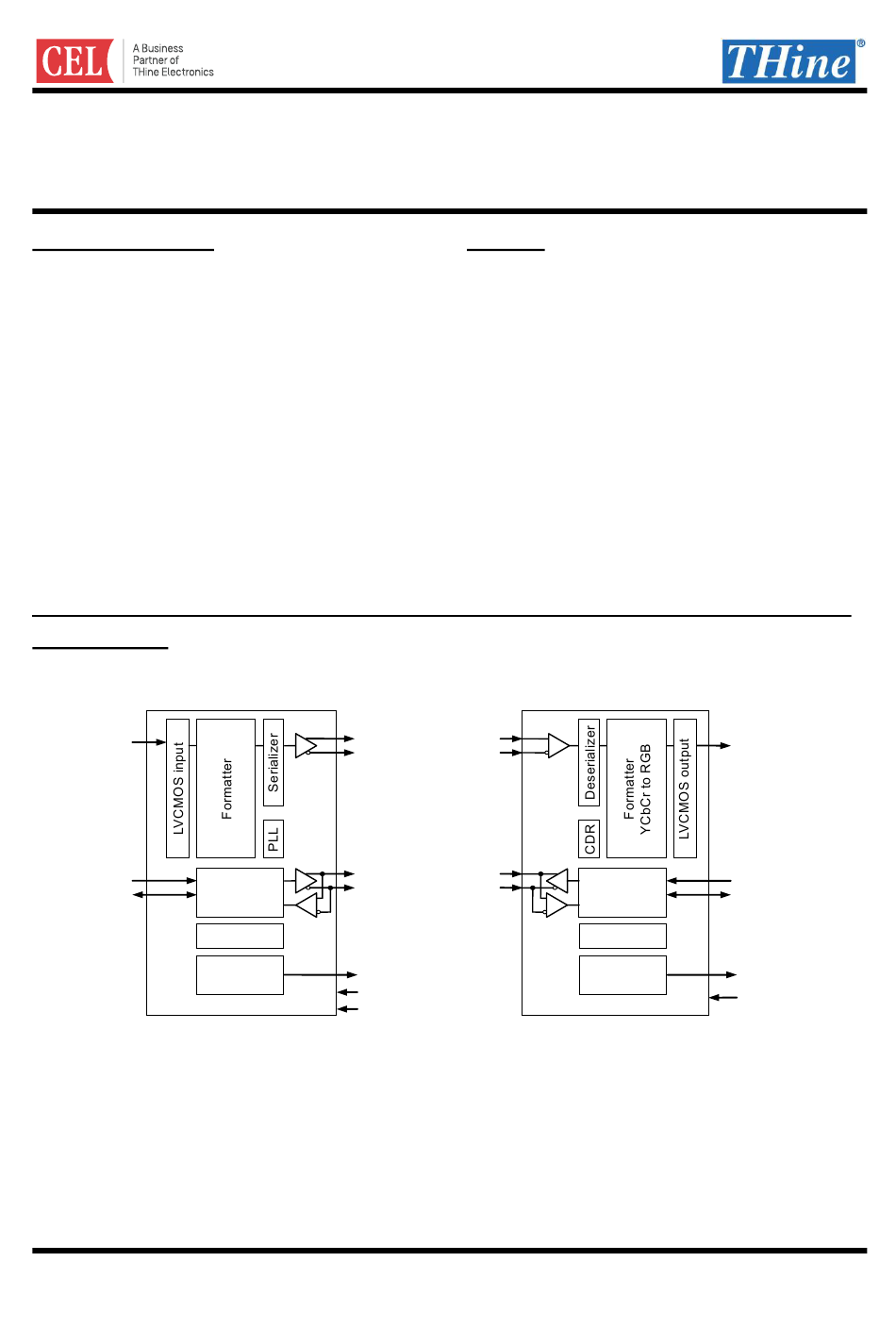

Block Diagram

D11-D0
HSYNC
VSYNC
CLKIN
Settings
2-wire I/F
SDA/SCL
THCV231_THCV236_Rev.2.30_E
Copyright©2016 THine Electronics, Inc.
THCV231 and THCV236
SerDes transmitter and receiver with bi-directional transceiver
THCV231
TXP
TXN
TCMP
TCMN
Controls
OSC
LDO
CAPOUT
CAPINA
CAPINP

Features

Data width selectable
Wide frequency range
AC coupling for high-speed lanes
CDR requires no external frequency reference
Wide range supply voltage from 1.7V to 3.6V
Additional spread spectrum on data stream
2-wire serial interface bridge function(400kbps)
Remote side GPIO control and monitoring
THCV231
QFN32 (5mm x 5mm) with exposed pad ground
THCV236
QFN64 (9mm x 9mm) with exposed pad ground
EU RoHS compliant
THCV236
RXP
RXN
RCMP
RCMN
Controls
OSC
LDO
1/56
D31-D0
HSYNC
VSYNC
DE
CLKOUT
Settings
2-wire I/F
SDA/SCL
CAPOUT
CAPINA
THine Electronics, Inc.
Security E
