THCV215 / THCV216 Evaluation Kit
1. General Description
THEVA215-V2 and THEVA216-V2 are
designed to evaluate THCV215 and THCV216
for transmission video data. Each has one
THCV215 or THCV216. This kit can transmit
video data of "Full-HD / 60Hz / 30bit" and
"HD / 120Hz / 30Bit".
Table 1 Color Width
Width Link
18bit Single/Dual
24bit Single/Dual
32bit Single/Dual
40bit Single/Dual
3. Overview
(a) THEVA215-V2 (Top Side)
(a) THEVA215-V2 (Bottom Side)
Figure 2 THEVA215-V2 and THEVA216-V2 Bottom Side View
Copyright(C) 2019 THine Electronics, Inc.
®
V-by-One HS Dual Link Evaluation Board
Parts Number: THEVA215-V2, THEVA216-V2
LVDS Clock Freq.
20MHz to 100MHz
20MHz to 100MHz
20MHz to 85MHz
20MHz to 75MHz
Figure 1 THEVA215-V2 and THEVA216-V2 Top Side View
2. Features
・Color width selectable : 18/24/32/40 bit
・Single/Dual Link selectable
・Wide Frequency Range
・PLL requires no external components
・V-by-One
®
HS standard version 1.5 compliant

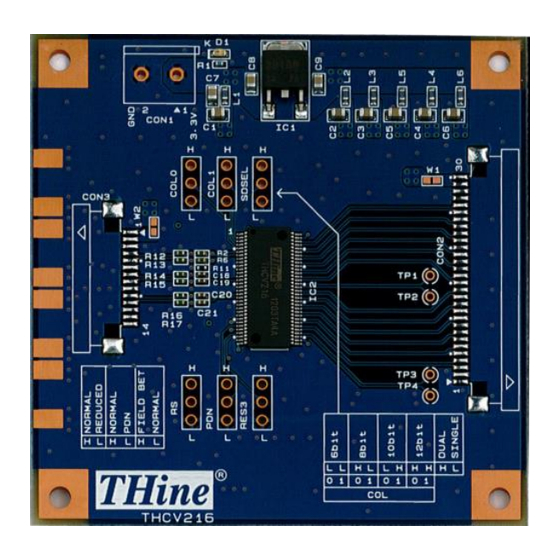

(b) THEVA216-V2 (Top Side)
(b) THEVA216-V2 (Bottom Side)
