THC63LVDM83D / THC63LVDF(R)84B,84C Evaluation Kit
Parts Number: THEVAM83D, THEVAF(R)84B, THEVAF(R)84C
1.General Description
THEVAM83D and, THEVAF(R)84B, 84C boards
are designed to support video data transmission
between the host and display. One high-speed lane
can carry up to 24bits data and 3bits of
synchronizing signals at a pixel clock frequency
from 8MHz to 160MHz.
Table 1 Clock Frequency
Type Parts Number
Tx THEVAM83D
Rx THEVAF(R)84B
Rx THEVAF(R)84C

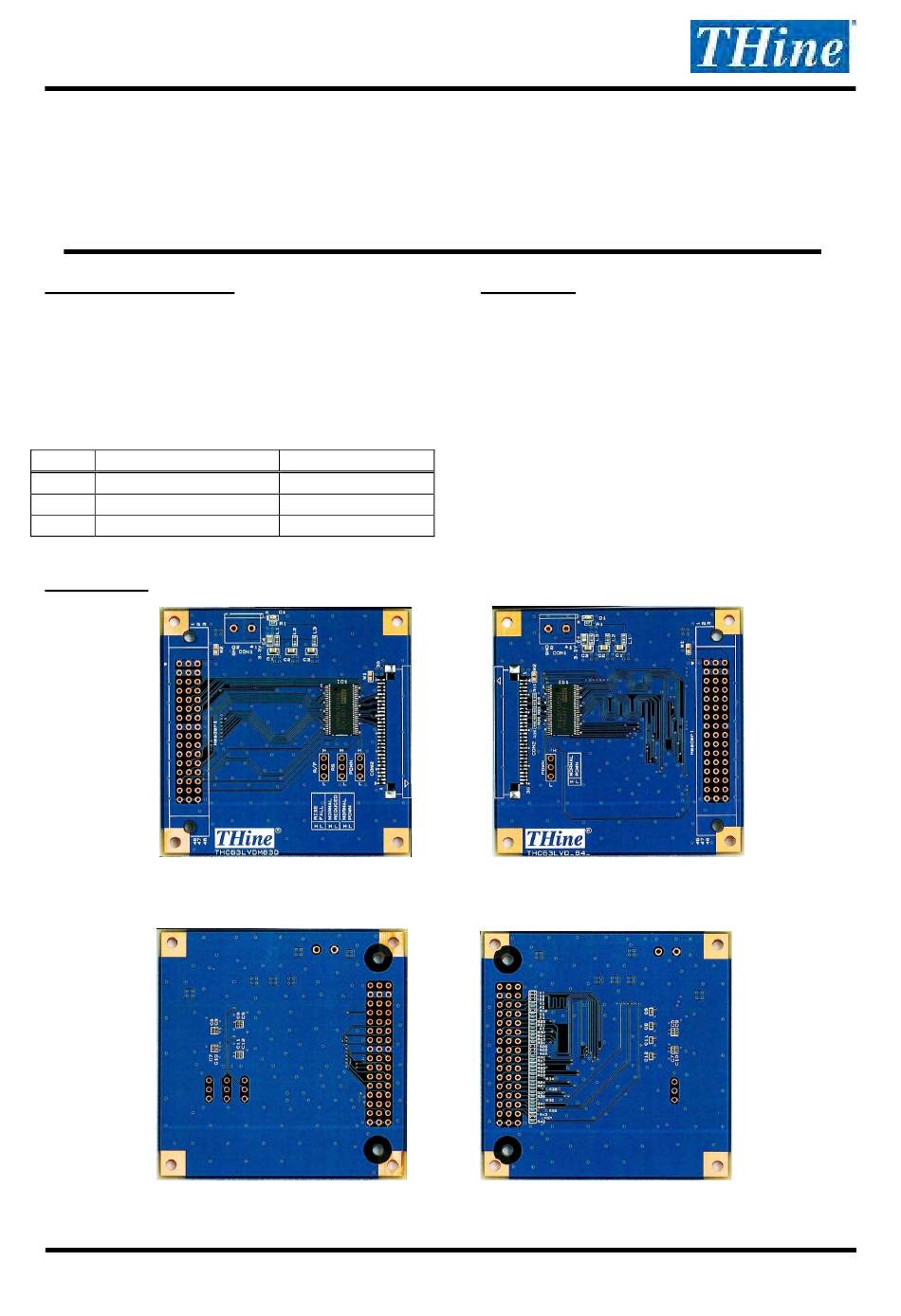

3. Overview

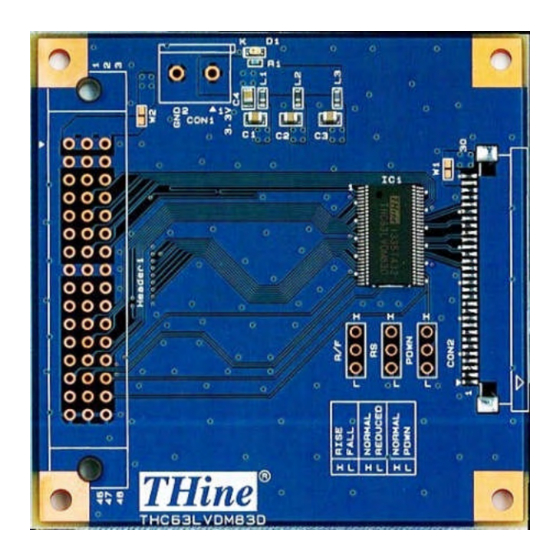

(a) THEVAM83D (Top Side)
Figure 1 THEVAM83D and THEVAF(R)84B, 84C Top Side View
(a) THEVAF(R)84B, 84C (Bottom Side)
Figure 2 THEVAM83D and THEVAF(R)84B, 84C Bottom Side View
Copyright(C) 2015 THine Electronics, Inc.
LVDS Single Link Evaluation Board
TTL Clock Freq.
8MHz to 160MHz
15MHz to 85MHz
8MHz to 112MHz
1/9
2. Features
・Compatible with TIA/EIA-644 LVDS Standard
・7:1 LVDS Transmitter and Receiver
・Single power supply
・Power Down Mode
< THEVAM83D>
･LVDS swing is reducible as 200mV by RS-pin
to reduce EMI and power consumption.
･ Input clock triggering edge is selectable by
R/F-pin
< THEVAF84B and C>･Falling Edge Clock
< THEVAR84B and C>･Rising Edge Clock
(b) THEVAM83D (Top Side)
(b)THEVAF(R)84B, 84C (Bottom Side)
