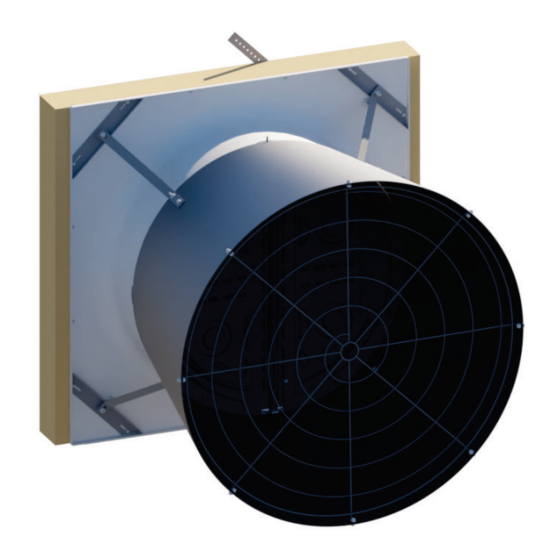

- Page 1 WM36K Wall Mount Fan with Damper Door Instruction Manual 1-Pack Quick Kit WM Fiberglass Wall Mount Fan with Damper Door - 1-Pack Quick Kit Models: WM36xKxCB © Munters Corporation, August 2021 QM1231r10...
- Page 2 With the proper installation and maintenance it will provide many years of service. Please Note: To achieve maximum performance and insure long life from your Munters product it is essential that it be installed and maintained properly. Please read all instructions carefully before beginning installation. Warranty: For Warranty claims information see the “Warranty Claims and Return Policy”...
- Page 3 Tools for Installation 2. Installation Instructions Wall Framing Fan Assembly Cone Installation Motor Mounting 3. Electrical Wiring Recommended Wiring Operation Maintenance Winterizing Winterizing Winter Weather Protection Troubleshooting 8. Exploded View and Parts List 29-31 © Munters Corporation, August 2021 QM1231r10...
- Page 4 1 – Motor Sheave, C.I. 1 – V-Belt, A-Section 1 – 3” Idler Pulley, A-Section C.I., Blue 1 – Rotary Tensioner Arm, AL 1 – Hardware Package (HP1177) 1 – Coated Cable with Ferrule, 100”L. © Munters Corporation, August 2021 QM1231r10...
- Page 5 AC0211 & AC0212 Azuma Bolt & Nut, Blue PL KS1046 M10-1.5 x 50mm Hex bolt, ZP FH1968 1-Hole Pivoting Shutter Clip, BLK PL AC1381 ⁄ ” Dia. Cable Clamp, ZP KX1158 Hole Plug, 0.73”-0.76” Dia., BLK PL © Munters Corporation, August 2021 QM1231r10...
- Page 6 10mm [ ⁄ ”] Socket 13mm [½”] Socket 17mm [ ⁄ ”] Socket or Wrench 27mm [1 ⁄ ”] Wrench ⁄ ” Socket Phillips Screwdriver, #3 Size ⁄ ” Hex Wrench Wire Cutting Pliers © Munters Corporation, August 2021 QM1231r10...
- Page 7 4 x 4 or 4 x 6 Posts 4 x 4 or 4 x 6 Posts 2 x 4 Framing (See chart A) 2 x 8 Banner boards Figure 1B 4 x 4 Post Construction - Elevation View © Munters Corporation, August 2021 QM1231r10...
- Page 8 See Figure 2B. Figure 2B The fan can either be installed on the wall before the drive system is installed or the drive system can be installed while the fan is in the crate. © Munters Corporation, August 2021 QM1231r10...
-
Page 9: Table Of Contents
Attach the Motor Base Bracket and the Belt Tensioner Bracket to the Tube Strut using (3) Long Bolts [F], (2) See Figure 4. Washers [A] and (3) Nuts [G]. Motor Base Bracket Bolt [F] Washer [A] Nuts [G] Belt Tensioner Bracket Figure 4 © Munters Corporation, August 2021 QM1231r10... -
Page 10: Figure 5
6B. Be sure not to deform Drip Shield when installing screws. Barn Screw Barn Screw (Not Provided) (Not Provided) Drip Shield Drip Shield Barn Screw (Not Provided) Support board Drip Shield Figure 6A Figure 6B © Munters Corporation, August 2021 QM1231r10... -
Page 11: Step
Find Coated Cable and insert end opposite ferrule into small hole in upper plate of Main Frame. Pull it through until ferrule stops at plate. See Figure 8. Ferrule Hole in Main Frame Figure 8 © Munters Corporation, August 2021 QM1231r10... - Page 12 (1) Short Bolt [D] and Nut [G] with the bolt head on the side with the tabs. See Figure 10A. Nut [G] Short Bolt [D] Outer Hole Short Bolt [D] Inner holes Nut [G] Cone Support Bracket Figure 10A © Munters Corporation, August 2021 QM1231r10...
- Page 13 (1) Short Bolt [D] and Nut [G] with bolt head on inside of cone. See Figure 10B. Short Bolt [D] Cone Support Bracket Nut [G] Short Bolt [D] Nut [G] Figure 10B © Munters Corporation, August 2021 QM1231r10...
- Page 14 Cone Support Bracket, Cone, Main Frame and Orifice. Repeat process for all 4 Cone Support Brackets. See Figure 11B. Nut [G] Medium Bolt [E] Use this hole for WM54F Use this hole for WM36F Nut [G] Figure 11B © Munters Corporation, August 2021 QM1231r10...
- Page 15 Azuma Bolt & Nut [J]. Make sure cable is pulled snug. See Figure 13. Note: When installing cable in temperatures BELOW 60°F, leave cable slightly slack (do not overtighten). Azuma Bolt & Nut [J] Coated Cable Figure 13 © Munters Corporation, August 2021 QM1231r10...
- Page 16 Sheave in place at this time. Note: When wiring motor, check rotation of propeller. Motor Sheave Internal wiring of motor may need to be changed to assure proper rotation of propeller. Motor Key Motor Figure 15 © Munters Corporation, August 2021 QM1231r10...
- Page 17 Secure Motor to Motor Bracket and Motor Bracket Stiffener using (4) Short Bolts [D] and Nuts [G]. The rear upper bolt is where Motor Bracket Stiffener is attached. See Figure 17A. Stiff ener Short Bolts [D] Nuts [G] Figure 17A © Munters Corporation, August 2021 QM1231r10...
- Page 18 If needed, adjust position of Motor Sheave so the 3 pulleys line up. Once Motor Sheave is aligned tighten set screw to 75 in-lbs [9 N-m] torque. See Figure 18. Motor Sheave Tensioner Pulley Propeller Sheave Figure 18 © Munters Corporation, August 2021 QM1231r10...
- Page 19 Hold at this setting and tighten the 10mm bolt to 40 ft.lbs. [54 N-m] torque. See Figure 19B. Mark 3 on Tensioner Arm Hex on Tensioner Arm 10mm Bolt Single Mark on Base Figure 19B © Munters Corporation, August 2021 QM1231r10...
- Page 20 Cut a section of the inlet guard out to fit over the motor as shown below for the appropriate fan. When cutting the guard wires make sure to cut them as close to the other wires as possible. See Figure 20A. 48” 10” 12” Figure 20A © Munters Corporation, August 2021 QM1231r10...
- Page 21 Position for Securing Guard Position for Guard Removal Shutter Clip [L] with Barn Screw (not provided) Shutter Clip [L] with Barn Screw (not provided) Position for Securing Guard Position for Guard Removal Figure 20B © Munters Corporation, August 2021 QM1231r10...
- Page 22 For electrical connection requirements, refer to diagram on motor nameplate and to information enclosed with the Munters environmental control to be used. Single Phase Fans: motor overload protection should be provided for each fan.
- Page 23 As the power cable exits the back of the motor form a drip loop and then run cable to power source. See Figure 22A and 22B. Drip loop Figure 22A Drip loop Figure 22B © Munters Corporation, August 2021 QM1231r10...
- Page 24 Single phase fans are designed for single speed operation only. WARNING Three Phase Fans: If a frequency drive is used, the minimum operating frequency is 30 Hz. Moving Parts: Disconnect Power Before Servicing. WARNING Do Not Power Wash Electrical Devices. © Munters Corporation, August 2021 QM1231r10...
- Page 25 Electrical Devices. tions. Wiring should be secure and in good condition. Remove any dust build-up from control case and sensor using a soft brush or cloth. NEVER CLEAN ELECTRICAL EQUIPMENT WITH A PRESSURE WASHER! © Munters Corporation, August 2021 QM1231r10...
- Page 26 Mark 3 on tensioner arm. Hold tensioner at this setting and tighten 10mm bolt to 40 ft.-lbs [54 N-m] torque. Mark 3 on Tensioner Arm Hex on Tensioner Arm 10mm Bolt Single Mark on Base © Munters Corporation, August 2021 QM1231r10...
- Page 27 Munters Product and System manufacturers recommendations. The supplier listing above is given Warranties do not cover cone or fan as a reference only. Munters does not endorse any specific snow guard product and no performance warranty is implied. damage from external sources.
- Page 28 3. Motor or propeller shaft bent 3. Repair or replace motor or propeller shaft Fan Never Turns Off 1. Override thermostat set incorrectly 1. Set to the correct temperature 2. Control set for continuous operation 2. Set control correctly © Munters Corporation, August 2021 QM1231r10...
- Page 29 Exploded View © Munters Corporation, August 2021 QM1231r10...
- Page 30 Chapter 8 Exploded View © Munters Corporation, August 2021 QM1231r10...
- Page 31 Tension Spring, 0.5”OD x 11.0”L , SS FH1365 Wing Add-on Kit, 2 Wings w/ Hardware * Parts listed are for specifi c fan confi guration. Contact offi ce for replacement part numbers for your fan confi guration. © Munters Corporation, August 2021 QM1231r10...
- Page 32 WM36F is developed and produced by Munters Corporation, Lansing, Michigan U.S.A. 1-800-227-2376 Munters Europe AB, Isafjordsgatan 1, P.O. Box 1150, SE-164 26 Kista, Sweden. Phone +46 08 626 63 00, Fax +46 8 754 56 66. Munters Corporation 2691 Ena Drive Lansing, MI 48917 U.S.A. Phone +1 800-227-2376, Fax +1 517-676-7078 www.munters.us...
