Installation

Installing a Guide Wire

The mower uses the optional guide wire to find its way back to the
charging station, but also find hard-to reach areas of the operating area.

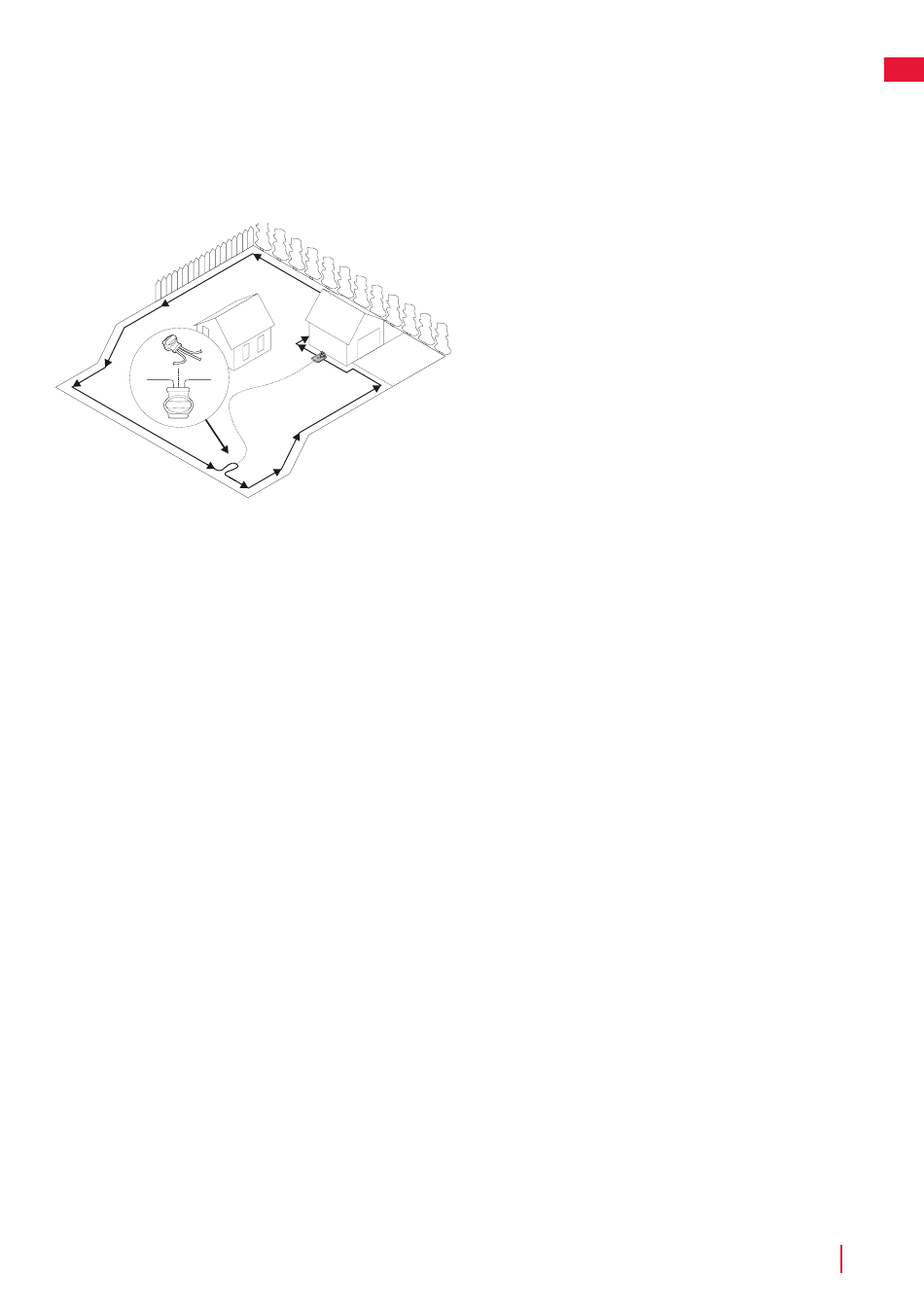

For example, the guide wire is laid between the charging station and a
remote part of the working area or through a narrow passage.
For narrow passages (less than 3 m) or to shorten search times, a guide
wire is recommended.
Plan the location of the guide wire before laying out the boundary wire.
Use the same cable roll for both the boundary wire and the guide wire.
The guide wire, like the boundary wire, must be secured to the ground
with pegs or buried.
When installing the guide wire on a steep slope, lay the wire at an angle
to the slope so it is easier for the mower to follow the guide wire on the
slope.
Do not lay the guide wire at sharp angles or the mower will have
difficulty following it.
Do not lay the guide wire closer than 30 cm from the boundary wire.
Do not lay the guide wire across the boundary wire.
Run the guide wire straight under the charging plate and then at least 2
m straight out from the front edge of the plate.
Leave as much space as possible to the left of the guide wire (as seen
when facing the charging station).
Run the guide wire to the loop on the boundary wire where the guide
wire is to be connected.
Cut the boundary wire using the combination pliers.
