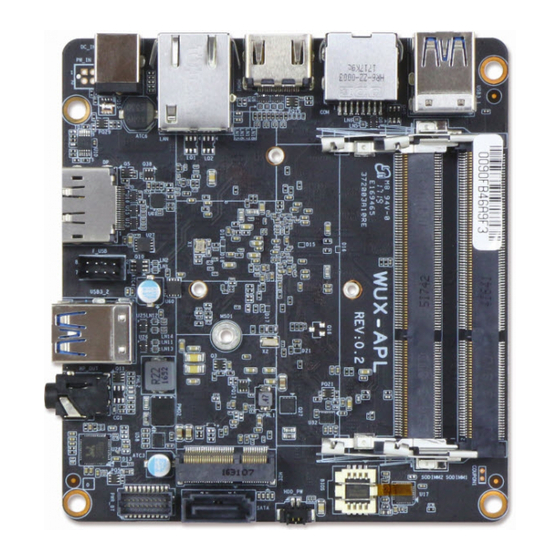

WUX-3455/3350/4200

NUC form factor board

Version 1.1

WUX series User's Guide

Table of Contents

Need help?

Do you have a question about the WUX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell WUX Series

Page 3: Table Of Contents
5.3.2 Intel® HD Graphics 50X ....................................26 5.3.3 Realtek RTL 8111H Gigabit Ethernet Controller ..............................27 6 BIOS Setup Items........................................28 6.1 Introduction ........................................28 6.2 BIOS Setup ........................................28 6.2.1 Main ..........................................30 Copyright © Portwell 2017 WUX series User's Guide...
Page 4 6.2.5 Save & Exit ......................................59 7 Troubleshooting ........................................61 7.1 Hardware Quick Installation ....................................61 7.2 BIOS Setting ........................................64 7.3 FAQ ..........................................65 8 Portwell Software Service ....................................67 9 Industry Specifications ......................................68 Copyright © Portwell 2017 WUX series User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. PORTWELL assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7: Introduction
WUX-3455/3350/4200 1 Introduction Portwell Inc., a world-leading innovator in the Industrial PC (IPC) market and a member of the Intel Embedded and Communications Alliance (Intel ECA), ® , today announces the release of the WUX-3455/3350/4200/3350/4200 utilizing the Intel® NUC form factor based on the Intel® Atom™ P...
Page 8: Specifications
- 4x USB 3.0 ports support by stacked connector (Front + Left) - 2x USB 2.0 ports on board with pitch 2.0 header - High Definition Audio integrated in Intel SoC Audio - Realtek ALC255 HDA codec Copyright © Portwell 2017 WUX series User's Guide...
Page 9 - Audio jack with MIC In orLine-out Ethernet - Realtek RTL8111H - 1x HDMI (1.4b) port on board connector, up to 3840x2160@30 MHz Display Interface - 1x DP(1.2) port on rear I/O, up to 4096x2160@60Mhz Copyright © Portwell 2017 WUX series User's Guide...
Page 10: Supported Operating Systems
The WUX-3455/3350/4200/3350/4200 supports the following operating systems.  Windows 10* (64 bit)  Wind River* 8.0 Linux Distribution(64 bit)  Yocto* Tool-based Embedded Linux Distribution (64 bit)  Android* 6.0(64bit)  VxWorks*7.0 (RTOS) (64 bit) Copyright © Portwell 2017 WUX series User's Guide...
Page 13: Power Consumption
REALTEK Driver Version: 6.0.1.7571 Chip Driver Intel Driver includes WiX Toolset 3.7 USB3.0 Driver Intel Driver includes WiX Toolset 3.7 EC Version Power Supply Support standard ATX or AT power up mode Power Supply Copyright © Portwell 2017 WUX series User's Guide...
Page 14: Environmental Specifications
CPU +24V Device+12V Device +5V CPU+ Device +24V+12V USB3.0 Loading Test 4.94 V/ 860 mA 2.4 Environmental Specifications Storage Temperature : -40~85°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2017 WUX series User's Guide...
Page 16: Hardware Configuration
4 Hardware Configuration 4.1 Connector Function We have made a list of connector function. The following figure shows where the connectors are and what they are called in board file. Figure1. WUX-3455/3350/4200 Top View Copyright © Portwell 2017 WUX series User's Guide...
Page 18: Jumper Settings
Connector Function List: Connector Function Remark DC_IN DC_IN VIN=12/19V GIGALAN HDMI HDMI RS232 USB3_1 USB 3.0 *2 F_USB F_USB USB3_2 USB 3.0 *2 HP_OUT Global Headset + MIC-IN PWR_BT PWRBTN/RSTBTN/LEDs SATA SATA3 WLAN SLOT Copyright © Portwell 2017 WUX series User's Guide...
Page 19 BIOS SPI SOCKET SODIMM1 DDR3L SO-DIMM SOCKET SODIMM2 DDR3L SO-DIMM SOCKET BATTERY CR2032/40mm/1.25 MEDIA Micro SD CPU_FAN CPU_FAN PWR_BUTTON SIO NCT5510Y PWR HP_OUT: PCB Footprint Signal Signal Description Description SLEEVE_CON HPOL_CON HPOR_CON RING2_CON HPOUT-JD_C Copyright © Portwell 2017 WUX series User's Guide...
Page 20 WUX-3455/3350/4200 PWR_BT: PCB Footprint Signal Description PIN No. Signal Description CLK_25M_80H LFRAME# LAD0 PMU_PLTRST_N LAD1 LAD3 LAD2 +V3.3S SERIRQ_3V3 -PANSHW MPD_+ MPD- WDT# SATA_LED_P +V5S +V5A Copyright © Portwell 2017 WUX series User's Guide...
Page 22 WUX-3455/3350/4200 BIOS: PCB Footprint PIN No. Signal Description PIN No. Signal Description HOLD# BATTERY: PIN No. Signal Description PIN No. Signal Description Copyright © Portwell 2017 WUX series User's Guide...
Page 23 WUX-3455/3350/4200 Micro SD: PIN No. Signal Description PIN No. Signal Description DAT2 DAT3 DAT0 DAT1 MEDIA: PIN No. Signal Description PIN No. Signal Description FAN_VCC TACH_PWRFAN1 PWM_PWMFAN1 Copyright © Portwell 2017 WUX series User's Guide...
Page 25: System Resources
To install your WUX-3455/3350/4200 into standard chassis or proprietary environment, please perform the following: Step 1 : Check all jumpers setting on proper position Step 2 : Install and configure memory module on right position Copyright © Portwell 2017 WUX series User's Guide...
Page 26: Chipset Component Driver
Intel® HD Graphics, Iris™ Graphics, Iris Plus Graphics, and Iris Pro Graphics deliver enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video WUX-3455/3350/4200 supports DP, HDMI display output. This combination makes WUX-3455/3350/4200 an excellent performance hardware. Copyright © Portwell 2017 WUX series User's Guide...
Page 27: Realtek Rtl 8111H Gigabit Ethernet Controller
5.3.3 Realtek RTL 8111H Gigabit Ethernet Controller - RTL8111H Gigabit Ethernet controller and RJ45 connector on rear I/O Drivers Support Please find RTL8111H LAN driver in Ethernet directory of WUX-3455/3350/4200 CD/DVD-title. The driver supports Windows 10. Copyright © Portwell 2017 WUX series User's Guide...
Page 28: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2017 WUX series User's Guide...
Page 31 The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. Copyright © Portwell 2017 WUX series User's Guide...
Page 34 Options When enabled, a VMM can utilize the additional hardware capabilities provided by ★Enabled, Disabled Intel Virtualization Technology Vanderpool Technology. ★Enabled, Disabled VT-d Enable/Disable CPU VT-d. ★Enabled, Disabled EIST Enable/Disable Intel SpeedStep. Copyright © Portwell 2017 WUX series User's Guide...
Page 36 Options ★Enable, Disable High Precision Timer Enable or Disable the High Precision Event Timer. ★Enable, Disable HD-Audio Support Enable or Disable HD-Audio Support. ★Disabled, Enabled BIOS Lock Enable or Disable BIOS Lock Copyright © Portwell 2017 WUX series User's Guide...
Page 38 Network Stack Enable or disable UEFI Network Stack. Network Stack[Enable] ★Disabled, Enabled IPv4 PXE Support ★Disabled, Enabled IPv6 PXE Support ★Disable Enable Wake on LAN Enable or disable the Wake on LAN. Copyright © Portwell 2017 WUX series User's Guide...
Page 42 If enable, SATA port will be reported as hot Plug capable. Capability SCC SD Card Support ★Enable, Disable Enable/Disable SCC SD Card Support (D27:F0) ★Enable, Disable SCC eMMC Support (D28:F0) Enable/Disable SCC eMMC Support Copyright © Portwell 2017 WUX series User's Guide...
Page 44 BIOS or OS. Enable/Disable USB port. Once disabled, any USB devices plug into the connector ★Enabled, Disabled USB Port#7 will not be detected by BIOS or OS. Copyright © Portwell 2017 WUX series User's Guide...
Page 45 ★20 sec, 1 sec, 5 sec, 10 USB transfer time-out The time-out value for Control, Bulk, and Interrupt transfers. sec, ★20 sec, 10 sec, 30sec, Device reset time-out USB mass storage device Start Unit command time-out. Copyright © Portwell 2017 WUX series User's Guide...
Page 46 Maximum time the device will take before it properly reports itself to the Host ★Auto, Manual Device Power-up delay Controller. ‘Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Copyright © Portwell 2017 WUX series User's Guide...
Page 48 Wake up day you would like the system to wake up Wake up Time(HH: mm: ss) Use [Enter], [TAB] to select field, HH: 0-23, mm: 0-59, ss: 0-59 HH: 0-23, mm: 0-59, ss: 0-59 Copyright © Portwell 2017 WUX series User's Guide...
Page 55: Security
WUX-3455/3350/4200 6.2.3 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Copyright © MEDWEL 2017 WUX series User's Guide...
Page 56 [Setup] check password when enter setup screen. [Power on] check ★Setup, Power on Password Check Mode password on every time system power on. ★No default setting Setup Administrator Password Set Setup Administrator Password Copyright © MEDWEL 2017 WUX series User's Guide...
Page 58 MSDOS ★Enabled, Disabled Full screen Logo Enables or disables Quiet Boot option and Full screen Logo. BOOT Option Priorities ★UEFI: Built-in EFI Shell, Disabled Boot Option #1 Sets the system boot order Copyright © MEDWEL 2017 WUX series User's Guide...
Page 60 Reset the system after saving the changes. (Boot option filter: UEFI only) Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © MEDWEL 2017 WUX series User's Guide...
Page 61: Troubleshooting
2, this chapter will focus on system integration issues, in terms of BIOS setting, and OS diagnostics. 7.1 Hardware Quick Installation DC Jack Power There is one method to connect the power of WUX-3455/3350/4200 which is 12V DC Jack (DC-IN). Copyright © MEDWEL 2017 WUX series User's Guide...
Page 64: Bios Setting
BIOS setup. This will force your BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 65: Faq
You can switch off your power supply then find the RTC battery on the WUX-3455/3350/4200 to remove it and wait 10 seconds to clean your password then insert it back to connector and switch on your power supply. Copyright © MEDWEL 2017 WUX series User's Guide...
Page 66 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. http://www.portwell.com.tw/support/problem_report.php We will do our best to provide a suggestion or solution for you.Thanks Copyright © MEDWEL 2017 WUX series User's Guide...
Page 67: Portwell Software Service
8 Portwell Software Service Portwell Evaluation Tool (PET) The Portwell Evaluation Tool (PET) is an API which Portwell's customers can access the GPIO, I2C, SMBus, etc under Windows and Linux OS. For more information please contact Portwell. Portwell BIOS web Tool (PBT) The Portwell BIOS web Tool (PBT) is a brand new on-line utility which innovated by Portwell.
Page 68: Industry Specifications
WUX-3455/3350/4200 9 Industry Specifications The list below provides links to industry specifications that apply to PORTWELL modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0 http://www.serialata.org/...
