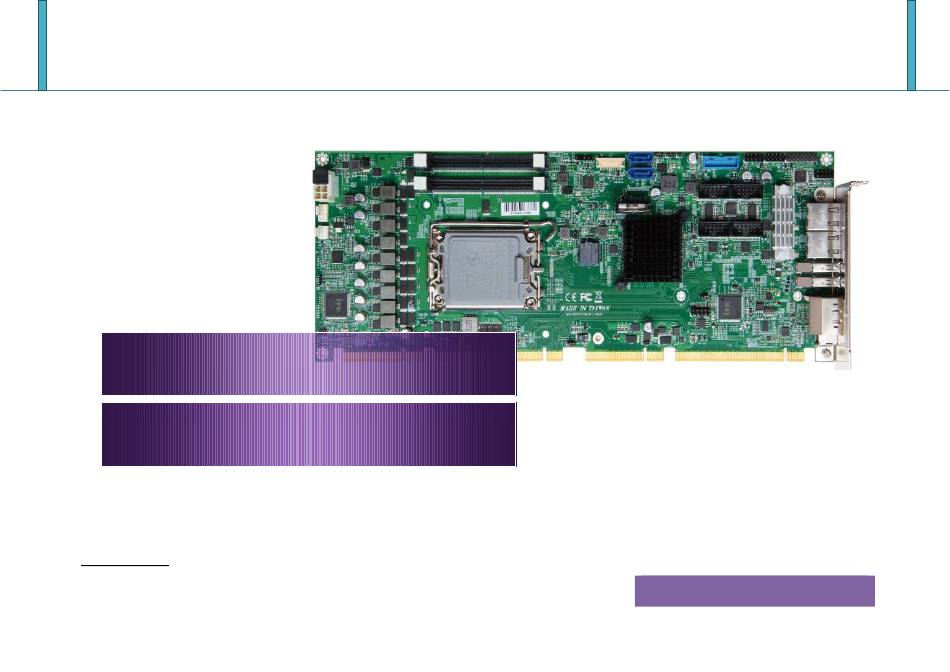

ROBO-8116G2AR

PICMG 1.3 Single Host Board

Version 1.0

Revision History

ROBO-8116G2AR User's Guide

Table of Contents

Need help?

Do you have a question about the ROBO-8116G2AR and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell ROBO-8116G2AR

Page 3: Table Of Contents
Main Memory ................................40 Installing the Single Board Computer..........................41 5.3.1 Chipset Component Driver ............................41 5.3.2 Intel® HD Graphics 730 / 770 ........................... 42 5.3.3 Intel LAN I255LM Gigabit Ethernet Controller ......................42 Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 4 6.2.5 Save & Exit .................................. 103 Troubleshooting ..................................106 Hardware Quick Installation ............................106 BIOS Setting ................................107 FAQ..................................... 108 Portwell Software Service ................................. 113 Industry Specifications ................................114 Industry Specifications ..............................114 Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7 Caution: Do not just hold any single side of the SBC; hold evenly on both sides! ⚫ Heavy processor cooler may bend the SBC when SBC being held just on one side. ⚫ The bending may cause soldering or components damaged. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 8 Caution: Suggest your S.I or vendor to use a metal bracket to hold/fix the desktop or server grade SBC to avoid the vibration damage during transportation. Heavy processor cooler may bend the SBC when systems are during transportation without any holder. Example: ⚫ 4U chassis : ➔ Use L type mental or plastic or rubber bracket to hold SBC. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 10: Introduction
ROBO-8116G2AR, a PICMG 1.3 Single Host Board (SHB) with the latest Intel 12th Generation Core processors supported Core i3/i5/i7/i9 processors. Portwell's ROBO-8116G2AR implements flexible PCI Express Gen 5 expansion by one PCI Express x16 (or two PCI Express x 8) with dedicated processor sku, which is ideal for a range of applications, such as Industrial Automation, Digital Signage, and Medical.
Page 11: Specifications
Supports dual 100/1000/2500 Mbps Ethernet port (s) via PCI Express x1 interface by Intel WGI255LM ◆ Ethernet controller Dual RJ45 connector on bracket ◆ On-board TPM 2.0 support (TPM IC: Infineon SLB9670TT2.0) ◆ Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 12: Supported Operating Systems
Board size: 338.5mm x 126.39mm, 13.33" (L) x 4.98" (W) ◆ 2.1 Supported Operating Systems The ROBO-8116G2AR supports the following operating systems.  Windows 10 IoT Enterprise 2021 LTSC  Windows Server 2022 (Only Intel® Core™i5-i9 Processors with R680E)  Ubuntu, Redhat Enterprise, WR Linux ...
Page 15: Power Consumption
2.3 Power Consumption Test Configuration CPU Type 12th Gen Intel® Core™ i5-12400 @ 2.50GHz L3:18MB SBC BIOS Portwell , Inc. ROBO-8116VG2AR BIOS Rev.:0.0.8 (05042022) Memory Innodisk 32GB DDR5 4800 SODIMM (SEC 149 K4RAH08 6VB BCQK) Graphic Card Intel(R) UHD Graphics 730 Graphic Driver Intel(R) UHD Graphics 730 , Version:30.0.101.1960...
Page 16: Environmental Specifications
4.70V/ 0.45A Full USB 2.0 port Loading Test 4.62V/ 1.0A Full USB 3.0 port Loading Test 2.4 Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 18: Hardware Configuration
ROBO-8116G2AR 3 Hardware Configuration 3.1 Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 20: Jumpers Settings
3.2 Jumpers Settings For users to customize ROBO-8116G2AR’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 21 ROBO-8116G2AR JP7: AT & ATX MODE PIN No. Signal Description AT MODE ATX MODE_Default JP8: CPU PCIEx16 & x8x2 Config PIN No. Signal Description CPU PCIE x8 x2 CPU PCIE x16_Default Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 22: Connector Settings
DDR5 SODIMM Channel B SATA3 Connector Audio Header DDR5 SODIMM Channel A ATX 8pin +12V Power Connector COM1 Connector COM2 Connector CPU FAN Connector RJ45 Connector/2.5G LAN_i225LM COM4/485/422 Connector COM3/485/422 Connector System FAN Connector Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 23 M.2 Connector/M Key Only support PCIe x4 PCIE B2B Connector J1/J2:USB2.0 header PIN No. Signal Description PIN No. Signal Description 5V Dual 5V Dual USB- USB- USB+ USB+ Ground Ground Key ( no pin ) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 24 PIN No. Signal Description PIN No. Signal Description PWR_LED(+)_5VDual Speaker(+)_+5V PWR_LED(-) J22 LAN1_ACT(+) J22 LAN1_ACT(-) Speaker(-) J21 LAN2_ACT(-) J21 LAN2_ACT(+) PWRBTN# HDD_LED(+)_+3.3V RSTBTN# HDD_LED(-) J5: SMbus Header Pin No. Signal Description SMBus_CLK Ground SMBus_DAT Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 25 J6: USB3 Box Connector PIN No. Signal Description PIN No. Signal Description 5V Dual USB3_RX4_DN USB3_RX4_DP Ground USB3_TX4_DN USB3_TX4_DP Ground USB2_DN3 USB2_DP3 Ground USB2_DP2 USB2_DN2 Ground USB3_TX3_DP USB3_TX3_DN Ground USB3_RX3_DP USB3_RX3_DN 5V Dual J7: DVI Connector Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 26 DVI_D0_SHIELD DVI_HPD DVI_D0_DP DVI_DDC_CLK DVI_D0_DN DVI_DDC_DATA J10: Audio Header PIN No. Signal Description PIN No. Signal Description Analog Ground Line-in Left Analog Ground Line-in Right Analog Ground Line-out Left Analog Ground Line-out Right Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 27 PIN No. Signal Description DCD (Data Carrier Detect) 2 RXD (Receive Data) TXD (Transmit Data) DTR (Data Terminal Ready) DSR (Data Set Ready) RTS (Request to Send) CTS (Clear to Send) RI (Ring Indicator) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 28 DTR (Data Terminal Ready) DSR (Data Set Ready) RTS (Request to Send) CTS (Clear to Send) RI (Ring Indicator) J15: CPU FAN Connector Pin No. Signal Description Ground +12V Fan Speed output Fan Out control Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 29 TXD# / 422R+ DTR# / 422R- DSR# RTS# CTS# J18: COM3/485/422 Connector PIN No. Signal Description PIN No. Signal Description DCD# / DT- RXD# / DT+ TXD# / 422R+ DTR# / 422R- DSR# RTS# CTS# Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 30 J19: SYSTEM FAN Connector Pin No. Signal Description Ground Fan speed control Fan on/off output J24: Port 80 Header PIN No. Signal Description PIN No. Signal Description LED_A +3.3V LED_B LED_E LED_C LED_F LED_D LED_G DEG_N Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 31 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 J30: PCIE B2B Connector PIN No. Signal Description PIN No. Signal Description CPU_PCIE_ P0_RX_DP CPU_PCIE_ P0_TX_DP CPU_PCIE_ P0_RX_DN CPU_PCIE_ P0_TX_DN CPU_PCIE_ P1_RX_DP CPU_PCIE_ P1_TX_DP CPU_PCIE_ P1_RX_DN CPU_PCIE_ P1_TX_DN Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 32 CPU_PCIE_ P3_TX_DP CPU_PCIE_ P3_RX_DN CPU_PCIE_ P3_TX_DN PCH_PCIE_P1_RX_DP PCH_PCIE_P1_TX_DP PCH_PCIE_P1_RX_DN PCH_PCIE_P1_TX_DN PCH_PCIE_P2_RX_DP PCH_PCIE_P2_TX_DP PCH_PCIE_P2_RX_DN PCH_PCIE_P2_TX_DN PCH_PCIE_P3_RX_DP PCH_PCIE_P2_TX_DP PCH_PCIE_P3_RX_DN PCH_PCIE_P2_TX_DN PCH_PCIE_P4_RX_DP PCH_PCIE_P3_TX_DP PCH_PCIE_P4_RX_DN PCH_PCIE_P3_TX_DN PCH_PCIE_P21_RX_DP PCH_PCIE_P21_TX_DP PCH_PCIE_P21_RX_DN PCH_PCIE_P21_TX_DN PCH_PCIE_P22_RX_DP PCH_PCIE_P22_TX_DP PCH_PCIE_P22_RX_DN PCH_PCIE_P22_TX_DN PCH_PCIE_P23_RX_DP PCH_PCIE_P23_TX_DP PCH_PCIE_P23_RX_DN PCH_PCIE_P23_TX_DN Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 33 ROBO-8116G2AR PCH_PCIE_P24_RX_DP PCH_PCIE_P24_TX_DP PCH_PCIE_P24_RX_DN PCH_PCIE_P24_TX_DN PEG_P1_CLK_DP PCH_P3_CLK_DP PEG_P1_CLK_DN PCH_P3_CLK_DN Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 34: Signal Descriptions
// Bit 1: 1: Min Mode 0: Second Mode // Bit 0: 1: Enable WDT #define WDTMIN 0x07 // WDT Timer Counter Register (Minute) #define WDTSEC 0x08 // WDT Timer Counter Register (Second) int Read_EC_SRAM(int offset) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 35 // Reset WDT pin status //-------------------------------- int WDT_Reset() int Temp; Temp = Read_EC_SRAM(WDTCFG); Write_EC_SRAM(WDTCFG,(Temp|0x40)); // Bit 6: Write 1 to clear WDT pin event //-------------------------------- // Main Function //-------------------------------- int main (int argc, char ** argv) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 36 Temp = Read_EC_SRAM(WDTCFG); Write_EC_SRAM(WDTCFG,(Temp|0x13)); // Bit4: 1: Driving WDT pin // BIT1: 1: Minute Mode // Bit0: 1: Enable WDT // Check Current WDT status while((Read_EC_SRAM(WDTCFG)&0x01) != 0) printf("WDT Counting: %d M., %d S!\n",Read_EC_SRAM(WDTMIN),Read_EC_SRAM(WDTSEC)); Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 37: Gpio Signal
#define GPDR 0x2C // GPIO Status Register, Bit7 = GPO3, Bit6 = GPO2, ..., Bit3 = GPI3, Bit2 = GPI2, ..., // 0: Low; 1: High int Read_EC_SRAM(int offset) int Temp; Temp = inb_p(EC_IOSpace+offset); Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 38 I/O Permission Error!\n"); return 1; // Get GPI status Temp = Read_EC_SRAM(GPDR); //Bit3-0: GPI3-0 status // Set GPO4 Output & High Temp = Read_EC_SRAM(GPDR); Write_EC_SRAM(GPDR,Temp|0x80); //Bit7-4: Set GPO3-0 status, 0: Low 1: High Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 40: System Resources
Intel® R680E Chipset 5.2 Main Memory ROBO-8116G2AR provides 2 x 262-pin SO-DIMM sockets which supports DDR5 ECC/non-ECC memory. The maximum memory can be up to 64GB. Memory clock and related settings can be detected by BIOS via SPD interface. Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket.
Page 41: Installing The Single Board Computer
5.3.1 Chipset Component Driver ROBO-8116G2AR is based on Intel® Q670E/R680E chipset and desktop processors including Core™i3 / i5 / i7 / i9 sku . It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 10, please install its INF before any of other Drivers are installed.
Page 42: Intel® Hd Graphics 730 / 770
5.3.2 Intel® HD Graphics 730 / 770 ROBO-8116G2AR has integrated Intel® HD Graphics 730(i3) / 770(i5/i7/i9) which supports DirectX 12、OpenGL 4.6. It is the most advanced design to gain an outstanding graphic performance. ROBO-8116G2AR supports DVI-D, HDMI, Display output on ERAR IO Bracket. This combination makes ROBO-8116G2AR an excellent performance hardware.
Page 43: Bios Setup Items
If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 44 The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 48 The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 51 IO MWAIT Redirection PMG_IO_BASE_ADDRBASE+offset to MWAIT(offset) C0/C1,C2,C3,C6,C7,C7S,C8,C9,C1 Maximum Package C State Limit Setting. CPU Default: Leaves to Factory default Package C State Limit 0,Cpu Default,★Auto value. Auto: Initializes to deepest available Package C States Limit Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 53 Control Detection of the HD-Audio device ★LPC Bus, PCIE Bus Port 80h Redirection Control where the Port 80h cycles are sent ★Disabled, Enabled Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 54 AMT BIOS Features access MEBx Setup. Note: This option does not disable Manageability Features in FW ★Disabled, Enabled ME Unconfig on RTC Clear When Disable ME will not be unconfigured on RTC Clear Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 56 20M, 24M, 28M, DVMT Pre-Allocated Internal Graphics Device. 32M/F7, 36M, 40M, 44M, 48M, 52M, 56M, 60M Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics ★256M, 128M, MAX DVMT Total Gfx Mem Device Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 58 ACPI Sleep State SUSPEND button is pressed. Suspend Disabled ★Power Off, Power On, Specify what state to go to when power is re-applied after a power failure (G3 Restore AC Power Loss state) Last State Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 59 ROBO-8116G2AR PCI/PCIE Configuration PCI, PCI-X and PCI Express Settings Feature Description Options ★1x16, 2x8 PEG Port Lane Width Set PEG port Lane width Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 61 Configuration PCIe Speed Gen x3, Gen x 4, ★Auto, Gen x1, Gen x 2, PCIe Speed (Root Port 2 / Port 3) Configuration PCIe Speed Gen x3, Gen x 4, Gen x 5 Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 63 Set the ASPM Level: Force L0s – Force all links to L0s State ★Disabled, L1, Auto ASPM Auto - BIOS auto configure / Disabled – Disables ASPM ★Auto, Gen x1, Gen x 2, PCIe Speed Configuration PCIe Speed Gen x3, Gen x 4, Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 65 Use either +/- or numeric keys to set the value. Number of times the presence of media will be checked. Use either +/- or Media detect count ★1 numeric keys to set the value. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 69 ★Disabled, Enabled Hot Plug Designates this port as Hot Pluggable ★Hard Disk Drive, Identify the SATA port is connected to Solid State Drive or Hard Disk SATA Device Type Drive Solid State Drive Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 70 ★Set Enable VMD controller (RAID mode) to [Enable]. [Enable] both Maps this Root Port under VMD. Press F10 to Save and Exit BIOS Setup. The system will reboot. Check Configuration > adds Intel (R) Rapid storage Technology. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 73 This is a workaround for OSes without XHCI hand-off support. The XHCI ownership ★Enabled , Disabled XHCI Hand-off change should be claimed by XHCI driver USB Mass Storage ★Enabled , Disabled Enable/Disable USB Mass Storage Driver Support Driver Support Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 75 TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 ★Auto, TPM 1.2, Device Select devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 TPM 2.0 devices will be enumerated. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 77 Feature Description Options ★Disabled, Enabled Watch Dog Timer Enable/Disable Watch Dog Timer Watch Dog Timer [Enabled] ★Second, Minute Timer Unit Select Timer count unit of WDT Timer value Set WDT Timer value ★20 Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 78 ROBO-8116G2AR Serial Port 1 Configuration Set Parameters of Serial Port 1 Feature Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=3F8h; IRQ=4; Device Settings Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 79 ROBO-8116G2AR Serial Port 2 Configuration Set Parameters of Serial Port 2 Feature Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=3E8h; IRQ=3; Device Settings Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 81 Serial port 3 enabled or disabled termination resistance 120ohm RS 485 HALF DUPLEX Termination Resistance Serial port 3 enabled or disabled termination resistance 120ohm ★Disabled, Enabled ★Disabled, Enabled RS-485 Auto Flow Control Enable/Disable RS-485 Auto Flow Function Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 83 Serial port 4 enabled or disabled termination resistance 120ohm RS 485 HALF DUPLEX Termination Resistance Serial port 4 enabled or disabled termination resistance 120ohm ★Disabled, Enabled ★Disabled, Enabled RS-485 Auto Flow Control Enable/Disable RS-485 Auto Flow Function Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 85 In Thermal Cruise Mode: full speed temperature. ★60 Fan1 Low End In Thermal Cruise Mode: low end of fan speed (0-100%) ★5 Smart Fan1 Control Mode [Control Mode] Smart Fan1 Speed (%) Set smart speed. 0-100% ★100 Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 86 ROBO-8116G2AR Serial Port Console Redirection Serial Port Console Redirection Feature Description Options ★Disabled, Enabled Console Redirection Console Redirection Enable or Disable Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 88 Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signal. VT-UTF8 Combo Key Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals ★Enabled, Disabled Support Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 89 With this mode enabled only text will be sent. This is to capture Terminal ★Disabled, Enabled Recorder Mode data. ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX,XTERMR6, SCO,ESCN,VT400 Putty KeyPad Select FunctionKey and KeyPad on Putty Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 91 ROBO-8116G2AR Update EC Step 1. Prepare a USB DOK. Step 2. Unzip update file to the USB DOK. Step 3. Select File System (USB DOK) Step 4. Select Update EC Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 95: Security
6.2.3 Security Feature Description Options [Setup] check password when enter setup screen. [Power on] check password on ★Setup, Power on Password Check Mode every time system power on. Administrator Password Set Administrator Password Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 97 ★Custom ,Standard Secure Boot Mode can be configured by a physically present user without full authentication ★Yes, No Restore Factory keys Force System to User Mode. Install factory default Secure Boot key databases Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 99 3.EFI PE/COFF Image(SHA256) OsRecovery Signatures Key Source: Factory, External, Mixed Allow Efi image to run in Secure Boot mode. Enroll SHA256 Hash certificate of Enroll Efi Image PE image into Authorized Signature Database (db) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 101 ★Hard Disk, NVME, CD/DCD, USB Boot Option #1 ~ #6 Sets the system boot order Device, Network, UEFI AP:UEFI: Built-in EFI Shell, Disabled UEFI Application Boot Priorities Specifies the Boot Device Priority sequence from available UEFI Application Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 104 Reset the system after saving the changes. UEFI: Built-in EFI Shell (Boot option filter: UEFI only) Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 106: Troubleshooting
Unlike IDE bus, each Serial ATA channel can only connect to one SATA hard disk at a time; The installation of Serial ATA is simpler and easier than IDE, because SATA hard disk doesn’t require setting up Master and Slave, which can reduce mistake of hardware installation. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 107: Bios Setting
BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 108: Faq
Answer: You can switch off your power supply then find the JP2 on the ROBO-8116 board to set it from 1-2 short wait 5 seconds to clean your password then set it back to 1-2 open to switch on your power supply. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 109 4. ROBO-8116 BIOS UEFI Update SOP process Step 1. Prepare a USB DOK. Step 2. Unzip update file to the USB DOK. Step 3. Plug the USB DOK into the target system and boot from UEFI Shell. (Diagrammatic sketch) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 110 Step 4. Under the UEFI shell, direct to your USB DOK, below is an example uses fs0. Then direct to the folder with updated file and type command: "update" and press enter. (Diagrammatic sketch) Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 111 (Diagrammatic sketch) Step 6. When you see the “Programming success” message, which means the BIOS update processes finished. Please cut the AC power off and wait for 10 seconds before powering on. Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 112 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. https://www.portwell.com.tw/support-center/technical-request/?lang=zh-hant We will do our best to provide a suggestion or solution for you. Thanks Copyright © Portwell 2022 ROBO-8116G2AR User's Guide...
Page 113: Portwell Software Service
ROBO-8116G2AR 8 Portwell Software Service 1. If you have customized requirements of BIOS, you can contact person of our company or branch. 2. If you have requirements of WDT、GPIO APP, you can contact our headquarter or branch, and we can render you assistance on developing.
Page 114: Industry Specifications
ROBO-8116G2AR 9 Industry Specifications 9.1 Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
