ROBO-8115VG2AR

ROBO‐8115VG2AR

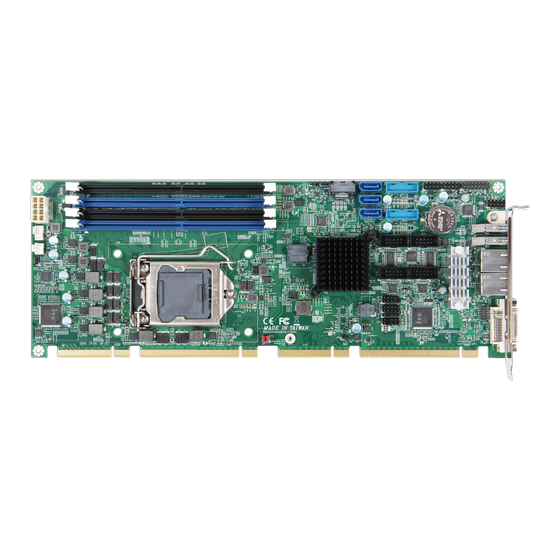

PICMG 1.3 Single Host Board

Version 1.0

ROBO-8115VG2AR User's Guide

Table of Contents

Need help?

Do you have a question about the ROBO-8115VG2AR and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell ROBO-8115VG2AR

Page 3: Table Of Contents
GPIO Signal ......................................41 5 System Resources ..........................................44 5.1 Intel® Comet lake-S PCH ..................................44 5.2 Main Memory ......................................44 5.3 Installing the Single Board Computer ..............................45 5.3.1 Chipset Component Driver ................................45 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 4 Troubleshooting ............................................. 93 7.1 Hardware Quick Installation ................................... 93 7.2 BIOS Setting ......................................94 7.3 FAQ ........................................95 8 Portwell Software Service ........................................97 9 Industry Specifications ........................................... 98 9.1 Industry Specifications ................................... 98 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7 Caution: Do not just hold any single side of the SBC; hold evenly on both sides!  Heavy processor cooler may bend the SBC when SBC being held just on one side.  The bending may cause soldering or components damaged. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 8 Caution: Suggest your S.I or vendor to use a metal bracket to hold/fix the desktop or server grade SBC to avoid the vibration damage during transportation. Heavy processor cooler may bend the SBC when systems are during transportation without any holder. Example:  4U chassis :  Use L type mental or plastic or rubber bracket to hold SBC. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 10: Introduction
DirectX® 12. It supports triple display function via DVI-I (VGA and DVI-D) and HDMI up to 4Kx2K. Rich I/O functions are also provided by ROBO-8115VG2AR single host board, which is 6x USB 3.2(Gen2), 8x USB 2.0 (4 ports via backplane), 5x SATA III ports (dual ports via backplane), 2x RS232 ports, 2x smart COM ports which select RS232/422/485 mode by bios adjustment, and dual Intel GbE LAN ports.
Page 11: Specifications
Supports dual 10/100/1000 Mbps Ethernet port (s) via PCI Express x1 interface by Intel WGI219LM and ◆ Ethernet WGI210AT controller Dual RJ45 connector on bracket ◆ On-board TPM 2.0 support (TPM IC: Infineon SLB9665TT2.0) ◆ High Drive GPIO One pin-header for GPIO (8bit in &8bit out) ◆ Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 12: Supported Operating Systems
Board size: 338.5mm x 126.39mm, 13.33" (L) x 4.98" (W) ◆ Supported Operating Systems The ROBO-8115VG2AR supports the following operating systems.  Windows* 10 IOT Enterprise RS51(64-bit)  Ubuntu, SuSe, Redhat Enterprise 1,2 (Kernel 4.14)  Yocto Project* BSP tool-based embedded Linux distribution1 (64-bit) ...
Page 15: Power Consumption
USB Composite Device，Version:10.0.19041.1 USB 2.0 Driver Intel(R)USB 3.1 eXtensible Host Controller-1.10(Microsoft)，Version:10.0.19041.423 USB 3.0 Driver EC Version 0.1(11/02/2020) Hard Drive WDC WD1004FBYZ-01YCBB2 Power Supply GPS-500BBC REV:03F Carrier Board PBPE-12P4 Boot Mode Select UEFI MODE Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 16: Environmental Specifications
System+ Device +5V 1.70 A 2.27 A 2.42 A CPU +Device +12V 3.15 A 8.12 A 8.14 A Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 18: Hardware Configuration
ROBO-8115VG2AR 3 Hardware Configuration Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 20: Jumpers Settings
Jumpers Settings For users to customize ROBO-8115VG2AR’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 21 ROBO-8115VG2AR JP1: CMOS Setup(Pitch 2.0mm) PIN No. Description ★Normal Clear CMOS JP6: AT/ATX Mode Selection(Pitch 2.0mm) PIN No. Description 1-2(Short) AT Mode 2-3(Short) ★ATX Mode Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 22 ROBO-8115VG2AR JP7: Configure PCIEX16,X8(Pitch 2.54mm): (Reserve) PIN No. Description 1‐2 3‐4 Configuration Short Short 1x8,2x4 Open Short Reserve Close Open Open Open ★1x16 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 23: Connector Settings
DDR4 Long DIMM Channel B1 Pitch 2.54mm J5 USB2.0 Connector Pitch 2.54mm J6 USB2.0 Connector. J7 Front panel Connector. J8 USB2.0/3.0 connector J9 SATA Connector. J10 HDMI Connector. J11 SATA Connector. J12 Audio Pin Header J13 CPU FAN Connector. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 24 J22 RJ45 Connector for I210. J23 COM4 Pin Header. J24 COM3 Pin Header. J25 RJ45 Connector for I219. J26 GPIO Pin Header. J27 SM Bus Pin Header. J28 PS2 KB/MS Pin Header. J29 DVI‐I(DSUB). J31 M.2 Connector. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 25 USB2B_DP 7 GND 8 GND 9 NC(Key) 10 NC J7: Front Panel Connector(Pitch 2.54mm) PIN No. Description PIN No. Description 5VSB 2 VCC SUS_LED Signal NC VCC3_LAN Power NC I219 LINK/ACT BUZZER Signal I210 LED Signal Ground VCC3_LAN Power Power Button Signal Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 26: J8/J15: Usb2.0/3.0 Connector(Pitch 2.0Mm)
USB3.0_TX_N 16 Ground 6 USB3.0_TX_P 15 USB3.0_TX_N 7 Ground 14 USB3.0_TX_P 8 USB2.0_N 13 Ground 9 USB2.0_P 12 USB2.0_N 10 Ground 11 USB2.0_P Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 28 HDMI_D1_N 7 HDMI_D2_P 8 GND 9 HDMI_D2_N 10 HDMI_D3_P 11 GND 12 HDMI_D3_N 13 N/C 14 N/C 15 HDMI_DDC_CLK 16 HDMI_DDC_DATA 17 GND 18 5V_HDMI 19 HDMI_HPD Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 29 3 LINE_IN_L 4 Ground 5 LINE_IN_R 6 Ground 7 AUDIO_OUT_L 8 Ground 9 AUDIO_OUT_R 10 Ground J13:CPU FAN Connector(Pitch 2.54mm) PIN No. DESCRIPTION GND +12V FAN_IN FAN_OUT Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 31: J19/J20/J23/J24: Com1/Com2/Com3/Com4 Pin Header(Pitch 2.54Mm)
Description PIN No. Description 1 DCD# 2 RXD# 3 TXD# 4 DTR# 5 Ground 6 DSR# 7 RTS# 8 CTS# 9 RI# 10 NC Note:COM3/COM4 with BIOS set for RS232/RS422/RS485 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 33 Description PIN No. Description 1 Mouse Data 2 Keyboard Data 3 NC 4 NC 5 Ground 6 Ground 7 5V_Dual 8 5V_Dual 9 Mouse Clock 10 Keyboard Clock Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 37: Signal Descriptions
// Bit 1: 1: Min Mode 0: Second Mode // Bit 0: 1: Enable WDT #define WDTMIN 0x07 // WDT Timer Counter Register (Minute) #define WDTSEC 0x08 // WDT Timer Counter Register (Second) Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 38 Temp; void Write_EC_SRAM(int offset, int value) outb_p(value,EC_IOSpace+offset); //-------------------------------- // Reset WDT pin status //-------------------------------- int WDT_Reset() int Temp; Temp = Read_EC_SRAM(WDTCFG); Write_EC_SRAM(WDTCFG,(Temp|0x40)); // Bit 6: Write 1 to clear WDT pin event Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 39 // 5 Sec Write_EC_SRAM(WDTMIN,1); // 1 min // Enable WDT 5sec and WDT pin mode Temp = Read_EC_SRAM(WDTCFG); Write_EC_SRAM(WDTCFG,(Temp|0x13)); // Bit4: 1: Driving WDT pin // BIT1: 1: Minute Mode // Bit0: 1: Enable WDT Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 40 ROBO-8115VG2AR // Check Current WDT status while((Read_EC_SRAM(WDTCFG)&0x01) != 0) printf("WDT Counting: %d M., %d S!\n",Read_EC_SRAM(WDTMIN),Read_EC_SRAM(WDTSEC)); Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 41: Gpio Signal
#define GPDR 0x2C // GPIO Status Register, Bit7 = GPO3, Bit6 = GPO2, ..., Bit3 = GPI3, Bit2 = GPI2, ..., // 0: Low; 1: High int Read_EC_SRAM(int offset) int Temp; Temp = inb_p(EC_IOSpace+offset); return Temp; Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 42 I/O Permission Error!\n"); return 1; // Get GPI status Temp = Read_EC_SRAM(GPDR); //Bit3-0: GPI3-0 status // Set GPO4 Output & High Temp = Read_EC_SRAM(GPDR); Write_EC_SRAM(GPDR,Temp|0x80); //Bit7-4: Set GPO3-0 status, 0: Low 1: High return 0; Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 44: System Resources
Intel® W480E Chipset Main Memory ROBO-8115VG2AR provides 4 x 288-pin LONG-DIMM sockets which supports DDR4 ECC/non-ECC memory. The maximum memory can be up to 128GB. Memory clock and related settings can be detected by BIOS via SPD interface. Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket.
Page 45: Installing The Single Board Computer
Chipset Component Driver ROBO-8115VG2AR is based on Intel® Q470E/W480E chipset and desktop/workstation processors including Xeon W series /Core™i9 / i7 / i5 / i3 sku . It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed.
Page 46: Intel® Hd Graphics 630
Intel® HD Graphics 630 ROBO-8115VG2AR has integrated Intel® HD Graphics 630 which supports DirectX 12、OpenCL 2.0、OpenGL 4.5. It is the most advanced design to gain an outstanding graphic performance. ROBO-8115VG2AR supports VGA+DVI-D by DVI-I connector on bracket, and on board HDMI display output. This combination makes ROBO-8115VG2AR an excellent performance hardware.
Page 47: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 51 The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 54 IO MWAIT Redirection PMG_IO_BASE_ADDRBASE+offset to MWAIT(offset) C0/C1,C2,C3,C6,C7,C7S,C8,C Maximum Package C State Limit Setting. Cpu Default: Leaves to Factory default value. Package C State Limit 9,C10,Cpu Default,★Auto Auto: Initializes to deepest available Package C States Limit Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 56 Port 80h Redirection Control where the Port 80h cycles are sent ★LPC Bus, PCIE Bus ★Disabled, Enabled Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Disabled, ★Enabled ECC Support Enable/disable DDR ECC Support Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 57 AMT BIOS Features ★Disabled, Enabled access MEBx Setup. Note: This option does not disable Manageability Features in FW ME Unconfig on RTC Clear When Disable ME will not be unconfigured on RTC Clear ★Disabled, Enabled Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 59 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the DVMT Pre-Allocated 16M,20M,24M,28M,32M/F7,36M, Internal Graphics Device. 40M,44M,48M,52M,56M,60M Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics ★256M, 128M, MAX DVMT Total Gfx Mem Device Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 61 Power On, state) Last State Enable or disable System wake on alarm event. When enabled, System will ★Disabled, Enabled Wake System from S5 wake on the hr::min::sec Specified/programmed by the Tools from OS Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 62 ROBO-8115VG2AR PCI/PCIE Configuration PCI, PCI-X and PCI Express Settings Feature Description Options PEG Port Lane Width Set PEG port Lane width ★1x16, 2x8,1x8. 2x4 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 64 Max Link Speed Confugure PEG 0:1:0 / 0:1:1 / 0:1:2 Max Speed Gen2, Gen3 ★AUTO, Force x1, Max Link Width Force PEG link to retrain to x1/2/4/8 Force x2, Force x4, Force x8, Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 66 Force L0s – Force all links to L0s State ★Disabled, L0s, ASPM 1/6/7/21 L1, L0sL1, Auto AUTO-BIOS auto configure DISABLE – Disables ASPM ★Auto, Gen1, Gen2, Gen3 PCIe Speed Select PCI Express port speed Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 68 Disabled, ★Enabled PXE boot wait time Wait time in seconds to press ESC key to abort the PXE boot ★0 Media detect count Number of times the presence of media will be checked ★1 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 72 Hot Plug Designates this port as Hot Pluggable ★Disabled, Enabled ★Hard Disk Drive, SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Solid State Drive Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 74 This is a workaround for OSes without XHCI hand-off support. The XHCI ownership ★Enabled , Disabled XHCI Hand-off change should be claimed by XHCI driver USB Mass Storage Driver ★Enabled , Disabled Enable/Disable USB Mass Storage Driver Support Support Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 75 Trusted Computing Setting Feature Description Options Enables or Disables BIOS support for security device. O.S. will not show Security ★Disabled, Enabled Security Device Support Device. TCG EFI protocol and INT1A Interface will not be available. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 76 System Super IO Chip Parameters. Feature Description Options ★Disabled, Enabled Watch Dog Timer Enable/Disable Watch Dog Timer ★Second, Minute Timer Unit Select Timer count unit of WDT Timer value Set WDT Timer value ★20 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 77 Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=3F8h; IRQ=4, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 78 Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=2F8h; IRQ=3, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 80 RS-422 FULL DUPLEX ★Disabled, Enabled RS-485 Auto Flow Control Enable/Disable RS-485 Auto Flow Function ★IO=3E8h; IRQ=11, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 82 RS-422 FULL DUPLEX ★Disabled, Enabled RS-485 Auto Flow Control Enable/Disable RS-485 Auto Flow Function ★IO=2E8h; IRQ=10, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 84 In Thermal Cruise Mode: Full speed Temperature. In Fan Fan1/2 Full Target Temp ★60 Speed Cruise Mode: Low Byte of Target Speed. In Thermal Cruise Mode\ Smart Fan III Mode: Low End of Fan1/2 Low End ★5 Fan Speed (0-100%) Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 85 ROBO-8115VG2AR Serial Port Console Redirection Serial Port Console Redirection Feature Description Options ★Disabled, Enabled Console Redirection Console Redirection Enable or Disable Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 87 With this mode enabled only text will be sent. This is to capture Terminal Recorder Mode ★Disabled, Enabled data. ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX,XTERMR6, SCO,ESCN,VT400 Putty KeyPad Select FunctionKey and KeyPad on Putty Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 88: Security
6.2.3 Security Feature Description Options [Setup] check password when enter setup screen. [Power on] check password on ★Setup, Power on Password Check Mode every time system power on. Administrator Password Set Administrator Password Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 90 ★UEFI, Legacy Boot mode select Select boot mode LEGACY/UEFI ★UEFI, Legacy Boot Option #1~6 Sets the system boot order UEFI Application Boot Priorities Specifies the Boot Device Priority sequence from available UEFI Application Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 92 Reset the system after saving the changes. UEFI: Built-in EFI Shell (Boot option filter: UEFI only) Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 93: Troubleshooting
Unlike other Single board computer, ROBO-8115 supports ATX PSU only. Therefore, there is no other setting that needs to be set up. However, there are only two connectors that must be connected— J18 (ATX 8 Pin Connector (For CPU Power)) on the ROBO-8115 board & 20+4 pins ATX Power Connector on the backplane. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 94: Bios Setting
To make sure that you have a successful start with ROBO-8115, it is recommended, when going with the boot-up sequence, to hit “delete” or ”ESC” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well. Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 95: Faq
BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 96 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. https://www.portwell.com.tw/support-center/technical-request/?lang=zh-hant We will do our best to provide a suggestion or solution for you. Thanks Copyright © Portwell 2021 ROBO-8115VG2AR User's Guide...
Page 97: Portwell Software Service
ROBO-8115VG2AR 8 Portwell Software Service 1. If you have customized requirements of BIOS, you can contact person of our company or branch. 2. If you have requirements of WDT、GPIO APP, you can contact our headquarter or branch, and we can render you assistance on developing.
Page 98: Industry Specifications
ROBO-8115VG2AR 9 Industry Specifications Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
