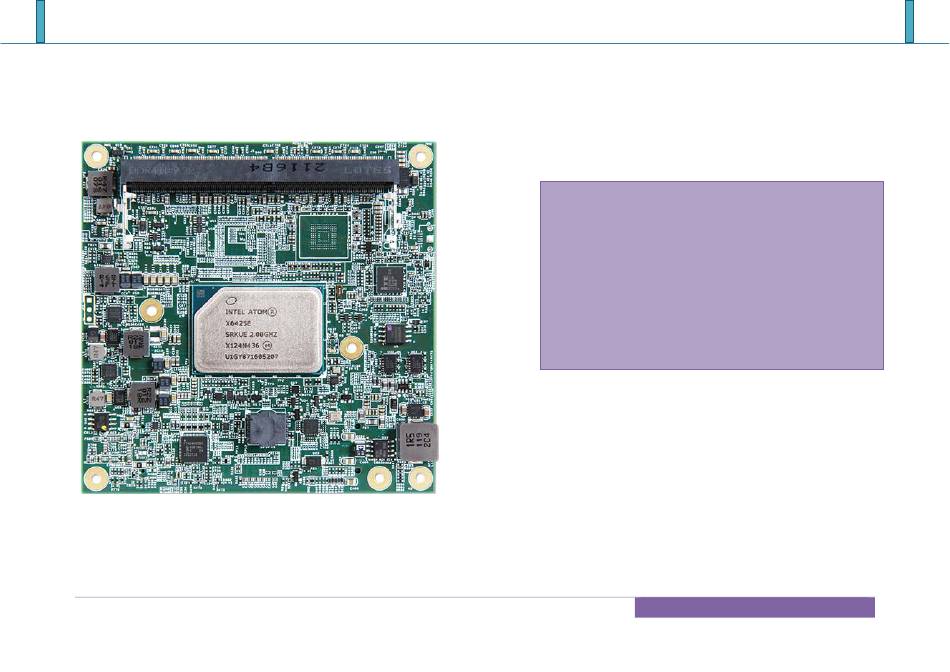

COM Express™ PCOM‐B645VGL R0 User Manual

COM Express™

PCOM‐B645VGL

UserManual

PCOM-B645VGL

Revision 1.0

Table of Contents

Need help?

Do you have a question about the COM Express PCOM-B645VGL and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell COM Express PCOM-B645VGL

Page 3: Table Of Contents
5. Pinout Tables ........................................29 6. BIOS Setup Items ......................................35 6.1. Introduction ....................................... 35 6.2. BIOS Setup ...................................... 35 6.2.1 Main ......................................37 6.2.2 Configuration .................................... 40 6.2.4 Security ..................................... 71 6.2.5 Boot ......................................72 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 4 COM Express™ PCOM‐B645VGL R0 User Manual 6.2.6 Save & Exit ....................................74 7. BIOS Update ........................................75 8. PORTWELL Software Tool .................................... 82 9. Industry Specifications ....................................83 9.1. Industry Specifications ..................................83 ...
Page 5 Table 11 PCOM‐B645VGL Pin‐out 1‐6 ........................................ 2 9 Table 12 PCOM‐B645VGL Pin‐out 2‐6 ........................................ 3 0 Table 13 PCOM‐B645VGL Pin‐out 3‐6 ........................................ 3 1 Table 14 PCOM‐B645VGL Pin‐out 4‐6 ........................................ 3 2 Table 15 PCOM‐B645VGL Pin‐out 5‐6 ........................................ 3 3 Table 16 PCOM‐B645VGL Pin‐out 6‐6 ........................................ 3 4 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 6 Figure 6 Optional function rework SOP : eDP 1‐3 .................................... 2 4 Figure 7 Optional function rework SOP : eDP 1‐4 .................................... 2 4 Figure 8 Heat sink / cooler mechanical dimensions .................................... 2 5 Figure 9 H/S Assembly guide .......................................... 2 6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 7 PORTWELL products, regardless of the legal theory on which the claim is based, and even if PORTWELL has been advised of the possibility of such damages. The information contained within this user manual, including but not limited to any other product specification, PORTWELL reserves its right to modify them at any time without notice. Trademarks All product names, logos, brands,trademarks and registered trademarks in this user’s manual or the PORTWELL website are the property of their respective owners. Certification PORTWELL is certified to ISO 9001:2008 standard. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 8 COM Express™ PCOM‐B645VGL R0 User Manual Technical Support PORTWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at http://www.PORTWELL.com.tw/support/ for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website, you can contact our technical support department by email at tsd@mail.PORTWELL.com.twfor further assistance. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 9: Introduction
PCOM‐B645VGL is designed tofulfillPICMG Open Modular Computing Standards COM Express™ Specification Rev3.0 Type 6 with Basic form factor (95 x 95 mm). PCOM‐B645VGL, a brand‐new COM‐Express Type 6 compactmodule launched by Portwell Inc. PCOM‐B645VGLisdesignedbased on Intel® Atom®Elkhart Lake series processors, and itplans to satisfy most of entryapplications.PCOM‐B645 provides multiple interfaces like6xPCIe 3.0 x1, 2x SATA 3.0 ports, and 4x USB3.2 Gen2ports.With2.5GbE PHY, it provides option of Time Sensitive Networking(TSN) and Time Coordinated ...
Page 11: Specifications
 BIOS AMI Aptio5 UEFI BIOS  Memory 2x SODIMM DDR4  Dual channel  Up to 32GB 3200MT/s  Security TPM 2.0 I/O Interface  Embedded Controller IT5121 Embedded Controller, Voltage, Fan and Temperature  Serial IO 8 GPIO (default 4xGPI/ 4x GPO)  I2C (SoC& Embedded Controller)  2x Serial Ports (TX and RX)  SMBus (EC and SoC)  Processor PCI Express 6x PCIe 3.0 x 1Gen3 (8.0 GT/s); (PCIE 0/1/2/3) can be configured to x1,x2,x4  USB 8x USB2.0 (480 Mbps)  Up to 4x USB3.1Gen2 (10Gbps)(2x shared with 2x PCIe x1) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 12: Table 1Pcom-B645Vgl Specification
 DP:4096x 2160 @ 60Hz  HDMI: 4096x 2160 @ 60Hz Mechanical & Environment  Dimension COM Express™ standard pin out Type 6 Rev. 3.0  95 x 95mm / 3.74” x 3.74” (Compact COM Express)  Hardware Monitors Voltage, Fan and Temperature  Power DC IN +12VDC (Nominal)  Power Management ACPI 5.0  Environment Operating Temperature ‐40°C ~ +85°C  Storage Temperature‐40°C~ +85°C  Relative Humidity5%~95%  MTBF TBD Table 1PCOM‐B645VGL Specification Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 13: Pcom-B645Vglprocessorlist
4.5 4.5 4.5 4.5 4.5 Intel® Quick Sync Video Yes Yes Yes Yes # of Displays Supported 3 3 3 3 3 4K Support Yes Yes Yes Yes Yes Max Resolution (HDMI 1.4b/2.0b) 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz Max Resolution (DP 1.4) 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz 4096x2160 @ 60Hz Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 14: Table 2Pcom-B645Vgl Processor List
Max # of PCI Express Lanes 6 6 6 6 6 USB Revision 2.0/3.1 2.0/3.1 2.0/3.1 2.0/3.1 2.0/3.1 # of USB Ports 8 8 8 8 8 Total # of SATA Ports 2 2 2 2 2 TJUNCTION 105°C 105°C 105°C 105°C 110°C Table 2PCOM‐B645VGL Processor list Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 15: Supported Operating Systems
COM Express™ PCOM‐B645VGL R0 User Manual 3.2. Supported Operating Systems The PCOM‐B645VGL supports the following operating systems. Category Operating System Support Microsoft Windows 10 IoT Enterprise(64bit) LTSC 2019, 2021 Kernel version 5.4 Linux Yocto YP 3.0 Zeus Table 3Supported Operating Systems Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 16: Windows Os Driver
3.3. Windows OS driver Please download the drivers from Portwell download center website http://www.portwell.tw/support/download_center.php Item Driver version Windows 10 OS Chipset 10.1.18768.8273‐public‐mup Chipset‐10.1.18768.8273‐public‐mup Graphic 100.9565 Graphic Driver Production Version MR1_100.9565 ME_SW 15.40.15.2416 Intel CSE 15.40.15.2416 supporting Elkhart lake MR1 LAN 656543 Intel_Gbe‐210620_20210820_646543 Table 4Windows OS driver list 3.4. Electrical Characteristics Input voltage +12VDC (Nominal) / +5VSB RTC Battery +3.0V Power on mode AT / ATX Table 5Electrical Characteristics Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 18: Circuit Protection Design
COM Express™ PCOM‐B645VGL R0 User Manual 3.6. Circuit protection design PCOM‐B645VGL Type 6 is also compatible with COM Express Type 6 carrier, Schottky diode protection has been design on the COM Express module for Serial Port, FAN(PWMOUT & TACHIN), LID and SLEEP. Considerations must be taken while designing carrier board. Figure 3Circuit protection design Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 19: Mechanical Dimensions
™ COM Express™ ...
Page 20: Pcom-B645Vgl And Cooler Weight
3.8. PCOM-B645VGL and Cooler weight PCOM‐B645VGL TBC +/‐ 2% Cooler (H/S+FAN) TBC+/‐ 2% Heatsink TBC +/‐ 2% Table 6Net weight 3.9. Environmental Specifications Storage Temperature ‐40 ~ 85°C Operation Temperature ‐40~85°C Storage Humidity 0%~95% Operation Humidity 0%~95% Table 7Environmental Specifications 3.10. Optional function rework SOP 1. Optional function rework SOP :eDP PCOM‐B645VGL Default display is LVDS, rework following SOP for eDP display interface.Note. eDP function, carrier must place ac cap. Top view / Bot view Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 22 COM Express™ PCOM‐B645VGL R0 User Manual  Step 1 Remove C1,C2,C3,C4 Add R1,R2,R3,R8, (0ohm 0201) Solder the R522 component to R523 Solder the R514 component to R515 Solder the R506 component to R507 Solder the R526 component to R528 Figure 5 Optional function rework SOP : eDP 1‐1 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 23: Figure 5 Optional Function Rework Sop : Edp 1-2
COM Express™ PCOM‐B645VGL R0 User Manual  Step 2 Solder the R530 component to R531 Solder the R503 component to R504 Solder the R21 component to R22 Rework position Figure 5 Optional function rework SOP : eDP 1‐2 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 24: Figure 6Optional Function Rework Sop : Edp 1-3
COM Express™ PCOM‐B645VGL R0 User Manual  Step 3 Remove C5, C6 Add R833, R834 (0ohm 0201) Rework position  Figure 6Optional function rework SOP : eDP 1‐3  Step 4 Solder the R492 component to R494 Rework position Figure 7Optional function rework SOP : eDP 1‐4 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 25: Heatsink / Cooler Dimensions
COM Express™ PCOM‐B645VGL R0 User Manual 4. Heatsink / Cooler dimensions Figure 8Heat sink / cooler mechanical dimensions Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 27: Packaging
COM Express™ PCOM‐B645VGL R0 User Manual 4.2. Packaging Package Appearance Size Anti‐Static bubble bag 180x135mm White Paper Box 210x151x40mm Shipping Box (10 pcs White paper box) 595x300x195mm Table 8Packaging Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 28: Ordering Guide
Heat Sink X Series B830B380 Available Heat Spreader J/N Series B830B460 Available Heat Spreader X Series B830B470 Available PCOM-C60B AB1-3G22Z Contact us Table 10Ordering Guide ‐ Accessory Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 29: Pinout Tables
USB_SSTX2‐ 10 GBE0_MDI1+ LPC_CLK USB_SSRX2+ USB_SSTX2+ 11 GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) 12 GBE0_MDI0‐ PWRBTN# USB_SSRX3‐ USB_SSTX3‐ 13 GBE0_MDI0+ SMB_CK USB_SSRX3+ USB_SSTX3+ 14 N/A SMB_DAT GND GND 15 SUS_S3# SMB_ALERT# N/A DDI1_CTRLCLK_AUX+ Table 11PCOM‐B645VGL Pin‐out 1‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 30: Table 12Pcom-B645Vgl Pin-Out 2-6
31 GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) 32 HDA_BITCLK SPKR DDI2_CTRLCLK_AUX+ DDI1_PAIR2+ 33 HDA_SDOUT I2C_CK DDI2_CTRLDATA_AUX‐ DDI1_PAIR2‐ 34 BIOS_DIS0# I2C_DAT DDI2_DDC_AUX_SEL DDI1_DDC_AUX_SEL 35 THRMTRIP# THRM# RSVD19 RSVD19 36 USB6‐ USB7‐ N/A DDI1_PAIR3+ 37 USB6+ USB7+ DDI1_PAIR3‐ Table 12PCOM‐B645VGL Pin‐out 2‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 31: Table 13Pcom-B645Vgl Pin-Out 3-6
53 PCIE_TX5‐ PCIE_RX5‐ N/A N/A 54 GPI0 GPO1 TYPE0# N/A 55 PCIE_TX4+ PCIE_RX4+ N/A N/A 56 PCIE_TX4‐ PCIE_RX4‐ N/A N/A 57 GND GPO2 TYPE1# TYPE2# 58 PCIE_TX3+ PCIE_RX3+ N/A N/A 59 PCIE_TX3‐ PCIE_RX3‐ N/A N/A Table 13PCOM‐B645VGL Pin‐out 3‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 32: Table 14Pcom-B645Vgl Pin-Out 4-6
75 LVDS_A2+ LVDS_B2+ N/A N/A 76 LVDS_A2‐ LVDS_B2‐ GND GND 77 LVDS_VDD_EN LVDS_B3+ RSVD19 RSVD19 78 LVDS_A3+ LVDS_B3‐ N/A N/A 79 LVDS_A3‐ LVDS_BKLT_EN N/A N/A 80 GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) 81 LVDS_A_CK+ LVDS_B_CK+ N/A N/A Table 14PCOM‐B645VGL Pin‐out 4‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 33: Table 15Pcom-B645Vgl Pin-Out 5-6
95 SPI_MOSI VGA_I2C_CK N/A N/A 96 TPM_PP VGA_I2C_DAT GND GND 97 TYPE10# SPI_CS# RSVD19 RSVD19 98 SER0_TX RSVD19 N/A N/A 99 SER0_RX RSVD19 N/A N/A 100 GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) 101 SER1_TX FAN_PWNOUT N/A N/A Table 15PCOM‐B645VGL Pin‐out 5‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 34: Table 16Pcom-B645Vgl Pin-Out 6-6
VCC_12V 105 VCC_12V VCC_12V VCC_12V VCC_12V 106 VCC_12V VCC_12V VCC_12V VCC_12V 107 VCC_12V VCC_12V VCC_12V VCC_12V 108 VCC_12V VCC_12V VCC_12V VCC_12V 109 VCC_12V VCC_12V VCC_12V VCC_12V 110 GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) Table 16PCOM‐B645VGL Pin‐out 6‐6 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 35: Bios Setup Items
COM Express™ PCOM‐B645VGL R0 User Manual 6. BIOS Setup Items 6.1. Introduction The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings. 6.2. BIOS Setup Power on the computer and the system will start POST (Power on Self Test) process. When the message below appears on the screen, press <Delete> or <ESC> key will enter BIOS setup screen. Press <ESC > or <Delete> to enter SETUP If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously. Press <F1> to Run General Help or Resume The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 39 COM Express™ PCOM‐B645VGL R0 User Manual Feature Description Options Detailed System Information The date format is <Day>, <Month><Date><Year>. Use [＋] or [－] to configure System Date system Date. The time format is <Hour><Minute><Second>. Use [＋] or [－] to configure System Time system Time. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 42 Description Options ★Disabled, Enabled CPU Flex Ratio Override Enable/Disable CPU Flex Ratio Programming This value must be between Max Efficiency Ratio (LFM) and Maximum ★20 CPU Flex Ratio Settings non‐turbo ratio set by Hardware (HFM). Intel (VMX) Virtualization When enabled, a VMM can utilize the additional hardware capabilities ★Enabled, Disabled Technology provided by Vanderpool Technology. ★All, 1, 2, 3 Active Processor Cores Number of cores enable in each processor package. ★Max Non‐Turbo Select the performance state that the BIOS will set starting from reset Boot performance mode Performance, Max Battery, vector Turbo Performance, ★Enabled, Disabled Intel® SpeedStep™ Allows more than two frequency ranges to be supported. Enable/Disable Intel® Speed Shift Technology support. Enabling will expose ★Enabled, Disabled Intel® Speed Shift Technology the CPPC v2 interface to allow for hardware controlled P‐states Enable/Disable processor Turbo Mode (requires EMTTM enabled too.) ★Enabled, Disabled Turbo Mode AUTO means enabled. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 43 COM Express™ PCOM‐B645VGL R0 User Manual Chipset Configuration Configuration Chipset feature Feature Description Options ★Enabled ,Disabled VT‐d VT‐d Capability Above 4GB MMIO BIOS Enable/Disable above 4GB MemoryMappedIO BIOS assignment ★Enabled ,Disabled assignment This is enabled automatically when Aperture Size is set to 2048MB Control Detection of the HD‐Audio device. ★Enabled ,Disabled HD Audio Disabled = HAD will be unconditionally disabled Enabled = HAD will be unconditionally enabled Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 44 COM Express™ PCOM‐B645VGL R0 User Manual Graphics Configuration Configuration Graphics Settings Feature Description Options Select which of IGFX/PEG/PCI Graphics device should be Primary ★Auto, IGFX, PEG, PCI Primary Display Display Or select HG for Hybrid Gfx. ★Auto, Disabled, Enabled Internal Graphics Keep IGFX enabled based on the setup options. eDP‐to‐LVDS configuration eDP‐to‐LVDS(PTN3460) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 45 COM Express™ PCOM‐B645VGL R0 User Manual eDP‐to‐LVDS configuration Feature Description Options ★1024x768,640x480,800x480,800x600,1280x800 Panel Profile Select Panel Profile for current use. 1280x1024,1366x768,1440x900,1920x1080,OEM Profile ★VESA and JEIDA 18 bpp, VESA 24 bpp, JEIDA 24 bpp Color depth and data format Select Color depth and data format ★Single Channel, Dual Channel Channel Mode Select LVDS Channel Mode ★Even Bus, Odd Bus, Both Buses Clock Mode Select clock output for LVDS. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 47 H Blank Pixels H Blank Pixels (Pixel) ★16 H Offset Pixels H Offset Pixels (Pixel) ★96 H Width Pixels H Width Pixels (Pixel) ★480 V Active Lines V Active Lines (Line) ★45 V Blank Lines V Blank Lines (Line) ★10 V Offset Lines V Offset Lines (Line) ★2 V Width Lines V Width Lines (Line) Flag: ★Postive, Non‐Postive H&V sync Signal Polarity 0x1E Signal Polarity is Postive 0x18 Signal Polarity is Non‐Postive Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 48 COM Express™ PCOM‐B645VGL R0 User Manual Power Control Configuration System Power Control Configuration Parameters Feature Description Options Enables or Disables System ability to Hibernate (OS/S4 Sleep Enable Hibernation Disabled, ★Enabled State). This option may be not effective with some OS. Select the highest ACPI sleep state the system will enter when ACPI Sleep State Suspend Disabled ,★S3 (Suspend to RAM) the SUSPEND button is pressed. Specify what state to go to when power is re‐applied after a ★Power On ,Power Off ,Last State Restore AC Power Loss power failure (G3 state) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 49 COM Express™ PCOM‐B645VGL R0 User Manual PCI/PCIE Configuration PCI, PCI Express Settings Feature Description Options ★Disabled, Enabled Compliance Test Mode Enable when using Compliance Load Board COMe PCIe Port 0~5 PCI Express Root Port Settings. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 51 ★Enabled , Disabled ACS Enable/Disable Access Control Services Extended Capability ★Disabled, Enabled PTM Enable/Disable Precision Time Measurement ★Enabled , Disabled DPC Enable/Disable Downstream Port Containment ★Enabled , Disabled Enable/Disable Rootport extensions for Downstream Port EDPC Containment ★Disabled, Enabled URR PCI Express Unsupported Request Reporting Enable/Disable. ★Disabled, Enabled FER PCI Express Device Fatal Error Reporting Enable/Disable ★Disabled, Enabled NFER PCI Express Device Non‐Fatal Error Reporting Enable/Disable ★Disabled, Enabled CER PCI Express Device Correctable Error Reporting Enable/Disable. ★Disabled, Enabled SEFE Root PCI Express System Error on Fatal Error Enable/Disable. Root PCI Express System Error on Non‐Fatal Error Enable/Disable. ★Disabled, Enabled SENFE ★Disabled, Enabled Root PCI Express System Error on Correctable Error SECE Enable/Disable. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 52 Reserved I/O (4K/8K/12K/16K/20K) Range for this Root Bridge. ★Enabled , Disabled LTR PCH PCIE Latency Reporting Enable/Disable ★Auto, Manual, Disabled Snoop Latency Override for PCH PCIE. Disabled: Disable override. Snoop Latency Override Manual: Manually enter override values. Auto(default): Maintain default BIOS flow. ★60 Snoop Latency Value LTR Snoop Latency value of PCH PCIE ★1024ns, 1ns, 32ns, 32768ns, Snoop Latency Multiplier LTR Snoop Latency Multiplier of PCH PCIE 1048576ns, 33554432ns ★Auto, Manual, Disabled Non Snoop Latency Override for PCH PCIE. Disabled: Disable override. Non Snoop Latency Override Manual: Manually enter override values. Auto(default): Maintain default BIOS flow. ★60 Non Snoop Latency Value LTR Non Snoop Latency value of PCH PCIE ★1024ns, 1ns, 32ns, 32768ns, Non Snoop Latency LTR Non Snoop Latency Multiplier of PCH PCIE. Multiplier 1048576ns, 33554432ns ★Disabled, Enabled Force LTR Override Force LTR Override for PCH PCIE. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 53 COM Express™ PCOM‐B645VGL R0 User Manual Disabled: LTR override values will not be forced. Enable: LTR override values will be forced and LTR messages from the device will be ignored. ★Disabled, Enabled LTR Lock PCIE LTR Configuration Lock Extra options PCI Express Root Port extra options. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 54 COM Express™ PCOM‐B645VGL R0 User Manual Extra options Feature Description Options Detect Non‐Compliance PCI Express Device. If enable, it will take more ★Disabled, Enabled Detect Non‐Compliance Device time at POST time. ★10 Prefetchable Memory Prefetchable Memory Range for this Root Bridge. ★1 Reserved Memory Alignment Reserved Memory Alignment (0 – 31 bits) ★1 Prefetchable Memory Alignment Prefetchable Memory Alighnment (0 – 31 bits) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 55 COM Express™ PCOM‐B645VGL R0 User Manual LAN Configuration Configuration OnBoard LAN device. Feature Description Options ★Host owned with pin muxed, PSE TSN GBE 0 Select ownership for GBE PSE owned with pin muxed, None ★SGMII 1 Gbps, SGMII 2.5 Gbps PSE TSN GBE 0 Link Speed PSE TSN GBE 0 Link Speed configuration. ★Enabled , Disabled WoL Enable/Disable PSE GBE WoL Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 56 COM Express™ PCOM‐B645VGL R0 User Manual SATA Configuration SATA Device Options Settings Feature Description Options ★Enabled , Disabled Port 0~1 Enable or Disable SATA Port ★Disabled, Enabled Hot Plug Designates this port as Hot Pluggable ★Hard Disk Drive, Identify the SATA port is connected to Solid State Drive or Hard Disk SATA Device Type Drive Solid State Drive Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 58 EFI application This is a workaround for OSes without XHCI hand‐off support. The XHCI ★Enabled , Disabled XHCI Hand‐off ownership change should be claimed by XHCI driver. USB Mass Storage Driver ★Enabled , Disabled Enable/Disable USB Mass Storage Driver Support Support Enable/Disable this USB Physical Connector (physical port). Once disabled, any ★Enabled ,Disabled USB 3.0 Port 0~1 USB devices plug into the connector will not be detected by BIOS or OS Enable/Disable this USB Physical Connector (physical port). Once disabled, any ★Enabled ,Disabled USB 2.0 Port 0~7 USB devices plug into the connector will not be detected by BIOS or OS ★20 sec , 1, 5, 10 USB transfer time‐out The time‐out value for Control, Bulk, and Interrupt transfers. ★20, 10, 30, 40 sec Device reset time‐out USB mass storage device Start Unit command time‐out. Maximum time the device will take before it properly reports itself to the Host Controller. ★Auto, Manual Device power‐up delay ‘Auto’ uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Device power‐up delay in ★5 Delay range is 1..40 seconds, in one second increments seconds Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 60 ★Enabled, Disabled SHA256 PCR Bank Enables or Disables SHA256 PCR Bank. Schedule an Operation for the Security Device. Note: Your Computer will ★None, TPM Clear Pending operation reboot during restart in order to change State of Security Device. ★Enabled, Disabled Platform Hierarchy Enables or Disables Platform Hierarchy. ★Enabled, Disabled Storage Hierarchy Enables or Disables Storage Hierarchy. ★Enabled, Disabled Endorsement Hierarchy Enables or Disables Endorsement Hierarchy. Select the TCG2 Spec Version Support. TPM2.0 UEFI Spec ★TCG_2, TCG_1_2 TCG_1_2: the Compatible mode for Win8/Win10. Version TCG_2: Support new TCG2 protocol and event format for Win10 or later. Physical Presence Spec Select to Tell O.S. to Support PPI Spec Version 1.2 or 1.3. Not some HCK tests ★1.3, 1.2 Version might not support 1.3. TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support ★Auto, TPM 1.2, TPM 2.0 Device Select to TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 61 COM Express™ PCOM‐B645VGL R0 User Manual Super IO Configuration System Super IO Chip Parameters. Feature Description Options ★Disabled, Enabled Watch Dog Timer Enable/Disable Watch Dog Timer Watch Dog Timer[Enable] ★Second, Minute Timer Unit Select Timer count unit of WDT ★20 Timer value Set WDT Timer value seconds/minutes Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 62 COM Express™ PCOM‐B645VGL R0 User Manual Serial Port 1 Configuration Set Parameters of Serial Port 1 Feature Description Options ★Enabled, Disabled Module Serial Port 1 Enable or Disable Serial Port (COM) ★Auto ,IO=3F8h; IRQ=4, IO=3F8h; IRQ=3,4,10,11 Change Settings Select an optimal settings for Super IO Device IO=2F8h; IRQ=3,4,10,11 IO=3E8h; IRQ=3,4,10,11 IO=2E8h; IRQ=3,4,10,11 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 63 COM Express™ PCOM‐B645VGL R0 User Manual Serial Port 2 Configuration Set Parameters of Serial Port 2 Feature Description Options ★Enabled, Disabled Serial Port 2 Enable or Disable Serial Port (COM) ★Auto ,IO=3E8h; IRQ=3, IO=3F8h; IRQ=3,4,10,11 Change Settings Select an optimal settings for Super IO Device IO=2F8h; IRQ=3,4,10,11 IO=3E8h; IRQ=3,4,10,11 IO=2E8h; IRQ=3,4,10,11 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 67 A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the num of 1’s in the data bits is even. Odd: ★None, Even, Odd, Mark, Space Parity parity bit is 0 if num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space parity bit is always 0. Mark and Space Parity do not allow for error detection. They can be used as an additional data bit. Stop bits indicate the end of a serial data packet. (A start bit indicates the ★1, 2 Stop Bits beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the ★None, Hardware RTS/CTS Flow Control data flow. Once the buffers are empty, a ‘start’ signal can be sent to re‐start the flow. Hardware flow control uses two wires to send start/stop signal. VT‐UTF8 Combo Key ★Enabled, Disabled Enable VT‐UTF8 Combination Key Support for ANSI / VT100 terminals Support With this mode enabled only text will be sent. This is to capture Terminal ★Disabled, Enabled Recorder Mode data. ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX, XTERMR6, SCO, Putty KeyPad Select Function Key and KeyPad on Putty. ESCN, VT400 Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 71: Security
Feature Description Options [Setup] check password when enter setup screen. [Power on] check ★Setup, Power on Password Check Mode password on every time system power on. Administrator Password Set Administrator Password Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 73 ★EFI Driver VGA Support If Disabled, all USB devices will NOT be available until after OS boot. If ★Full Initial, Partial Initial, USB Mass Storage and specific USB port/device will NOT be USB Support Partial Initial, available before OS boot. If Enabled, all USB devices will be available in OS Disabled and Post. ★Enabled, Disabled PS2 Devices Support If Disabled, PS2 devices will be skipped. ★Disabled, Enabled Network Stack Driver Support If Disabled, NetWork Stack Driver will be skipped. ★Disabled, Enabled Redirection Support If disable, Redirection function will be disabled. Hard Disk NVME UEFI AP: UEFI: Built‐in EFI Shell Boot Option # Sets the system boot order CD/DVD USB Device Network Disabled Hard Drive BBS Priorities Set the order of the legacy devices in this group. UEFI Application Boot Priorities Specifies the Boot Device Priority sequence from available UEFI Application Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 74: Save & Exit
COM Express™ PCOM‐B645VGL R0 User Manual 6.2.6 Save & Exit Feature Description Options Save Changes andReset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options. UEFI: Built‐in EFI Shell Reset the system after saving the changes. (Boot option filter: UEFI only) Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 75: Bios Update
COM Express™ PCOM‐B645VGL R0 User Manual 7. BIOS Update How to update the BIOS file of PCOM‐B645? Step1. Please visit web site of Portwell download center as below hyperlink https://www.portwell.com.tw/support‐center/download‐center/ Step2. Select “Search download” and type the keyword “PCOM‐B645”. Step3. Find the“BIOS “ page and download the ROM file and flash utility. Step4. Unzip file to bootable USB flash drive which can boot to SHELL mode. Then execute the “update.efi ”. It will start to update Step BIOS. NOTE: Once you use “update.efi” to update BIOS, it must be get into the SHELL MODE to update BIOS Step5. When you see the “FPT Operation Passed” message, which means the BIOS update processes finished. Please cut the AC power off and wait for 10seconds before powering on. Step6. When you see the “Programming success” message, which means the BIOS update processes finished. Please cut the AC power off and wait for 10 seconds before powering on . Please refer to the following steps in detail. Step 1. Prepare a USB DOK. Step 2. Unzip update file to the USB DOK. Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 76 ™ COM Express™ ...
Page 77 ™ COM Express™ ...
Page 78 COM Express™ PCOM‐B645VGL R0 User Manual Step 5. Under the UEFI shell, direct to your USB DOK, below is an example uses fs0. Then direct to the folder with updated file and type command: "update" and press enter. (BIOS File Update) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 80 COM Express™ PCOM‐B645VGL R0 User Manual Step 6. The updating process will start and you can see the updating progress. Once finished, please power off and restart the system. (BIOS updating progress) Copyright © PORTWELL 2020 PCOM-B645VGL ...
Page 82: Portwell Software Tool
COM Express™ PCOM‐B645VGL R0 User Manual 8. PORTWELL Software Tool 1.
Page 83: Industry Specifications
COM Express™ PCOM‐B645VGL R0 User Manual 9. Industry Specifications 9.1. Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC)http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0 http://www.serialata.org/ PCI Express Base Specification, Revision 2.0 https://www.pcisig.com/specifications Copyright © PORTWELL 2020 PCOM-B645VGL ...
