COM Express™

PORTWELL PCOM-B634VG User's Guide

COM Express™

PCOM-B634VG

User's Guide

R1.5

PCOM-B634VG User's Guide

Table of Contents

Need help?

Do you have a question about the PCOM-B634VG and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell PCOM-B634VG

Page 2 COM Express™ PORTWELL PCOM-B634VG User's Guide Revision History Rev. Note Date R1.0 Official release Apr.2016 R1.1 Revise support OS format. Apr.2016 Add circuit protection design and Type 2 compatible explanation. Replace F/W update photo. Add LPC I/O address. OS Drivers update...
Page 3: Table Of Contents
COM Express™ PORTWELL PCOM-B634VG User's Guide Contents Preface ..........................................8 1 Introduction ........................................11 2 Block Diagram ........................................12 3 Specifications ........................................13 3.1 PCOM-B634 Processor list .................................. 15 3.2 Supported Operating Systems ................................18 3.3 Windows OS driver ....................................19 3.4 Electrical Characteristics ..................................
Page 4 6.4 Boot .......................................... 54 6.5 Event Logs ......................................55 6.6 Save & Exit ......................................56 7 System Resources ......................................57 8 BIOS Update ........................................58 9 PORTWELL Software Tool ....................................66 10 Industry Specifications ....................................67 Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 5 Table 5 Electrical characteristics ........................................20 Table 6 Weight ..............................................24 Table 7 Environmental Specifications ......................................26 Table 8 Ordering Guide - PCOM-B634VG ..................................... 27 Table 9 Ordering Guide - Accessory ......................................27 Table 10 Signal Tables Terminology Descriptions ..................................31 Table 11 Pin out description ...........................................
Page 6 COM Express™ PORTWELL PCOM-B634VG User's Guide List of Figures Figure 1 Block Diagram ..........................................12 Figure 2 Power on sequence ......................................... 20 Figure 3 Circuit protection design ........................................21 Figure 4 Mechanical Dimensions - Top ......................................22 Figure 5 Mechanical Dimensions - Bottom ....................................23 Figure 6 Mechanical Dimensions - Assembly view ..................................
Page 8: Preface
This PCOM-B634VG User’s Guide provides information about the components, features, connectors and BIOS Setup menus available on the PCOM-B634VG. This document should be referred to when designing a COM Express™ application. The other reference documents that should be used include the following: ...
Page 9 PORTWELL products, regardless of the legal theory on which the claim is based, and even if PORTWELL has been advised of the possibility of such damages.
Page 10 PORTWELL PCOM-B634VG User's Guide Technical Support PORTWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at http://www.PORTWELL.com.tw/support/...
Page 11: Introduction

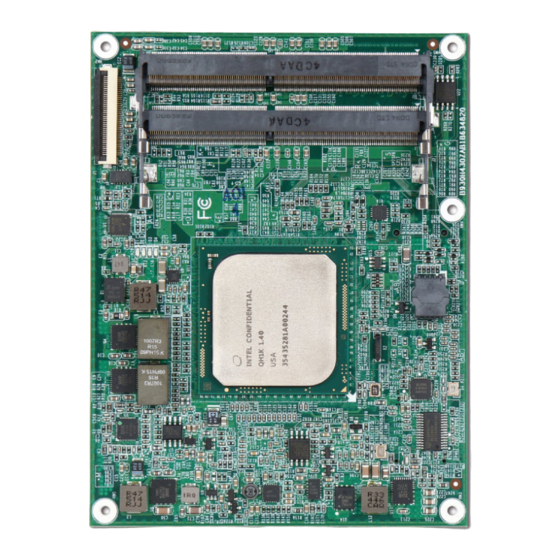

PORTWELL PCOM-B634VG User's Guide 1 Introduction PCOM-B634VG adopts Type 6 pin out definition and Basic 125mmX95mm form factor and complies with PICMG COM Express Rev2.1 Specification. PCOM-B634VG is designed with Intel(R) 5th Generation processor, code name Broadwell-DE series. PCOM-B634VG targets for Networking, Micro server applications. PCOM-B634VG, Portwell's first COM Express Type 6 module product with 10GbE LAN feature.
Page 13: Specifications
COM Express™ PORTWELL PCOM-B634VG User's Guide 3 Specifications  Product PCOM-B634VG  Form Factor COM Express™ standard pin out Type 6 Rev. 2.1 (Basic size 125 x 95mm / 4.92” x 3.74”). Processor  Intel® Xeon® Processor D1507  Intel® Xeon® Processor D1508 ...
Page 14: Table 1 Pcom-B634Vg Spec
COM Express™ PORTWELL PCOM-B634VG User's Guide  Security TPM (Option)  8 PCI Express Gen2 (5.0 GT/s) configuration x1,x2,x4  1 PCI Express x16 (PEG) up to Gen3 (8.0 GT/s) configuration x4, x8, x16 *Note1  7 x USB2.0 (480 Mbps) ...
Page 15: Pcom-B634 Processor List
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.1 PCOM-B634 Processor list PCOM-B634VG series PCOM-B634VG-D-1507 PCOM-B634VG-D1508 PCOM-B634VG-D1517 PCOM-B634VG-D1519 PCOM-B634VG-D1527 PCOM-B634VG-D1537 PCOM-B634VG-D1539 PCOM-B634VG-D1548 PCOM-B634VG-D1557 PCOM-B634VG-D1577 Ordering P/N AB1-3E10 AB1-3D99 AB1-3D98 AB1-3D97 AB1-3D96 AB1-3E09 AB1-3E00 AB1-3D95 AB1-3E41 AB1-3D94 Processor Intel® Pentium® D1507 Intel® Pentium® D1508 Intel®...
Page 16 COM Express™ PORTWELL PCOM-B634VG User's Guide PCOM-B634VG series PCOM-B634VG-D-1507 PCOM-B634VG-D1508 PCOM-B634VG-D1517 PCOM-B634VG-D1519 PCOM-B634VG-D1527 PCOM-B634VG-D1537 PCOM-B634VG-D1539 PCOM-B634VG-D1548 PCOM-B634VG-D1557 PCOM-B634VG-D1577 Ordering P/N AB1-3E10 AB1-3D99 AB1-3D98 AB1-3D97 AB1-3D96 AB1-3E09 AB1-3E00 AB1-3D95 AB1-3E41 AB1-3D94 Advanced Technologies Intel® Turbo Boost Technology Intel® Hyper-Threading Technology Intel® Virtualization Technology (VT-x) Intel®...
Page 17: Table 2 Pcom-B634 Processor List
COM Express™ PORTWELL PCOM-B634VG User's Guide Secure Key Trusted Execution Technology Execute Disable Bit OS Guard Table 2 PCOM-B634 Processor list Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 18: Supported Operating Systems
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.2 Supported Operating Systems The PCOM-B634VG supports the following operating systems. Vendor Operating System Supported Microsoft Windows 7 (32/64bit) Windows 8 (32/64bit) Windows 8.1 (32/64bit) Windows 10 (32/64bit) Microsoft Windows 2008 R2 SP1 Microsoft Windows 2012...
Page 19: Windows Os Driver
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.3 Windows OS driver Please download the drivers from Portwell download center website http://www.portwell.tw/support/download_center.php Drivers file name Supported Operating Systems 10GLAN_Win7_64 Windows Server 2008 R2 (64bit) Microsoft Windows 7 (64bit) Chipset_Win7_8_81_32_64 Microsoft Windows 7 (32/64bit) Microsoft Windows 8 (32/64bit) Microsoft Windows 8.1 (32/64bit)
Page 20: Electrical Characteristics
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.4 Electrical Characteristics Input voltage +12VDC (Nominal) +5VDC ~ +13VDC (Wide range) RTC Battery 2.3uA Power on mode AT Mode Table 5 Electrical characteristics PCOM-B634VG Power sequence Figure 2 Power on sequence Copyright © PORTWELL 2015...
Page 21: Figure 3 Circuit Protection Design
Circuit protection design PCOM-B634VG Type 6 is also compatible with COM Express Type 2 carrier, Schottky diode protection has been design on the COM Express module for Serial Port, FAN(PWMOUT & TACHIN), LID and SLEEP. Considerations must be taken while designing carrier board.
Page 24: Table 6 Weight
COM Express™ PORTWELL PCOM-B634VG User's Guide Figure 6 Mechanical Dimensions - Assembly view Net weight Module 80.0g +/- 2% Cooler (H/S+FAN) 441.0g +/- 2% Table 6 Weight Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 25: Sodimm Socket Design
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.6 3 SODIMM socket design PCOM-B634 has designed additional Memory SODIMM socket at the bottom, which supports up to DDR4 48GB capacity. Before inserting the DDR4 SODIMM memory, please refer to below SODIMM arrangement and note that, there are 2 SODIMM socket of channel 0, the CH0 SODIMM1 (the bottom one) works only if CH0 SDDIMM0 (the top one) is inserted.
Page 26: Environmental Specifications
COM Express™ PORTWELL PCOM-B634VG User's Guide 3.7 Environmental Specifications Storage Temperature -20°C ~85°C Operation Temperature -20°C ~+85°C (Processor dependent) Storage Humidity 0%~95% Operation Humidity 0%~95% Table 7 Environmental Specifications Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 27: Ordering Guide
Table 9 Ordering Guide - Accessory PCOM-C609 - PCOM-B634VG Evaluation carrier (EVA Board) PCOM-C609 is designed for functions verification of PCOM-B634VG, which 10GbE function pin is defined by Portwell. Please contact Portwell for detail PCOM-C609 User's Guide. Copyright © PORTWELL 2015...
Page 28: Heat Sink / Cooler
COM Express™ PORTWELL PCOM-B634VG User's Guide 4 Heat sink / Cooler Heat sink Dimensions Figure 8 Heat sink / cooler mechanical dimensions Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 30: Packaging
COM Express™ PORTWELL PCOM-B634VG User's Guide 4.2 Packaging Package Appearance Size Anti-Static bubble bag 180x135mm White Paper Box 210x151x40mm Shipping Box 595x300x195mm (10 pcs White paper box) Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 31: Signal Descriptions And Pin Out Tables
Table 10 Signal Tables Terminology Descriptions <Caution> 10GbE pin definition is not defined in COM Express specification rev2.0, below 10GbE pin out is defined by Portwell itself. Please contact Portwell for more information while designing your own carrier. Copyright © PORTWELL 2015...
Page 32 COM Express™ PORTWELL PCOM-B634VG User's Guide PCOM-B634 Pin out (Original Type 6 pin definition) Row A Row B Row C Row D GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) GBE0_MDI3- GBE0_ACT# GBE0_MDI3+ LPC_FRAME# USB_SSRX0- USB_SSTX0- GBE0_LINK100# LPC_AD0 USB_SSRX0+ USB_SSTX0+ GBE0_LINK1000# LPC_AD1 GBE0_MDI2- LPC_AD2...
Page 33 COM Express™ PORTWELL PCOM-B634VG User's Guide GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) SATA2_TX+ SATA3_TX+ PCIE_RX7+ PCIE_TX7+ SATA2_TX- SATA3_TX- PCIE_RX7- PCIE_TX7- LAN_I2C_SDA0_1P0V SUS_S5# PWR_OK DDI1_HPD (RSVD15) KX4_TX0_P1 LAN_I2C_SCL0_1P0V SATA2_RX+ SATA_RX+ (DDI1_PAIR4+) (RSVD15) KX4_TX0_N1 SATA2_RX- SATA_RX- DDI1_PAIR0+ (DDI1_PAIR4-) BATLOW# RSVD15 DDI1_PAIR0- (S)ATA_ACT# RSVD15 RSVD15...
Page 34 COM Express™ PORTWELL PCOM-B634VG User's Guide GND(FIXED) GND(FIXED) GND(FIXED) KX4_TX1_P2 SEPP0_KR_TX0_P USB2- USB3- (DDI3_PAIR1+) (DDI2_PAIR1+) KX4_TX1_N2 SEPP0_KR_TX0_N USB2+ USB3+ (DDI3_PAIR1-) (DDI2_PAIR1-) GND(FIXED) USB_2_3_OC# USB_0_1_OC# (DDI2_HPD) GND(FIXED) USB0- USB1- RSVD15 (RSVD15) KX4_TX1_P1 SEPP0_KR_RX0_N USB0+ USB1+ (DDI3_PAIR2+) (DDI2_PAIR2+) KX4_TX1_N1 SEPP0_KR_RX0_P VCC_RTC EXCD1_PERST#...
Page 35 COM Express™ PORTWELL PCOM-B634VG User's Guide PCIE_TX2+ PCIE_RX2+ PEG_RX3+ PEG_TX3+ PCIE_TX2- PCIE_RX2- PEG_RX3- PEG_TX3- GPI1 GPO3 RSVD 15 RSVD 15 PCIE_TX1+ PCIE_RX1+ RSVD 15 RSVD 15 PCIE_TX1- PCIE_RX1- PEG_RX4+ PEG_TX4+ WAKE0# PEG_RX4- PEG_TX4- GPI2 WAKE1# RSVD 15 PCIE_TX0+ PCIE_RX0+ PEG_RX5+...
Page 36 COM Express™ PORTWELL PCOM-B634VG User's Guide RSVD 15 RSVD 15 (LVDS_I2C_CK) (LVDS_BKLT_CTRL) VCC_5V_SBY (LVDS_I2C_DAT) GPI3 VCC_5V_SBY PEG_RX10+ PEG_TX10+ VCC_5V_SBY PEG_RX10- PEG_TX10- (RSVD15) VCC_5V_SBY GND(FIXED) GND(FIXED) (eDP_HDP) PCIE_CLK_REF+ BIOS_DIS1# PEG_RX11+ PEG_TX11+ PCIE_CLK_REF- VGA_RED PEG_RX11- PEG_TX11- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) SPI_POWER VGA_GRN...
Page 37: Table 11 Pin Out Description
COM Express™ PORTWELL PCOM-B634VG User's Guide A101 SER1_TX B101 FAN_PWNOUT C101 PEG_RX15+ D101 PEG_TX15+ A102 B102 C102 D102 SER1_RX FAN_TACHIN PEG_RX15- PEG_TX15- A103 B103 C103 D103 LID# SLEEP# A104 VCC_12V B104 VCC_12V C104 VCC_12V D104 VCC_12V A105 VCC_12V B105 VCC_12V...
Page 38: Bios Setup Items
6 BIOS Setup Items PCOM-B634VG is equipped with the AMI BIOS stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods.
Page 39: Entering Setup -- Launch System Setup
COM Express™ PORTWELL PCOM-B634VG User's Guide 6.1 Entering Setup -- Launch System Setup Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <Del> key will enter BIOS setup screen.
Page 57: System Resources
COM Express™ PORTWELL PCOM-B634VG User's Guide 7 System Resources Device I/O Address Note Embedded Controller (ITE8528) 0x6E / 0x6F EC Address 0x62 / 0x66 EC ACPI CMD Port 0x200 / 0x201 EC BRAM Port for I2C function 0x1300~0x13FF EC LPC IO Space...
Page 58: Bios Update
COM Express™ PORTWELL PCOM-B634VG User's Guide 8 BIOS Update BIOS/EC DOS Update SOP process Step 1. Create a DOS USB DOK. (Must be FAT or FAT32 format) Step 2. Unzip update file to the DOS USB DOK. Copyright © PORTWELL 2015...
Page 59 COM Express™ PORTWELL PCOM-B634VG User's Guide Step 3. Plug the DOS USB DOK into the target system and boot from the DOS USB DOK. Step 4. Under the update file folder, type command : "update" and press enter. Copyright © PORTWELL 2015...
Page 60 COM Express™ PORTWELL PCOM-B634VG User's Guide Step 5. The update process will start and you can see the updating progress. Once finished, please power off and restart the system. <End of BIOS/EC DOS update process> Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 61 COM Express™ PORTWELL PCOM-B634VG User's Guide BIOS/EC UEFI Update SOP process Step 1. Prepare a USB DOK. (Must be FAT or FAT32 format) Step 2. Unzip update file to the USB DOK. Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 64 COM Express™ PORTWELL PCOM-B634VG User's Guide Step 5. Under the UEFI shell, direct to your USB DOK, below is an example uses fs0. Then direct to the folder with updated file and type command : "update" and press enter. Copyright © PORTWELL 2015...
Page 65 COM Express™ PORTWELL PCOM-B634VG User's Guide Step 6. The updating process will start and you can see the updating progress. Once finished, please power off and restart the system. <End of BIOS/EC UEFI update process> Copyright © PORTWELL 2015 PCOM-B634VG User's Guide...
Page 66: Portwell Software Tool
Windows and Linux OS. For more information please contact PORTWELL. PORTWELL BIOS web Tool (PBT) The PORTWELL BIOS web Tool (PBT) is a brand new on-line utility innovated by PORTWELL. PBT now is available for PORTWELL's premiere customers who are able to...
Page 67: Industry Specifications
COM Express™ PORTWELL PCOM-B634VG User's Guide 10 Industry Specifications The list below provides links to industry specifications that apply to PORTWELL modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
