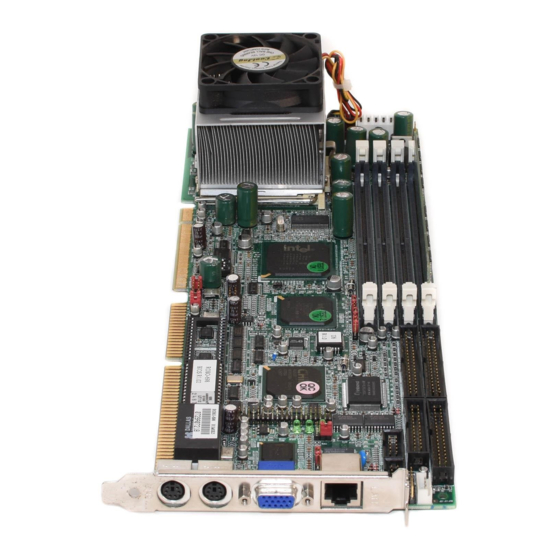

1 Backplane Setup 1 Backplane Setup 1 Backplane Setup Backplane ROBO-698 is a full-sized SBC, and therefore is able to run on any PICMG backplane, active or passive. ATX power ROBO-698 is designed to support ATX powering. Please refer to the following instruction to apply ATX power on your ROBO-698 and backplane.
Page 60
Step2: Connect 20-pin power cable of the ATX POWER with the CN7 (ATX POWER CONNECTOR,20-pin) connector on the backplane. The CN7 is located on the upper-right side of the backplane with white color. Step3: Use a 4-pin power cable to connect the CN4 (ATX P/S CONTROL CONNECTOR,4-pin) connector on the backplane.
Page 61
Step4: Please find the J10 4-pin header on the top-right part of ROBO-698 in white color. You will also see a mark with “J10” at the left bottom corner of J10 header. Connect the 4-pin power control cable with this J10 header.
Page 62
Please move jumper JP3 to 1-2 short (support ATX function). Q : How can I build up an AT system using ATX power supply A : Do not forget to move JP3 of ROBO-698 back to 2-3 short (support AT function).
A: There are thousands of different reasons to produce this power on failure. Check ROBO-698 jumper JP3. For ATX power supply or AT power supply used for AT system, JP3 needs to be at 1-2. Otherwise, it needs to be at 2-3.
To make sure that you have a successful start with ROBO-698, it is recommended, when going with the boot-up sequence, to hit “DEL” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.
Page 65
Please check in the BIOS setting that the devices or ports that you need are not disabled. These include the floppy drive, COM1/COM2 ports, parallel port, USB ports, external cache, on-board VGA and Ethernet. It is also very common that users would like to disable a certain device/port to release IRQ resource.
Page 66
By default, any Windows OS starts with 640 x 480 by 16 colors display. Please load in the display driver provided in ROBO-698 product CDROM to maximize the VGA performance. If you are using a monitor that Windows cannot identify, you will also need to set, in the display setup menu, a system monitor to correctly retrieve display output.
Page 67
95/98. Special familiarity and care are required to come out with a successful installation. Note Please visit us at http://www.portwell.com for additional technical information that is not covered in this manual.
