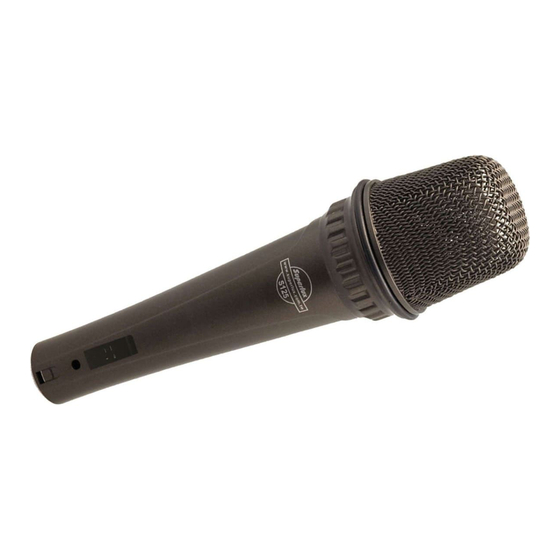

- Page 1 S125 1/2" TRUE CONDENSER VOCAL MICROPHONE Contact Marketing and sales Goang-Fann Co., Ltd. +886-2-26931323 sales@superlux.com.tw support@superlux.com.tw Manufacturing & logistics Superlux Enterprise Development ( Shanghai ) Co., Ltd. English...
- Page 2 It provides very fine detail resolu- tion, that brings out every details the artist performed. With switchable -10 dB pad, the S125 can also handle high SPL sound sources. Switchable 3rd order low cut filter cut out those un-wanted stage noises for clean sound even in noisy environment.
- Page 3 DIMENSIONS Unit:mm / in. SPECIFICATIONS Type True condenser, Ø1/2" (Ø12.7mm) Polar Pattern Cardioid Frequency Response 20-20,000Hz Low Frequency Filter 150Hz (18 dB/oct) -10 dB Sensitivity -45 dBV/Pa (5.6 mV/Pa) Output Impedance 250 Ω Min. Load Impedance 1,000 Ω S/N Ratio 76 dB Equivalent Output Noise 18 dB...
- Page 4 S125 FREQUENCY RESPONSE (CARDIOID) S125 USING A HANDHELD MICROPHONE For best signal to noise ratio, distance from the handheld micro- phone to the sound source shall be as short as possible. For higher gain before feedback and lowest background noise, the microphone shall be pointed directly to the sound source.
- Page 5 KNOWING YOUR MICROPHONE Type of transducer Condenser With an extremely light weight diaphragm, it is very sensitive to sound. Very small versions are available for hidden applications. High performance condenser microphones are regarded as standard equipment in recording studios for extreme detail capturing. They op- erate with phantom or battery power.
- Page 6 Enterprise, request by distributor without authorized, or the serial number sticker on Superlux product is unidentified, modified, or removed. All repair of Superlux products can only accept from re- pair centre, distributor or agent which authorized by Superlux. Un- authorized repair, maintenance and modification will not receive relevant warranty and will be excluded in the warranty.
