www.keyestudio.com

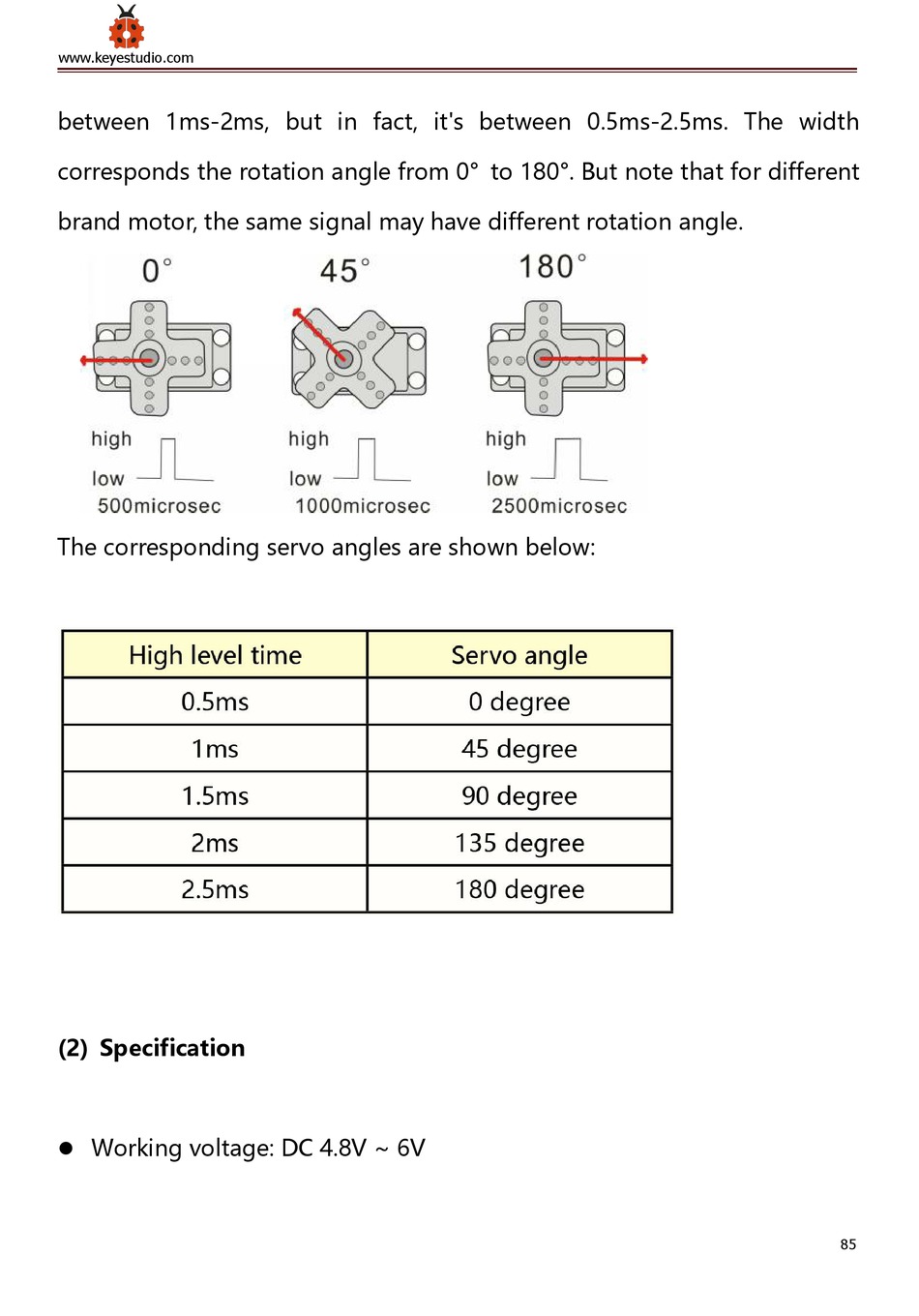

between 1ms-2ms, but in fact, it's between 0.5ms-2.5ms. The width
corresponds the rotation angle from 0° to 180°. But note that for different
brand motor, the same signal may have different rotation angle.
The corresponding servo angles are shown below:
(2) Specification
Working voltage: DC 4.8V ~ 6V
85
