peerless-AV DS-LEDTK Series Manual

Hide thumbs Also See for DS-LEDTK Series:

Advertisement

Quick Links

Download this manual
DS-LEDTK Series
ENG
*Actual configuration may vary
1
2020-07-13
#:146-9054-2
(2020-08-03)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-LEDTK Series and is the answer not in the manual?

Questions and answers

Related Manuals for peerless-AV DS-LEDTK Series

Summary of Contents for peerless-AV DS-LEDTK Series

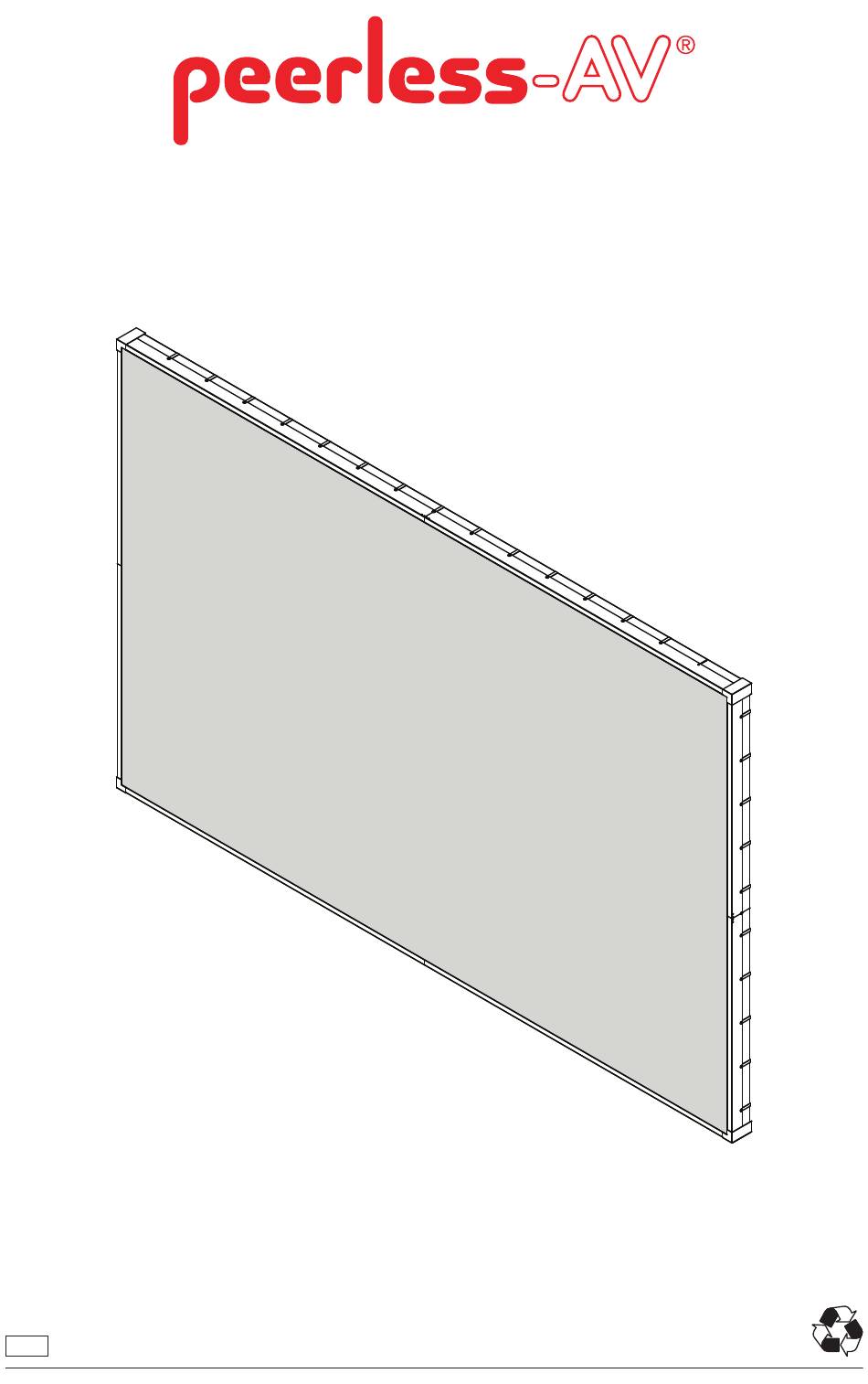

  • Page 1 DS-LEDTK Series *Actual configuration may vary 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
  • Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 5/32" (4mm) +1/2 3/8" (10mm) 1/4" (6mm) 2020-07-13 #:146-9054-2 (2020-08-03)

  • Page 4: Parts List

    Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A solid cover B perforated cover C solid wall bracket D wall-side bracket 147-1859 E corner cover assembly 147-1876 F nut bar 147-T1881 G wall-side bracket spacer 147-T1879 H solid wall bracket spacer 147-T1880...
  • Page 5 wall-side bracket solid wall bracket spacer spacer outer cutting jig wall plate shim #14-10 x 1.75 wood screw inner cutting jig 1/4-20 x 12mm M3 x 8mm 1/4-20 x 25mm 1/4-20 x 1/2 vinyl sticker toggler S (1) #8-18 X 3/4" 4mm allen wrench 2020-07-13...
  • Page 6 Follow steps for solid or perforated trim kits. Alternate steps for Unilumin UpanelS sides with bump-outs start on page 22. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 7 Measure video wall dimensions. x" y" Mark cutting line on wall plates and covers. Do not join covers until installing covers to the wall. x" Uncut edges must y" form inside seam. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 8 Optional: Clamp or fasten cutting fixture to side of cover being discarded. 1/4" (6mm) R (4) R (4) Discard Discard 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 9 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
  • Page 10 Install using wood screws provided. Use spacer to set final position of wall bracket. 3/8" (10mm) Optional shim for leveling. Maximum 80 in. • lb (9 N.M.). 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 11 Place wall plate cover over wall plate. Slide back until flush with front of video wall. Attach covers with nut bar inside cover. Displays not shown for clarity. N (4) 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 12 Attach tooglers loosely, one at a time.Then, Use screwdriver to hold toggler in place while tighten all. Displays not shown for clarity. tightening toggler screws. 10-1 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 13 To begin installing perforated trim, create guiding line around unit using spacer provided. Use end without notch. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 14 Measure video wall dimensions. x" y" Mark cutting line on covers. Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment. x" Leave right edge uncut Leave top edge uncut y"...
  • Page 15 Optional: Clamp or fasten cutting fixture to side of cover being discarded. 1/4" (6mm) Discard R (2) 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 16 Align bottom of spacer cutout and horizontal notch with guiding lines. Align bottom of spacer cutout and vertical notch with guiding lines. horizontal notch bottom cutout vertical notch bottom cutout For 5 ft. covers, install first bracket in the middle For 5 ft.
  • Page 17 Keep wallplates level using spacer. Install every 12" with wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 18 Place top wall plate. Slide back until flush with front of video wall. Secure with hardware. Optional shim for leveling. Attach covers with nut bar inside cover. Displays not shown for clarity. N (4) 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 19 10-1 10-2 Place corner cover against Slide corner cutting fixture wall and mark cutting line. into place and clamp on side of cover being discarded. O (4) 10-3 Cut excess corner cover off. Do not clamp fixture on wrong side of cutting line. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 20 10-4 Remove sharp edges of corner cover by filing. Remove adhesive backing. 10-5 10-6 Clean surfaces before applying VHB. Attach (4) corner covers with VHB. E (4) 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 21 Alternate steps for Unilumin UpanelS sides with bump-outs To begin installing solid trim on Unilumin UpanelS edges with bump- outs, create guiding line around unit using spacer provided. Use end without notch. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 22 Measure to the pixel, not bump-outs. x" Measure video wall dimensions x" y" y" Align wall plates with display guiding lines. Mark mounting holes. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 23 Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws. 1.25" 1.25" Top View 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 24 To begin installing perforated trim on Unilumin UpanelS edges with bump-outs, create guiding line around unit using spacer provided. Use end without notch. 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 25 Measure to the pixel, not bump-outs. x" Measure video wall dimensions x" y" y" 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 26 To avoid the display bump-outs, align vertical To avoid the display bump-outs, align vertical and horizontal notch with guiding lines. and horizontal notch with guiding lines. vertical cutout horizontal notch vertical notch horizontal notch For 5 ft. covers, install first bracket in the middle For 5 ft.
  • Page 27 Keep wallplates level using spacer. Install every 12" with wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2020-07-13 #:146-9054-2 (2020-08-03)
  • Page 28 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
