Machine description – quick overview
4
4.1
Front view
Item Symbol
1
2
3
4
5
6
099-008268-EW501
29.06.2017
Machine description – quick overview
Description
0
Tension closure
Connection between the add-on module and the welding machine
Coolant tank cap
Coolant tank
Cooling air inlet
Machine feet
Automatic cut-out of coolant pump key button
press to reset a triggered fuse

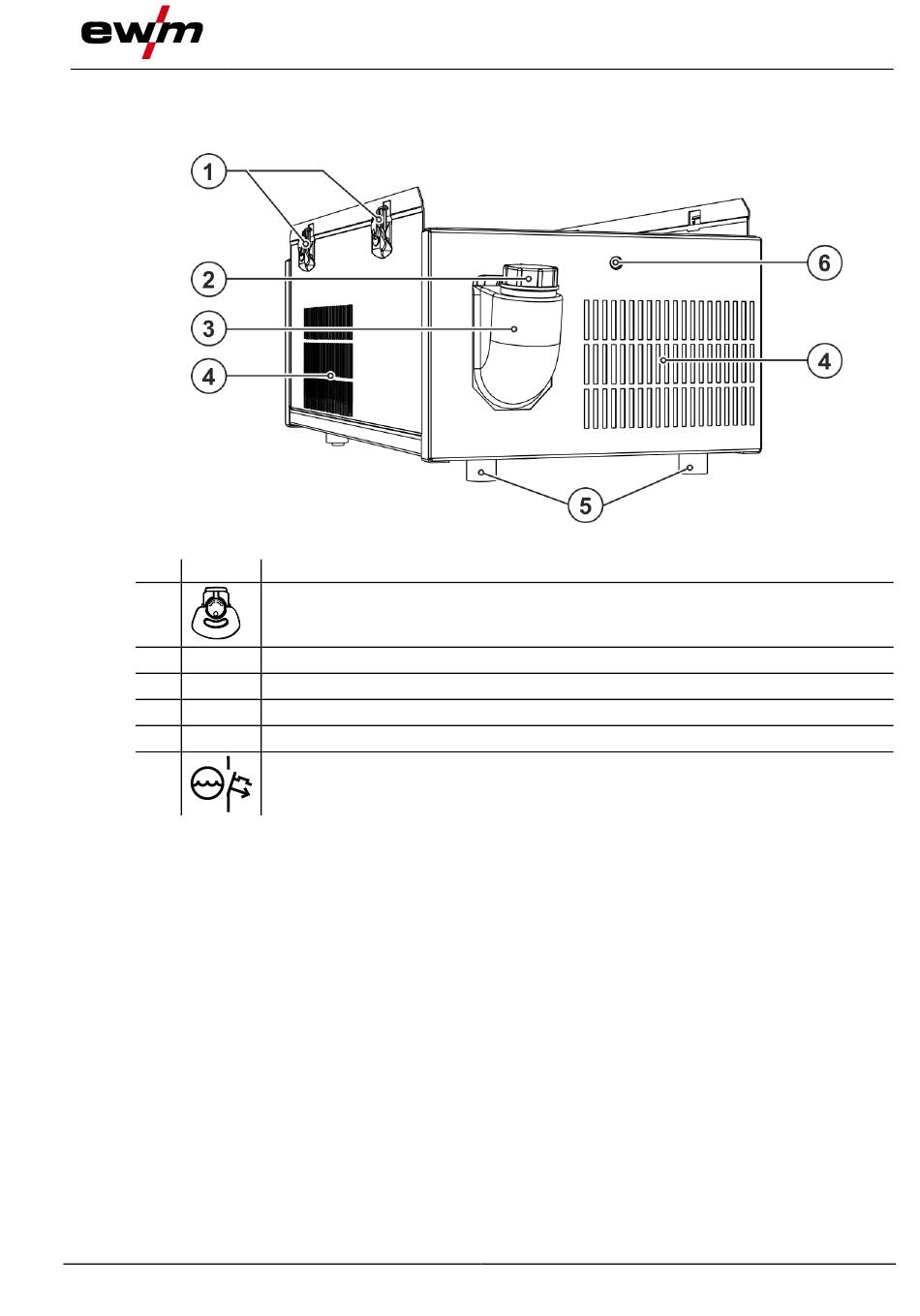

Figure 4-1
Front view
